ATEN HDMI SDI Converter

Name: ATEN HDMI SDI Converter
Brand: ATEN
SKU: VC840
Price: 233.78 GBP
Availability: InStock

£233.78 GBP

£233.78 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Professional HDMI to SDI Conversion

In stock, 4 units

EAN: 4719264641725

SKU: VC840

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Real-time HDMI to 3G/HD/SD-SDI signal conversion
100% digital conversion with no signal loss
Dual low-jitter SDI outputs for dual display
Automatic SDI signal detection
SDI reclocking for extended transmission distance
Selectable EDID modes with learning function
Embedded audio extraction with analog and digital outputs
Ideal for broadcast, monitoring, and AV production environments

Box Content

1 x ATEN VC840 HDMI to 3G-SDI/Audio Converter
1 x Power Adapter
1 x User Instructions / Quick Start Guide

Documents

Datasheet

Technical Features

Video Input: 1 x HDMI Type-A Female
Video Output: 2 x SDI (BNC Female)
SDI Formats: 3G-SDI, HD-SDI, SD-SDI
Max Resolution: Up to 2048 x 1080
Audio Output: Analog Stereo (RCA) & Digital Coaxial (RCA)
Audio Support: Up to 8 channels @ 48 kHz
Transmission Distance: 3G-SDI 90m / HD-SDI 150m / SD-SDI 300m
Power Input: DC Power Adapter
Housing: Metal enclosure
Operating Temperature: 0–40°C

ATEN HDMI SDI Converter

£233.78 GBP

£233.78 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

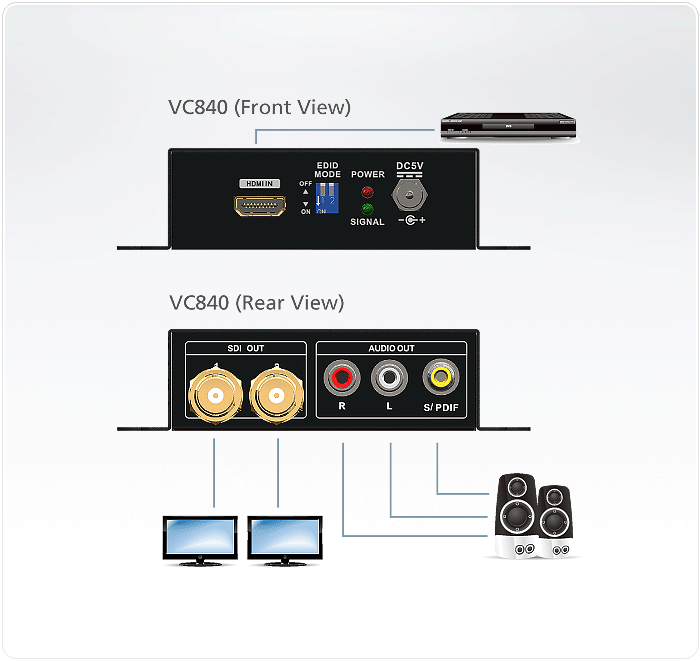

The ATEN VC840 HDMI to 3G-SDI/Audio Converter enables real-time conversion of HDMI video and audio signals into professional SDI formats, making it ideal for broadcasting, live production, and monitoring applications. The device performs fully digital signal conversion, ensuring zero signal degradation for both audio and video transmission. Equipped with dual low-jitter SDI outputs, it supports dual display or extended monitoring setups. The converter also provides analog stereo and coaxial digital audio extraction for flexible audio integration. With automatic signal detection, EDID learning functionality, and SDI reclocking for long-distance transmission, the VC840 ensures stable performance in demanding AV workflows.
