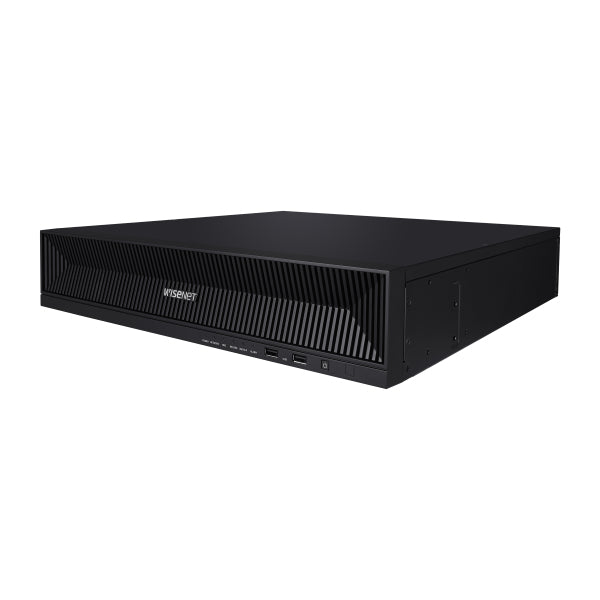

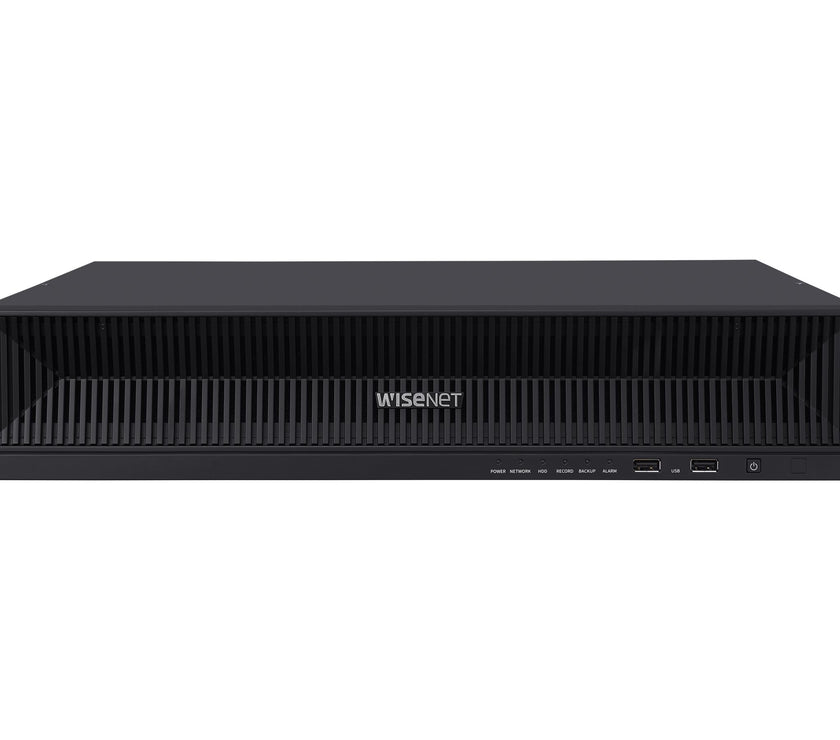

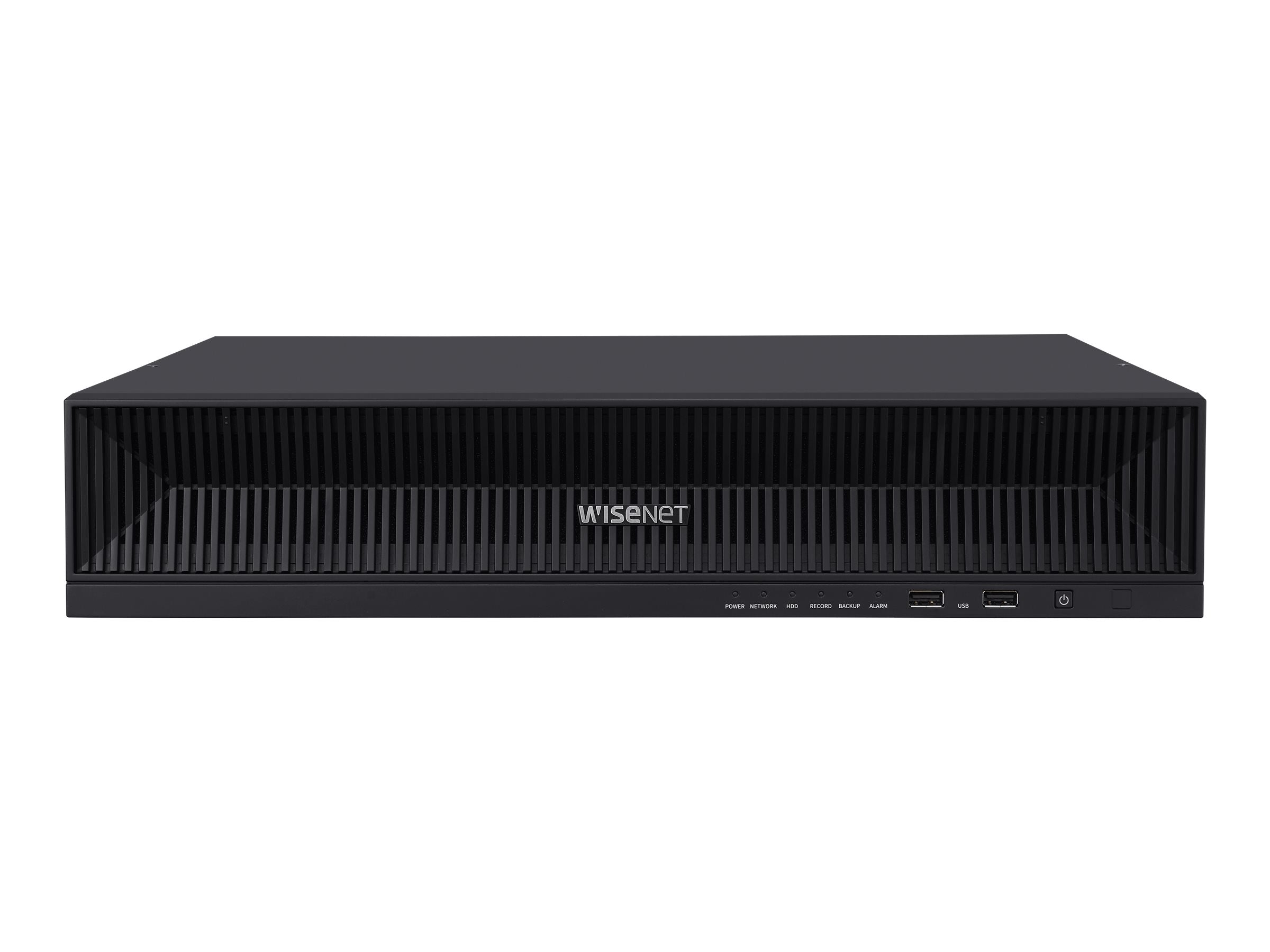

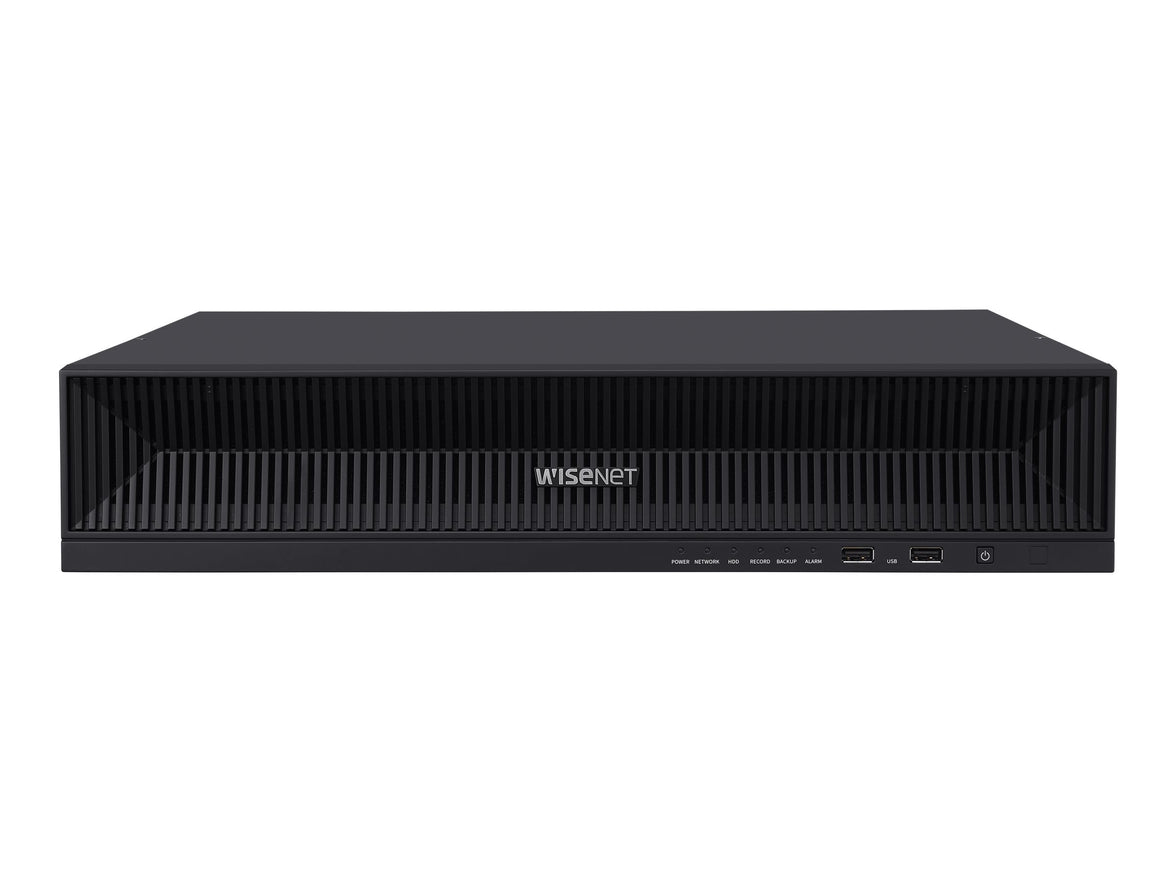

Hanwha XRN-1620SB1 network video recorder

Name: Hanwha XRN-1620SB1 network video recorder
Brand: Hanwha
SKU: XRN-1620SB1
Price: 847.9 GBP
Availability: OutOfStock

£847.90 GBP

£847.90 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

Up to 24TB storage
Wisestream II compression technology

Out of stock

EAN: 8801089195760

SKU: XRN-1620SB1

Vendor: Hanwha

Order within xx hours for delivery on

Performance

Video input channels	16 channels
Alarm input channels	4
Alarm output channels	2
Maximum resolution	3840 x 2160 pixels
Video codecs	H.265, H.264, MJPEG
Supported network protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
Audio codecs	G.711, G.726, AAC
PTZ control	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Audio system	2-way
Supported resolutions	3840 x 2160, 1920x1080
Networking standards	IEEE 802.3af, IEEE 802.3at
Output bandwidth	32 Mbit/s
Input bandwidth	140 Mbit/s

Wireless LAN features

Wi-Fi	No

Storage

Number of HDDs supported	4
Maximum storage capacity	24 TB
HDD interface	SATA, SATA II, SATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports	18
Power over Ethernet (PoE)	Yes
VGA (D-Sub) output ports	1
HDMI output	Yes
USB 2.0 ports quantity	2
Audio RCA outputs	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Power over Ethernet (PoE) ports quantity	16
HDMI ports quantity	1

Features

LED indicators	Yes
Reset button	Yes
Product colour	Black

Power

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	310 W
Total Power over Ethernet (PoE) budget	200 W
Power over Ethernet (PoE) power per port	30 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85%

Weight & dimensions

Width	440 mm
Depth	428.4 mm
Height	89.8 mm
Weight	5.76 kg

Hanwha XRN-1620SB1 network video recorder

£847.90 GBP

£847.90 GBP ~~Regular price:~~

(VAT Excl.)

Overview

Featuring a built-in PoE switch and simple installation, this NVR is ideal for smaller CCTV systems with up to 16 cameras. Integrated HDMI and VGA connections allow dual monitors to be connected for a standalone recording solution.
