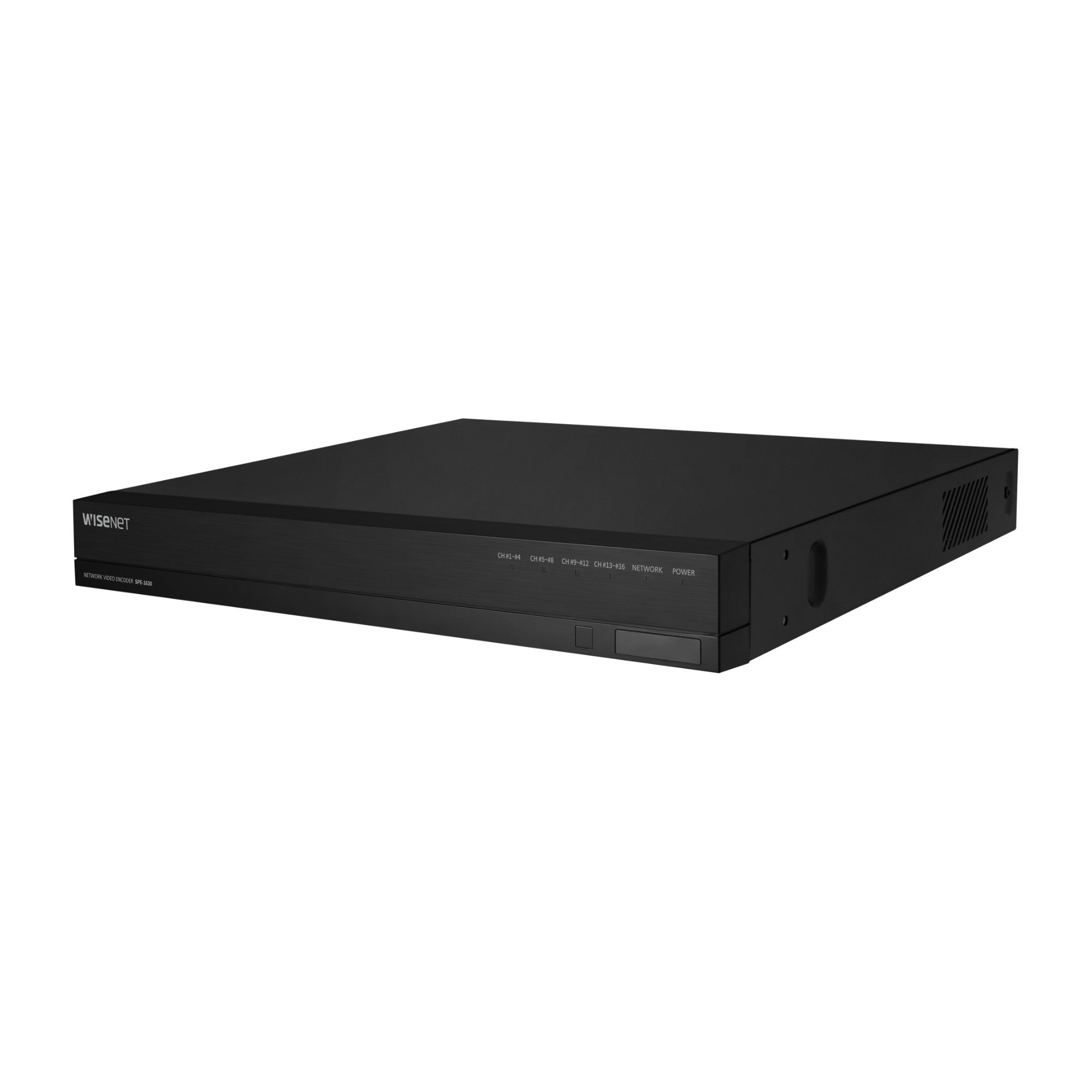

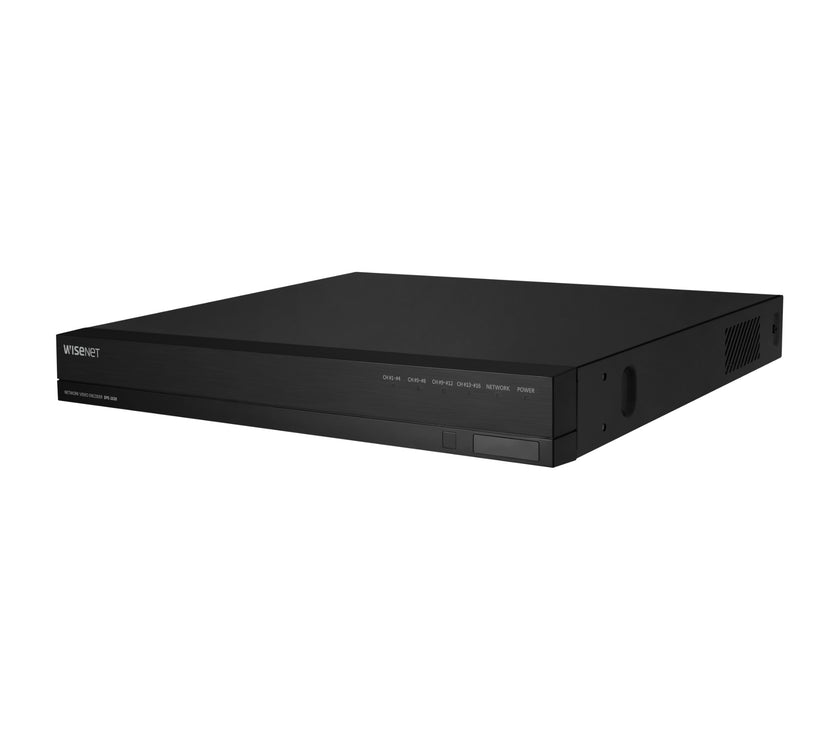

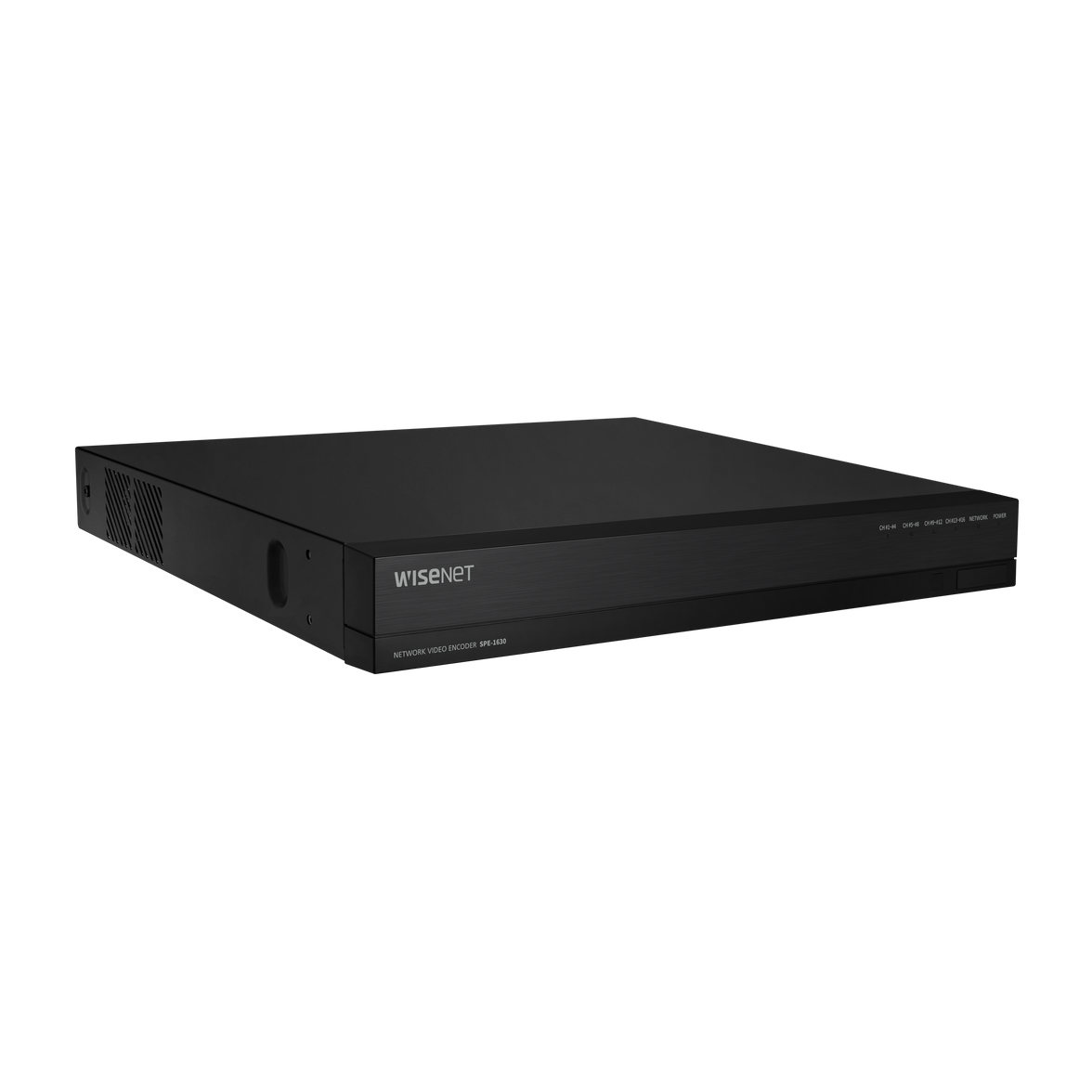

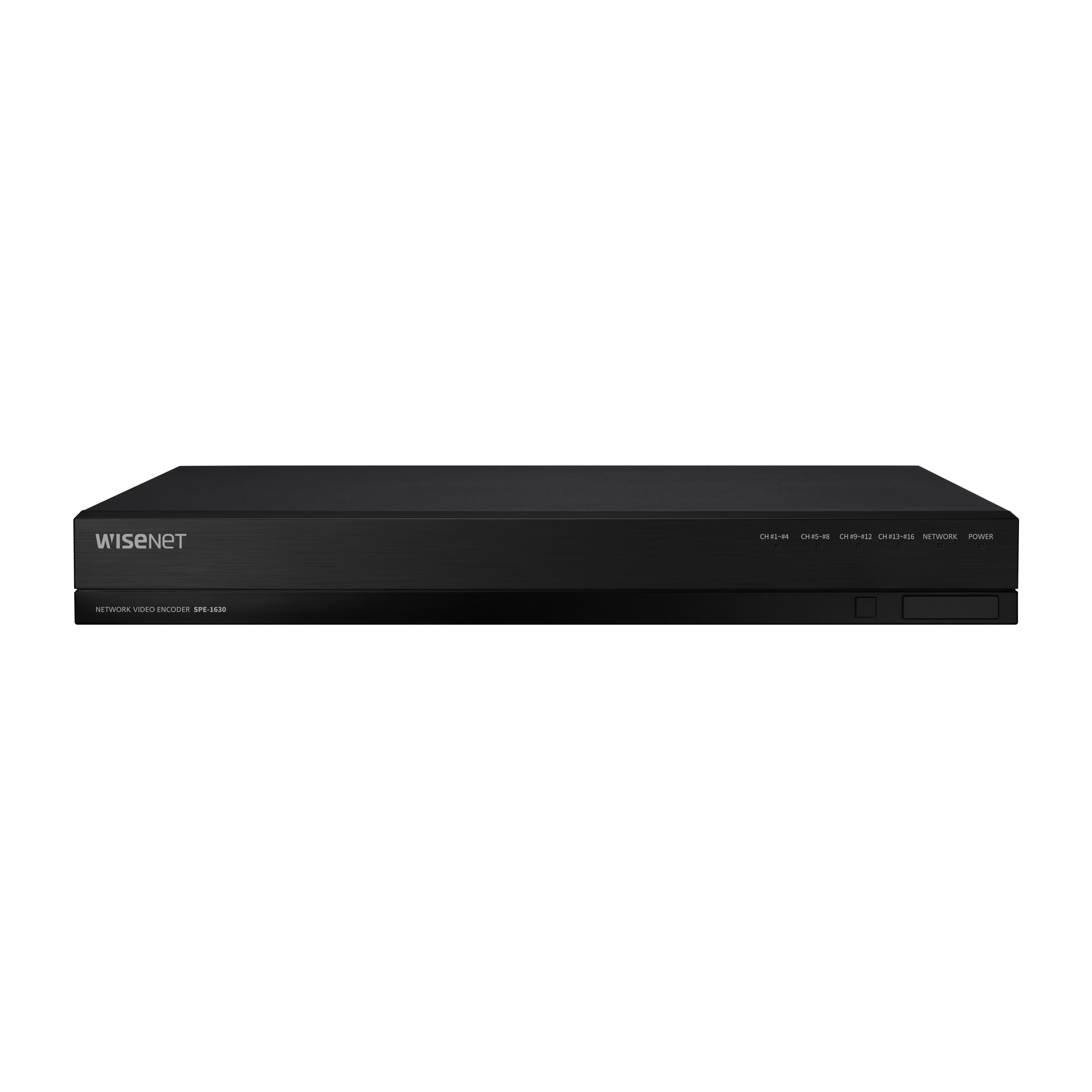

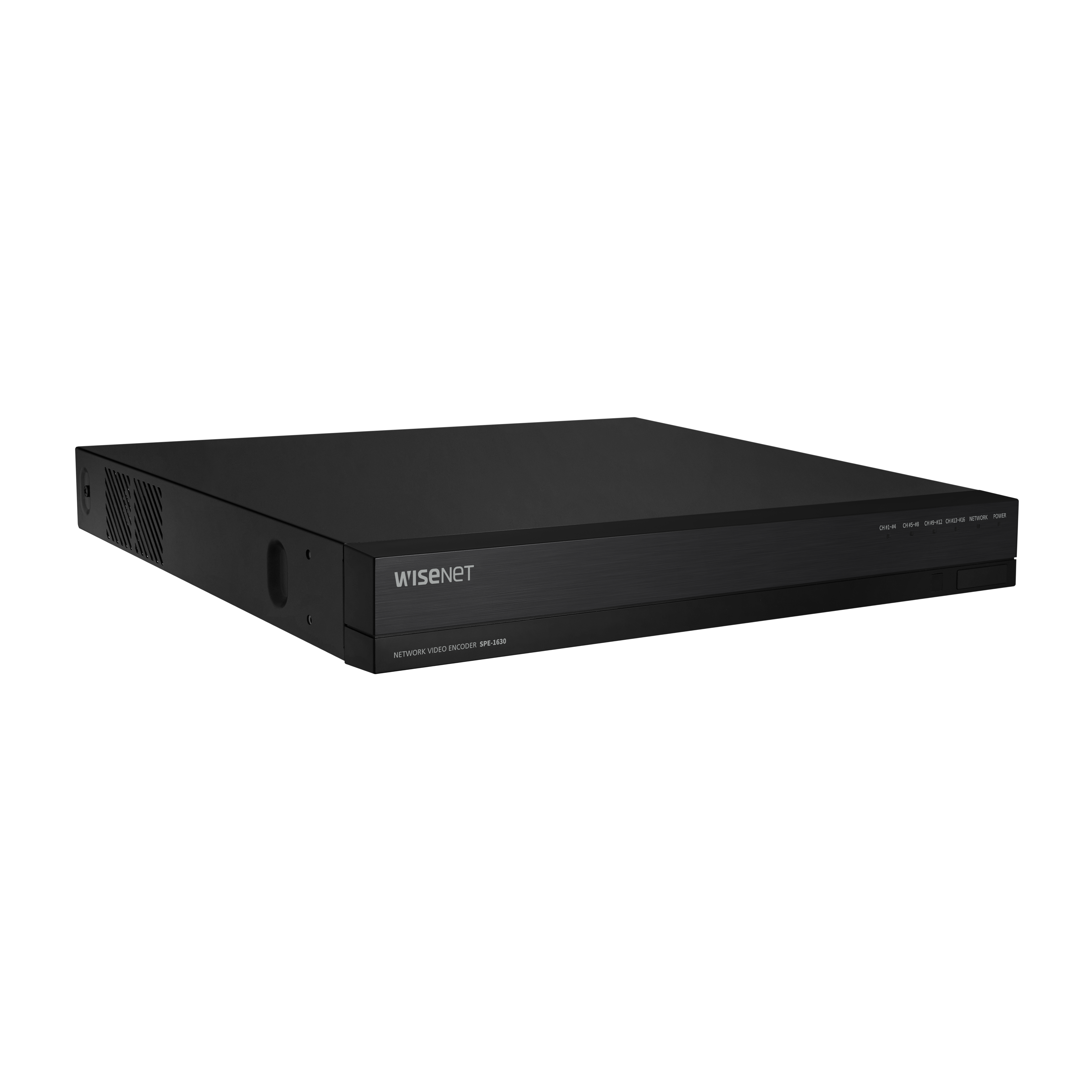

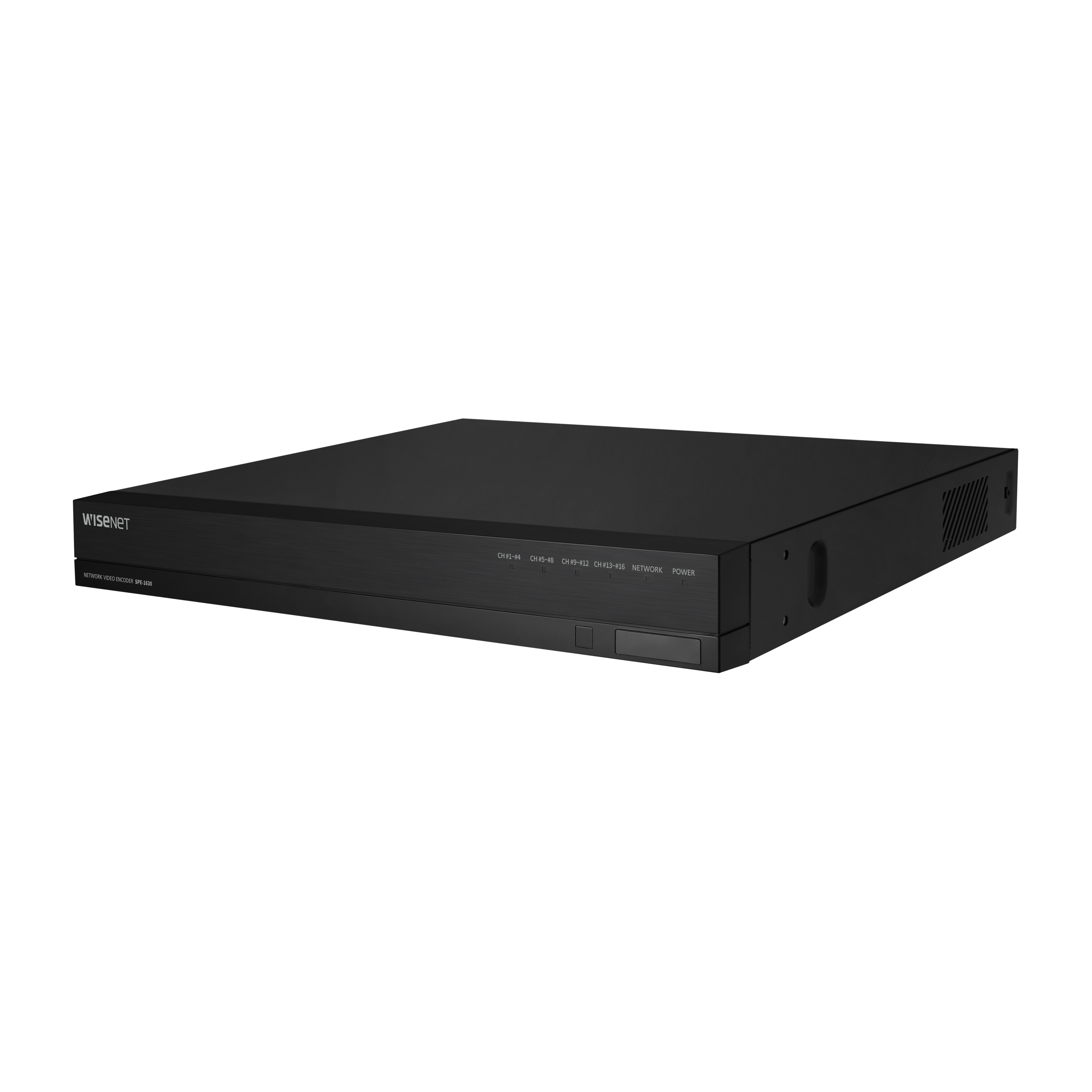

Hanwha SPE-1630 video servers/encoder 2560 x 1920 pixels 30 fps

Name: Hanwha SPE-1630 video servers/encoder 2560 x 1920 pixels 30 fps
Brand: Hanwha
SKU: SPE-1630
Price: 631.6 GBP
Availability: OutOfStock

£631.60 GBP

£631.60 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

ONVIF profile S support
HDMI video

Out of stock

EAN: 8801089218407

SKU: SPE-1630

Vendor: Hanwha

Order within xx hours for delivery on

Product Specification

Motion Detection: Off / On
Privacy Masking: Off / On (4 rectangular zones)
De-Interlacing: Supported
Alarm I/O: 16 Input / 4 Output
Alarm Trigger: Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect
Alarm Events: File Upload via FTP, E-mail
Audio I/O: 4 Line Input / 1 Line Output (1 NO/COM/NC, 3 NO/COM)
OSD: Title
Remote Control Interface: 1 EA RS-485 (Half Duplex)
RS-485 Protocol: SAMSUNG-T, PELCO-P/D
Coaxial Control: CVBS (Pelco-C), AHD, TVI, CVI

Box Content

Hanwha vision SPE-1630

Documents

Datasheet

Technical Features

Camera Resolution Support: Up to 5MP
Supported Protocols: AHD, CVI, TVI, CVBS (Auto detection)
Frame Rates: 5MP@12fps, 4MP@15fps, 2MP@30fps
PTZ Control: RS-485 interface & coaxial control
Codec Support: H.265, H.264, MJPEG with enhanced video encoding for lower bandwidth and storage
ONVIF Support: Profile S
HDMI Output: For 16 camera view
Alarm & Audio I/O: Supported
Installation: Rack mount brackets included
Multiple Streaming: Up to 3 profiles per channel
Ethernet: 1 RJ-45 10/100/1000 Base-T
Compliance: NDAA / FCC Compliant

Hanwha SPE-1630 video servers/encoder 2560 x 1920 pixels 30 fps

£631.60 GBP

£631.60 GBP ~~Regular price:~~

(VAT Excl.)

Overview

The Hanwha Vision SPE-1630 is a 16-channel network video encoder that converts analog CCTV (AHD, CVI, TVI, CVBS) signals to digital IP streams, allowing use of old cameras with new systems up to 5MP resolution, featuring H.265/H.264/MJPEG compression, multiple streams, HDMI output for local viewing, alarm I/O, and PTZ control, ideal for upgrading analog systems to IP without full replacement.
