HANWHA PNM-C16083RVQ

HANWHA PNM-C16083RVQ

£1,706.88 GBP
Sale price: £1,706.88 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.

Four Views. One Camera.

In stock, 3 units
EAN: 8801089223128
SKU: PNM-C16083RVQ
Vendor: HANWHA VISION
Order within xx hours for delivery on
Quantity
  • Product Type: AI Multi-Directional Network Dome Camera
  • Brand: Hanwha Vision
  • Model: PNM-C16083RVQ
  • Total Resolution: 16MP (4MP × 4 Sensors)
  • Image Sensor: 1/2.8" CMOS (x4)
  • Maximum Resolution: 2592 × 1520 per channel
  • Max Frame Rate: Up to 30fps
  • Lens: 3.3 ~ 5.7mm Motorized Varifocal (1.7x Zoom)
  • Field of View: H 100°–53°, V 54°–30°
  • IR Night Vision: Up to 15m (WiseIR)
  • Video Compression: H.265 / H.264 / MJPEG
  • Wide Dynamic Range: 120dB WDR
  • Edge Storage: Dual microSD slots (Up to 512GB each)
  • Network Interface: RJ-45 (10/100/1000BASE-T)
  • Power Supply: PoE+ (IEEE 802.3at)
  • Weather Protection: IP66, NEMA4X
  • Impact Protection: IK10 Vandal Resistant
  • Operating Temperature: -40°C to +55°C
  • 1 x Hanwha Vision PNM-C16083RVQ Dome Camera
  • Mounting Plate
  • Installation Accessories Kit
  • Data Sheet

Data Sheet

Overview

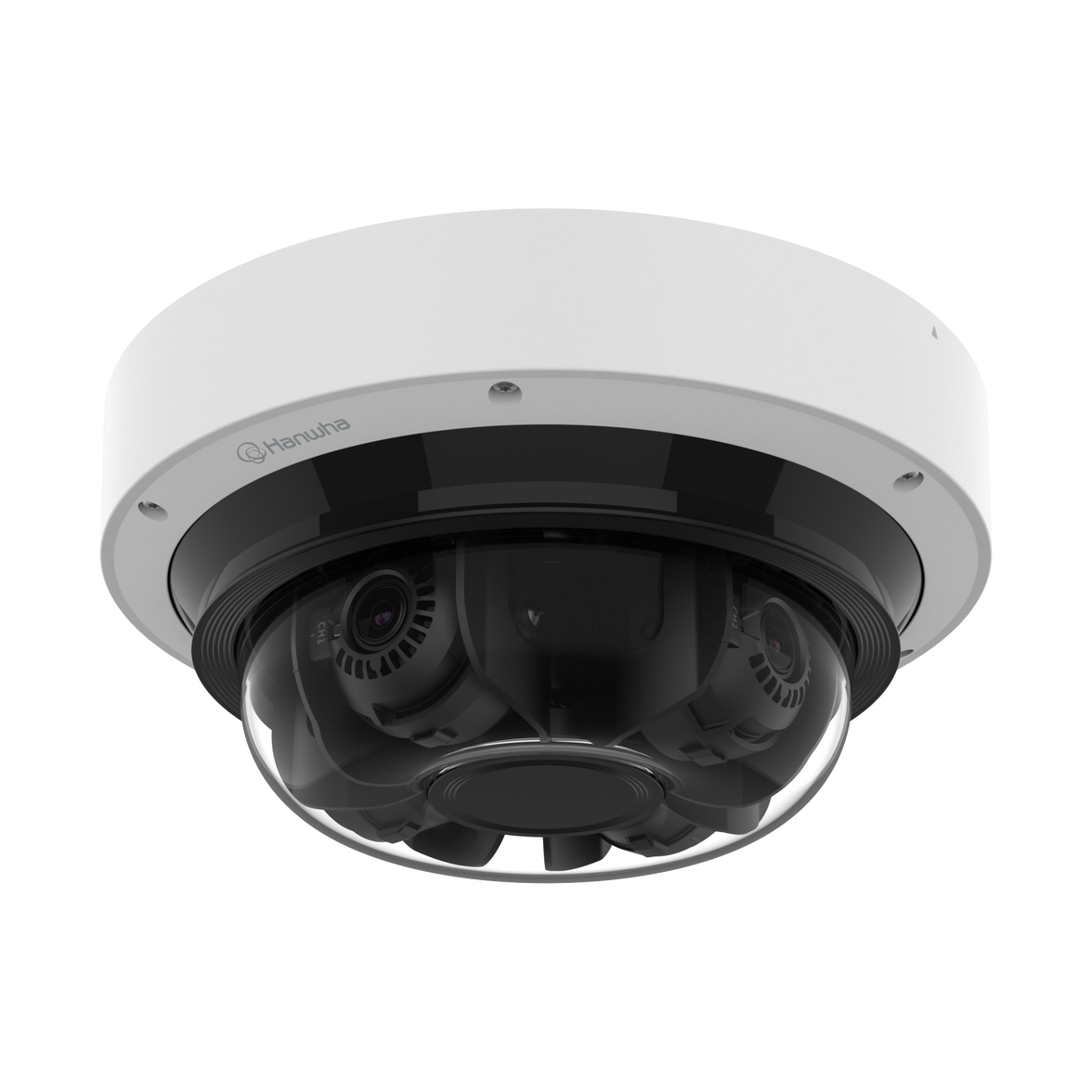

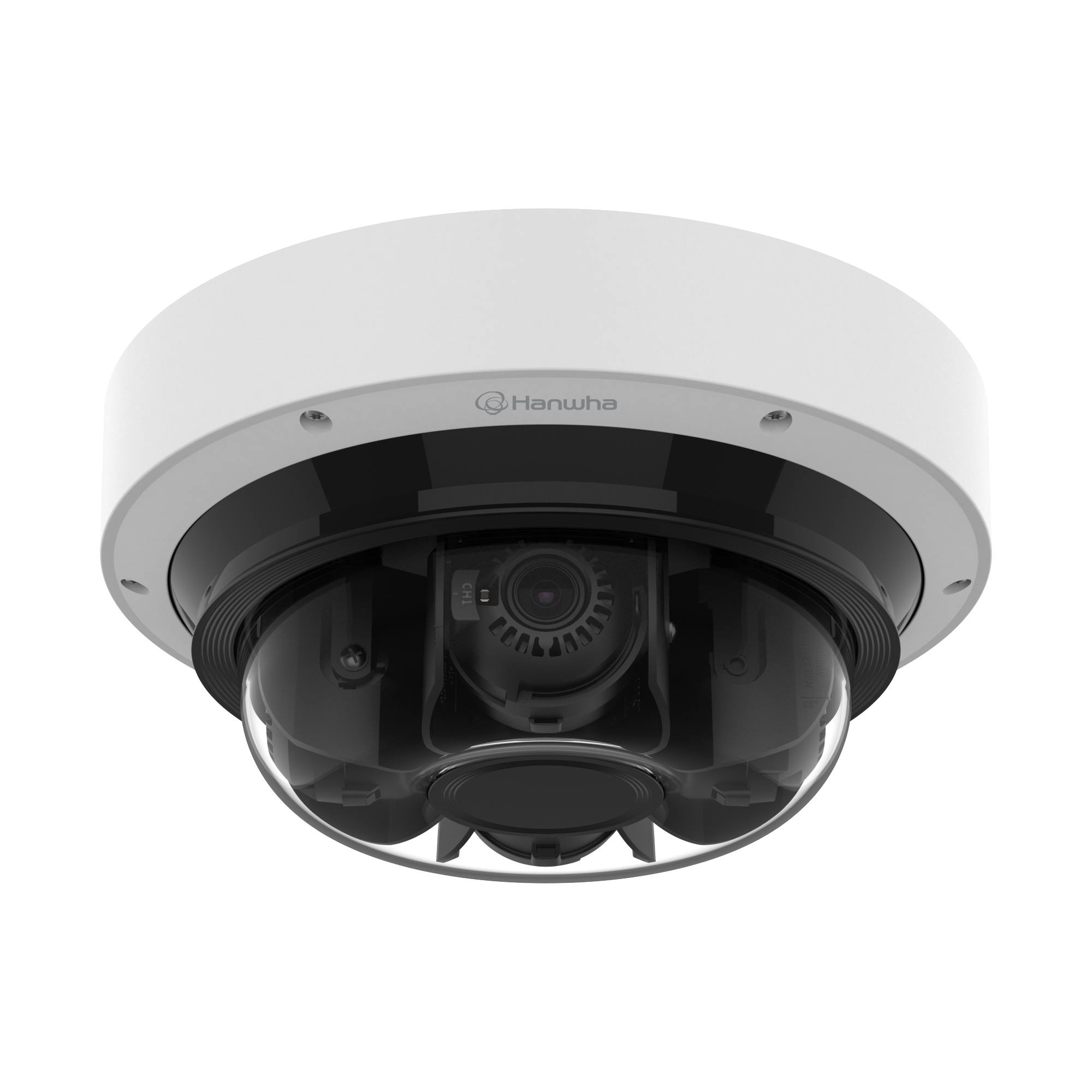

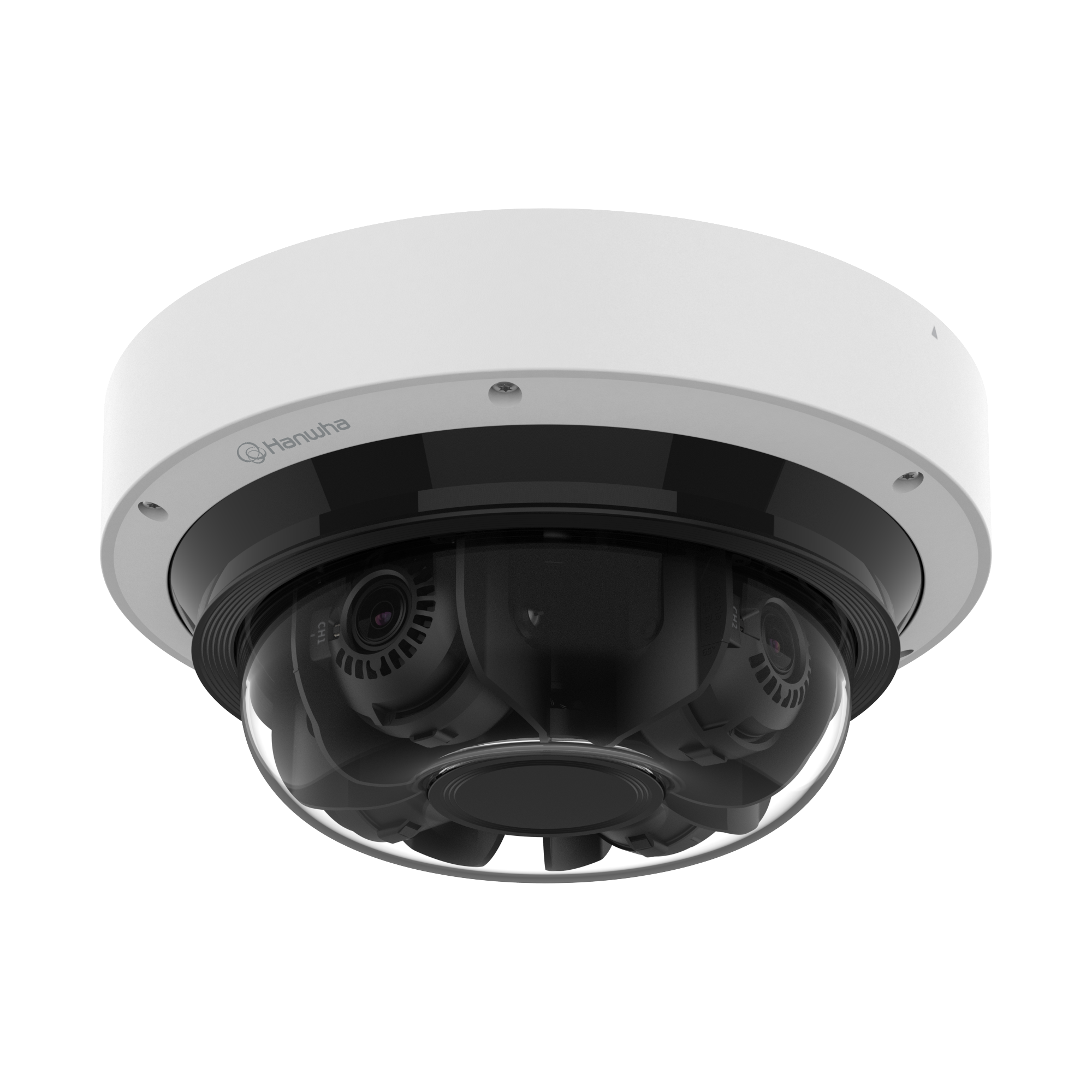

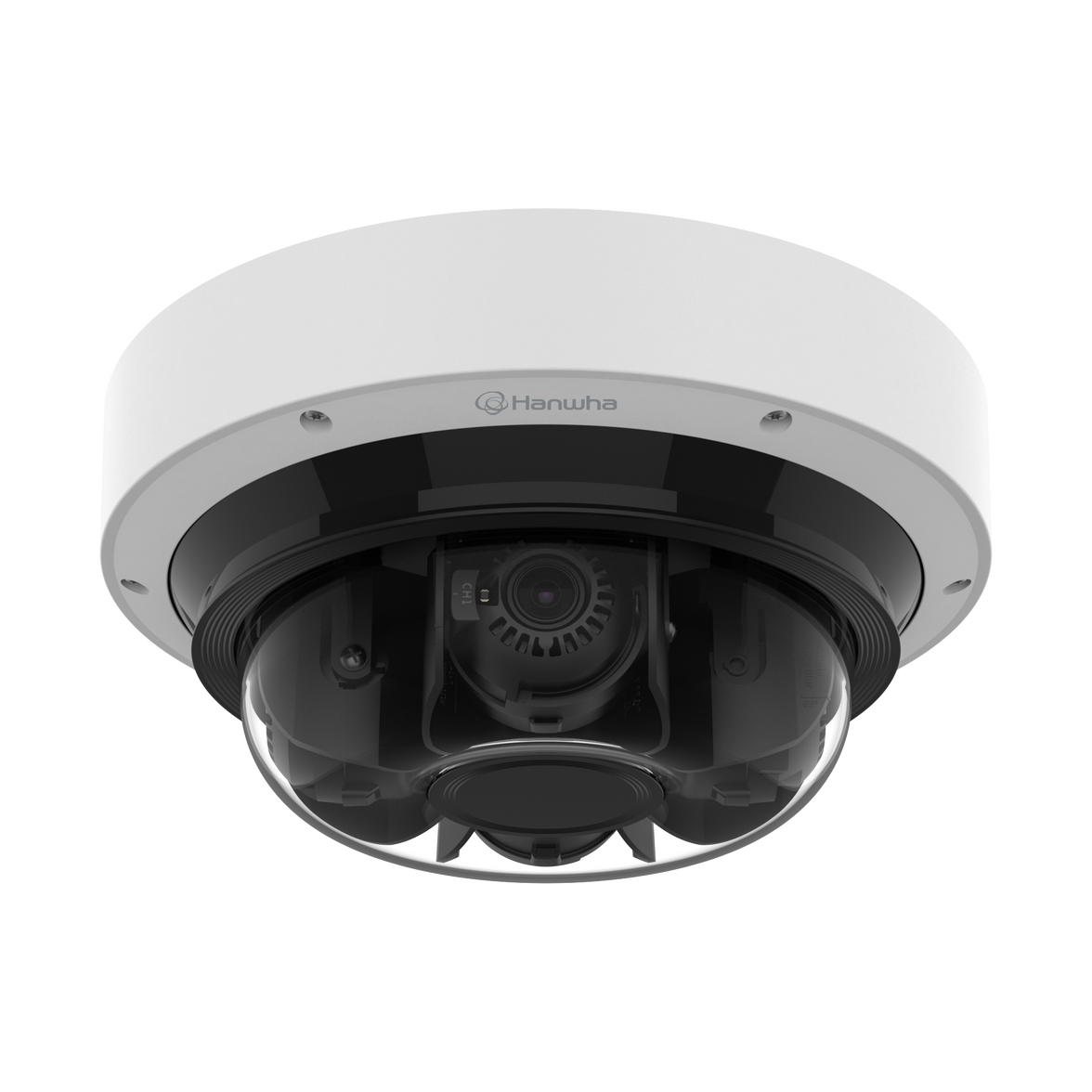

The Hanwha Vision PNM-C16083RVQ is an advanced multi-directional dome camera designed to monitor large areas using four independent 4MP sensors operating under a single IP address. Each sensor features motorized varifocal lenses with adjustable pan, tilt, and rotation, allowing flexible coverage customization after installation. Powered by an AI engine, the camera enables accurate object detection for people and vehicles while minimizing false alarms. Integrated infrared illumination provides clear imaging in low-light environments, while WiseStream III compression optimizes bandwidth usage without sacrificing image quality. Built for demanding outdoor environments, the camera features IP66, IK10, and NEMA4X protection along with PoE+ power support, making it ideal for commercial sites, campuses, transportation hubs, and large facilities.

Technical Features
  • Four independent 4MP sensors using a single IP address
  • AI-based object detection for people and vehicles
  • 360° area monitoring with flexible viewing adjustment
  • Motorized zoom and remote focus control
  • Integrated IR illumination for low-light surveillance
  • WiseStream III AI compression for bandwidth savings
  • Advanced video analytics including intrusion and loitering detection
  • USB installation port for easy setup
  • Enhanced cybersecurity with TPM and encrypted firmware
  • Rugged outdoor design with IP66 and IK10 ratings
