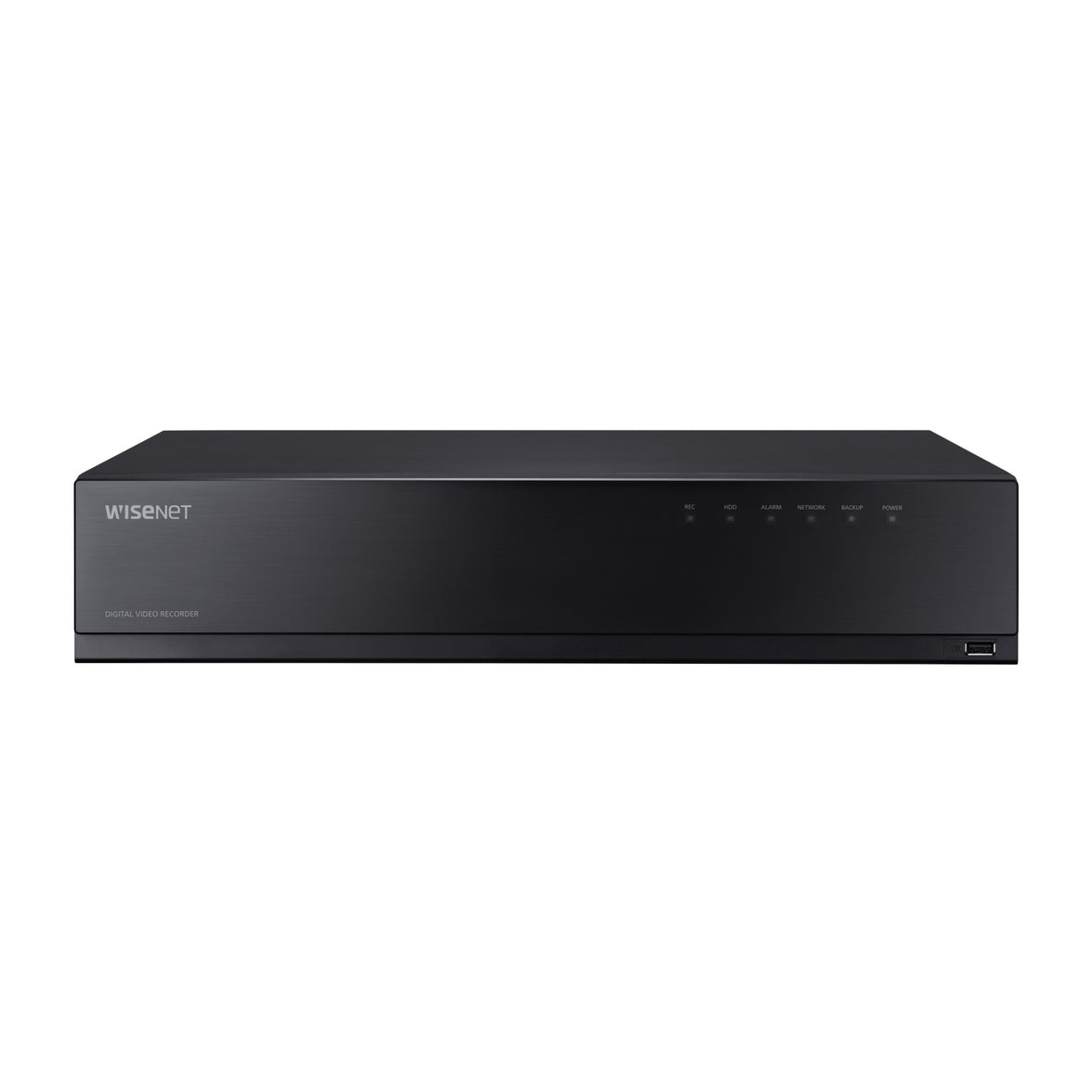

Hanwha HRX-1635 16CH Pentabrid DVR

Hanwha HRX-1635 16CH Pentabrid DVR

£651.58 GBP
Sale price: £651.58 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • High-resolution cameras
  • Smart search for network cameras
In stock, 13 units
EAN: 8801089213402
SKU: HRX-1635
Vendor: Hanwha
Order within xx hours for delivery on
Quantity

  • Media Type: Digital Video Recording (DVR)
  • Resolution: 8MP (3840 x 2160 pixels)
  • Connector Type: HDMI, VGA, Ethernet
  • Product Dimensions: 17.32"L x 17.32"W x 3.46"H
  • Included Components: Video Recorder
  • Number of Channels: 16
  • Video Recorder
  • Quick guide installation
  • Manual

Datasheet

Overview

The Hanwha HRX-1635 8MP 16-Channel Pentabrid DVR offers versatile and high-performance video surveillance capabilities, supporting multiple video formats including HD-TVI, AHD, CVI, CVBS, and IP. With 128Mbps of bandwidth and the ability to support up to 16 channels, this DVR is designed for large-scale security systems. The built-in 4TB HDD provides ample storage for recorded footage, ensuring efficient data management.

Technical Features
  • Product Type: 5-in-1 16CH Pentabrid DVR
  • Input Types: AHD, HDTVI, HDCVI, CVBS, IP
  • Total Channels: 18 (Analog Max. 16 + Network Max. 2-18, up to 8MP)
  • Codec: H.265, H.264, MJPEG
  • Recording Resolution & Framerate: Up to 8MP (15fps), 5MP (20fps), 4MP (30fps), 2MP (30fps), 1MP (30fps), 960H/720H (30fps) per channel
  • Recording / Playback Bandwidth: Max. 128Mbps / 32Mbps
  • Audio & Alarm: 4 channel audio input, 1 channel audio output, 16 alarm input, 4 relay output
  • Control: Coaxial control
  • Storage: Up to 8 SATA HDDs (6TB each)
  • Video Output: HDMI / VGA, 1 spot monitor output
  • P2P Service: QR code connect for Wisenet Viewer / Mobile app
  • Compliance: NDAA & FCC Compliant
