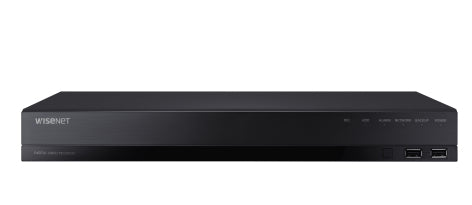

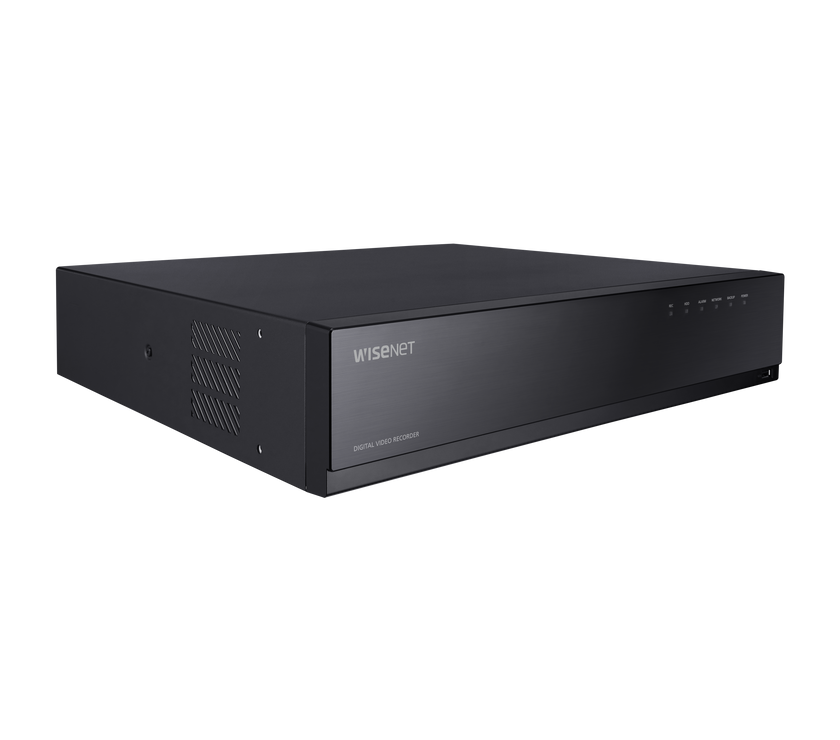

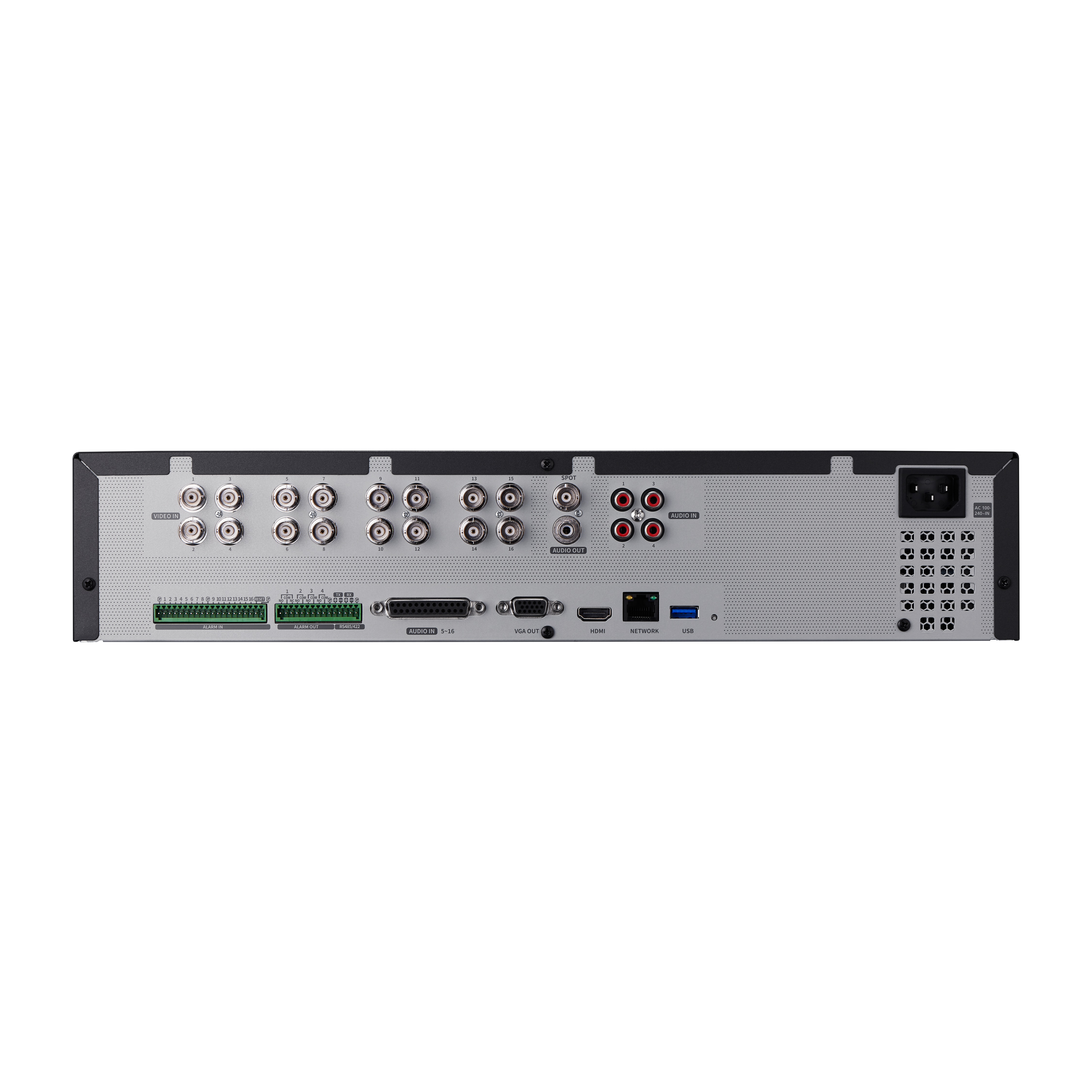

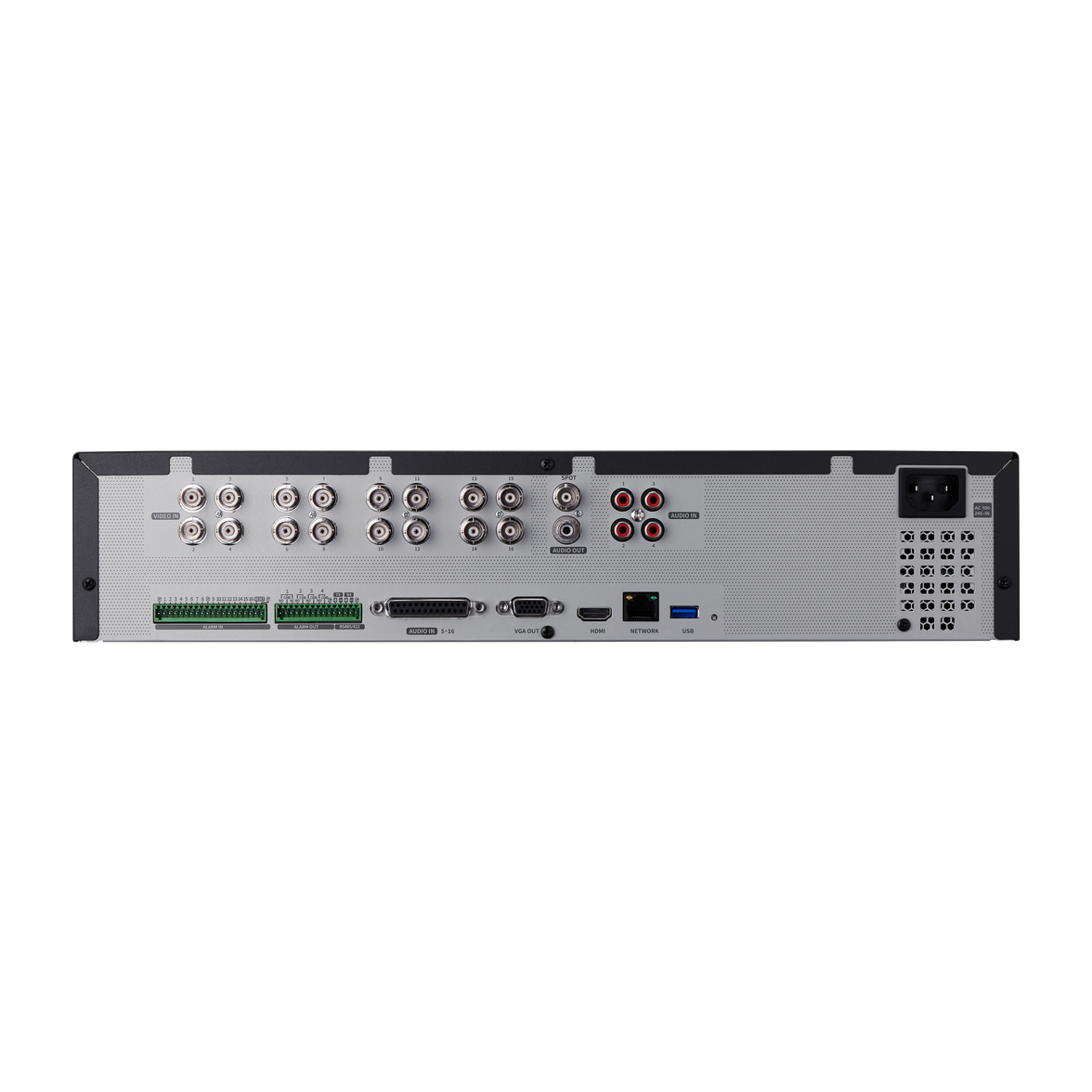

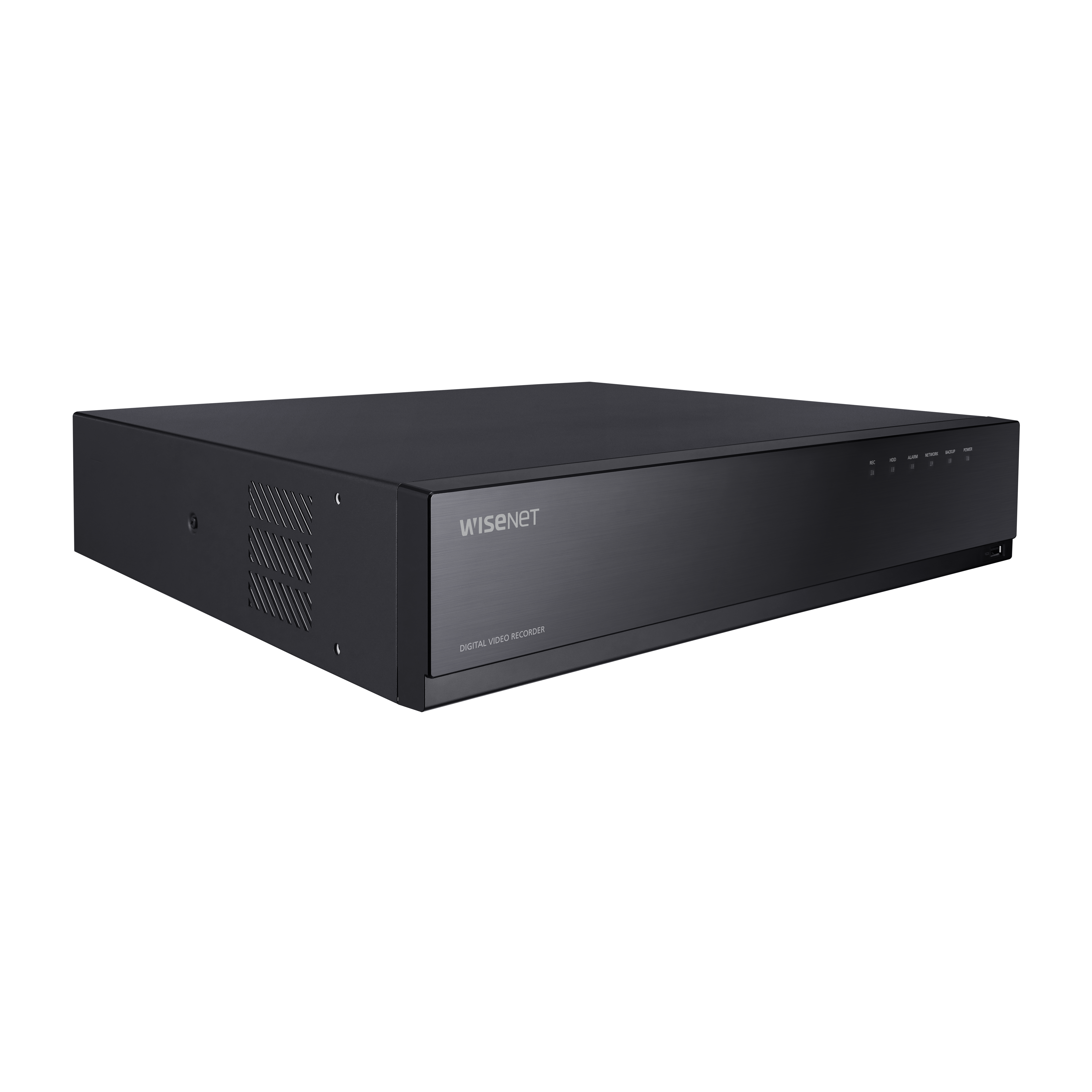

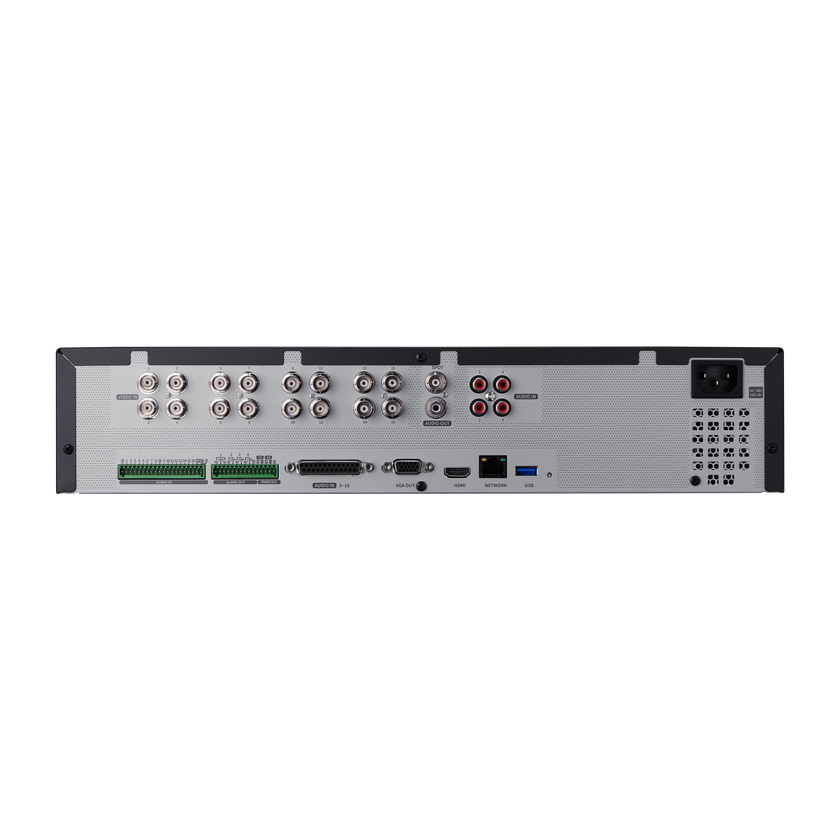

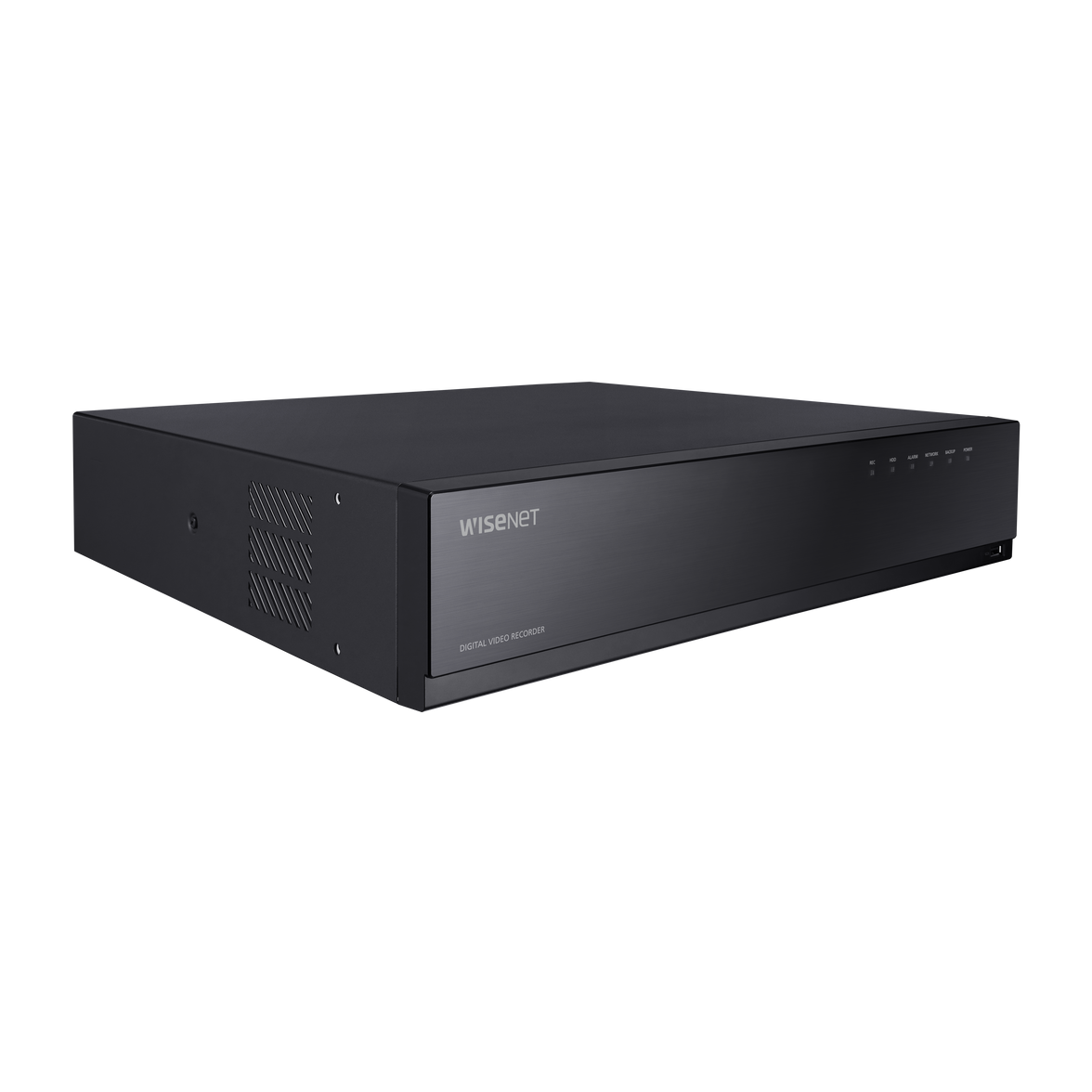

Hanwha HRX-1634 digital video recorder (DVR) Black

Hanwha HRX-1634 digital video recorder (DVR) Black

£380.09 GBP
Sale price: £380.09 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Up to 2 SATA HDDs (6TB/HDD)
  • Recording Bandwidth Max. 128Mbps
In stock, 16 units
EAN: 8801089213440
SKU: HRX-1634
Vendor: Hanwha
Order within xx hours for delivery on
Quantity
  • Brand: Hanwha Techwin
  • Product Line: Hanwha Vision WiseNet
  • Model: HRX-1634
  • Manufacturer Additional Ports: USB 2.0 x 2, USB 3.0 x 1
  • Audio Inputs: RCA x 4
  • Audio Outputs: RCA x 1
  • Network Ports: 10/100/1000Base-T
  • Video Input Ports: BNC x 16
  • Video Output Ports: HDMI x 1, VGA x 1
  • DVR
  • Quick installation guide
  • Mnanual

Datasheet

Overview
The Hanwha Vision WiseNet HRX-1634 DVR is recognized in the realm of security and surveillance solutions for its robust storage capabilities and advanced video compression technologies. It is designed to meet the needs of extensive surveillance systems, supporting up to 12 TB of storage and employing compression formats like H.264 and H.265 to maximize storage space without sacrificing video quality.

Technical Features
  • Type: 5-in-1 16CH Pentabrid DVR
  • Inputs: AHD/HDTVI/HDCVI/CVBS/IP
  • Total Channels: 18 Channels (Analog Max 16 + Network 2-18, depending on analog channels), up to 8MP
  • Codec: H.265, H.264, MJPEG
  • Recording Resolution & Framerate: Analog Camera up to 8MP(15fps), 5MP(20fps), 4MP(30fps), 2MP(30fps),1MP(30fps), 960H/720H(30fps) per channel
  • Bandwidth: Recording Max 128Mbps, Playback 32Mbps
  • Audio & Alarm: 4 channel audio input / 1 channel audio output, 16 alarm input and 4 relay output
  • Control: Coaxial control
  • Storage: Up to 2 SATA HDDs (6TB each)
  • Video Output: HDMI/VGA, 1 spot monitor output
  • P2P Service: QR code connect for Wisenet Viewer / Wisenet Mobile app
  • Compliance: NDAA & FCC Compliant
