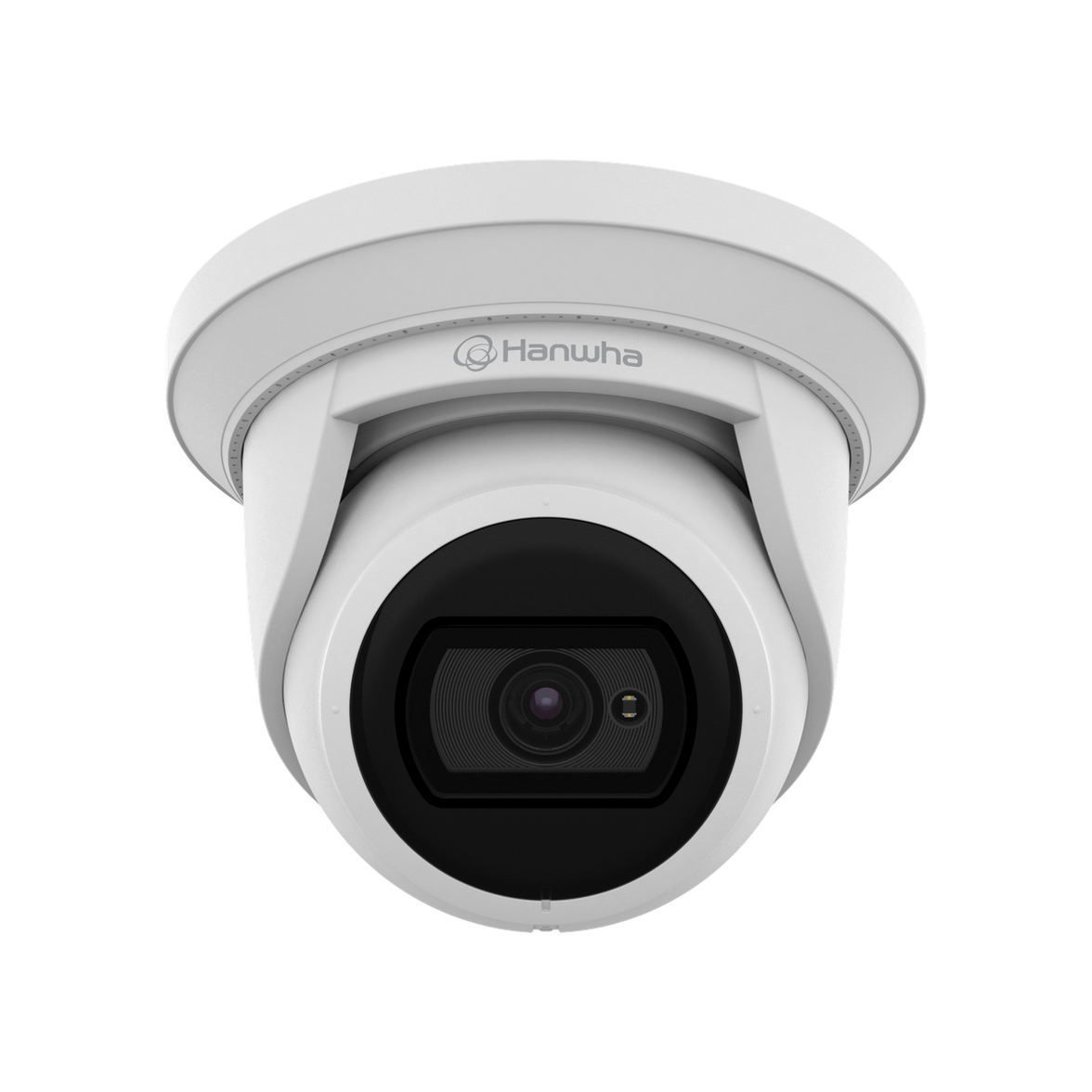

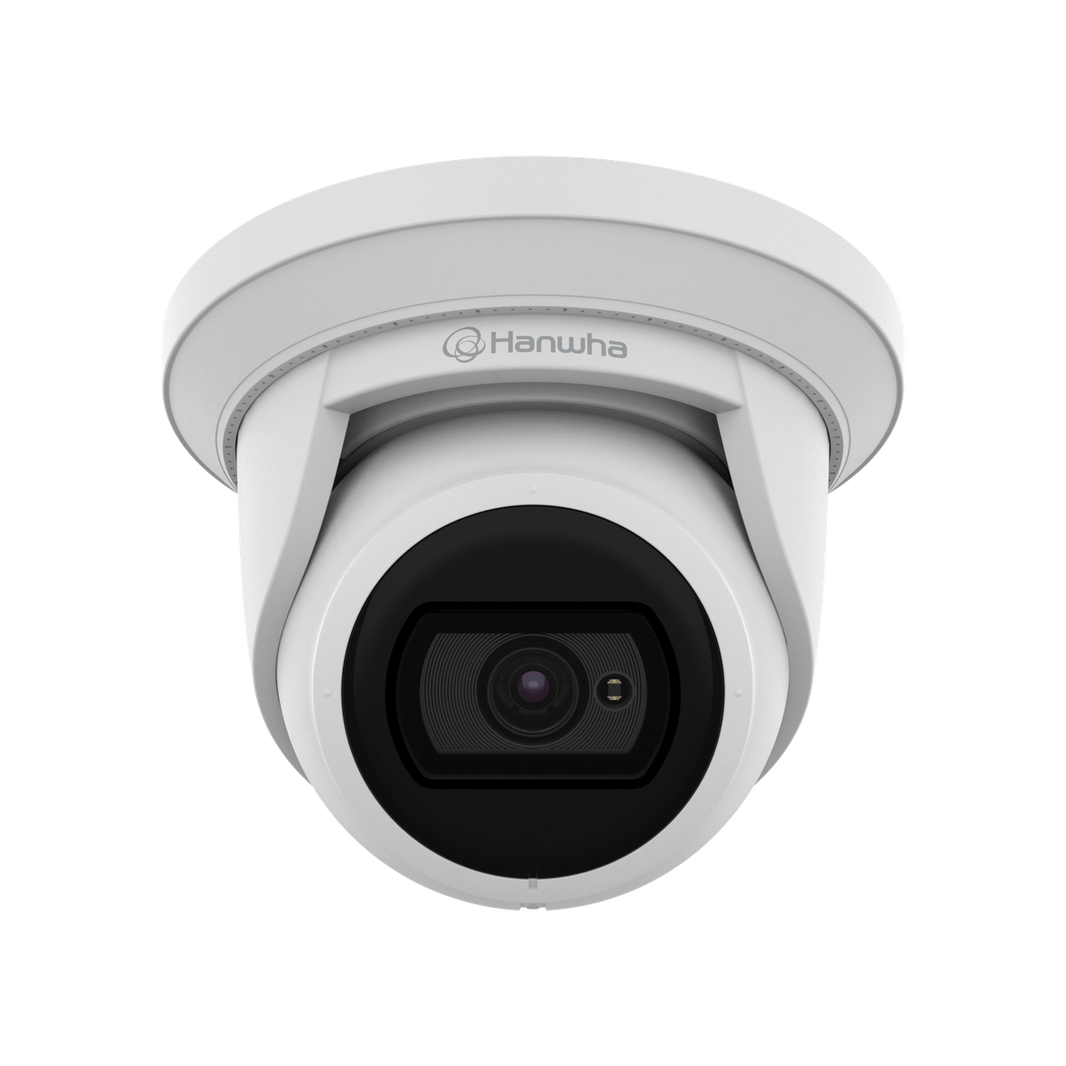

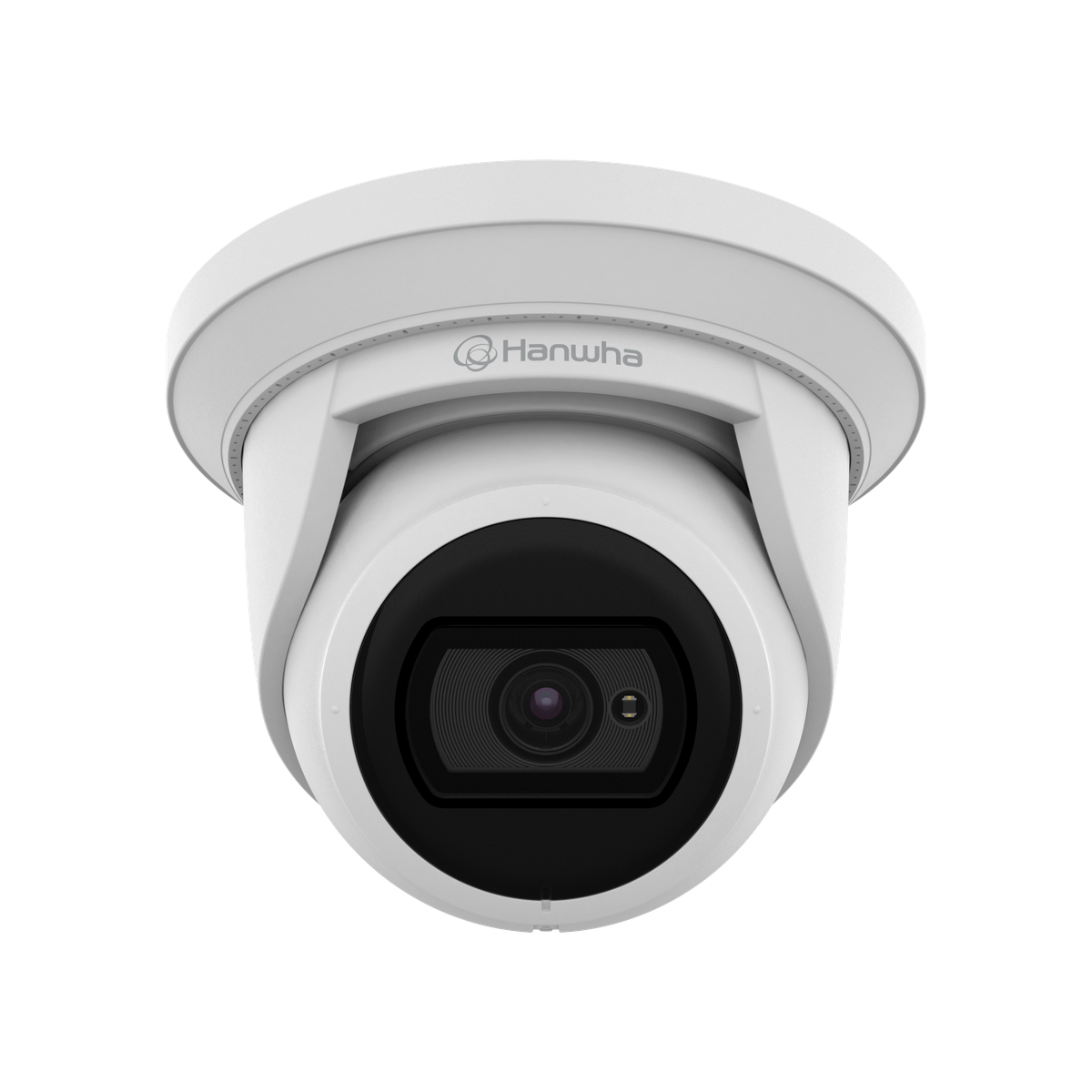

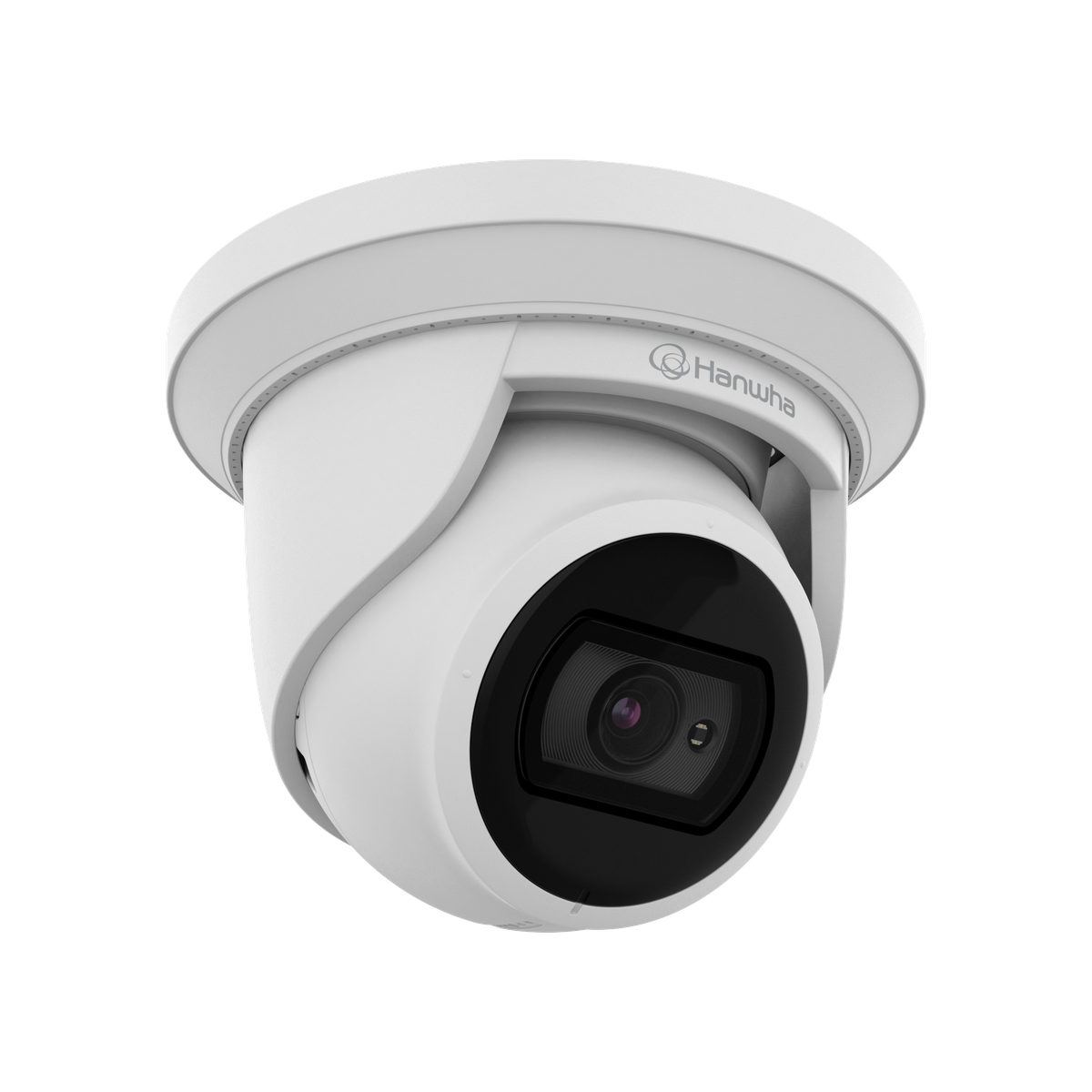

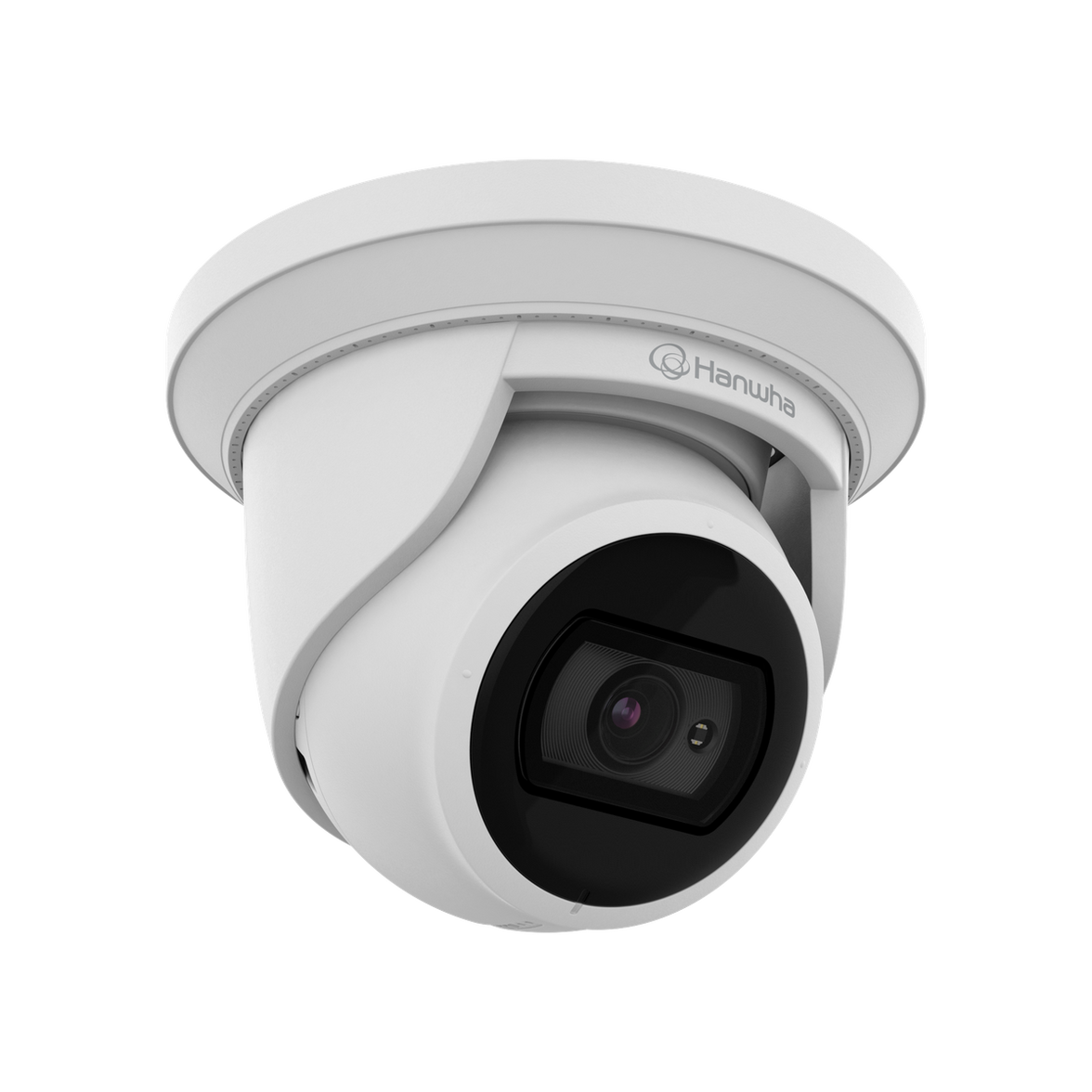

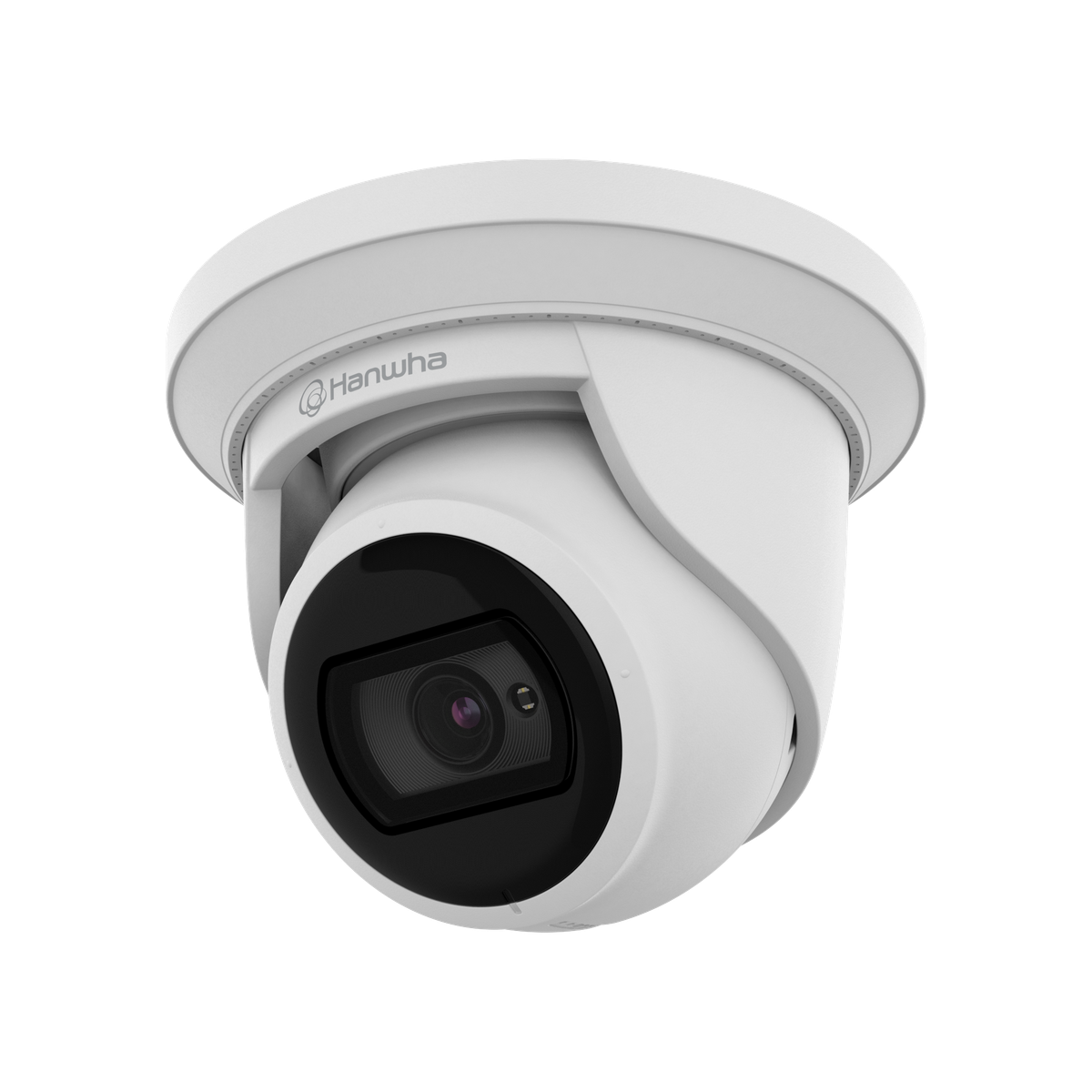

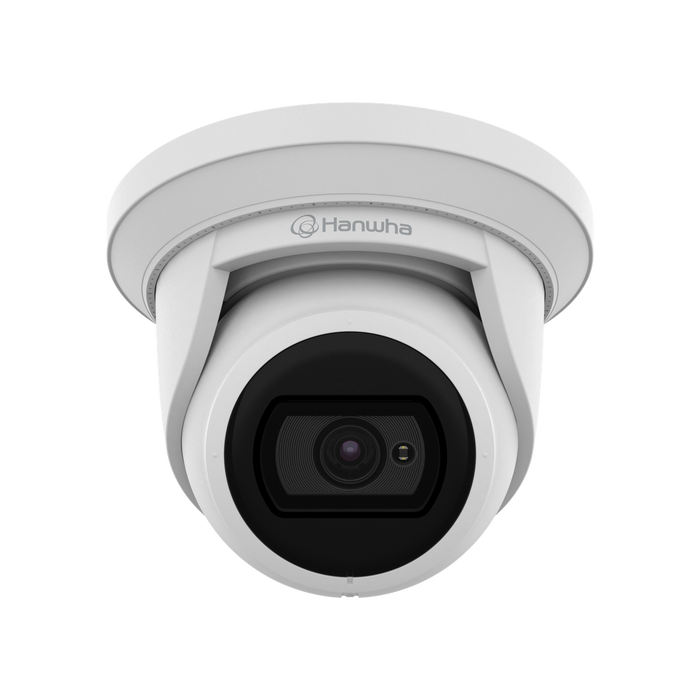

HANWHA ANE-L6012R

Name: HANWHA ANE-L6012R
Brand: Hanwha
SKU: ANE-L6012R
Price: 115.82 GBP
Availability: InStock

£115.82 GBP

£115.82 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

Compact Surveillance. Powerful Protection.

In stock, 24 units

EAN: 8801089228710

SKU: ANE-L6012R

Vendor: Hanwha

Order within xx hours for delivery on

Performance

Type	IP security camera
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Alarm input/output	Yes
Dynamic range	120 dB

Design

IK code	IK10
Form factor	Dome
Product colour	Black, White
Mounting type	Ceiling
International Protection (IP) code	IP66
Housing material	Aluminium, Plastic

Camera

Minimum illumination	0.03 lx
Tilt angle range	0 - 75°
Pan range	0 - 350°
White balance	ATW, AWC, Indoor, Manual, Outdoor
Angle of rotation	360°
Camera shutter type	Electronic
Camera shutter speed	1/5 - 1/12000 s
Lens viewing angle, horizontal	108°
Lens viewing angle, vertical	59°
Lens viewing angle, diagonal	127°
Number of Privacy masking areas	6

Image sensor

Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Number of sensors	1

Lens system

Number of lenses	1
Maximum aperture number	1.6
Detect distance	28.1 m
Observe distance	11.2 m
Recognize distance	5.6 m
Identify distance	2.8 m
Fixed focus	Yes
Closest focusing distance	1.1 m
Fixed focal length	3 mm

Night vision

Night vision	Yes
Night vision distance	20 m
LED type	IR
Infra-red wavelength	850 nm

Video

Noise reduction	Yes
Text caption overlay	Yes
Privacy masking	Yes
Flip & mirror	Yes
Gain control type	Manual
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Back Light Compensation (BLC)	Yes
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, H.265, M-JPEG
Supported graphics resolutions	640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate	30 fps
Video streaming	Yes
Total megapixels	2 MP

Network

Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af
Quality of Service (QoS) support	Yes
Streaming method	Multicast, Unicast
Ethernet LAN	Yes
Supported network protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour

Storage

Maximum memory card size	32 GB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Internal memory	512 MB
Flash memory	256 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports	1

Security

Alert notification type	E-mail
Intelligent Video Surveillance (IVS) system features	Defocus, Line crossing detection, Region entrance detection, Region exiting detection
Video motion detection	Yes
Security algorithms	EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2, SRTP
IP address filtering	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Anti-flicker	Yes
Digest authentication	Yes

Power

Power source type	PoE
Power consumption (Power over Ethernet (PoE))	6.6 W
Power consumption (typical)	4.8 W

Operational conditions

Operating temperature (T-T)	-30 - 55 °C
Storage temperature (T-T)	-30 - 55 °C

Weight & dimensions

Width	125 mm
Depth	87.4 mm
Height	125 mm
Weight	630 g

Packaging content

Number of cameras	1

HANWHA ANE-L6012R

£115.82 GBP

£115.82 GBP ~~Regular price:~~

(VAT Excl.)

In stock

Overview

The Hanwha Vision ANE-L6012R is a professional-grade 2MP network flateye camera engineered for reliable surveillance in commercial and enterprise environments. Equipped with a 1/2.8" CMOS sensor and a 3 mm fixed lens, it captures clear Full HD video at up to 30 fps with wide viewing coverage. Advanced H.265 compression with WiseStream II technology reduces bandwidth and storage usage while maintaining image quality. Built-in IR LEDs provide night vision up to 20 meters, ensuring continuous monitoring in low-light conditions. Intelligent video analytics such as motion detection, line crossing, and intrusion detection enhance situational awareness. With IP67 weatherproofing and IK10 vandal resistance, the camera is suitable for demanding indoor and outdoor installations including retail, banking, and commercial sites.
