DSTAR PSE90G 90W POE INJECTOR

Name: DSTAR PSE90G 90W POE INJECTOR
Brand: Un-Branded
SKU: PCE90G
Price: 94.63 GBP
Availability: InStock

£94.63 GBP

£94.63 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Power Meets Gigabit Speed

In stock, 4 units

EAN: PCE90G

SKU: PCE90G

Vendor: Un-Branded

Order within xx hours for delivery on

Product Specification

Product Type: Gigabit PoE Injector
Model: PSE90G
PoE Standard: IEEE 802.3af / 802.3at / 802.3bt (PoE++)
Maximum PoE Output Power: 90W
Data Ports: 1 x RJ45 Data In, 1 x RJ45 PoE Out
Network Speed: 10/100/1000 Mbps Gigabit Ethernet
Output Voltage: 54–56V DC
Input Voltage: 100–240V AC
Transmission Distance: Up to 100 meters
PoE Pin Assignment: 1/2(+), 3/6(-), 4/5(+), 7/8(-)
Operating Temperature: -20°C to 55°C
Dimensions: Approx. 39 × 62.7 × 145 mm

Box Content

D-Star PSE90G 90W PoE Injector
AC Power Cable
Installation Accessories

Documents

Technical Features

Delivers up to 90W PoE++ power for high-demand devices
Supports Gigabit Ethernet data transmission
Compatible with IEEE 802.3af/at/bt PoE devices
Automatic detection and protection for connected equipment
Extends power and data up to 100 meters
Plug-and-play installation without configuration
Ideal for IP cameras, wireless APs and VoIP devices
Reduces cabling and installation costs

DSTAR PSE90G 90W POE INJECTOR

£94.63 GBP

£94.63 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

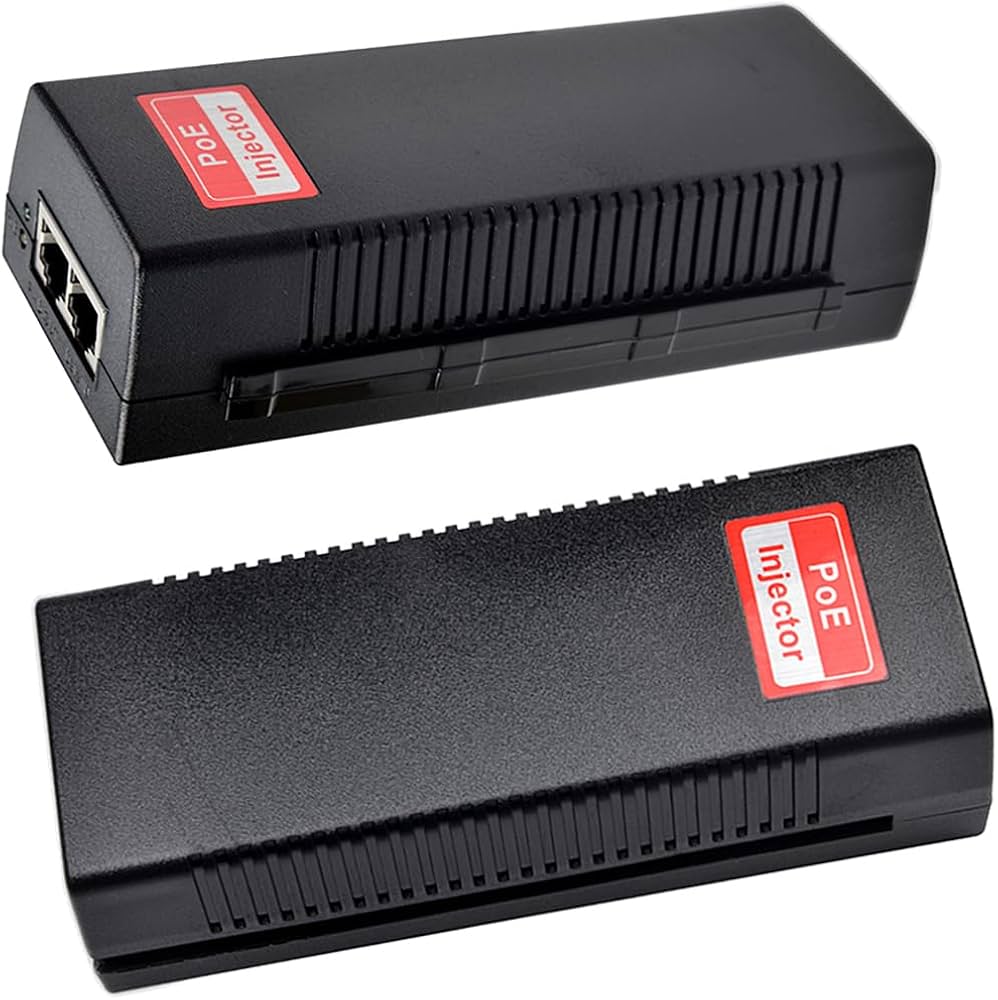

The D-Star PSE90G 90W PoE Injector is a professional networking solution that enables non-PoE switches to power PoE-enabled devices through Ethernet cabling. Supporting up to 90W output under IEEE 802.3bt PoE++ standards, it is suitable for demanding applications such as wireless access points, IP surveillance cameras, and VoIP systems. The injector features one data-input port and one PoE output port, delivering both Gigabit data transmission and stable DC power up to 100 meters. Automatic device detection ensures safe power delivery and protects non-PoE equipment from electrical damage. Its compact plug-and-play design simplifies deployment while reducing installation costs by eliminating the need for separate power outlets.
