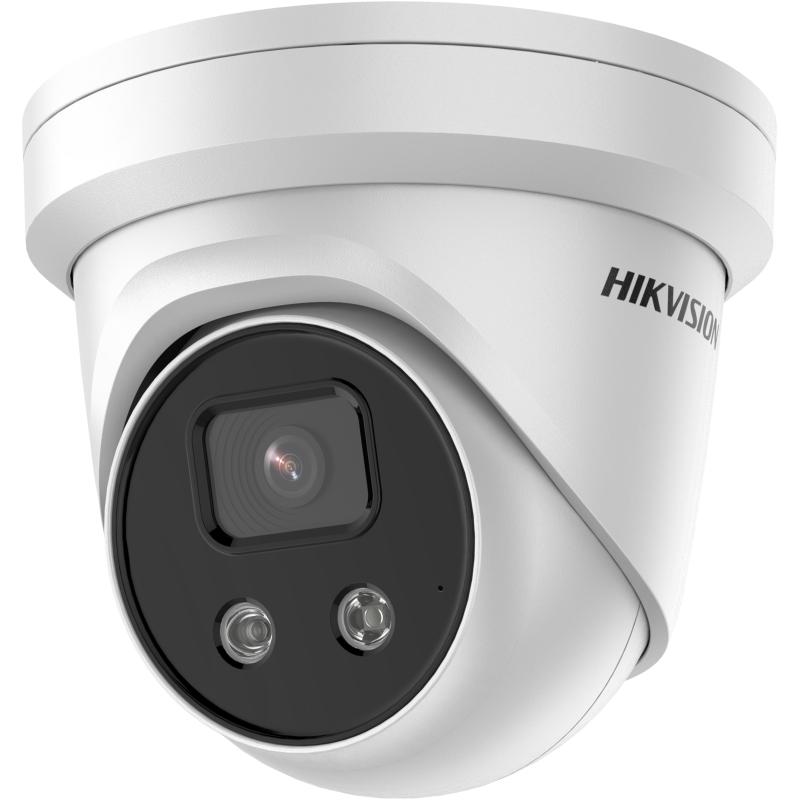

Hikvision DS-2CD2346G2-IU(2.8MM)4MP ACU AUDIO TUR

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max Resolution: 2688 × 1520
• Min. Illumination: Color: 0.003 Lux @ F1.4 (AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360°

Lens

• Lens Type: Fixed focal lens (2.8 / 4 / 6 mm optional)
• 2.8 mm FOV: H 103°, V 55°, D 123°
• 4 mm FOV: H 83°, V 45°, D 98°
• 6 mm FOV: H 53°, V 28°, D 62°
• Lens Mount: M12
• Aperture: F1.4

DORI

• 2.8 mm: Detect 60 m, Observe 23.8 m, Recognize 12 m, Identify 6 m
• 4 mm: Detect 80 m, Observe 31.7 m, Recognize 16 m, Identify 8 m
• 6 mm: Detect 120 m, Observe 47.6 m, Recognize 24 m, Identify 12 m

Illuminator

• Type: IR
• Range: Up to 30 m
• Smart IR: Yes

Video

• Compression: H.265 / H.264 / H.265+ / H.264+
• Bit Rate: 32 Kbps – 8 Mbps
• Bit Rate Control: CBR / VBR
• SVC: Supported (H.264 & H.265)
• ROI: 1 fixed region

Audio

• Audio Type: Mono (-U)
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, RTSP, IPv4/IPv6, SNMP, QoS, SSL/TLS
• Live View: Up to 6 channels
• API: ONVIF (Profile S/G/T), ISAPI, SDK
• Users: Up to 32 users

Storage & Interface

• Ethernet: RJ45 10/100 Mbps
• On-board Storage: microSD up to 512 GB
• Built-in Mic: Yes (-U)

Events & Smart Features

• Basic Events: Motion detection, video tampering, exception
• Smart Events: Line crossing, intrusion, region entry/exit
• Deep Learning: Face capture

General

• Power: 12 VDC ±25% / PoE 802.3af
• Max Power Consumption: 6.8 W
• Dimensions: Ø138.3 × 126.3 mm
• Weight: Approx. 730 g
• Operating Temperature: -30 °C to 60 °C
• Protection: IP67
• Languages: 33 languages supported
