DrayTek CX10 SFP DAC Cable (3M Length)

DrayTek CX10 SFP DAC Cable (3M Length)

£24.19 GBP
Sale price: £24.19 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Pull-Tab for easy removal
  • 1GbE & 10GbE capable
In stock, 20 units
EAN: 4712909128766
SKU: 251346
Vendor: Dray Tek
Order within xx hours for delivery on
Quantity
  • Hot-pluggable
  • Form Factor: Standard SFP / SFP+
  • Compatibility: Compatible with SFP+ MSA specifications
  • Specifications: Compatible with SFF-8431 & SFF-8432
  • Power Consumption: Up to 0.2 Watts
  • Operating Voltage: 3.3 Volts (supplied by connected devices)
  • Operating Temperature Range: 0° to 70°C
  • Operating Humidity: 0 to 85% RH (non-condensing)
  • Storage Temperature: -40° to 85°C
  • DrayTek CX10 SFP DAC Cable (3M Length)

Datasheet

Overview

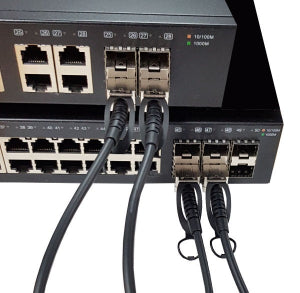

The DAC-CX10 cable is a cost-effective interlink cable between switches, routers, servers and storage devices and supports speeds up to 10Gb/s. DrayTek DAC-CX10 SFP cables connect directly to the SFP module port of the devices, such as any DrayTek switch or router which has an SFP or SFP+ port. A "Direct Attach Cable" or "DAC" connects SFP module ports on two devices similarly to an RJ-45 network cable, instead of using SFP to optical fibre transceivers, or SFP to RJ-45 transceivers. This significantly simplifies the connection process and reduces cost, while still ensuring reliable operation. For instance, if both devices support 10 Gigabit transfer rates through SFP+, instead of using two SFP+ Fibre transceivers and optical fibre, simply connect the DAC-CX10-01M cable between the two for an up to 10Gb/s link.  The DAC-CX10 is one piece - there are no removable RJ-45 or fibre cables to be concerned with.

Technical Features
  • Model: DrayTek DAC-CX10
  • Type: SFP & SFP+ Direct Attach Cable
  • Reliability: Self-locking on insertion for reliable installation
  • Easy Removal: Pull-tab for quick and simple removal
  • Speed Capability: 1GbE & 10GbE capable
  • Cable Length Options: Available in 1 & 3 metre lengths
  • Use Case: Ideal for high-bandwidth applications (e.g., server to switch)
