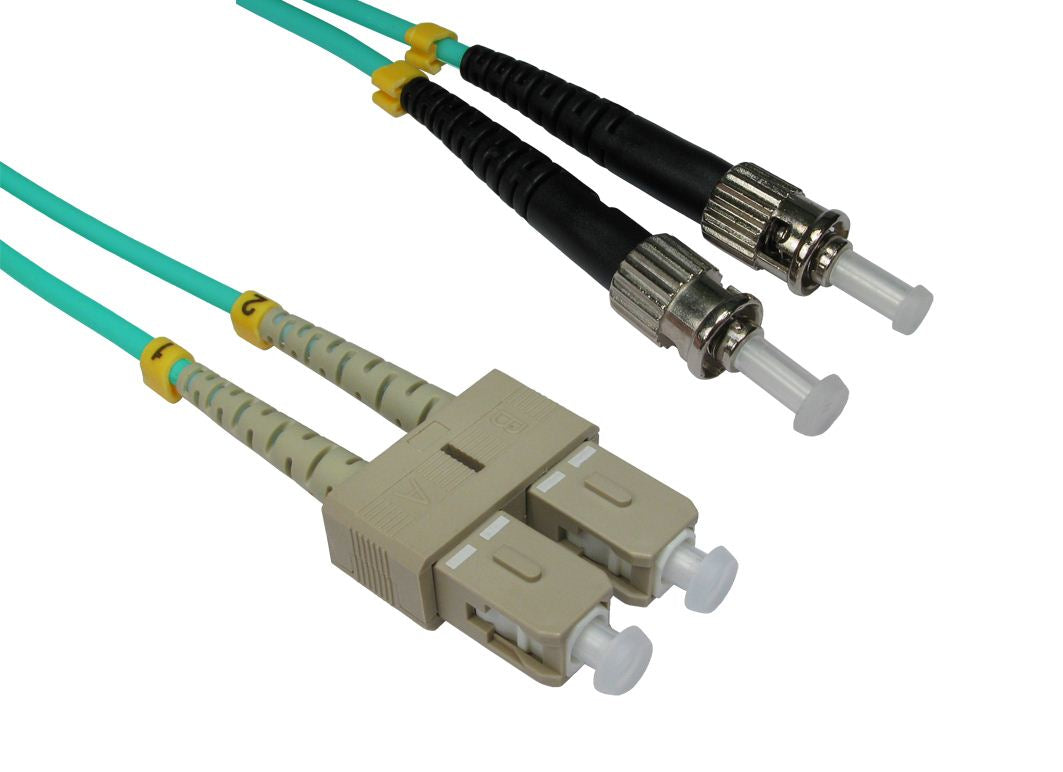

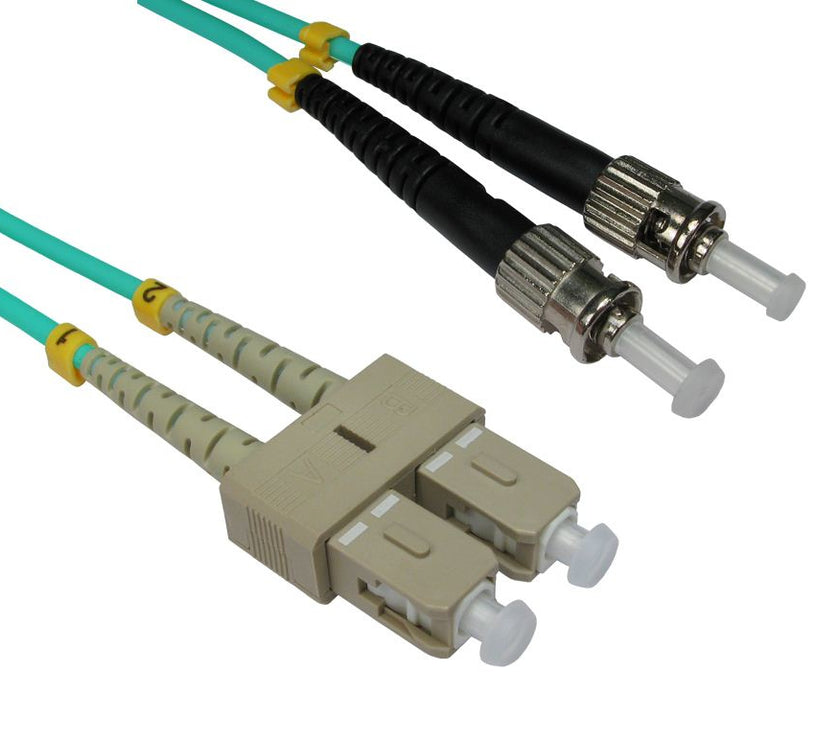

CDL 1MTR ST-SC 50/125 OM3 AQUA

Name: CDL 1MTR ST-SC 50/125 OM3 AQUA
Brand: Cablenet
SKU: 332162
Price: 2.83 GBP
Availability: InStock

£2.83 GBP

£2.83 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

ST - SC Connectors
50µm core, 125µm cladding

In stock, 10 units

EAN: 5055781214127

SKU: 332162

Vendor: Cablenet

Order within xx hours for delivery on

Product Specification

Vendor: Cables Direct
MPN: FB3M-STSC-010D
EAN: 5055781214127
Weight: 0.034000
Fibre Optic Type: OM3 (50/125)
Connector 1: ST Duplex
Connector 2: SC Duplex
Cable Length: 1 m
Cable Colour: Aqua
Core Diameter: 50 micron
Cladding Diameter: 125 micron

Box Content

Cablenet 1m OM3 Fibre Optic Cable ST-SC

Documents

Technical Features

10Gb/s Support: Designed for 10 Gigabit Ethernet applications, offering stable data transfer over distances up to 300 metres
Laser-Optimised Fibre: Uses high-quality OM3 50/125µm multimode fibre optimised for VCSEL light sources
Low Signal Loss: Typically features low insertion loss of approximately 0.30 dB for strong signal integrity
Hybrid Connectivity: ST connector on one end and SC connector on the other for legacy-to-modern equipment links
Duplex Design: Zipcord construction enables simultaneous bidirectional data transmission
Ceramic Ferrules: Precision ceramic ferrules ensure durability and consistent low-loss connections
LSOH Jacket: 3.00 mm Low Smoke Zero Halogen aqua jacket reduces toxic emissions in fire conditions
Individually Tested: Factory-terminated and 100% optically tested with verified results
Strain Relief: Moulded boots protect fibre from damage during installation and use

CDL 1MTR ST-SC 50/125 OM3 AQUA

£2.83 GBP

£2.83 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The Cablenet 1m OM3 Fibre Optic Cable (332162) is a high-speed duplex patch lead featuring ST to SC connectors designed for professional data and communication networks. Built with laser-optimised 50/125µm multimode fibre, it supports 10Gb/s Ethernet speeds over distances up to 300 metres. The cable is encased in a 3.00mm aqua low smoke zero halogen (LSOH) jacket, ensuring both durability and compliance with modern fire safety standards. Each assembly is factory-terminated, 100% optically tested, and supplied with verified test results to guarantee consistent low-loss performance.
