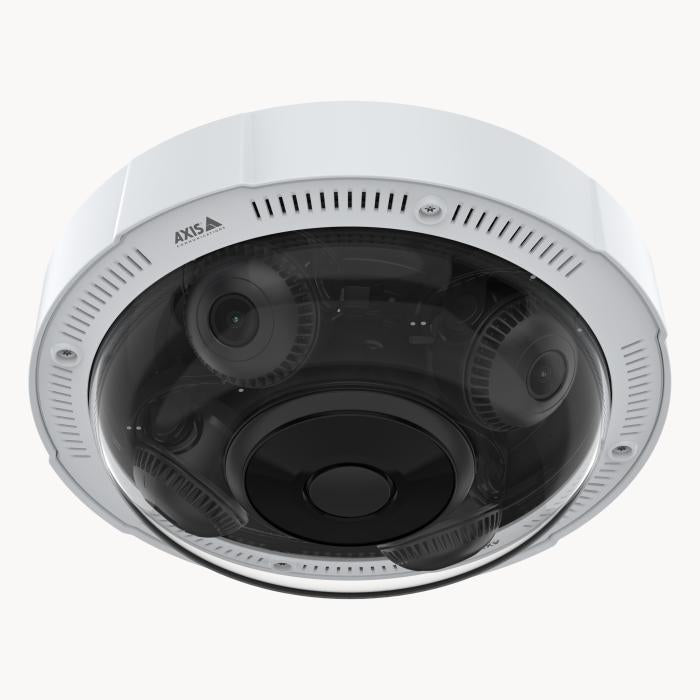

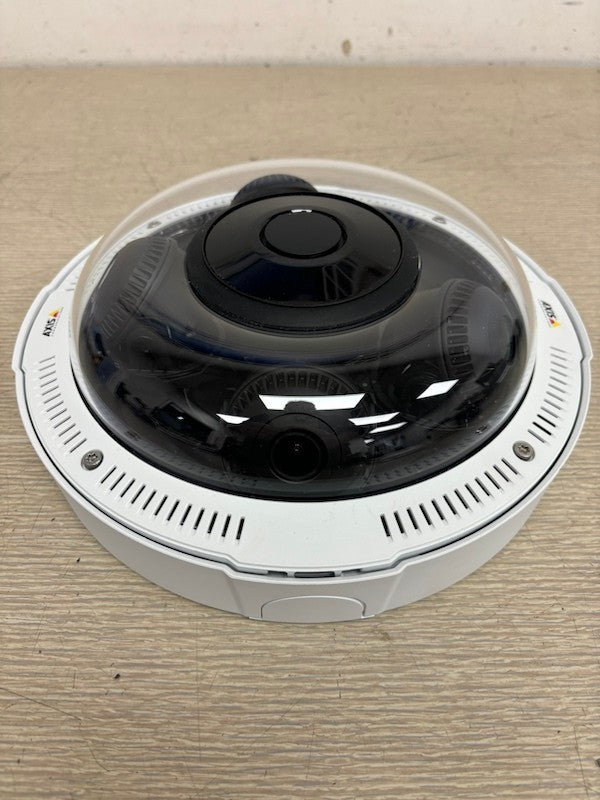

Axis P3735-PLE Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
- Provides a seamless 360° view
- Lightfinder technology ensures full-color footage
Performance
| Infrared (IR) cut-off filter | Yes |
|---|---|
| Remote viewing | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| IK code | IK09 |
|---|---|
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66, IP67 |
Camera
| Minimum illumination | 0 lx |
|---|---|
| Tilt angle range | 25 - 95° |
| Pan range | -90 - 90° |
| Angle of rotation | 190° |
| Camera shutter speed | 1/28000 - 5 s |
| Camera pan control | Yes |
| Camera pixel size | 2.9 µm |
| Lens viewing angle, horizontal | 108 -40° |
| Lens viewing angle, vertical | 55 -23° |
| Lens viewing angle, diagonal | 131 -46° |
| Progressive scan | Yes |
Image sensor
| Sensor type | CMOS |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 4 |
Panoramic camera
| Sensor type (panoramic camera) | CMOS |
|---|---|
| Number of sensors (panoramic camera) | 4 |
| Optical sensor size (panoramic camera) | 25.4 / 2.8 mm (1 / 2.8") |
| Maximum resolution (panoramic camera) | 1920 x 1080 pixels |
| Camera shutter speed (panoramic camera) | 1/31500 s |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Viewing angle, vertical (panoramic camera) | 55.3° |
| Viewing angle, horizontal (panoramic camera) | 360° |
| Focal length range (panoramic camera) | 3.18 - 8.12 mm |
Lens system
| Number of lenses | 4 |
|---|---|
| Focus | Motorized/Manual |
| Zoom capability | Yes |
Night vision
| Night vision | Yes |
|---|---|
| LED type | IR |
Video
| Video compression formats | H.264, H.265, M-JPEG |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | H.264, H.265, M-JPEG |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
Audio
| Audio detection | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
Storage
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
|---|---|
| Internal memory | 2048 MB |
| Flash memory | 8192 MB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Power
| Power source type | PoE |
|---|
Operational conditions
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
Weight & dimensions
| Weight | 2 kg |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | UL ECOLOGO |
| Compliance certificates | CE, EAC, KC, UKCA, VCCI, cUL |
Axis P3735-PLE Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Overview
AXIS P3735-PLE offers four channels with 2 MP per channel at 30 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded. his compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage.
