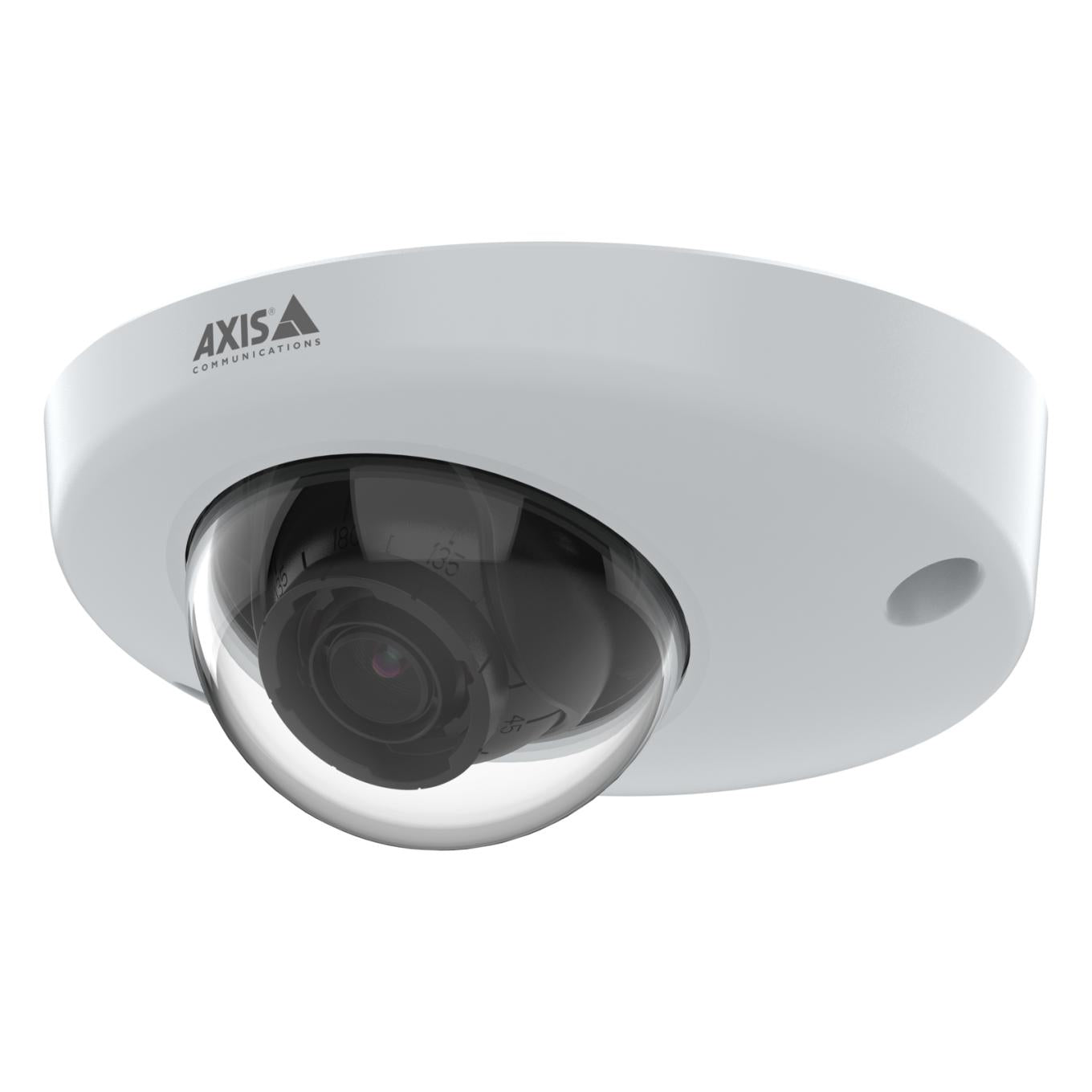

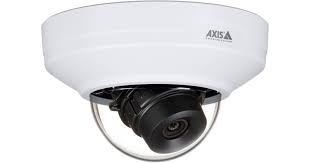

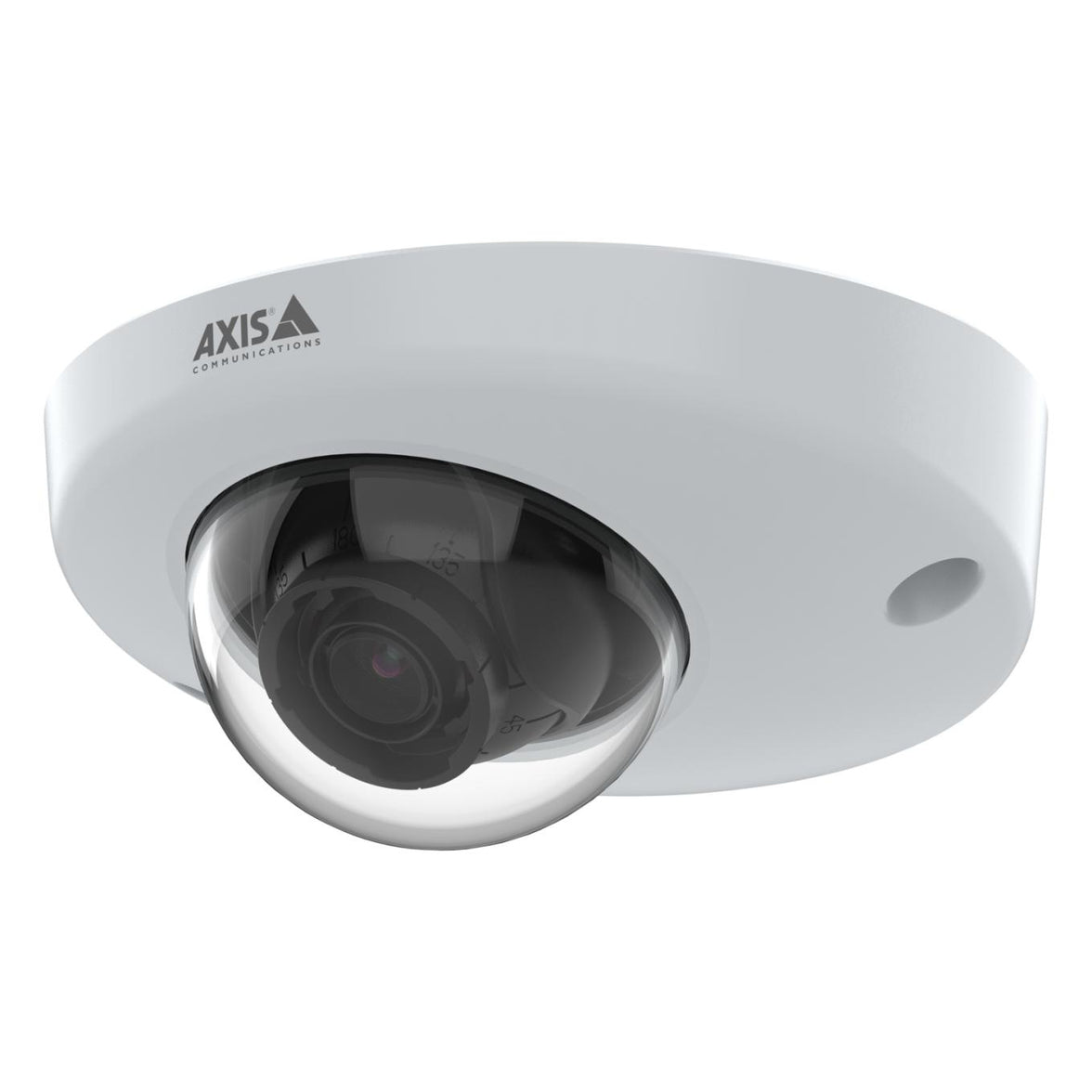

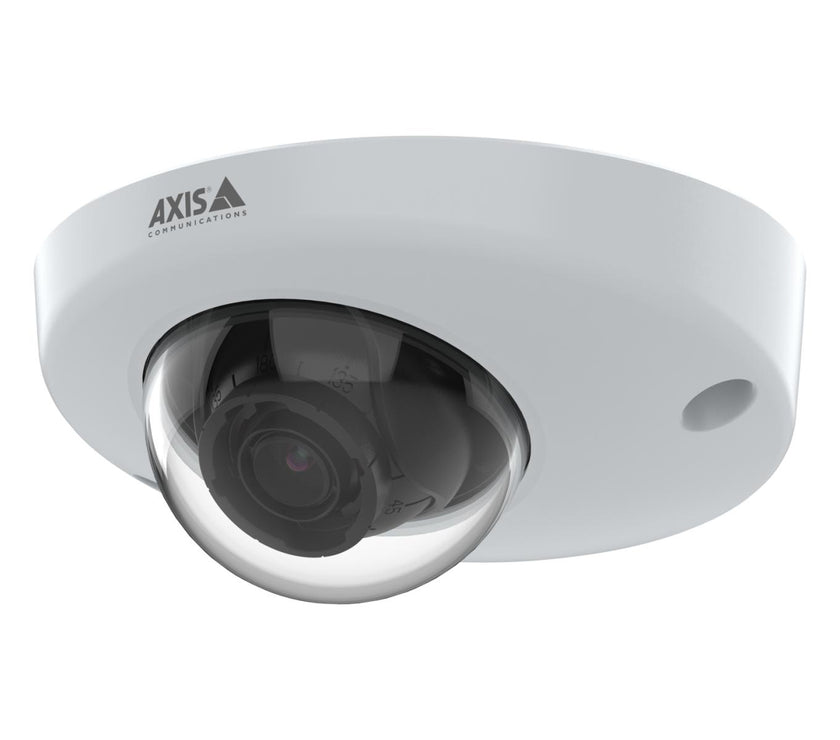

Axis 02670-001 security camera Dome IP security camera Indoor 1920 x 1080 pixels Wall

Axis 02670-001 security camera Dome IP security camera Indoor 1920 x 1080 pixels Wall

£446.08 GBP
Sale price: £446.08 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Full HD 1080p (1920 x 1080 pixels)
  • 87° horizontal viewing angle
In stock, 3 units
EAN: 7331021076938
SKU: 02670-001
Vendor: Axis
Order within xx hours for delivery on
Quantity
  • Image Sensor: 1/2.9" CMOS with 2MP effective resolution
  • Lens: 3.6mm fixed focal length, f/1.2 aperture
  • Field of View: Horizontal 88°, Vertical 47°
  • Low Light Performance: Minimum illumination 0.02 lux (color)
  • DORI Coverage (3.6mm Lens): Detect: 50.6m, Observe: 20.1m, Recognize: 10.1m, Identify: 5.1m
  • Video Resolution: 1920 x 1080 at up to 30 fps
  • Compression: H.264, H.265, MJPEG
  • Streaming: Up to 4 simultaneous streams via M12 connection
  • Networking: Supports ONVIF Profiles G, M, S, and T
  • Storage: microSD/microSDHC/microSDXC card slot (Class 10/U1/V10 or faster)
  • Security: Digest authentication, HTTPS encryption, IEEE 802.1X, password protection
  • Analytics: Motion detection, tampering, loitering, and virtual-line crossing detection
  • Installation Aids: Pixel counter for precise setup
  • Power: PoE 802.3af/PoE+ 802.3at (2.2–3.8 W consumption)
  • Durability: IK10 impact-resistant and IP67 dust/water-resistant housing
  • Construction: Aluminum and polycarbonate materials
  • Operating Conditions: -30°C to 55°C (-22°F to 131°F), 10–100% humidity
  • Certifications: CE, FCC, UL, KC, NDAA, REACH, RoHS, TAA, and more
  • Dimensions: 110 × 50 × 110 mm
  • Weight: 0.5 lb (241 g)
  • Camera
  • Manual
  • Lens tool
  • Software license

Datasheet

Overview
This compact and discreet 2 MP onboard camera complies with rolling stock standards such as EN50155 and EN45545. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a vehicle. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.

Technical Features
  • Application: Designed for railway transit surveillance
  • Resolution: 1080p at 30 fps for clear video capture
  • Lens: 3.6mm fixed lens with an 88° horizontal angle of view
  • Connectivity: RJ45 Ethernet port with PoE technology for power and data
  • Storage: Supports microSD, microSDHC, and microSDXC cards
  • Compatibility: Complies with ONVIF Profiles G, M, S, and T
  • Durability: IP67/NEMA 4X rated for water protection and IK10-rated for impact resistance
