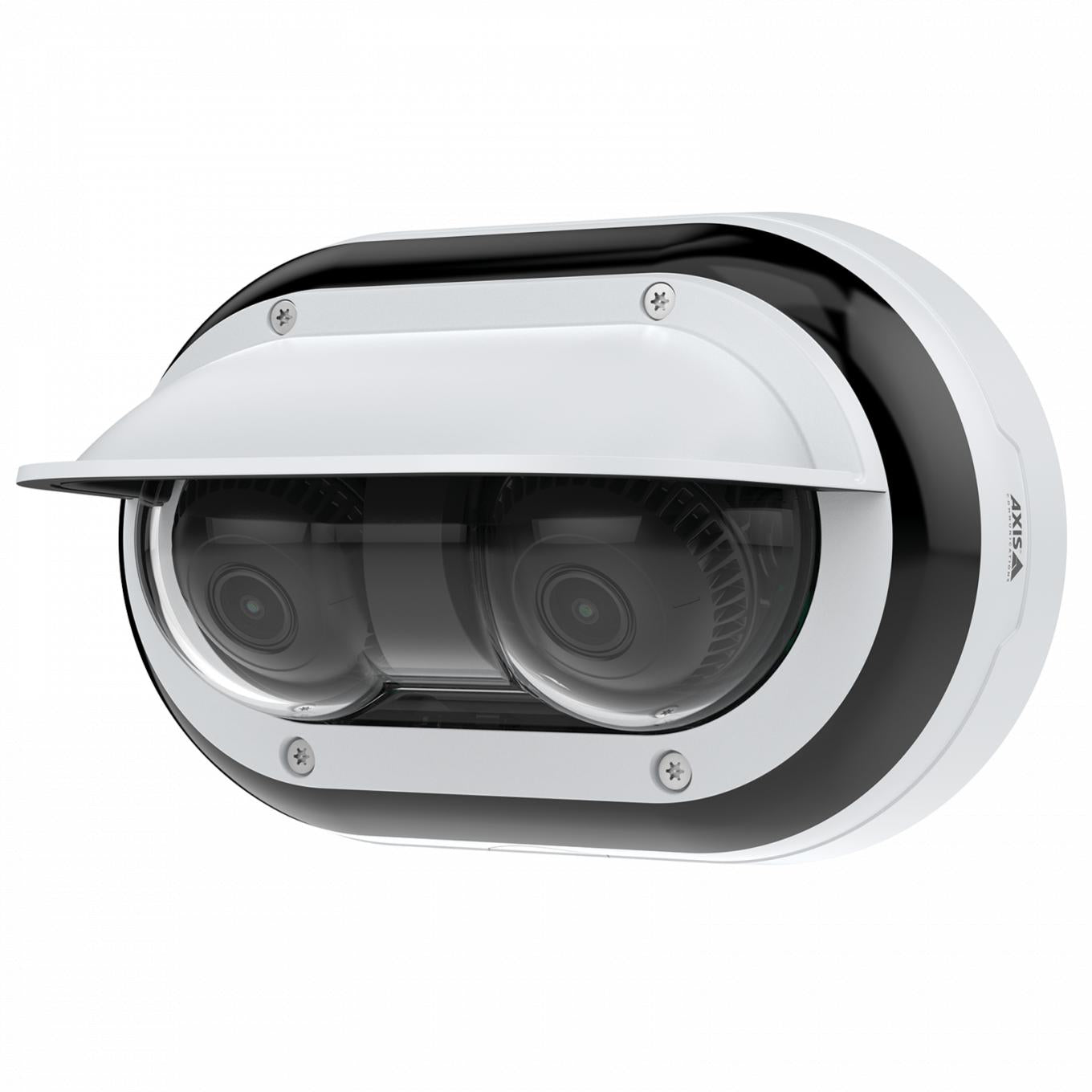

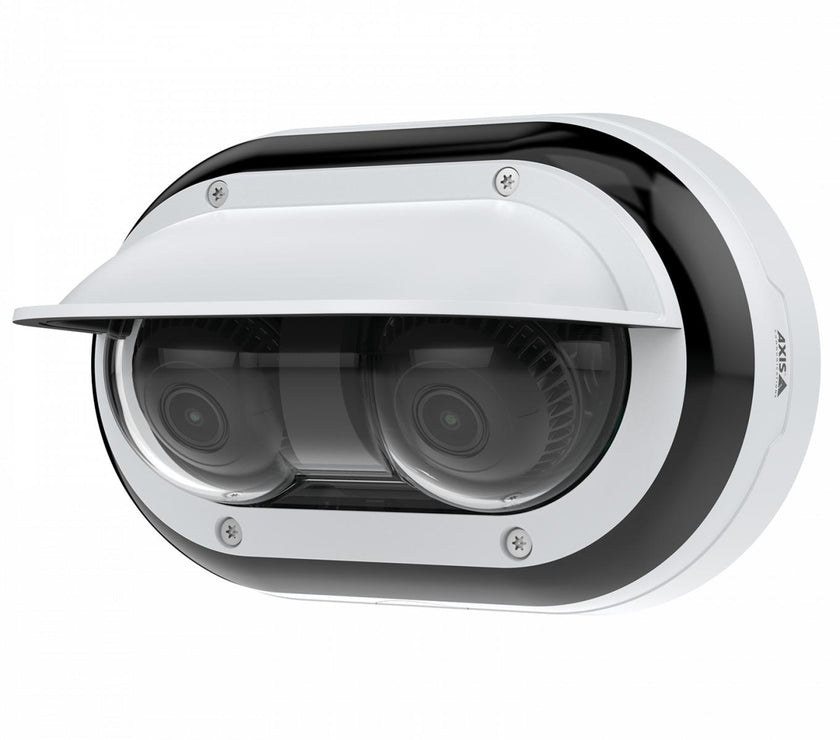

Axis 02416-001 security camera Bulb IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall

Axis 02416-001 security camera Bulb IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall

£1,196.00 GBP
Sale price: £1,196.00 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Axis Lightfinder
  • Forensic WDR
In stock, 7 units
EAN: 7331021076969
SKU: 02416-001
Vendor: Axis
Order within xx hours for delivery on
Quantity
  • Type: IP security camera
  • Connectivity Technology: Wired
  • Placement Supported: Indoor & outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/Night Mode: Yes
  • IK Code: IK10
  • Form Factor: Bulb
  • Product Colour: Black, White
  • Mounting Type: Ceiling/wall
  • International Protection (IP) Code: IP66, IP67
  • Tilt Angle Range: -75 - 75°
  • Pan Range: -100 - 110°
  • Angle of Rotation: 170°
  • Camera Shutter Speed: 1/33500 - 1/5 s
  • Lens Viewing Angle (Horizontal): 98 - 36°
  • Lens Viewing Angle (Vertical): 69 - 27°
  • Lens Viewing Angle (Diagonal): 133 - 46°
  • Sensor Type: CMOS
  • Optical Sensor Size: 25.4 / 2.7 mm (1 / 2.7")
  • Panoramic Camera Sensor Type: CMOS
  • Optical Sensor Size (Panoramic Camera): 25.4 / 2.7 mm (1 / 2.7")
  • Camera Shutter Speed (Panoramic Camera): 1/33500 - 1/5 s
  • Minimum Illumination (Panoramic Camera): 0.19 lx
  • Focal Length Range (Panoramic Camera): 3.26 - 8.12 mm
  • Number of Lenses: 1
  • Auto Focus: Yes
  • Zoom Capability: Yes
  • Focal Length Range: 3.26 - 8.12 mm
  • Night Vision: Yes
  • LED Type: IR
  • Image Quality Adjustment: Brightness, Contrast, Sharpness
  • Privacy Masking: Yes
  • Video Compression Formats: H.264, H.265, M-JPEG
  • Maximum Resolution: 2592 x 1944 pixels
  • Supported Graphics Resolutions: 2560 x 1440, 2592 x 1944
  • Frame Rate: 30 fps
  • Video Streaming: Yes
  • Total Megapixels: 2.5 MP
  • Built-in Speaker(s): Yes
  • Audio System: 2-way
  • Audio Codecs: 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
  • Bluetooth: No
  • Ethernet Interface Type: Gigabit Ethernet
  • Networking Standards: IEEE 802.1x, IEEE 802.3at
  • Quality of Service (QoS) Support: Yes
  • Ethernet LAN: Yes
  • Wi-Fi: No
  • Supported Network Protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
  • Live View: Yes
  • Card Reader Integrated: Yes
  • Built-in HDD: No
  • Microphone In: Yes
  • Ethernet LAN (RJ-45) Ports: 1
  • Security Algorithms: HTTPS
  • IP Address Filtering: Yes
  • Password Protection: Yes
  • Power Source Type: PoE
  • Power Consumption (PoE): 7.9 W
  • Operating Temperature (T-T): -30 - 50 °C
  • Storage Temperature (T-T): -40 - 65 °C
  • Operating Relative Humidity (H-H): 5 - 95%
  • Width: 133 mm
  • Depth: 208 mm
  • Height: 88 mm
  • Weight: 975 g
  • Number of Cameras: 2
  • Doesn't Contain: BFR, PVC
  • Video Compression Formats (Other): H.264, H.265, M-JPEG
  • Audio Codecs (Other): 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
  • Lightbulb camera
  • Mounting bracket
  • User manual/installation guide

Datasheet

Overview
This dual-sensor, multidirectional camera offers 2*5 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.

Technical Features
  • Resolution: Supports a maximum video resolution of 2592×1944 pixels
  • Dual-Sensor Capability: Two independent camera heads can be positioned individually to monitor two different areas simultaneously
  • Indoor/Outdoor Use: Designed for both indoor and outdoor environments for versatile applications
  • Mounting Options: Can be mounted on ceilings and walls, and with accessories, on poles or in corners
  • Advanced Imaging: Includes Forensic WDR and 360° IR illumination with individually controllable LEDs for excellent day and night performance
  • Edge Analytics: Equipped with a deep learning processing unit (DLPU) for on-edge analytics, enabling object detection and classification of people and vehicles through ACAP applications
  • Additional Capabilities: Features two 4K channels, up to 2.5x zoom per channel, and audio input for a comprehensive security solution
