Axis 02349-001 security camera Box IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Axis 02349-001 security camera Box IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

£315.01 GBP
Sale price: £315.01 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • IR Illumination
  • Built-in Privacy Features
In stock, 12 units
EAN: 7331021076228
SKU: 02349-001
Vendor: Axis
Order within xx hours for delivery on
Quantity
  • Infrared (IR) Cut-off Filter: Yes
  • Number of Languages: 12
  • Languages Supported: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
  • Type: IP security camera
  • Connectivity Technology: Wired
  • Placement Supported: Indoor & outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/Night Mode: Yes
  • Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
  • Form Factor: Box
  • Product Colour: White
  • Mounting Type: Ceiling/wall
  • LED Indicators: Yes
  • Housing Material: Aluminium, Plastic
  • Minimum Illumination: 0.03 lx
  • Camera Shutter Speed: 1/19000 s
  • Lens Viewing Angle (Horizontal): 103°
  • Lens Viewing Angle (Vertical): 55°
  • Sensor Type: CMOS
  • Optical Sensor Size: 25.4 / 2.9 mm (1 / 2.9")
  • Number of Sensors: 1
  • Number of Lenses: 1
  • Fixed Focal Length: 3.16 mm
  • Night Vision: Yes
  • Image Quality Adjustment: Brightness, Colour depth, Contrast, Saturation, Sharpness
  • Text Caption Overlay: Yes
  • Privacy Masking: Yes
  • Bit Rate Control: Variable Bit Rate (VBR)
  • Video Compression Formats: AVC, H.264, H.265, HEVC, M-JPEG
  • Maximum Resolution: 1920 × 1080 pixels
  • Supported Graphics Resolutions: 320 × 240, 640 × 360, 1280 × 960, 1920 × 1080 (HD 1080)
  • Supported Video Modes: 1080p
  • Frame Rate: 30 fps
  • Video Streaming: Yes
  • Video Intelligence Analytic: Yes
  • Networking Standards: IEEE 802.1x
  • Quality of Service (QoS) Support: Yes
  • Ethernet LAN: Yes
  • Supported Network Protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, MQTT v3.1.1, Syslog, Link-Local-Adresse (ZeroConf)
  • Built-in HDD: No
  • Compatible Memory Cards: MicroSD (TransFlash), MicroSDHC
  • Flash Memory: 512 MB
  • Ethernet LAN (RJ-45) Ports: 1
  • Security Algorithms: EAP-TLS, HTTPS, SNMP
  • IP Address Filtering: Yes
  • Power Source Type: PoE
  • Power Consumption (Max): 4.3 W
  • Power Consumption (PoE): 4.3 W
  • Power Consumption (Typical): 2.2 W
  • DC Output Voltage: 12
  • DC Output Current: 2.5 A
  • Operating Temperature (T-T): 0 – 35 °C
  • Storage Temperature (T-T): -40 – 65 °C
  • Operating Relative Humidity (H-H): 10 – 85%
  • Storage Relative Humidity (H-H): 5 – 95%
  • Width: 60 mm
  • Depth: 93 mm
  • Height: 105 mm
  • Weight: 137 g
  • Number of Cameras: 1
  • Video Compression Formats (Other): AVC, H.264, H.265, HEVC, M-JPEG
  • The camera itself
  • An installation guide
  • A wall mount
  • A terminal block connector
  • A Windows decoder 1-user license

Datasheet

Overview

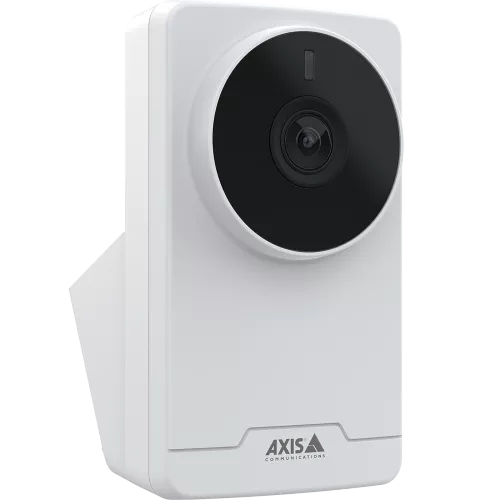

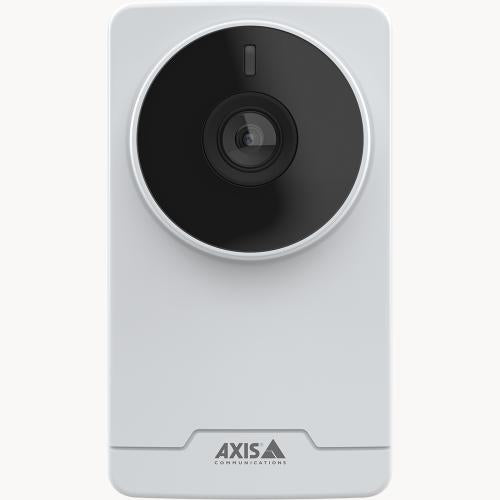

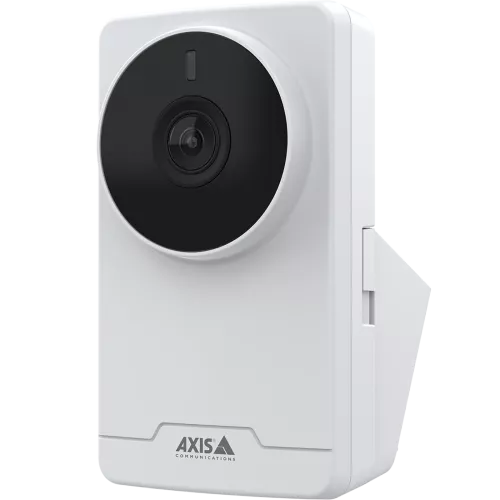

Offering an IR-corrected lens, this compact, easy-to-install camera delivers professional-quality video both day-and-night. It features a tally LED to indicate video streaming or recording. And AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy. A deep learning processing unit enables advanced features and powerful analytics based on deep learning on the edge. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network.

Technical Features
  • Resolution: Cost-effective HDTV 1080p with deep learning capabilities
  • Day and Night Functionality: Equipped with IR illumination for clear images in all lighting conditions
  • Analytics Support: Supports advanced analytics based on deep learning on the edge
  • Power and Connectivity: PoE and I/O port with 1 input and 1 output
  • Privacy Features: Built-in privacy protection features
  • Audio: Premium model includes audio support
  • Pre-installed Analytics: Comes with AXIS Object Analytics pre-installed
  • Ideal Use: Suitable for small stores and residential care; compact and easy to install with excellent image quality around the clock
