Axis 02164-001 security camera Dome IP security camera Indoor 2688 x 1512 pixels Ceiling/wall

Axis 02164-001 security camera Dome IP security camera Indoor 2688 x 1512 pixels Ceiling/wall

£1,413.70 GBP
Sale price: £1,413.70 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 4 MP Resolution
  • Two-Way Audio
In stock, 2 units
EAN: 7331021073944
SKU: 02164-001
Vendor: Axis
Order within xx hours for delivery on
Quantity
  • Type: Indoor IP Security Camera
  • Resolution: 2688 × 1512 pixels (4 MP)
  • Image Sensor: 1/1.8" CMOS, Progressive Scan
  • Lens: Varifocal 3.9–10 mm, F1.5, Autofocus, 2.5x Optical Zoom
  • Field of View: 120° (Horizontal), 63° (Vertical)
  • Minimum Illumination: 0.01 lux
  • Dynamic Range: 120 dB (Forensic WDR)
  • Day/Night Mode: Yes (IR Cut Filter)
  • Fog Proof: Yes
  • Video Compression: H.264, H.265, MJPEG
  • Frame Rate: Up to 30 fps
  • Noise Reduction / Image Stabilization: Yes
  • Privacy Masking & Text Overlay: Supported
  • Analytics: Line Crossing Detection, Video Motion Detection
  • Audio: Built-in Microphone, 2-way Audio, Full Duplex, Audio Detection
  • Voice Codecs: G.711, G.726, OPUS
  • Networking: Gigabit Ethernet (IEEE 802.3af/at), QoS, IPv4/IPv6
  • Storage: microSD/microSDHC/microSDXC Card Slot, NAS Support
  • Security: FIPS 140-2, HTTPS Encryption, EAP-TLS, IP Filtering, Password Protection
  • Internal Memory: 2 GB RAM / 8 GB Flash
  • Power: PoE or 10–28V DC, Max 7.7 W
  • Operating Conditions: -20°C to 60°C, 10–85% Humidity
  • Build: Aluminium Housing, Ceiling/Wall Mount, Dome Form Factor
  • Certifications: REACH, RoHS, FCC, VCCI, EN, IEC, RCM
  • Dimensions: 80 × 214 × 68 mm
  • Weight: 790 g
  • Color: Black
  • Languages Supported: 12 (English, German, French, Japanese, Korean, etc.)
  • Package Includes: 1 × Camera
  • Environment Compliance: Halogen-free (No BFR, PVC)
  • Axis 02164-001 Security Camera
  • installation Hardware
  • Manuals/Guides
  • Cables
  • Power Adapter
  • Accessories: Other potential accessories may include a cleaning cloth, a lens cap, or a Kensington lock.

Datasheet

Overview

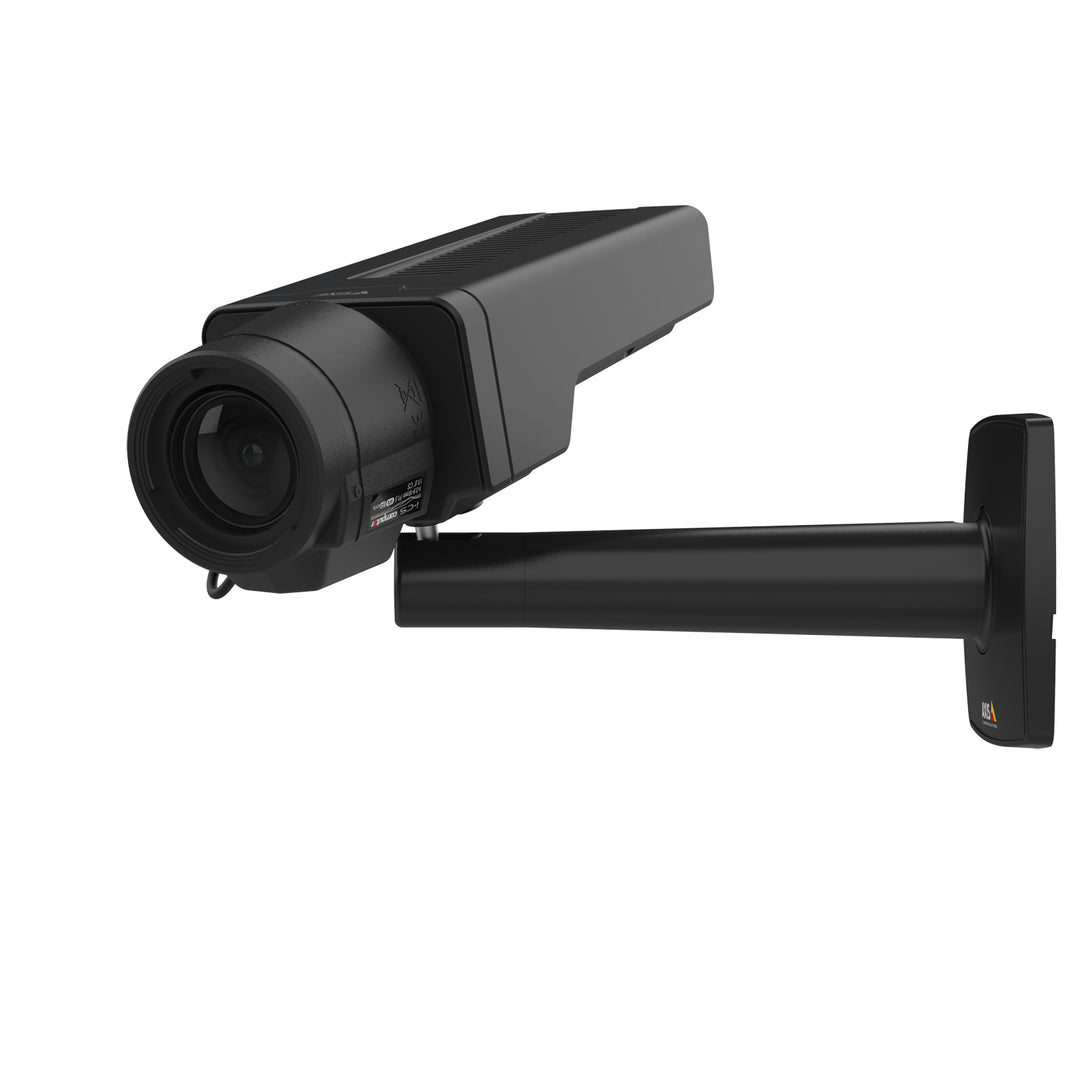

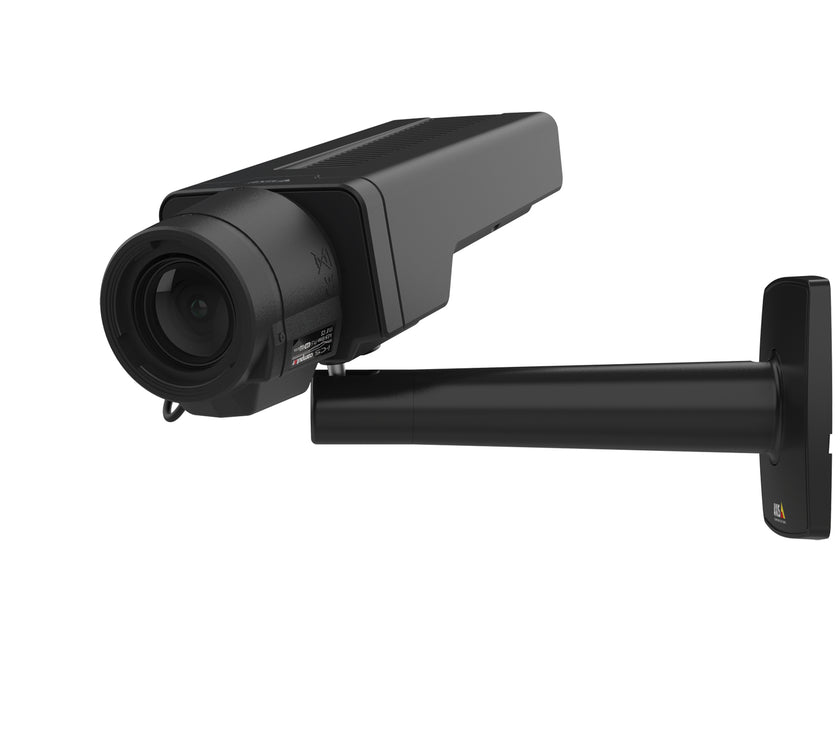

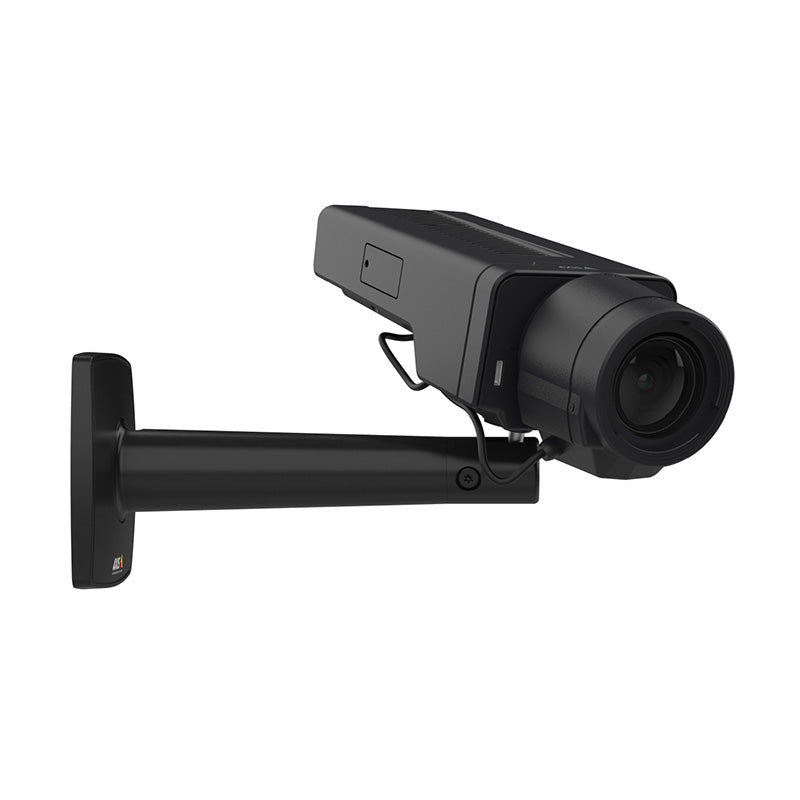

With 4 MP resolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656 delivers exceptional video quality even in poor light conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and powerful applications based on deep learning on the edge. And AXIS Object Analytics offers highly nuanced object classification. This high-performance box camera includes premium Q-line functionality and support for PoE and redundant DC power. Furthermore, built-in cybersecurity features, such as Axis Edge Vault, signed firmware and secure boot, and FIPS-certified TPM, prevent unauthorized access and safeguard your system.

Technical Features
  • 4 MP Resolution: for crisp, detailed video capture
  • 2.5x Optical Zoom and Autofocus: for flexible image framing
  • Forensic WDR (120 dB): ensures clear visibility in both dark and bright scenes
  • Lightfinder Technology: delivers full-color images in low-light conditions
  • Built-in Cybersecurity Features: with FIPS 140-2 compliance and HTTPS encryption
  • Two-Way Audio: with built-in microphone and full-duplex support
  • Digital PTZ Control: for precise monitoring
  • Wide 120° Horizontal Field of View: for broad coverage
  • Fog-Proof and Weather-Resistant Design (IP66-rated): for reliable indoor/outdoor use
  • IK10 Vandal Resistance: with durable aluminum housing
  • Compact Dome Form Factor: for discreet installation on ceilings or walls
  • Integrated microSD/SDHC/SDXC Card Slot: for local storage
  • PoE and DC Power Options: for easy installation
  • Built-in Analytics: including motion detection and line crossing detection
  • Comprehensive Network Support: with IPv6, HTTPS, MQTT, SNMP, and more
  • Operating Temperature: -20°C to 60°C
