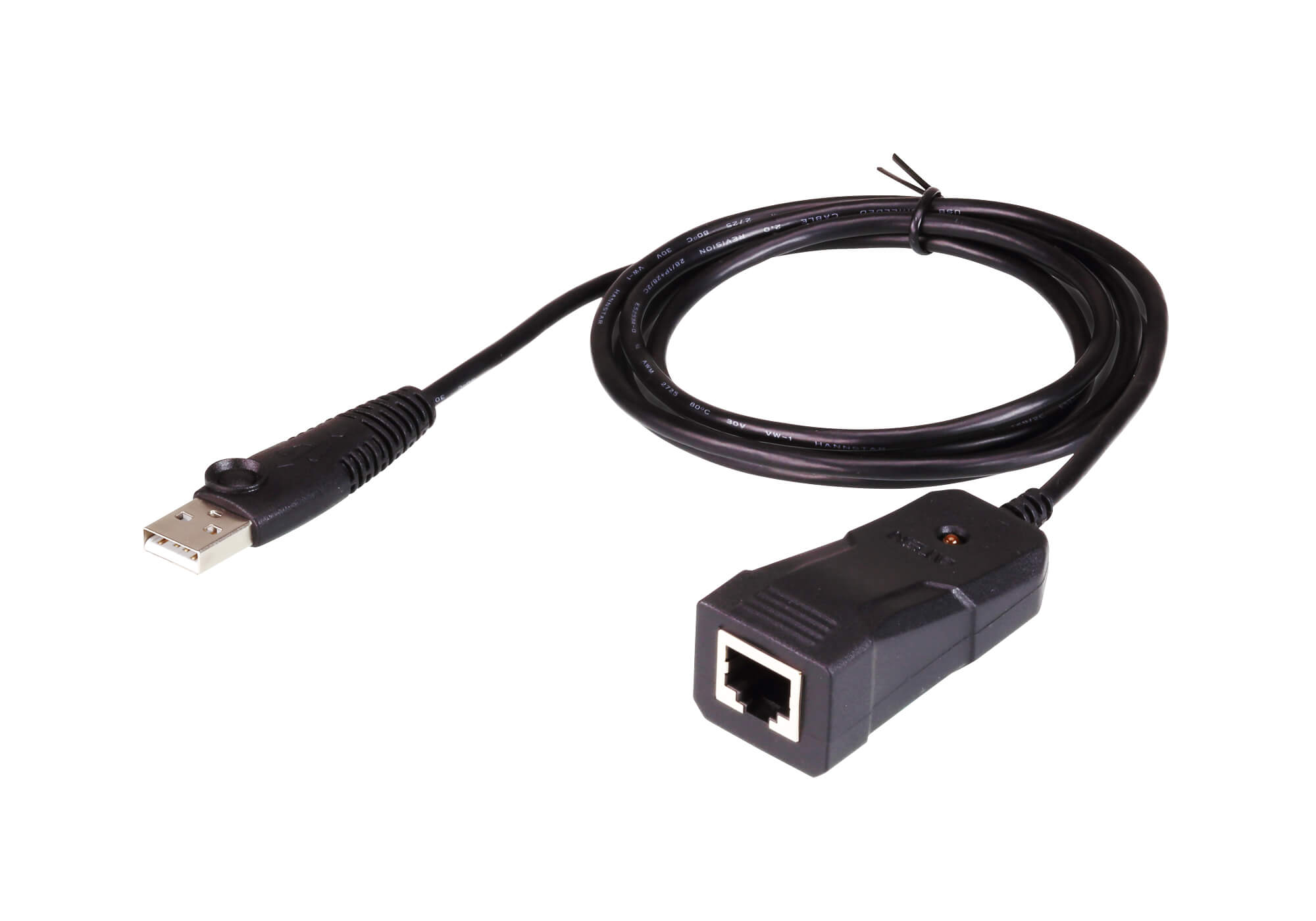

ATEN UC232B

Name: ATEN UC232B
Brand: ATEN
SKU: UC232B
Price: 18.28 GBP
Availability: InStock

£18.28 GBP

£18.28 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

USB To Network Console Access

In stock, 1 unit

EAN: 4719264646027

SKU: UC232B

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Converts a USB port into an RJ-45 RS-232 console port
Ideal for configuring routers, switches, and networking devices
Supports high-speed COM port data transfer up to 921.6 Kbps
Compatible with standard straight RJ45 cable (no rollover cable needed)
USB bus-powered design – no external power adapter required
Plug-and-play installation for quick deployment
Supports Windows, macOS, and Linux operating systems
Compact and lightweight for easy portability
COM port retention saves assigned port settings
Reliable connectivity for network administration and industrial systems

Box Content

1 × ATEN UC232B USB-to-RJ45 Console Adapter
1 × User Instructions / Quick Installation Guide

Documents

Datasheet

Technical Features

Model: UC232B
Device Type: USB to RJ-45 (RS-232) Console Adapter
USB Interface: 1 × USB Type-A Male
Serial Interface: 1 × RJ-45 Female (RS-232 Protocol)
USB Standard: USB 2.0 compliant
Data Transfer Rate: Up to 921.6 Kbps
Cable Length: 1.2 meters
LED Indicator: Power Status
Power Source: USB Bus Powered
Operating Temperature: 0°C – 40°C
Storage Temperature: −20°C – 60°C
Humidity: 0 – 80% RH (Non-condensing)
Housing Material: Plastic
Dimensions: 2.56 × 5.84 × 2.23 cm
Weight: Approx. 0.06 kg

ATEN UC232B

£18.28 GBP

£18.28 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The ATEN UC232B USB-to-RJ45 Console Adapter provides a reliable solution for connecting modern computers to network devices that use RS-232 console ports. Featuring a USB Type-A connector on one end and an RJ-45 serial console interface on the other, it allows administrators to configure routers, switches, firewalls, and other networking equipment directly from a laptop or desktop computer. The adapter supports high-speed serial communication up to 921.6 Kbps and works with standard straight RJ45 cables, eliminating the need for special rollover cables. Powered directly from the USB port, it requires no external power supply and supports plug-and-play operation. With driver support for Windows, macOS, and Linux, the UC232B is widely used by IT professionals for network configuration, industrial automation systems, and POS applications.
