Out of Stock

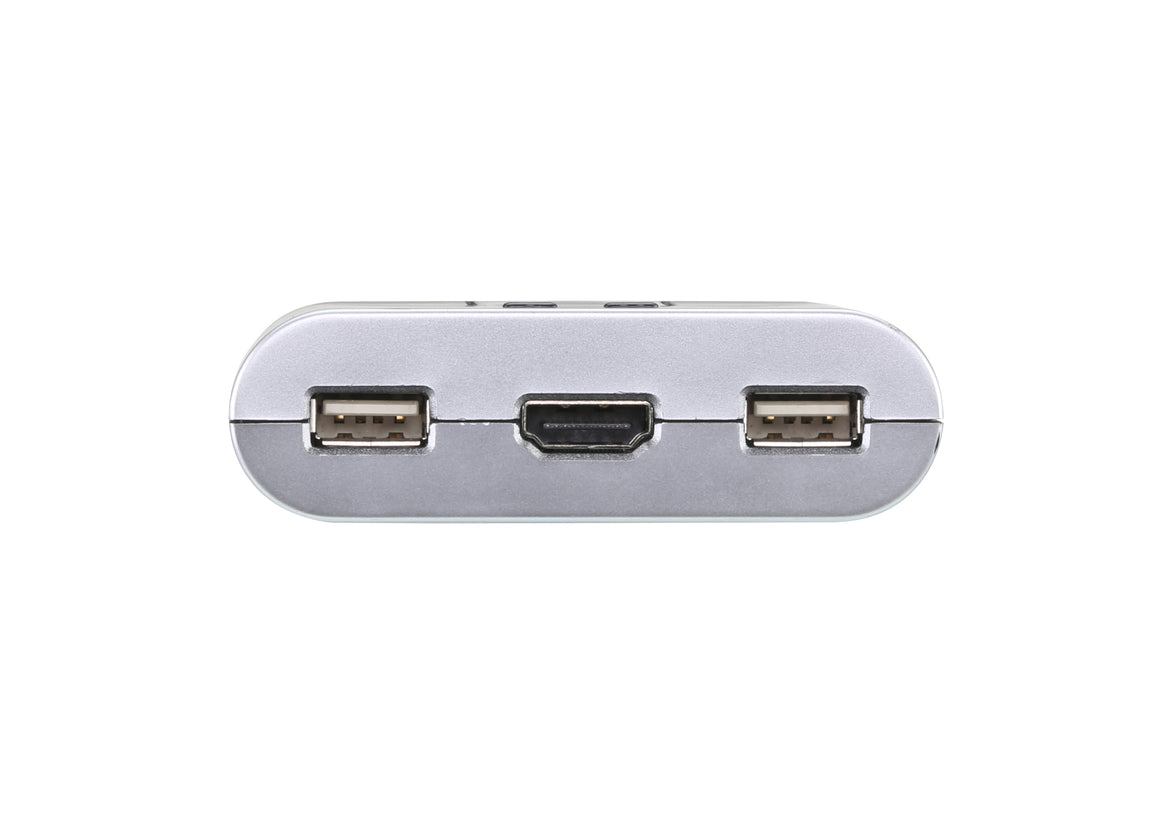

ATEN CS692

Name: ATEN CS692
Brand: ATEN
SKU: CS692
Price: 54.31 GBP
Availability: OutOfStock

£54.31 GBP

£54.31 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

Dual PC One Console Control

Out of stock

EAN: 4710423776814

SKU: CS692

Vendor: ATEN

Order within xx hours for delivery on

Ports & interfaces

Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
USB connector type	USB Type-A
Number of microphone inputs	3
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
Headphone outputs	3
HDMI ports quantity	2
USB 2.0 Type-A hub ports quantity	4
Console HDMI ports quantity	1
Cable length	1.2 m

Performance

HD type	WUXGA
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Scan interval	3,5,10,20 s

Technical details

Product colour	Black
Rack mounting	No
Push button	Yes
LED indicators	Yes
Hot keys	Yes

Design

Remote switch cable length	1.8 m
Housing material	Plastic

Display

Built-in display	No

Power

Power source	DC
Power consumption (typical)	0.72 W
Input voltage	5 V

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	82.4 mm
Depth	66.5 mm
Height	25.2 mm
Weight	480 g

Packaging content

Quick installation guide	Yes
Manual	Yes

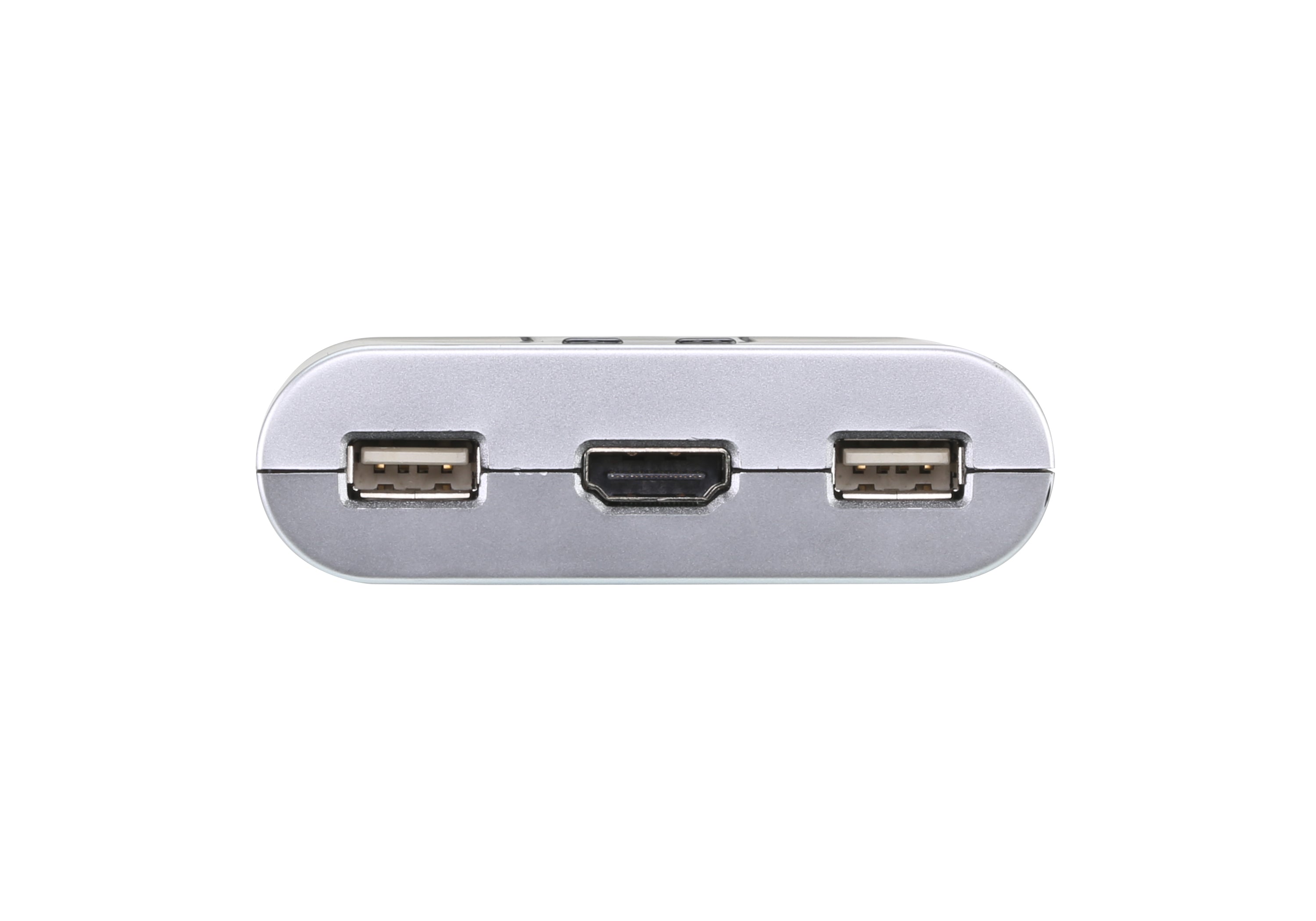

ATEN CS692

£54.31 GBP

£54.31 GBP ~~Regular price:~~

(VAT Excl.)

In stock

Overview

The ATEN CS692 2-Port USB HDMI/Audio Cable KVM Switch is designed to manage two HDMI-enabled computers from a single console consisting of a monitor, USB keyboard, and mouse. It offers full HDMI functionality with support for resolutions up to 1920 × 1200 or 1080p, ensuring clear video output for multimedia and office applications. The switch allows users to change between computers using a remote port selector, keyboard hotkeys, or mouse switching for convenience. Built-in cables simplify installation and reduce cable clutter, while USB 2.0 peripheral sharing allows additional USB devices to be connected through the console. The unit is bus-powered, meaning no external power supply is required. With support for Windows, macOS, and Linux systems, it provides a flexible and reliable solution for home offices, IT workstations, and multi-system environments.
