ATEN CS52DP

Name: ATEN CS52DP
Brand: ATEN
SKU: CS52DP
Price: 85.75 GBP
Availability: InStock

£85.75 GBP

£85.75 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Hybrid 4K KVM Switching

In stock, 3 units

EAN: 4710469341311

SKU: CS52DP

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Control two systems from one console
Supports 4K video up to 4096 × 2160 @ 60Hz
Hybrid connection for DisplayPort PC and USB-C device
Integrated cables for simplified setup
Remote port selector for quick switching
Plug-and-play operation with no software required
Cross-platform compatibility (Windows, Mac, Linux, Android, iOS)
USB hot-plugging support

Box Content

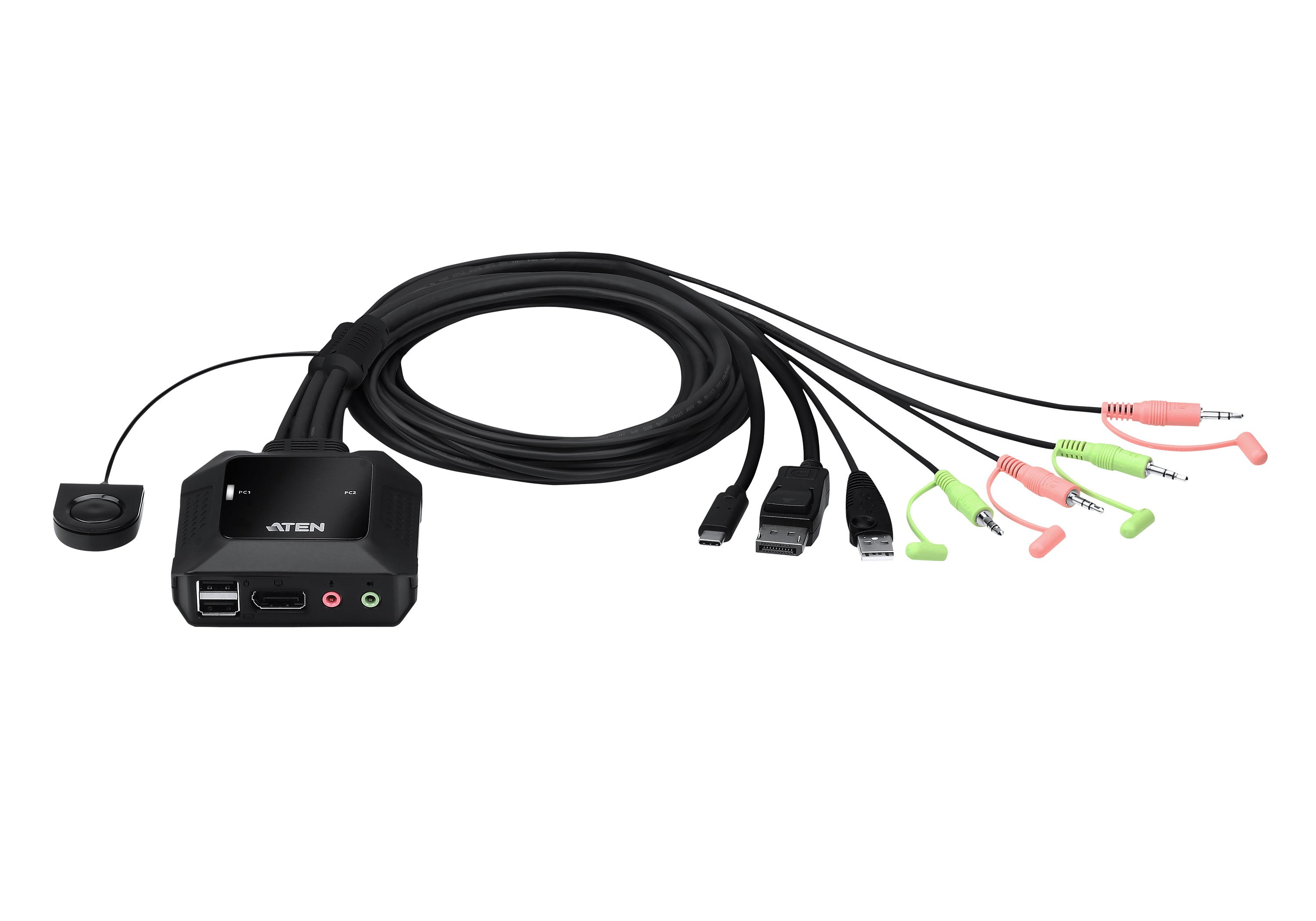

ATEN CS52DP 2-Port USB-C DisplayPort Hybrid Cable KVM Switch
Remote Port Selector
User Instructions / Quick Start Guide

Documents

Datasheet

Technical Features

Brand: ATEN
Model: CS52DP
Product Type: 2-Port USB-C DisplayPort Hybrid Cable KVM Switch
Computer Connections: 2
Console Ports: 1 × DisplayPort Female, 2 × USB Type-A, 1 × 3.5mm Speaker Jack, 1 × 3.5mm Microphone Jack
Computer Ports (CPU1): 1 × DisplayPort Male, 1 × USB Type-A Male, Audio & Mic Jacks
Computer Ports (CPU2): 1 × USB-C Male, Audio & Mic Jacks
Maximum Resolution: 4096 × 2160 @ 60Hz
DisplayPort Version: DisplayPort 1.2
Cable Length (KVM): 2 × 1.2 m integrated cables
Remote Port Selector Cable Length: 1.8 m
Power Supply: USB bus powered (optional Micro-USB power)
Power Consumption: DC 5V, approx. 0.74 W
Operating Temperature: 0 – 50°C
Storage Temperature: -20 – 60°C
Humidity: 0 – 80% RH (non-condensing)
Housing: Plastic
Dimensions: 8.34 × 8.42 × 3.04 cm
Weight: Approx. 0.30 kg

ATEN CS52DP

£85.75 GBP

£85.75 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The ATEN CS52DP 2-Port USB-C DisplayPort Hybrid Cable KVM Switch provides a convenient way to manage two different systems using a single console setup. It allows users to connect one DisplayPort desktop computer and one USB-C device—such as a laptop or tablet—and control both using the same keyboard, mouse, and DisplayPort monitor. The switch delivers superior video performance with support for 4K resolution up to 4096 × 2160 at 60 Hz, ensuring clear and detailed visuals. Integrated cables simplify installation and reduce clutter on the desk. A remote port selector enables quick switching between connected systems with a single press. The device also supports cross-platform compatibility including Windows, macOS, Linux, Android, and iOS, making it suitable for hybrid workstations and modern office environments.
