ATEN CS1734B

Name: ATEN CS1734B
Brand: ATEN
SKU: CS1734B
Price: 192.5 GBP
Availability: OutOfStock

£192.50 GBP

£192.50 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Control 4 PCs Seamlessly

Out of stock

EAN: 4710423775053

SKU: CS1734B

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Product Type: KVMP™ Switch with OSD
Brand: ATEN
Model: CS1734B
Ports Supported: 4 computers
Console Interfaces: PS/2 and USB keyboard & mouse
Video Interface: VGA (HDB-15)
Maximum Video Resolution: 2048 × 1536 @ 60Hz (DDC2B)
USB Hub: 2 x USB 2.0 ports
Audio Support: 4 x 3.5mm audio input/output
Switching Methods: Pushbutton, Hotkey, OSD, Mouse
LED Indicators: Online/Selected, USB Link
Scan Interval: 1–255 seconds
Operating Temp: 0–50°C
Housing: Metal
Power: DC 5V adaptor

Box Content

1 x ATEN CS1734B KVMP™ Switch
2 x USB KVM Cables
2 x Additional USB KVM Cables
1 x Firmware Upgrade Cable
1 x Power Adapter
Data Sheet

Documents

Data Sheet

Technical Features

Control up to 4 computers from one console
Supports PS/2 and USB keyboard/mouse configurations
Enhanced video quality with support up to 2048 × 1536
Multilingual on-screen display (OSD) menu
Video DynaSync™ EDID technology for optimal resolution
Independent switching of KVM, USB, and audio focus
Built-in USB 2.0 hub for additional peripherals
Auto Scan Mode for monitoring all connected computers
Supports widescreen resolutions
Plug-and-play installation with no software required

ATEN CS1734B

£192.50 GBP

£192.50 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

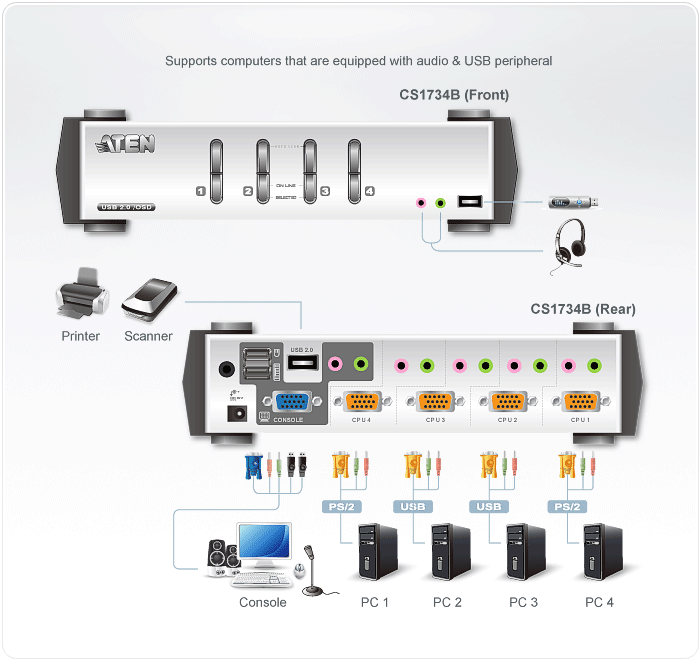

The ATEN CS1734B is a professional KVMP™ switch designed to centralize control of four computers from a single set of console devices — keyboard, VGA monitor, and mouse — while also supporting audio switching and USB peripherals. Featuring excellent video support up to 2048 × 1536 resolution and DDC2B compatibility, it ensures optimal display performance across platforms including Windows, Mac, Linux, and Sun. User-friendly switching is possible through front panel pushbuttons, multilingual on-screen display, hotkeys, or even mouse control. Video DynaSync™ technology preserves monitor EDID information to maintain consistent resolution when switching ports. The unit includes a built-in 2-port USB 2.0 hub, independent KVM, USB, and audio focus switching, and console audio jacks for easy access — ideal for professional and multi-system setups without the need for additional software.
