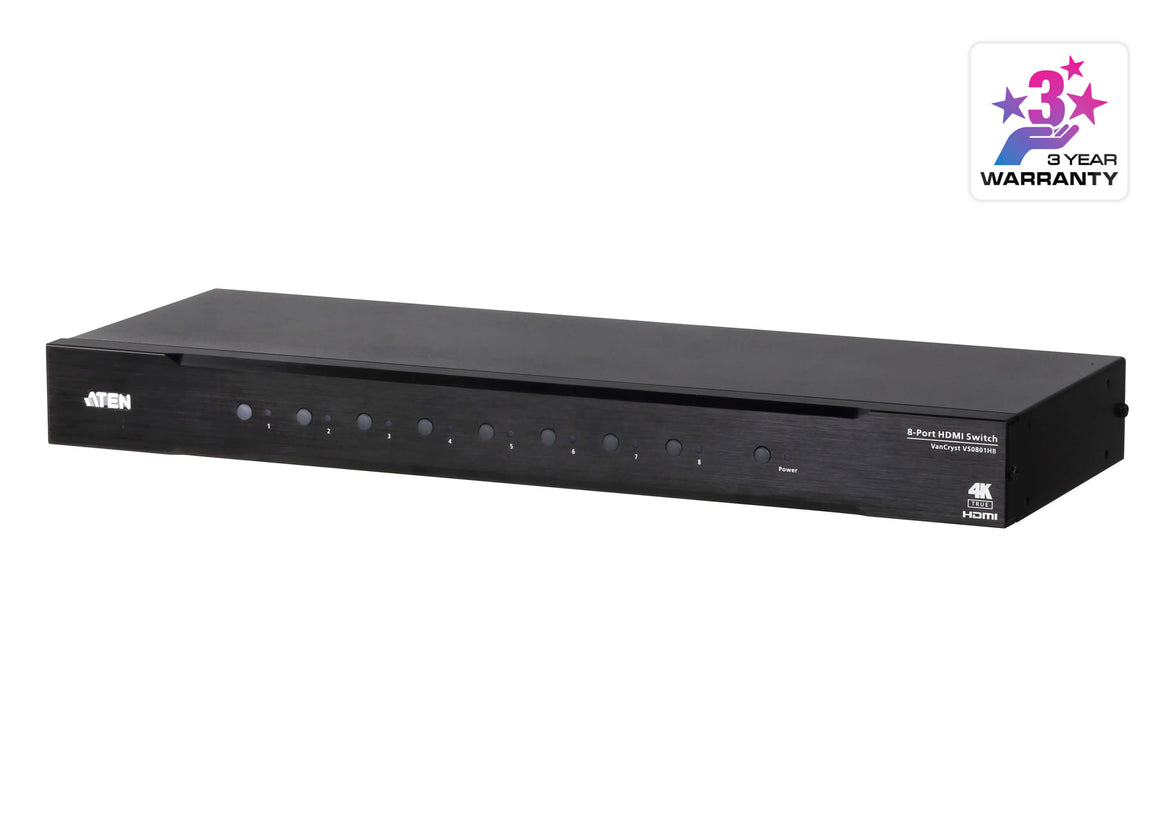

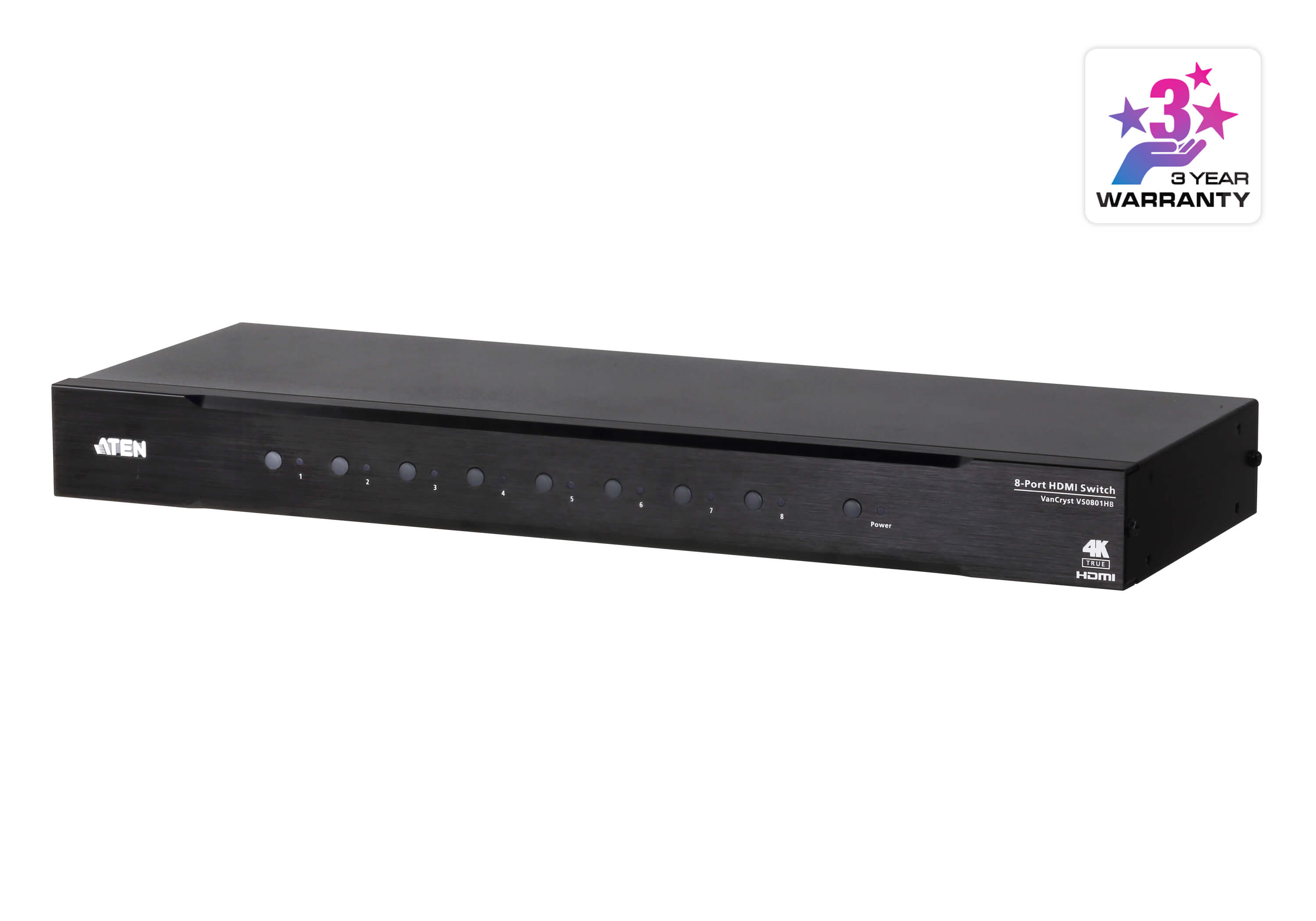

ATEN 8 Port HDMI Switch 4K

Name: ATEN 8 Port HDMI Switch 4K
Brand: ATEN
SKU: VS0801HB
Price: 295.84 GBP
Availability: OutOfStock

£295.84 GBP

£295.84 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Plug-and-play
Rack mountable

Out of stock

EAN: 4719264646300

SKU: VS0801HB

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Input Interfaces: 8 x HDMI Type A Female (Black)
Input Impedance: 100 Ω
Input Max Distance: 5 m at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Output Interface: 1 x HDMI Type A Female (Black)
Output Impedance: 100 Ω
Output Max Distance: 5 m at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max Data Rate: 18 Gbps (6 Gbps per lane)
Max Pixel Clock: 600 MHz
Compliance: HDMI 2.0 (3D, Deep Color), HDCP 2.2, Consumer Electronics Control (CEC)
Max Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control Interface (RS-232): 1 x DB-9 Female (Black); Baud Rate 19200, Data Bits 8, Stop Bits 1, No parity, No flow control
IR Port: 1 x Mini Stereo Jack Female (Black)

Box Content

1x VS0801HB 8-port True 4K HDMI Switch
1x IR Remote Control Unit
1x IR Receiver Cable(1.8 m)
1x Power Adapter
1x Rack Mounting Kit
1x User Instructions

Documents

Datasheet

Technical Features

Input Support: Allows up to 8 HDMI sources to be connected to one HDMI display
HDMI Standards: HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Video Quality: True 4K (4K x 2K @ 60 Hz 4:4:4) and 1080p (1920 x 1080 @ 60 Hz)
HDR Support: Supports HDR10+
Control Interface: Built-in bi-directional RS-232 serial port for system control
Switching Mode: Auto switching for automatic port selection
IR Support: Supports IR extension
Status Indicators: Clear LED indication of device status
Setup: Plug-and-play
Mounting: Rack mountable

ATEN 8 Port HDMI Switch 4K

£295.84 GBP

£295.84 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
