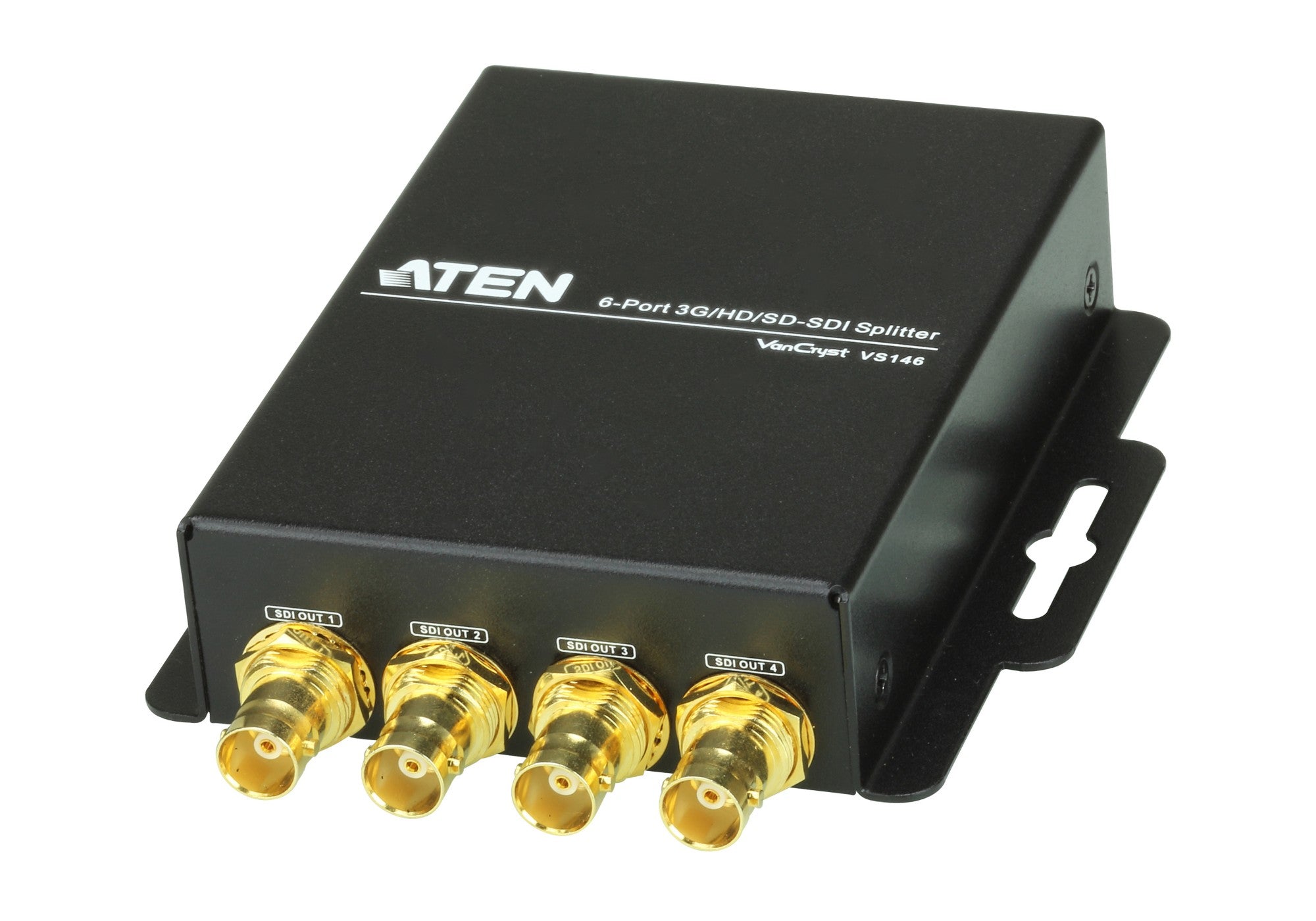

ATEN 6 Port SDI Splitter

Name: ATEN 6 Port SDI Splitter
Brand: ATEN
SKU: VS146
Price: 396.4 GBP
Availability: InStock

£396.40 GBP

£396.40 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Passes all ancillary data
LED indication

In stock, 2 units

EAN: 4719264641701

SKU: VS146

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Input Interface: 1 x BNC (Gold)
Input Impedance: 75 Ω
Max Distance: 1.8 m
Video Output Interfaces: 6 x BNC (Gold)
Output Impedance: 75 Ω
Max Data Rate: 2.97 Gbps

Box Content

1x VS146 6-Port 3G/HD/SD-SDI Splitter
1x 0AD6-1F05-26EG Power Adapter
1x User Instructions

Documents

Datasheet

Technical Features

Video Input/Output: One video input to 6 video outputs
Transmission Distance: Up to 90 m (3G-SDI), 150 m (HD-SDI), or 300 m (SD-SDI) over RG6
Signal Processing: Reclocking SDI signals for cascading and extended transmission
SDI Formats: SD-SDI (SMPTE 259M, up to 270 Mbps), HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps), 3G-SDI (SMPTE 424M, 425M Level A/B up to 2.97 Gbps)
Video Bandwidth: 2.97 Gbps, 2.97/1.001 Gbps
Signal Detection: Automatic detection of 3G/HD/SD-SDI signals
LED Indicators: Power status and SDI signal indication
Power Connector: Locking power connector for secure operation
Data Support: Passes all ancillary data

ATEN 6 Port SDI Splitter

£396.40 GBP

£396.40 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals for cascading and thus provide even longer transmissions. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to split signals from a camera or other device equipped with 3G/HD/SD-SDI outputs to six SDI-compliant displays or video processors.
