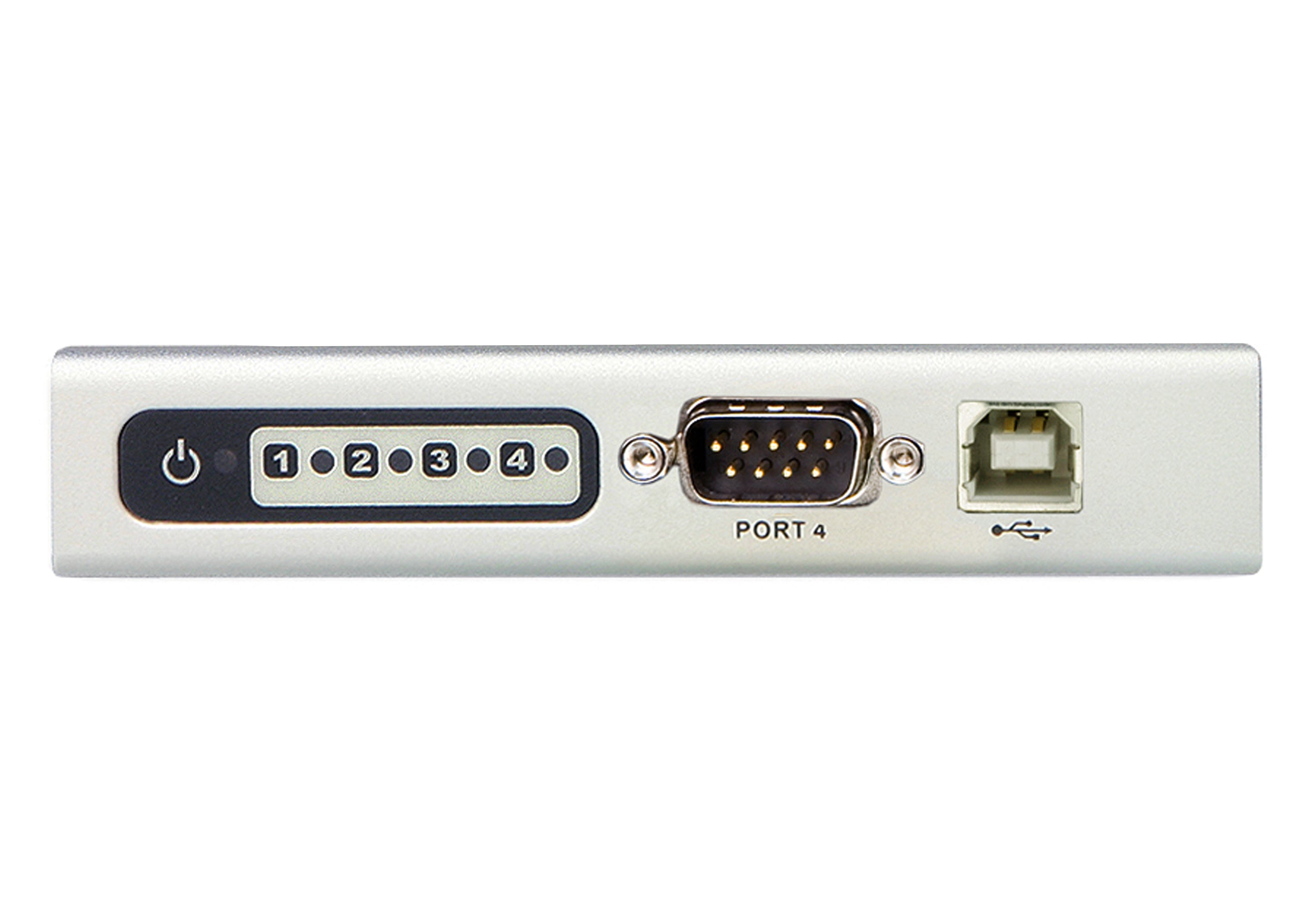

ATEN 4 Port USB/Serial RS232 Hub

Name: ATEN 4 Port USB/Serial RS232 Hub
Brand: ATEN
SKU: UC2324
Price: 78.55 GBP
Availability: InStock

£78.55 GBP

£78.55 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Plug-and-play
Built-in 16KV ESD protection

In stock, 4 units

EAN: 4710423773110

SKU: UC2324

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Operating Temperature: 0–50˚C
Storage Temperature: -20–60˚C
Humidity: 0–80% RH, Non-condensing
Housing: Metal
Weight: 0.32 kg (0.7 lb)
Dimensions (L × W × H): 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)

Box Content

1x USB-to-Serial Hub
1x USB cable (1.8 m)
1x installation disk
1x user instructions

Documents

Datasheet

Technical Features

Serial Ports: Easy way to add 4 RS-232 serial ports
USB Compatibility: Fully compliant with USB 1.1; USB 2.0 compatible
Interface Support: Supports RS-232 serial interface
Handshake Mode: Supports automatic handshake mode
Data Transfer Rate: Up to 921.6 Kbps per serial port
Data Buffers: Dual data buffers for upstream and downstream transfer
System Resources: No IRQ, DMA, or I/O address resources required
Hot-Swap Support: Supports hot-swapping and plug-and-play
ESD Protection: Built-in 16KV ESD protection
Power Options: Supports both bus power and external power
Device Compatibility: Works with cellular phones, PDAs, digital cameras, modems, and ISDN terminal adapters

ATEN 4 Port USB/Serial RS232 Hub

£78.55 GBP

£78.55 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The ATEN USB-to-Serial RS-232 Hub provides an external plug-and-play RS-232 serial connection for computers, notebooks, laptops, and handheld computing devices that support the USB specification. It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.
