ASUS STR5 PRO WS WRX90E-SAGE SE EEB

ASUS STR5 PRO WS WRX90E-SAGE SE EEB

£1,253.50 GBP
Sale price: £1,253.50 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • SlimSAS slot
  • High Capacity Storage
In stock, 10 units
EAN: 4711387441145
SKU: 90MB1FW0-M0EAY0
Vendor: ASUS
Order within xx hours for delivery on
Quantity
  • Number of M.2 (M) slots: 4
  • Number of memory slots: 8
  • PCI Express x16 (Gen 5.x) slots: 7
  • Processor manufacturer: AMD
  • Processor socket: Socket sTR5

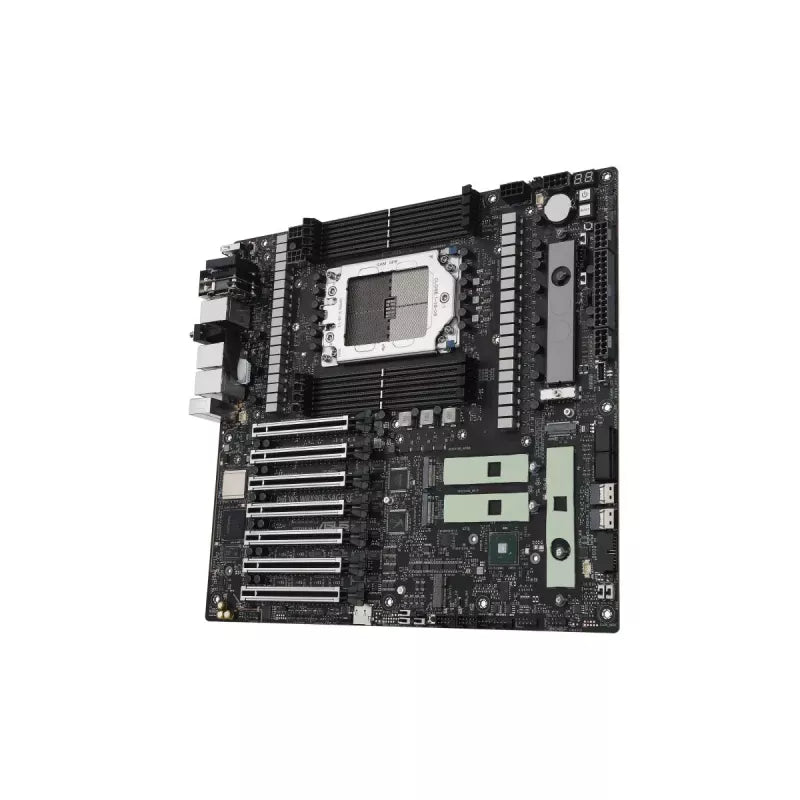

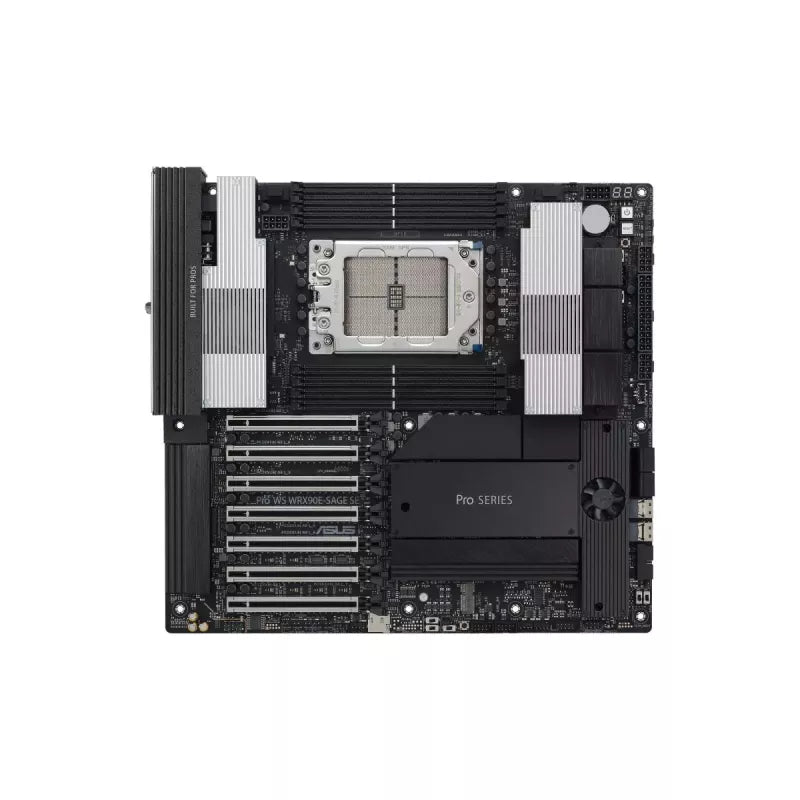

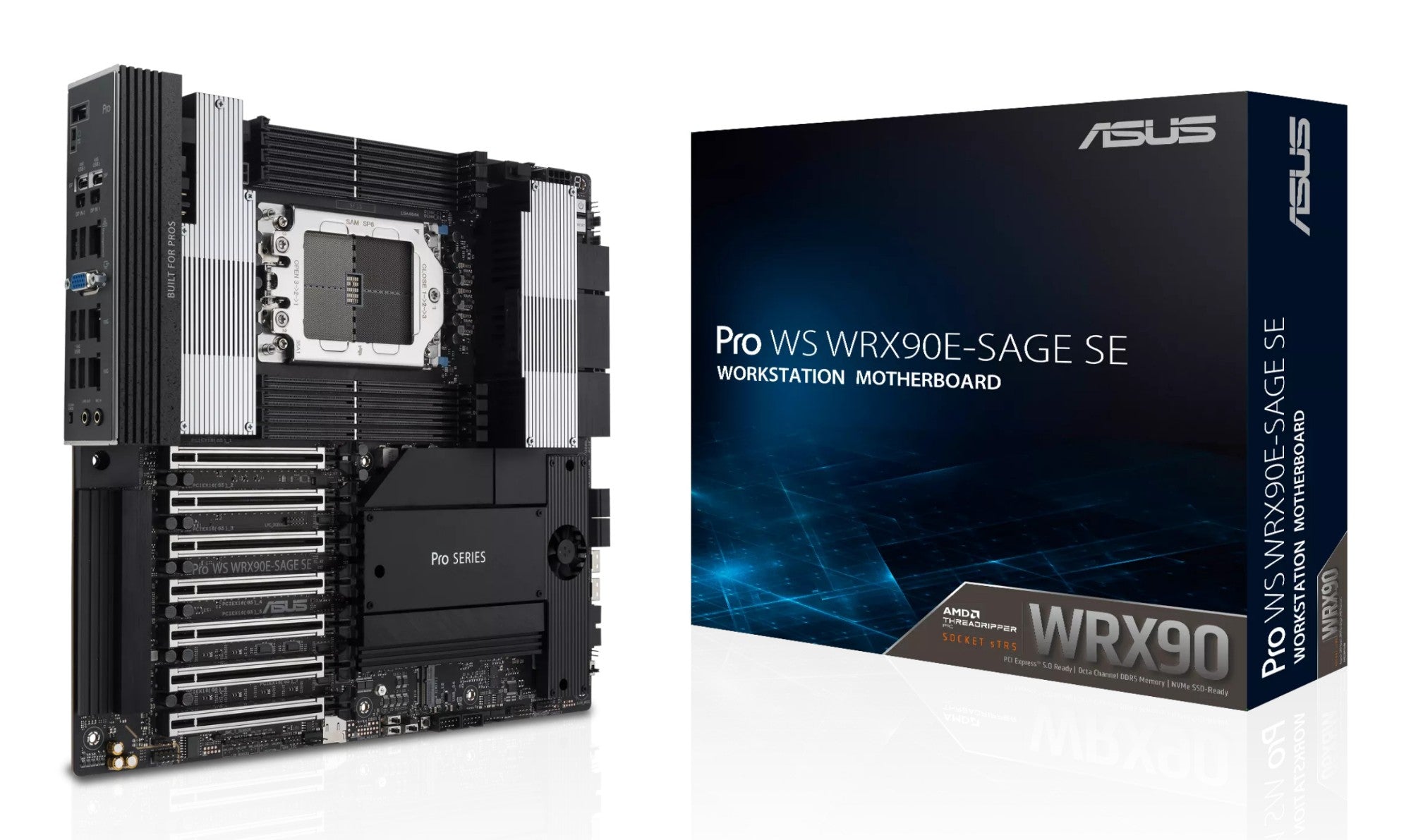

  • ASUS PRO WS WRX90E-SAGE SE Socket sTR5 EEB

Overview

The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.

Technical Features
  • Ready for Advanced AI PC: Designed for the future of AI computing with power and connectivity for demanding AI applications
  • AMD sTR5 socket support: Supports up to 96-core CPUs, compatible with AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors

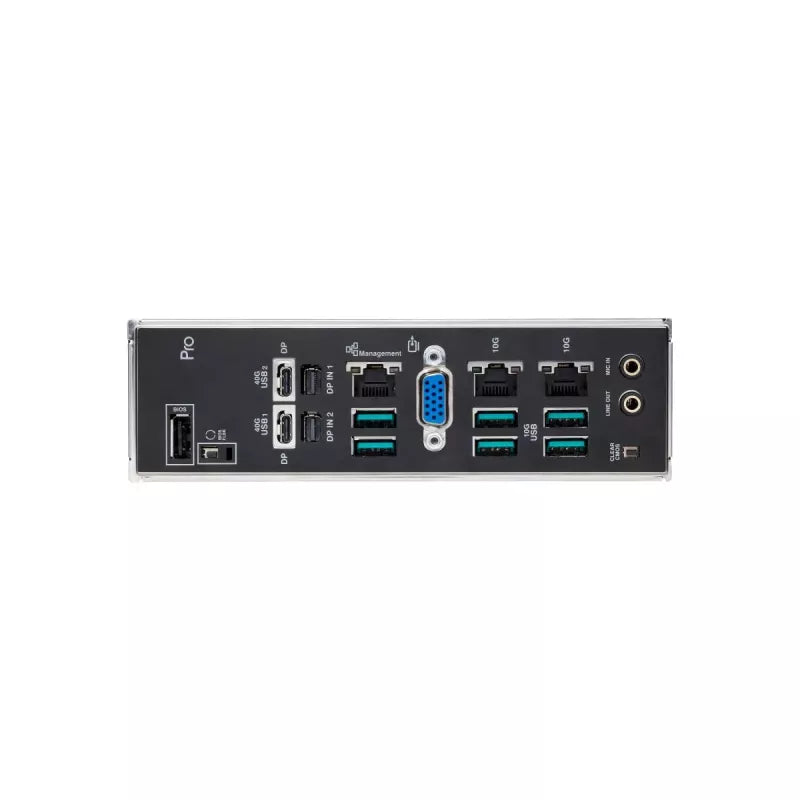

  • Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C®, and SlimSAS NVMe support
  • CPU and memory overclocking: Supports up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC)
  • Robust power and thermal design: 32+3+3+3 power stages with dual 8-pin CPU power connectors, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad
  • PCIe Q-Release Slim: Allows GPU removal by lifting it directly instead of pressing a PCIe latch
  • Server-grade IPMI remote management: Hardware/software-level management with dedicated LAN port and onboard AST2600 BMC controller, plus ASUS Control Center Express for real-time monitoring
  • Trusted stability: Validated for compatibility with latest technologies, extensive QVL list, and 24/7 operation testing
