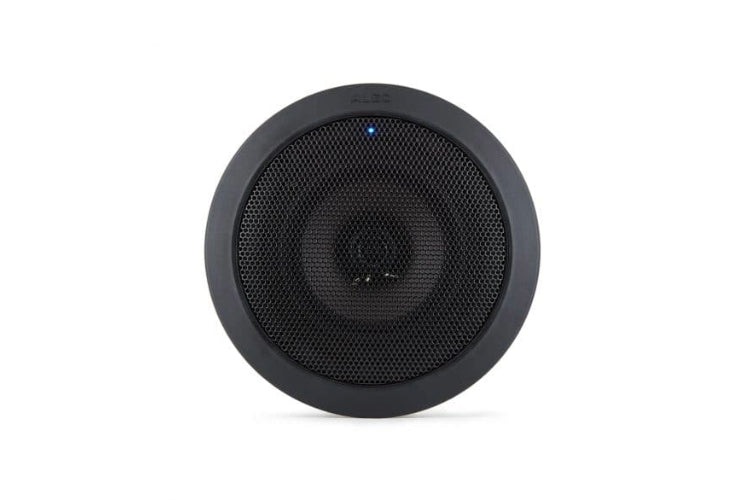

Algo 8198B IP Ceiling Speaker

Name: Algo 8198B IP Ceiling Speaker
Brand: Algo
SKU: Algo-8198B
Price: 564.5 GBP
Availability: OutOfStock

£564.50 GBP

£564.50 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Satellite speaker technology: capable to power and supervise satellite speakers.

Out of stock

EAN: 8198B

SKU: Algo-8198B

Vendor: Algo

Order within xx hours for delivery on

Product Specification

Satellite speaker technology: capable to power and supervise satellite speakers.
Power: PoE and PoE+ (Power over Ethernet).
Protocols & integrations: Supports SIP, Multicast, Polycom Group Page, InformaCast, Revolution.
Adaptive audio: Ambient noise responsive.

Box Content

Algo 8198 IP PoE+ Ceiling Speaker (Black)
Trim ring
Speaker grille
Tool for grille removal and reset

Documents

datasheet

Technical Features

Power
- PoE / PoE+
- 48 V PoE IEEE 802.3af/at
- Max 25.5 W - Idle nominal 2.5 W
SIP
- Extensions: 50 Page & 10 Alerting/Ring extensions with multicast scalability
- Transport Protocols: UDP, RTP, TCP
- Security: TLS, MTLS, SRTP
Multicast Compatibility
- Multicast: RTP Multicast (Send & Receive 50 zones)
- Third Party Multicast: Polycom™ Group Page, Singlewire™ InformaCast, Syn-Apps™ Revolution
API
- API: RESTful API
Digital IO
- Relay Input: Normally open or normally closed dry contact supervision
- Compatible with Algo 1202, 1203, and 1204 Accessories

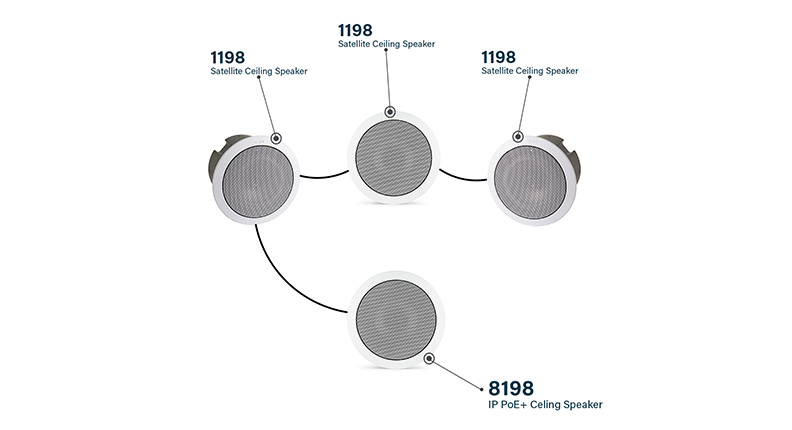

Satellite Speakers
- Quantity: Up to 3 x 1198 Satellite Ceiling Speaker
- Speaker Connections: Patch cable 4 Pair UTP 24 AWG RJ45 plug terminated T568A or T568B "Straight-Through". Maximum recommended patch cable length 50 feet (13m) between each speaker
- Supervision: Auto-detection and monitoring of up to three satellite speakers
- Configuration: Via host 8198 IP Speaker web interface
Audio
- Audio Codecs: G.711 A-law, G.711 u-law, G.722, Opus 48 kHz
- Driver: 6.5” (16.5 cm) Coaxial UV stabilized
- Driver Response: 55 – 18,000 Hz (-10 dB)
- Driver Sensitivity: 88 dBA 1m/1W (1 kHz)
- Max Audio Power: 16 Watts (shared equally between 8198 and up to 3 x 1198)
- Dispersion Angle: 140° (2 kHz -6 dB)
- Audio Memory: 1 GB
- Microphone: Omni-directional, talkback and ambient noise monitoring
- Audio Controls: Volume, AGC, Latency, LF Cut
- Anti-Feedback Delay: Cache to memory and release
Network
- Network: IPv4, IPv6, DHCP, VLAN, MDNS
- Secure SIP: TLS, MTLS, SRTP
- Link Layer: LLDP, CDP
- QoS: DSCP (SIP, RTP, RTCP)
- Web Interface: HTTP, HTTPS
- Provisioning: TFTP, FTP, HTTP, HTTPS
- DHCP Options: 66, 150, 160
- Reboot via SIP Check-sync
- NAT: STUN, TURN, C

Algo 8198B IP Ceiling Speaker

£564.50 GBP

£564.50 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The Algo 8198B IP PoE+ Ceiling Speaker - Black a SIP compliant, multicast capable device for live voice paging, alerts, announcements, and emergency notification. Its patent-pending method drives multiple satellite speakers, reducing network ports and cables while maintaining the benefits of IP paging. Upgrade your audio system now!s
