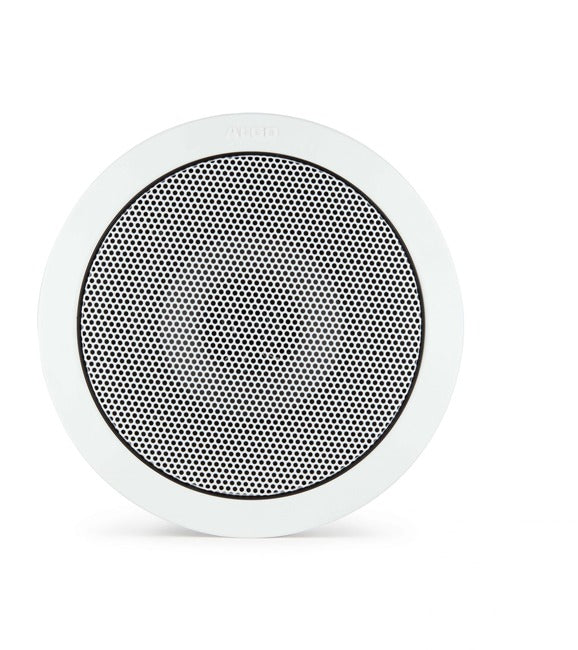

Algo 8198 IP PoE+ Ceiling Speaker

Algo 8198 IP PoE+ Ceiling Speaker

£512.06 GBP
Sale price: £512.06 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Satellite speaker technology: capable to power and supervise satellite speakers.
In stock, 10 units
EAN: 8198
SKU: Algo-8198
Vendor: Algo
Order within xx hours for delivery on
Quantity
  • Satellite speaker technology: capable to power and supervise satellite speakers.
  • Power over Ethernet: PoE and PoE+ (Power over Ethernet).
  • Protocols supported: Supports SIP, Multicast, Polycom Group Page, InformaCast, Revolution.
  • Ambient response: Ambient noise responsive.
  • Features: This talkback capable speaker features multicast scalability, wideband/fullband audio codec support for clear voice paging, and user-friendly configuration via a web interface or auto-provisioning. Customize WAV files for emergency alerts and enjoy powerful audio with dual Class D amplifiers.
  • 8198 IP PoE+ Ceiling Speaker unit itself
  • Trim ring
  • Speaker grille
  • Tool for grille removal and reset
  • Protective wiring cover and screws
  • Pluggable terminal block for relay input
  • Hole cut-out template
  • Screwdriver
  • Getting Started Sheet (manual/guide)

datasheet

Overview
The 8198 IP Ceiling Speaker is a SIP compliant and multicast capable PoE+ network audio device for public address and notification. For expanded coverage, up to three satellite speakers may be connected to the 8198 speaker sharing the 16W of available audio power. For most typical paging applications the number of network cable drops can be reduced by 75% with corresponding reduction in installation time, network ports and cost. Standard network patch cables are used to connect the satellite speakers in a daisy chain string from the 8198 IP speaker.

Technical Features
  • Power
    • PoE / PoE+
    • 48 V PoE IEEE 802.3af/at
    • Max 25.5 W - Idle nominal 2.5 W
  • SIP
    • Extensions: 50 Page & 10 Alerting/Ring extensions with multicast scalability
    • Transport Protocols: UDP, RTP, TCP
    • Security: TLS, MTLS, SRTP
  • Multicast Compatibility
    • Multicast: RTP Multicast (Send & Receive 50 zones)
    • Third Party Multicast: Polycom™ Group Page, Singlewire™ InformaCast, Syn-Apps™ Revolution
  • API
    • RESTful API
  • Digital IO
    • Relay Input: Normally open or normally closed dry contact supervision
    • Compatible with Algo 1202, 1203, and 1204 Accessories
  • Satellite Speakers
    • Quantity: Up to 3 x 1198 Satellite Ceiling Speaker
    • Speaker Connections: Patch cable 4 Pair UTP 24 AWG RJ45 plug, T568A/B straight-through, Max 50 ft (13m)
    • Supervision: Auto-detection and monitoring of up to three satellite speakers
    • Configuration: Via host 8198 IP Speaker web interface
  • Audio
    • Audio Codecs: G.711 A-law, G.711 u-law, G.722, Opus 48 kHz
    • Driver: 6.5” (16.5 cm) Coaxial UV stabilized
    • Driver Response: 55 – 18,000 Hz (-10 dB)
    • Driver Sensitivity: 88 dBA 1m/1W (1 kHz)
    • Max Audio Power: 16 Watts (shared)
    • Dispersion Angle: 140° (2 kHz -6 dB)
    • Audio Memory: 1 GB
    • Microphone: Omni-directional, talkback and ambient noise monitoring
    • Audio Controls: Volume, AGC, Latency, LF Cut
    • Anti-Feedback Delay: Cache to memory and release
  • Network
    • Network: IPv4, IPv6, DHCP, VLAN, MDNS
    • Secure SIP: TLS, MTLS, SRTP
    • Link Layer: LLDP, CDP
    • QoS: DSCP (SIP, RTP, RTCP)
    • Web Interface: HTTP, HTTPS
    • Provisioning: TFTP, FTP, HTTP, HTTPS
    • DHCP Options: 66, 150, 160
    • Reboot via SIP Check-sync
    • NAT: STUN, TURN, CRLF Keep Alive
    • SIP Outbound
    • Address Resolution: DNS, SRV Record
    • Supervision: SNMP V1.3, RTCP, Algo 8300
    • Redundancy: Secondary & Tertiary SIP Servers
  • Environmental & Mechanical
    • Satellite Speaker Connector: 1 x RJ45 output connector
    • Environmental: 32 to 104°F (0 to 40°C); 10–95% RH non-condensing

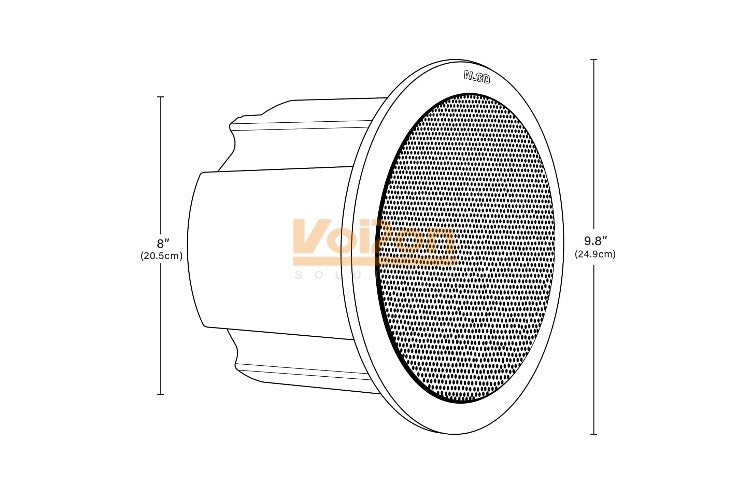

    • Dimensions: 8” (20.5 cm) diameter without trim; 9.8” (24.9 cm) with trim; height 7.0” (17.8 cm)
    • Mounting: Blind mounts into 8” hole; certified for Air Handling Spaces; requires 5.5” (14.0 cm) clearance
    • Weight: 6 lb (2.7 kg)
