Algo-8190S

Algo-8190S

£1,216.27 GBP
Sale price: £1,216.27 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Public address (PA) IP speaker.
Out of stock
EAN: 8190S
SKU: Algo-8190S
Vendor: Algo
Order within xx hours for delivery on
Quantity
  • Public address (PA) IP speaker.
  • Secure SIP using TLS and SRTP.
  • Multicast scalable.
  • Four-speaker line array.
  • Algo 8190S main unit
  • Wallmount bracket
  • Algo screwdriver

datasheet

Overview

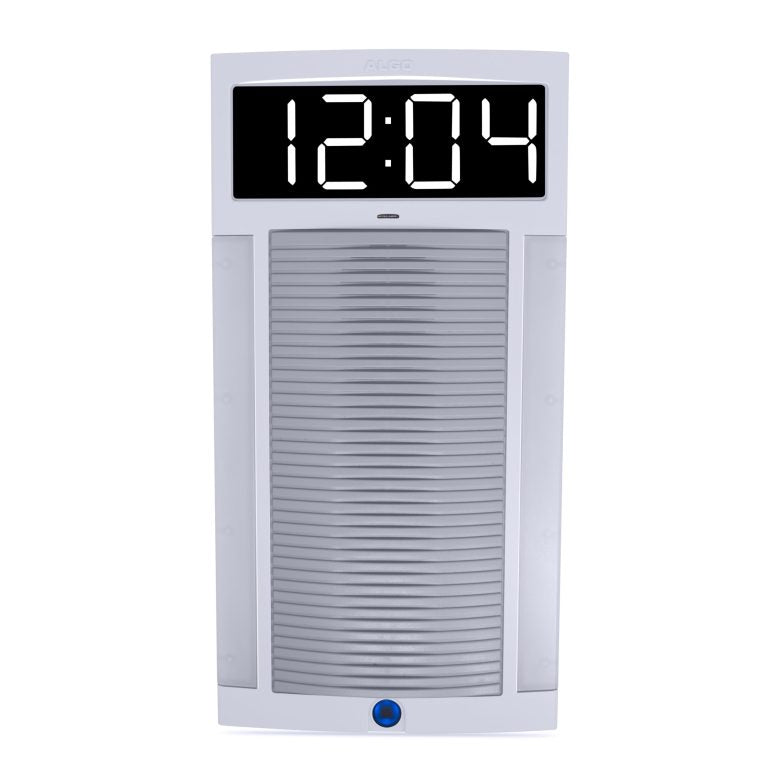

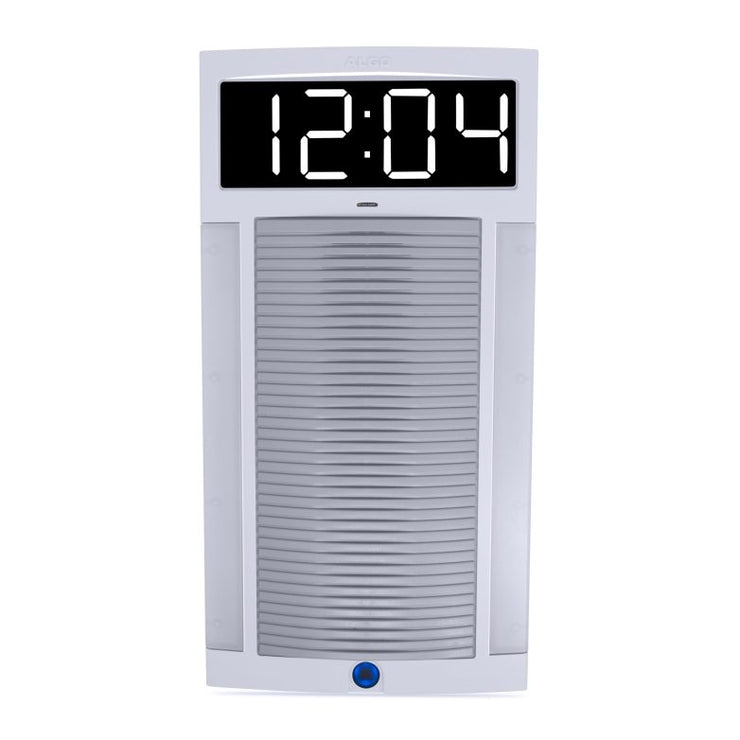

The Algo PoE+ 8190S SIP Speaker – Clock & Visual Alerter is designed to serve as an ideal IP paging speaker for various settings, including classrooms and commercial public address (PA) systems. Notably, this speaker functions as a fully compliant 3rd party SIP endpoint, ensuring seamless compatibility with a wide range of hosted/cloud and premise-based VoIP telephone systems.

Technical Features
  • Power
    • POWER INPUT: Type 2 PoE+ (IEEE 802.3at Class 0) 48V, 25.5W
    • MAX POWER: 25.5 W
    • IDLE POWER: 5-8 W, depending on time displayed on clock
  • SIP
    • SIP EXTENSIONS:
      • 1 Page/Intercom (Capable of hands-free talkback)
      • 10 Emergency Alert
      • 10 Ring
    • SIP SIGNALLING/TRANSPORT PROTOCOLS: UDP, TCP, TLS, RTP, SRTP
    • Multicast + Third-Party Compatibility
      • Receive only RTP Multicast (50 Zones)
      • Receive only Polycom Group Page
      • Singlewire InformaCast (additional license required)
  • Configuration & Provisioning
    • CONFIGURATION: Web interface or provisioning server
    • WEB INTERFACE: HTTP, HTTPS
    • PROVISIONING: TFTP, FTP, HTTP, HTTPS
    • DHCP Options 66, 150, 160
    • Reboot via SIP 'check-sync'
    • SUPERVISION: Compatible with any third-party SNMP monitoring software or the Algo 8300 Controller
  • Networking
    • NETWORKING: IPv4, DHCP, VLAN
    • LINK LAYER: LLDP, CDP
    • QOS: DSCP (SIP, RTP, RTCP)
    • NAT: STUN, TURN, CRLF Keep Alive, SIP Outbound
    • ADDRESS RESOLUTION: DNS, SRV Record
    • REDUNDANCY: Secondary and tertiary SIP server
    • TIME: NTP Server (up to four)
  • Audio
    • SPL: 98 dBA at 1m
    • DISPERSION ANGLE: 100 - 15,
