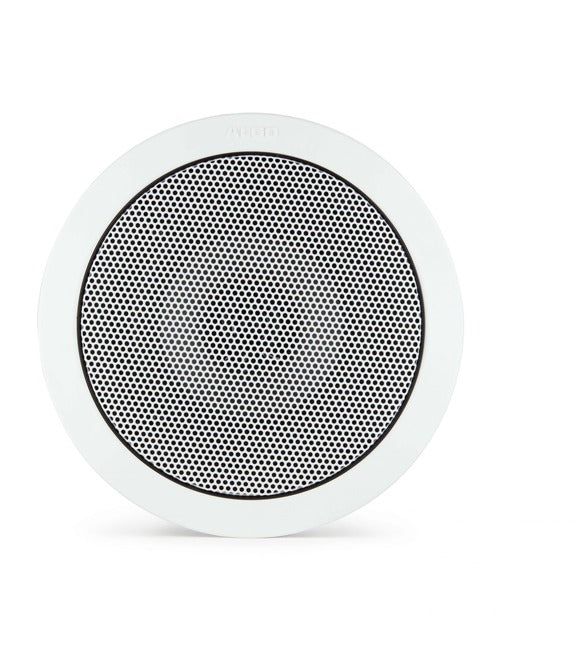

Algo-1198

Algo-1198

£231.48 GBP
Sale price: £231.48 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • SIP Compliance and Multicast Capability
In stock, 24 units
EAN: 1198
SKU: Algo-1198
Vendor: Algo
Order within xx hours for delivery on
Quantity
  • SIP Compliance and Multicast Capability
  • Daisy Chain Connection
  • Automatic Satellite Speaker Integration
  • Speaker Supervision and Compatibility
  • 1198 Satellite Ceiling Speaker unit
  • Trim ring
  • Speaker grill
  • Protective wiring cover and screws
  • Hole cut-out template for easy installation

datasheet

Overview

The Algo 1198- Black Ceiling Speaker much like the regular Algo 1198 but in black can also bring about significant cost savings when combined with one or more 8198 SIP PoE+ Ceiling Speakers for extensive IP ceiling speaker deployments in locations like schools, retail stores, airports, and offices. Satellite speakers are linked to the 8198 in a daisy chain fashion using standard CAT5/CAT6 patch cables. The 8198 IP Speaker automatically identifies and monitors each attached 1198 Satellite Speaker for connectivity. The 8198 web GUI displays the number of connected satellite speakers, and this information is also visible in the 8300 Supervision Controller when it's in use.

Technical Features
  • Power
    • PoE / PoE+ 48 V PoE IEEE 802.3af/at
    • Max 25.5 W - Idle nominal 2.5 W
  • SIP
    • Extensions: 50 Page & 10 Alerting/Ring extensions with multicast scalability
    • Transport Protocols: UDP, RTP, TCP
    • Security: TLS, MTLS, SRTP
  • Multicast Compatibility
    • Multicast: RTP Multicast (Send & Receive 50 zones)
    • Third Party Multicast: Polycom™ Group Page, Singlewire™ InformaCast, Syn-Apps™ Revolution
  • API
    • RESTful API
  • Digital IO
    • Relay Input Normally open or normally closed dry contact supervision
    • Compatible with Algo 1202, 1203, and 1204 Accessories
  • Satellite Speakers
    • Quantity: Up to 3 x 1198 Satellite Ceiling Speakers
    • Speaker Connections: Patch cable 4 Pair UTP 24 AWG RJ45, T568A/B, max 50 ft (13m)
    • Supervision: Auto-detection and monitoring
    • Configuration: Via host 8198 IP Speaker web interface
  • Audio
    • Audio Codecs: G.711 A-law, G.711 u-law, G.722, Opus 48 kHz
    • Driver: 6.5” (16.5 cm) Coaxial UV stabilized
    • Driver Response: 55 – 18,000 Hz (-10 dB)
    • Driver Sensitivity: 88 dBA 1m/1W (1 kHz)
    • Max Audio Power: 16 Watts
    • Dispersion Angle: 140° (2 kHz -6 dB)
    • Audio Memory: 1 GB
    • Microphone: Omni-directional
    • Audio Controls: Volume, AGC, Latency, LF Cut
    • Anti-Feedback Delay: Cache to memory and release
  • Network
    • IPv4, IPv6, DHCP, VLAN, MDNS
    • Secure SIP: TLS, MTLS, SRTP
    • Link Layer: LLDP, CDP
    • QoS: DSCP (SIP, RTP, RTCP)
    • Web Interface: HTTP, HTTPS
    • Provisioning: TFTP, FTP, HTTP, HTTPS
    • DHCP Options 66, 150, 160
    • Reboot via SIP Check-sync
    • NAT: STUN, TURN, CRLF Keep Alive, SIP Outbound
    • Address Resolution: DNS, SRV Record
    • Supervision: SNMP V1.3, RTCP, Algo 8300
    • Redundancy: Secondary & Tertiary SIP Servers
  • Environmental & Mechanical
    • Satellite Speaker Connector: 1 x RJ45 output connector
    • Environmental: 32 to 104°F (0 to 40°C); 10–95% RH non-condensing
    • Dimensions: 8” diameter (9.8” with trim), height 7.0”
    • Mounting: Blind mounts into 8” hole; certified for Air Handling Spaces
    • Weight: 6 lb (2.7 kg)
