Algo 1128 LED Strobe Light (Clear)

Algo 1128 LED Strobe Light (Clear)

£363.64 GBP
Sale price: £363.64 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Analog Technology
  • Long-Life LEDs
In stock, 2 units
EAN: 1128
SKU: Algo-1128I
Vendor: Algo
Order within xx hours for delivery on
Quantity
  • Power: Power input: 12VDC 750 mA or 24VDC 375 mA
  • Power Supply Shipped: AC Mains Adapter 120V/230V
  • Optical: 8 LEDs (White)
  • Flash Patterns: 16 Selectable flash patterns using 4 position switch
  • Intensity: 198 Cd
  • Lumens: 643 Lumens
  • Relay Input: Max 1 kOhm
  • Ring Input: 20/25 Hz 20Vrms minimum
  • Auxiliary Input: 3-30V DC or AC (rms)
  • Environmental: -20 to +50° C (-4 to +122° F); 10-95% RH, non-condensing. Dry indoor location only unless wiring cavity protected from water ingress using supplied gaskets or other protective measures.
  • Dimensions (Product): 4.8″ x 4.8″ x 3″ (12.2cm x 12.2cm x 7.6cm)
  • Weight (Product): 1.0 lbs (0.5 kg) / Weight (Shipping): 1.7 lbs (0.8 kg)
  • Compliance: RoHS, CE, FCC, CSA/UL (USA & Canada), EN60950
  • 1128 Strobe Light with clear lens
  • Power supply
  • mounting bracket
  • Gaskets
  • User Guide

Datasheet

Overview

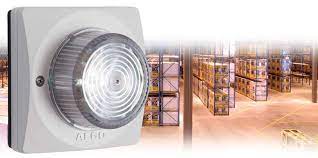

Bright visual notification of telephone, safety, and security events. Effective and selectable flash patterns radiate light 360 x 180 degrees for visibility in all directions. Alerts employees in noisy locations and eliminates noise in quiet environments. Eight efficient and powerful LEDs provide a range of visible effects. Aggressive flash patterns ensure effectiveness in large noisy industrial areas, while milder flash patterns are suitable for less urgent notification or offices. Available lens covers in amber, blue, or red provide even more choice for distinguishing telephone and safety events from fire or other alarm systems. Telephone ring (from FXS port or ATA) or dry contact (relay) activation make the 1128 Strobe Light easy to integrate with any unified communication server or security system.

Technical Features
  • Interface: RJ11 or RJ12 modular jack connection.
  • Inputs: Dry contact closure input (Max 1 kΩ) and auxiliary input detection of 3–30V AC or DC.
  • LED Array: 8 long-life LEDs providing 360° x 180° visibility from wall or ceiling mount positions.
  • Mounting Options: Compatible with double-gang box for conduit installation or any flat surface (horizontal or vertical).
  • LED Longevity: Zero light degradation for at least 34 years of continuous operation.
  • Luminous Output: 643 lumens and up to 198 candela peak luminous intensity.
  • Flash Patterns: 6 configurable patterns, each with 3 adjustable brightness/intensity levels for various applications.
  • Lens Color Options: Amber, blue, and red lens accessories available to differentiate alerts and enhance situational awareness.
  • Certifications: UL/CSA and FCC certified for safety and compliance.
  • Power Supply: Includes 24V power adapter.
  • Product Dimensions: 4.8″ (W) x 4.8″ (H) x 3.0″ (D) / 12.2cm (W) x 12.2cm (H) x 7.6cm (D).
