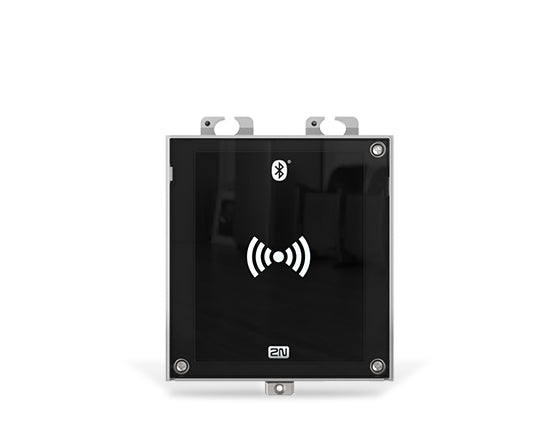

2N 9160345-S Bluetooth & RFID, Secured

2N 9160345-S Bluetooth & RFID, Secured

£910.74 GBP
Sale price: £910.74 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Dual Authentication
  • Multi-Frequency RFID
In stock, 1 unit
EAN: 8595159515144
SKU: 9160345-S
Vendor: 2N
Order within xx hours for delivery on
Quantity
  • Power Supply: PoE and/or 12V ±15% / 2A DC
  • PoE Standard: IEEE 802.3af (Class 0, 12.95W)
  • Network: 10/100BASE-TX with Auto-MDIX, RJ-45 modular jack
  • Recommended Cabling: Cat-5e or better
  • Audio: Integrated buzzer (97dBA, 2730Hz) and microphone
  • RFID Supported Frequencies: 125kHz and 13.56MHz
  • Inputs: 2 inputs – passive/active mode (-30V to +30V DC)
  • 2N Access Unit 2.0 (9160345-S)
  • Flush Mounting Box
  • Frame

Datasheet

Overview

The 9160345-S is a PICard compatible two-in-one Contactless Bluetooth & RFID Reader Independent Access Control Unit which allows for access to electronically secured doors using an RFID card and/or NFC enabled smart phone as the user ID device.The 9160345 offers compatibility with 2N's unique cryptographic solution PICard.

Technical Features
  • Convenience of Mobile Credentials: Enables users to unlock doors using their smartphones for seamless access.
  • Secure, Encrypted Communication: Ensures data integrity and protection between the reader and connected devices.
  • Dual Format User Authentication: Supports both Bluetooth and RFID for flexible access control.
  • Multi-Frequency RFID Card Reader: Compatible with both 125kHz and 13.56MHz cards, supporting a wide range of technologies.
  • Web Interface Administration: Easy configuration and system management via an intuitive web interface.
  • Door Protected from Both Sides: Offers secure access control for both entry and exit points.
  • Straightforward Pairing Process: Simple setup and device pairing for quick deployment.
  • Time & Attendance Terminal: Can function as an attendance tracking device for workforce management.
  • Remote Configuration and Management: Fully manageable from a remote location using 2N Access Commander or web tools.
  • Mobile Credentials for FREE: Provides free access credential generation via the 2N Mobile Key app.
  • 2N PICard Compatible: Supports secure 2N PICard technology for enhanced card protection and encryption.
