2N Access Unit 2.0 RFID 9160344

2N Access Unit 2.0 RFID 9160344

£524.71 GBP
Sale price: £524.71 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Multi-Frequency RFID Reader
  • Proprietary RFID Chip
In stock, 1 unit
EAN: 8595159515113
SKU: 9160344
Vendor: 2N
Order within xx hours for delivery on
Quantity
  • Supported Frequencies: Dual-frequency operation at 125 kHz and 13.56 MHz for compatibility with a wide range of RFID credentials.
  • Supported 13.56 MHz Cards: Compatible with ISO14443A (MIFARE Classic, Plus, Mini, Ultralight, DESFire CSN), PicoPass, FeliCa, and ST SR card technologies.
  • Power Options: Supports Power over Ethernet (PoE 802.3af) or 12V DC / 2A external power for flexible installation.
  • Environmental Rating: Rated IP54, suitable for both indoor and outdoor environments.

  • 2N Access Unit 2.0 (9160344)
  • Flush Mounting Box
  • Frame

Datasheet

Overview

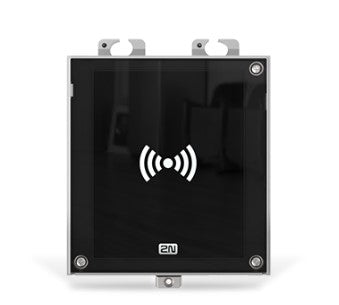

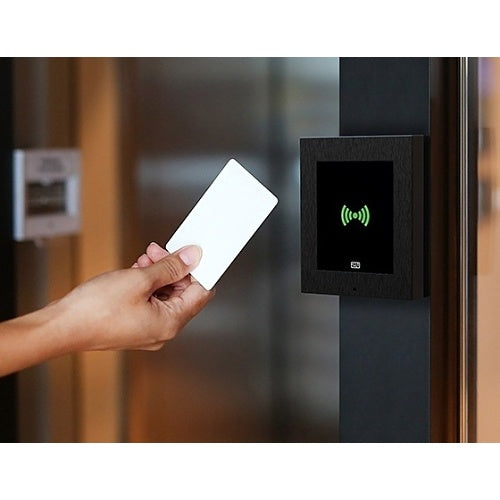

The 2N Access Unit 2.0 RFID (order number 9160344) is a multi-frequency RFID card reader for access control systems, compatible with both older 125 kHz and newer 13.56 MHz cards, including secure Mifare and DesFire CSN. It features a proprietary RFID chip for wide card compatibility, easy Ethernet/PoE installation, remote management via web browser or the 2N Access Commander software, and supports mobile access via Bluetooth with the My2N App.

Technical Features
  • Multi-Frequency RFID Reader: Supports both 125 kHz and 13.56 MHz frequencies, compatible with Mifare, DesFire CSN, HID, and EM cards for versatile access control.
  • Proprietary RFID Chip: Ensures wide compatibility across nearly all common RFID card technologies.
  • IP-Based & TCP/IP Connectivity: Network-connected via Ethernet for seamless system integration and remote management.
  • Power over Ethernet (PoE): Powered directly through the LAN cable, reducing cabling requirements and simplifying installation.
  • Bluetooth Mobile Access: Enables secure access via smartphones using WaveKey technology and the My2N App.
  • Web-Based Configuration: Configure and manage the reader remotely using a web browser or 2N Access Commander software.
  • Hardware & Software Security: Advanced encryption and authentication ensure reliable, tamper-resistant access control.
