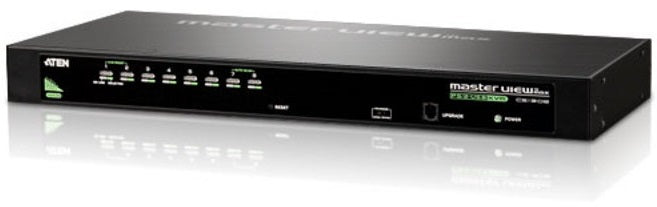

ATEN 8 Port Cable Type KVM

Name: ATEN 8 Port Cable Type KVM
Brand: ATEN
SKU: CS1308
Price: 193.57 GBP
Availability: InStock

£193.57 GBP

£193.57 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Console Control
Cascade Capability

In stock, 1 unit

EAN: 4710423775916

SKU: CS1308

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Model: CS1308
Direct Computer Connections: 8
Max via Cascade: 64
Port Selection: OSD, Hotkeys, Pushbuttons
KVM Ports: 8 x SPHD-15 Female
Video Resolution: 2048 x 1536; DDC2B
Housing: Metal

Box Content

1 CS-1308 KVM Switch with Rack Mount Kit
2x 2L5201U - 4 foot Micro-lite USB KVM cables
4x 2L5202U - 6 foot Micro-lite USB KVM cables
2x 2L5203U - 10 foot Micro-lite USB KVM cables
1 Console Cable
1 Firmware Updgrade Cable
1 Foot Pad set (4 pads)
1 Power Adapter
1 User Manual

Documents

Datasheet

Technical Features

Console Control: One USB-PS/2 console manages 8 or 16 computers.
Cascade Capability: Up to 2 levels, controlling 64 or 256 computers.
Dual Interface: Supports PS/2 and USB keyboards and mice.
Multi-Platform Support: Windows, Linux, Mac, and Sun.
Video DynaSync™: Eliminates bootup display issues and optimizes resolution when switching.
Keyboard/Mouse Emulation: USB/PS2 emulation ensures computers boot even when console focus is elsewhere.
Video Quality: Up to 2048 x 1536, DDC2B support.
Computer Selection: Front panel pushbuttons, hotkeys, or multilingual OSD menu.
Two-Level Password Security: Supports up to 4 users + 1 admin; restricts access per profile.
Auto Scan: Continuous monitoring of selected computers.
Hot-Pluggable: Add/remove computers without powering down.
Buzzer Control: On/off via hotkey or OSD.
Firmware Upgradeable: No software installation required.
Mounting: Desktop or 19” rack (1U).

ATEN 8 Port Cable Type KVM

£193.57 GBP

£193.57 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The CS1308 / CS1316 KVM switch allows access and control up to 64 or 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 64 or 256 computers that can be controlled from a single keyboard-monitormouse console. The switch supports both USB and PS/2 connections for the console and computers.
