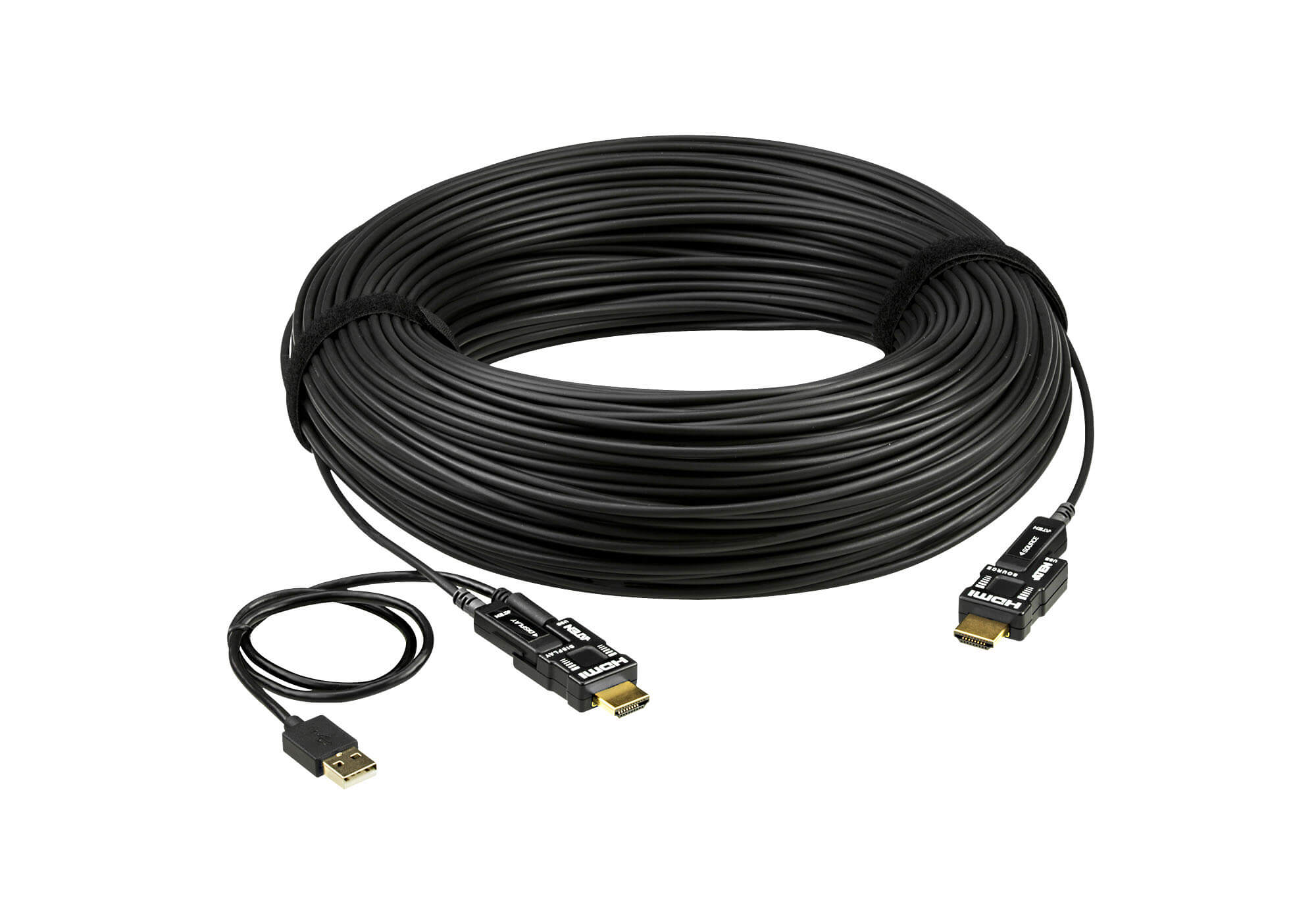

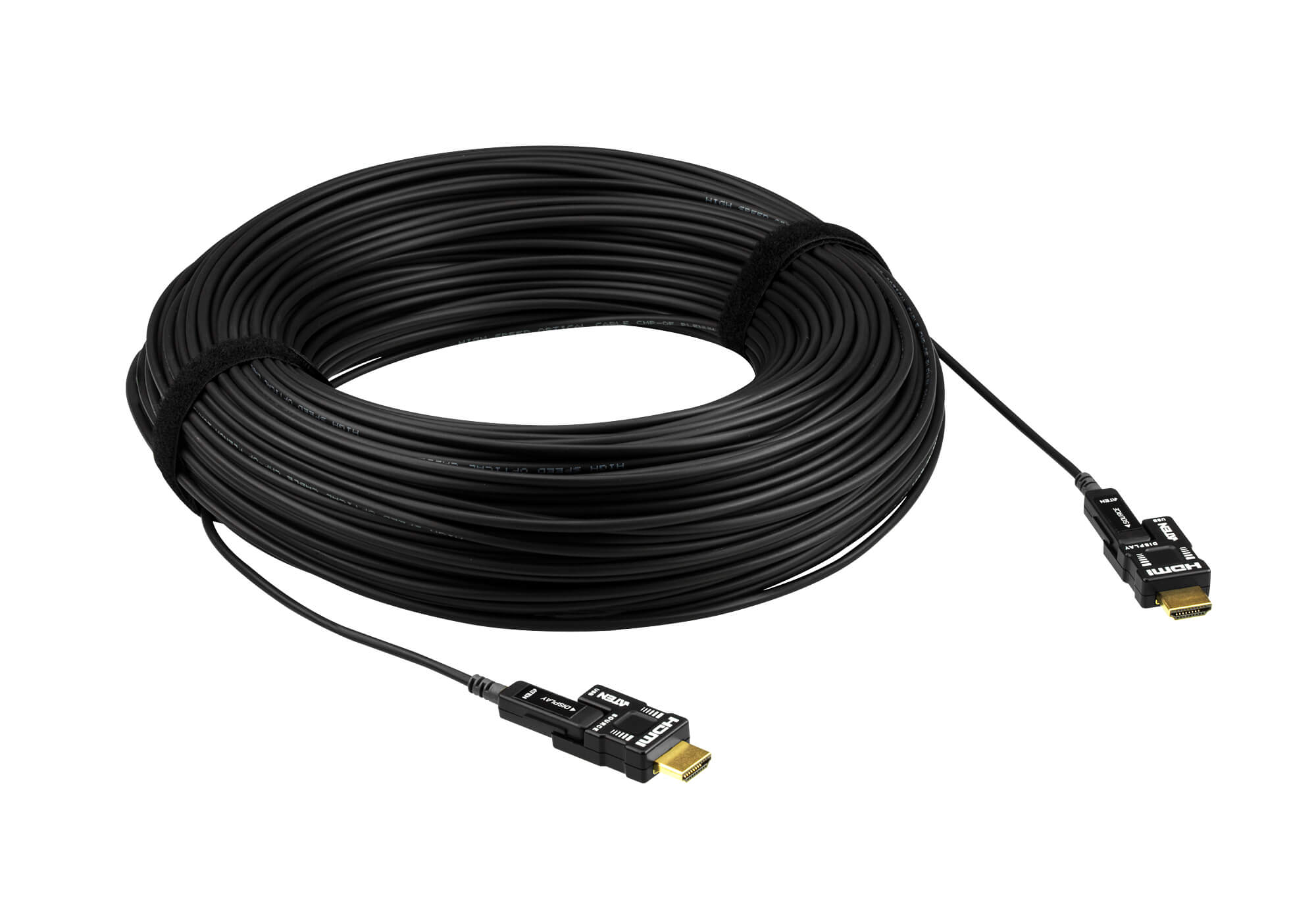

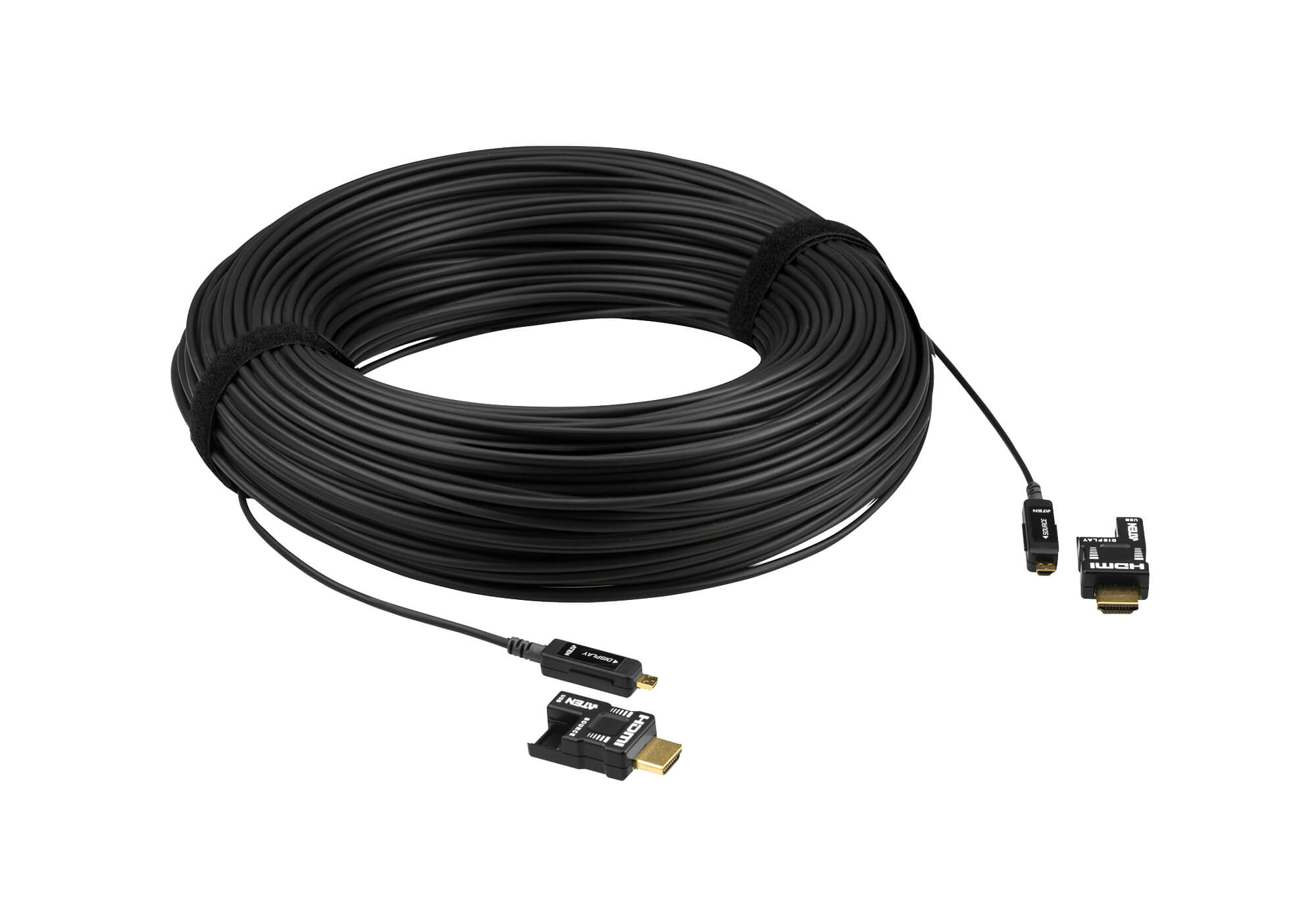

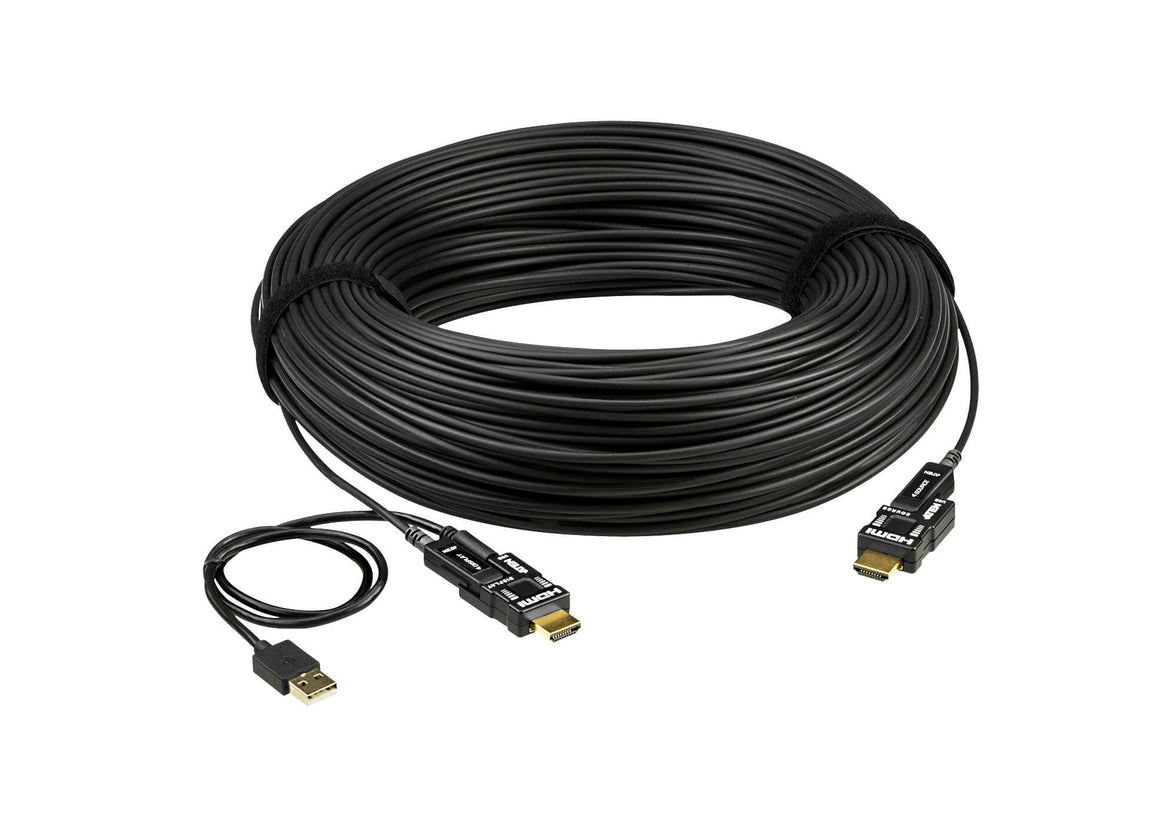

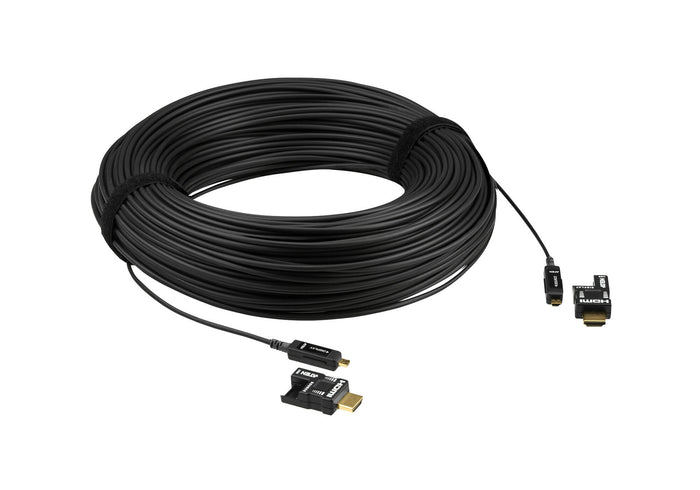

60M TRUE 4K HDMI ACTIVE OPTICAL

60M TRUE 4K HDMI ACTIVE OPTICAL

£361.24 GBP
Sale price: £361.24 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 4K HDMI AOC
  • 60m Length
  • High Bandwidth
  • HDCP 2.2
  • Lossless Audio
  • EMI Resistant
Out of stock
EAN: 4710469341649
SKU: VE7834A
Vendor: ATEN
Order within xx hours for delivery on
Quantity
  • Certifications: CE / FCC / RoHS2 / UL CMP-OF
  • Notification: Bend Radius: 6mm (Min.), Connector Pull Strength: Max. 10kg (100N), Compression Load Resistance: Max. 50kg (500N), Reduced EMI & RFI, Jacketed
  • Material: UL Plenum (CMP-OF)
  • Conductor: 6 x Insulated Copper wire (28 AWG), 4 x Fiber
  • Cable Length: 60 m / 196.85 ft
  • Communication Signals: TMDS / HDCP 2.2 / EDID / CEC
  • Optional Power: Micro USB to USB cable (45cm), 5V, 0.148A
  • Audio: Input/Output: PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio

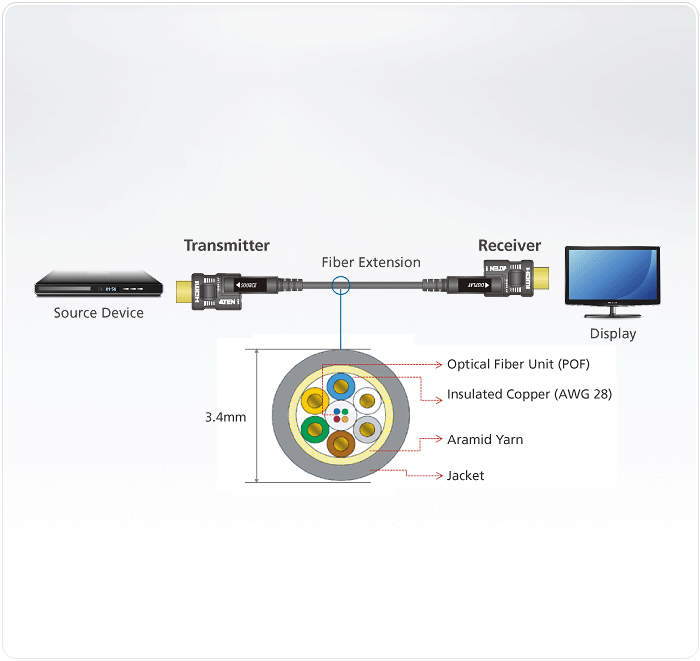

  • Cable Type: Hybrid optical with fiber and copper wire; High Speed HDMI Cable
  • Video Input Interfaces: 1 x HDMI 19-pin Type-A Male (gold-plated, pluggable, Black), 1 x HDMI Type-D Male (Black)
  • Video Output Interfaces: 1 x HDMI 19-pin Type-A Male (gold-plated, pluggable, Black), 1 x HDMI Type-D Male (Black)
  • Video Data Rate: Max 18 Gbps (6 Gbps per channel)
  • Pixel Clock: Max 600 MHz
  • Compliance: HDMI (3D, Deep Color, 4K, HDR), HDCP 2.2, Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0, Color Depth: 30 / 36 / 48 bit
  • Max Resolution / Distance: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 60 m
  • Power Consumption: DC5.3V:0.63W:2.15BTU/h
  • Environmental: Operating Temp: 0–50°C, Storage Temp: -20–70°C, Humidity: 0–85% RH Non-condensing
  • Physical Properties: Connector Case: ABS, Cable Outer Diameter: 3.4 mm ± 0.2 mm, Copper Conductor (28 AWG), Weight: 1.0 kg / 2.2 lb
  • Carton Lot: 5 pcs
  • 1x VE7834 60M True 4K HDMI Active Optical Cable
  • 1x Wiring Tool
  • 2x Screws
  • 1x Micro USB to USB Cable
  • 1x Installation Notice
  • 1x User Instructions

Datasheet

Overview

ATEN VE7834 optical cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cable is available in 60 m with  support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cable guarantees lossless audio signal transmissions.

Technical Features
  • HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
  • Extends True 4K signals (4096 x 2160 @ 60Hz 4:4:4) up to 60 m
  • Supports HDR
  • Reduced EMI and RFI for lower noise interference
  • Supports multi-channel audio – Dolby TrueHD and DTS-HD Master Audio
  • Robust cable: max pulling strength 10 kg, compression load resistance 50 kg
  • Optional additional power via Micro USB for improved compatibility
  • Gold-plated connectors for reliable transmissions
  • Compliant with UL CMP-OF (Plenum) flame retardant standards
  • Pluggable gender for easy installation
  • Plug-and-play
