ATEN GCS1337

ATEN GCS1337

£528.10 GBP
Sale price: £528.10 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • USB CAT5 Extender
  • Long Distance USB
  • Stable Performance
  • No Driver Needed
  • Four USB Ports
In stock, 2 units
EAN: 881317521255
SKU: GCS1337
Vendor: ATEN
Order within xx hours for delivery on
Quantity
  • Models: UEH4002AL (Local Unit), UEH4002AR (Remote Unit)
  • Connectors:USB Port: UEH4002AL – 1 x USB Type B Female; UEH4002AR – 4 x USB Type A Female
    Link: 1 x RJ-45 Female (both models)
    Power: UEH4002AL – N/A; UEH4002AR – 1 x DC Power Jack
  • USB Specification: USB 2.0 High / Full / Low Speed (both models)
  • USB Devices Supported: UEH4002AR supports up to 4 USB devices
  • Power Consumption: UEH4002AL: DC 5V, 2.5W (12 BTU/h)
    UEH4002AR: DC 5V, 15W (66 BTU/h)
  • Environmental:Storage Temperature: -20°C to 70°C
    Operating Temperature: 0°C to 50°C
    Humidity: 0–80% RH, Non-condensing
  • Physical Properties: Weight: UEH4002AL – 0.17 kg (0.39 lb); UEH4002AR – 0.19 kg (0.42 lb)
    Housing: Metal
    Dimensions (L x W x H): 10.00 x 7.60 x 2.60 cm (3.94 x 2.99 x 1.02 in.)

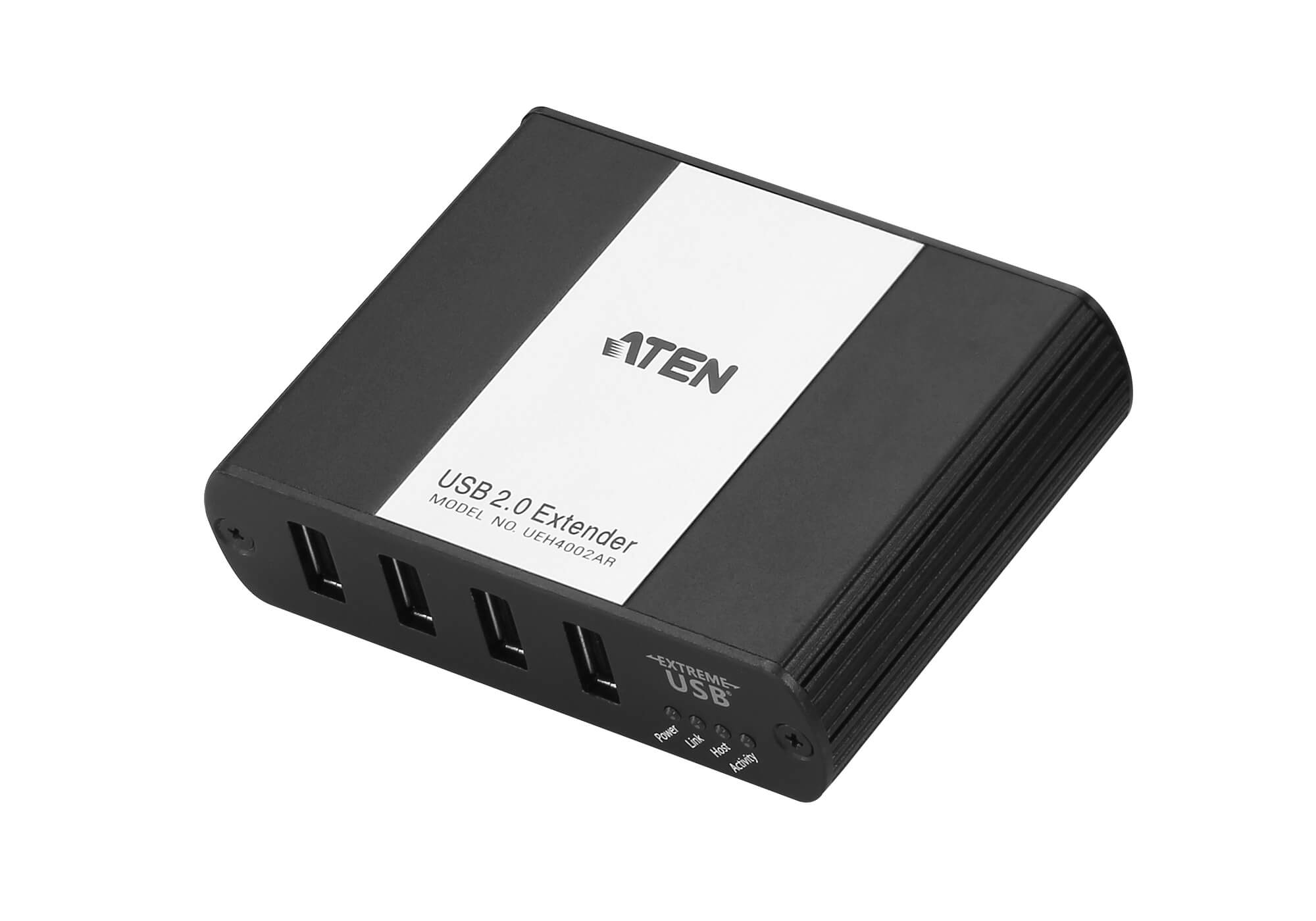

  • 1x UEH4002AL 4-Port Cat 5 USB 2.0 Extender (Local unit)
  • 1x UEH4002AR 4-Port Cat 5 USB 2.0 Extender (Remote unit)
  • 1x AC Power Adapter
  • 1x USB 2.0 Type-A to Type-B Cable (1.8 m)
  • 1x User Instructions

Datasheet

Overview

The ATEN GCS1337 KeyMander Nexus is an advanced 3-port HDMI gaming KVM switch engineered to streamline multi-device gaming and workstation setups. It enables users to control up to three systems—such as a gaming PC, console, or laptop—using a single keyboard, mouse, headset, and display. Supporting resolutions up to 4K at 60Hz and high refresh rates like 1440p@144Hz, it delivers smooth visuals and responsive performance ideal for competitive gaming and professional use. Integrated USB connectivity allows peripheral sharing while maintaining high-speed data transfer. The device also supports keyboard and mouse pass-through for gaming software compatibility and customizable RGB lighting. With push-button and app-based switching options, it provides flexible control and clutter-free desk organization.

Technical Features
  • Extended Distance: Extends USB transmission up to 100 meters.
  • High-Speed Support: Supports all USB 2.0 devices with speeds up to 480 Mbps.
  • ExtremeUSB® Technology: Enables transparent USB 2.0 signals with true plug-and-play (no drivers or software required).
  • Standards Compliance: Fully compliant with USB electrical and timing specifications.
  • Wide Compatibility: Works with Windows®, OS X®, and Linux® operating systems.
