4 PORT USB CAT5 EXTENDER

Name: 4 PORT USB CAT5 EXTENDER
Brand: ATEN
SKU: UCE33100
Price: 336.99 GBP
Availability: OutOfStock

£336.99 GBP

£336.99 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

USB CAT5 Extender
Local & Remote
USB 2.0 Support
Reliable Connection

Out of stock

EAN: 4710469346989

SKU: UCE33100

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Local Unit Upstream Port: 1 x USB Type B Female Downstream Port: 1 x RJ45 Female 1 x Micro USB Female (Firmware Upgrade) Power: 1 x DC Jack
Remote Unit Upstream Port: 1 x RJ45 Female Downstream Port: 4 x USB Type A Female 1 x Micro USB Female (Firmware Upgrade) Power: 1 x DC Jack
USB Specification: USB 2.0 High-Speed
Cable Type: Ethernet Cable
Signal Range: 100 m
LEDs: Status - 2 x LED
Power Consumption: DC5V: 1.708W (8 BTU/h) DC5V: 1.649W (50 BTU/h)
Environmental Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 70°C Humidity: 0–80% RH, Non-condensing
Physical Properties Weight: 0.21 kg (0.46 lb) Housing: Metal Dimensions (L x W x H): 10.15 x 7.90 x 2.44 cm (4 x 3.11 x 0.96 in.)

Box Content

1x UCE32100 4-Port USB 2.0 CAT 5 Extender Local unit (Tx)
1x UCE32100 4-Port USB 2.0 CAT 5 Extender Remote unit (Rx)
1x USB 2.0 Type-A Male to Type-B Male Cable(1.8 m)
1x Power Adapter
1x Power Cord
4x Mounting Kit
2x Din Rail
2x DC Jack Lock Kit
2x Rubber Feet Sets
1x User Instructions

Documents

Datasheet

Technical Features

True USB 2.0 transparent extension over Ethernet cable up to 100 meters
Supports all USB 2.0 devices up to 480 Mbps
Integrated four-port hub allows extension of up to four USB devices without an additional hub
Power supply for remote unit ensures power delivery to multiple devices at once
Compact size with wall mounting and DIN rail included for flexible installation
DC jack lock kit included to ensure durable power adapter connection
Supports Windows®, OS X®, and Linux®
Plug-and-play

4 PORT USB CAT5 EXTENDER

£336.99 GBP

£336.99 GBP ~~Regular price:~~

(VAT Excl.)

In stock

Overview

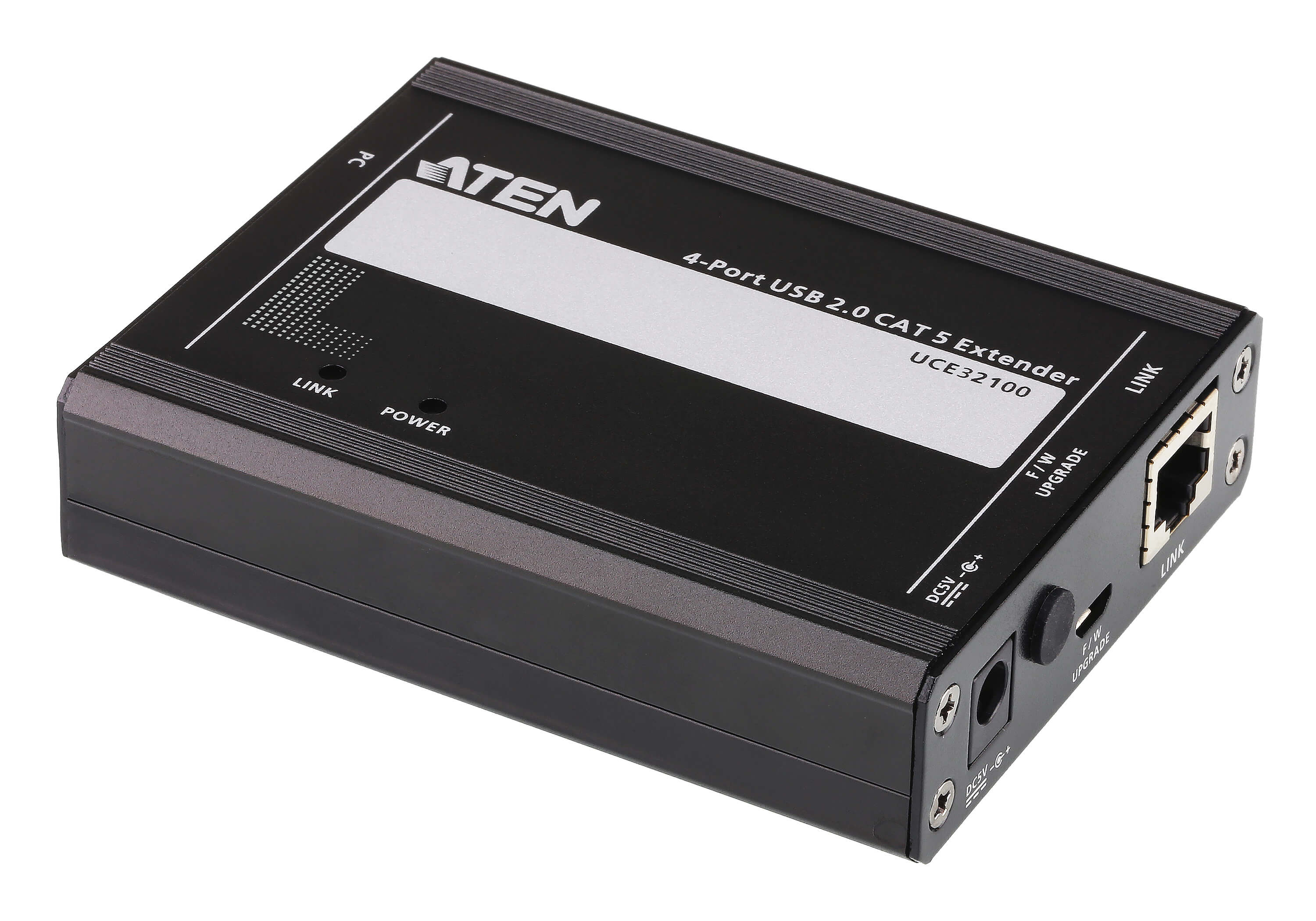

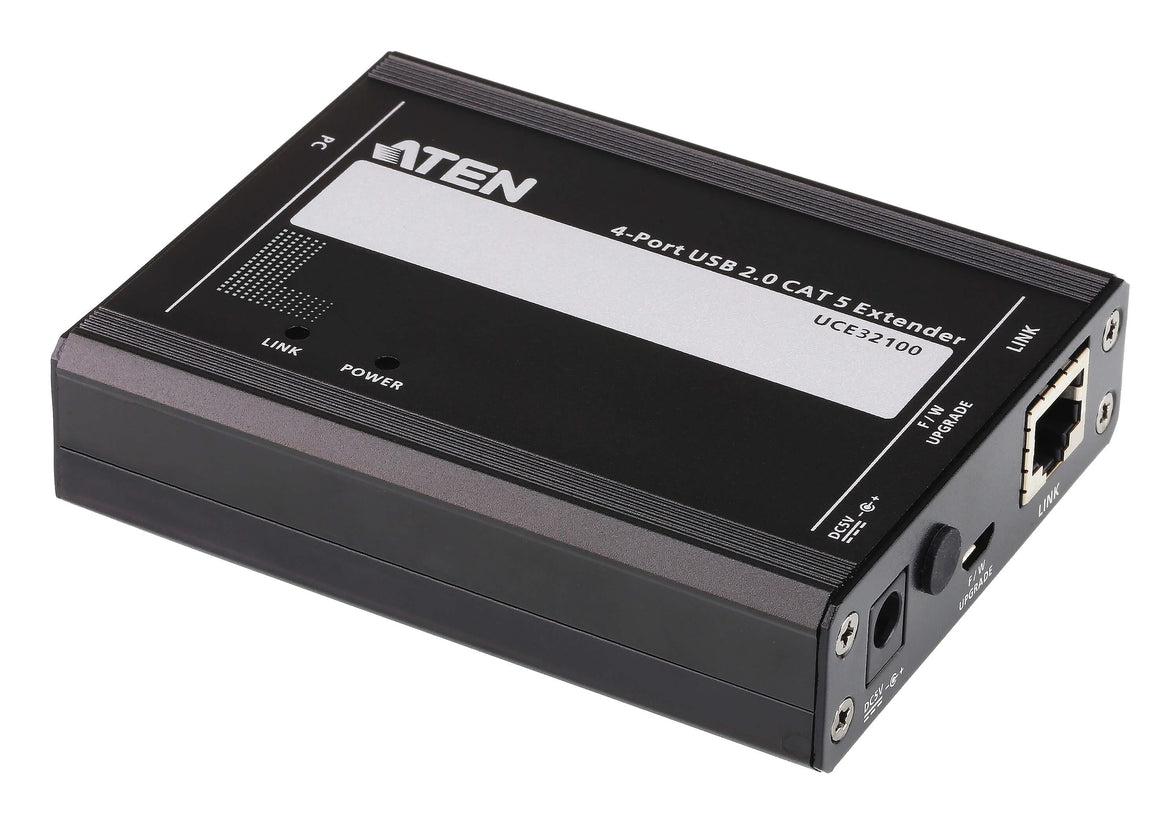

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Local Unit (Tx) and Remote Unit (Rx). It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.
