ATEN 4 PORT USB 2.0 CAT5 EXTENDER

ATEN 4 PORT USB 2.0 CAT5 EXTENDER

£122.60 GBP
Sale price: £122.60 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 50m USB Extension Solution
Out of stock
EAN: 4719264647154
SKU: UCE3250
Vendor: ATEN
Order within xx hours for delivery on
Quantity
  • Extends USB connection up to 50 meters over Cat5/5e/6 cable
  • Supports up to four USB peripheral devices
  • High-speed USB 2.0 data transfer up to 480 Mbps
  • Remote unit provides power for connected USB devices
  • Compatible with Windows, macOS, and Linux systems
  • Plug-and-play design with no software required
  • Compact metal housing for industrial environments
  • Integrated wall-mount design for flexible installation

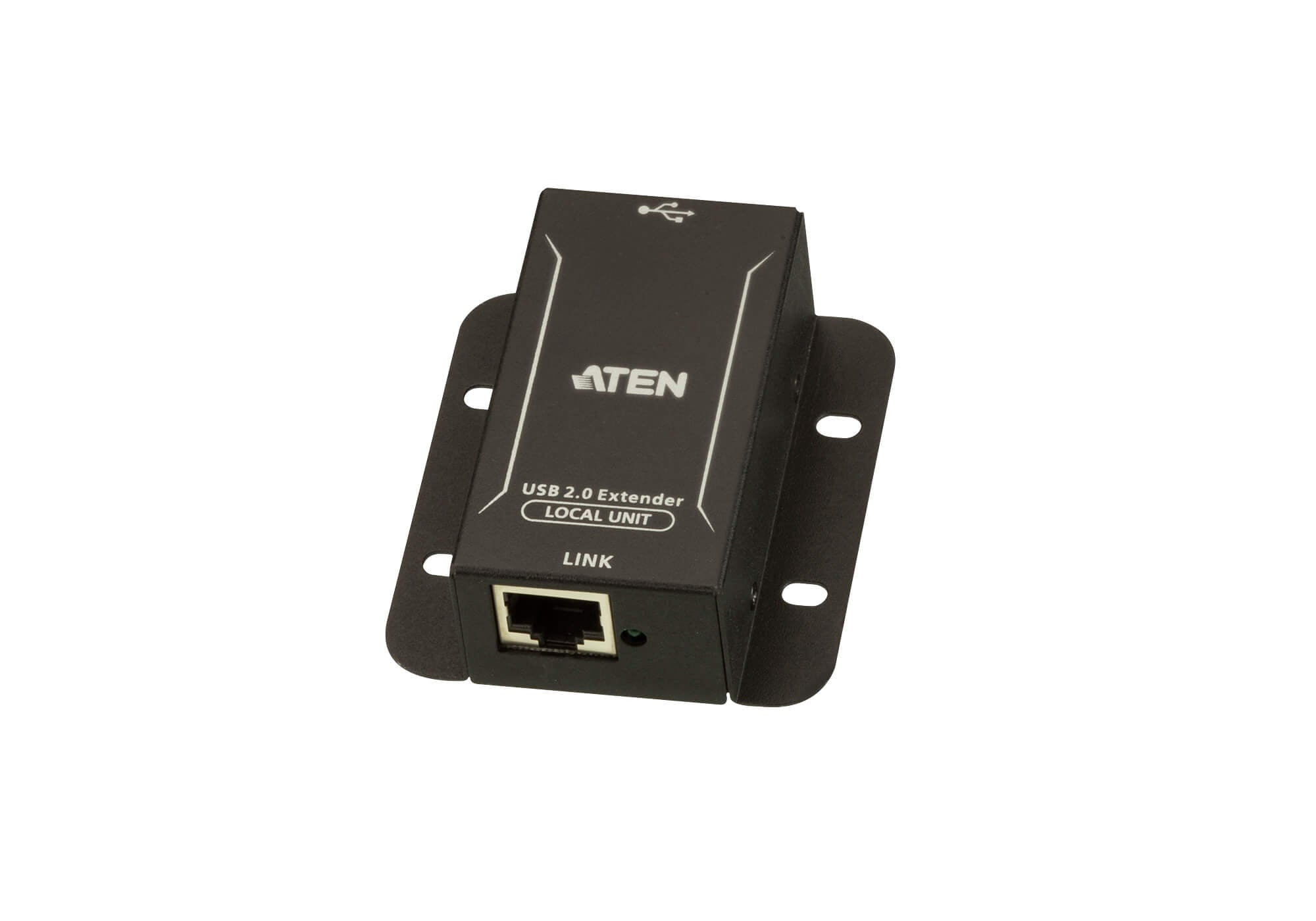

  • 1 × ATEN UCE3250L Local Unit

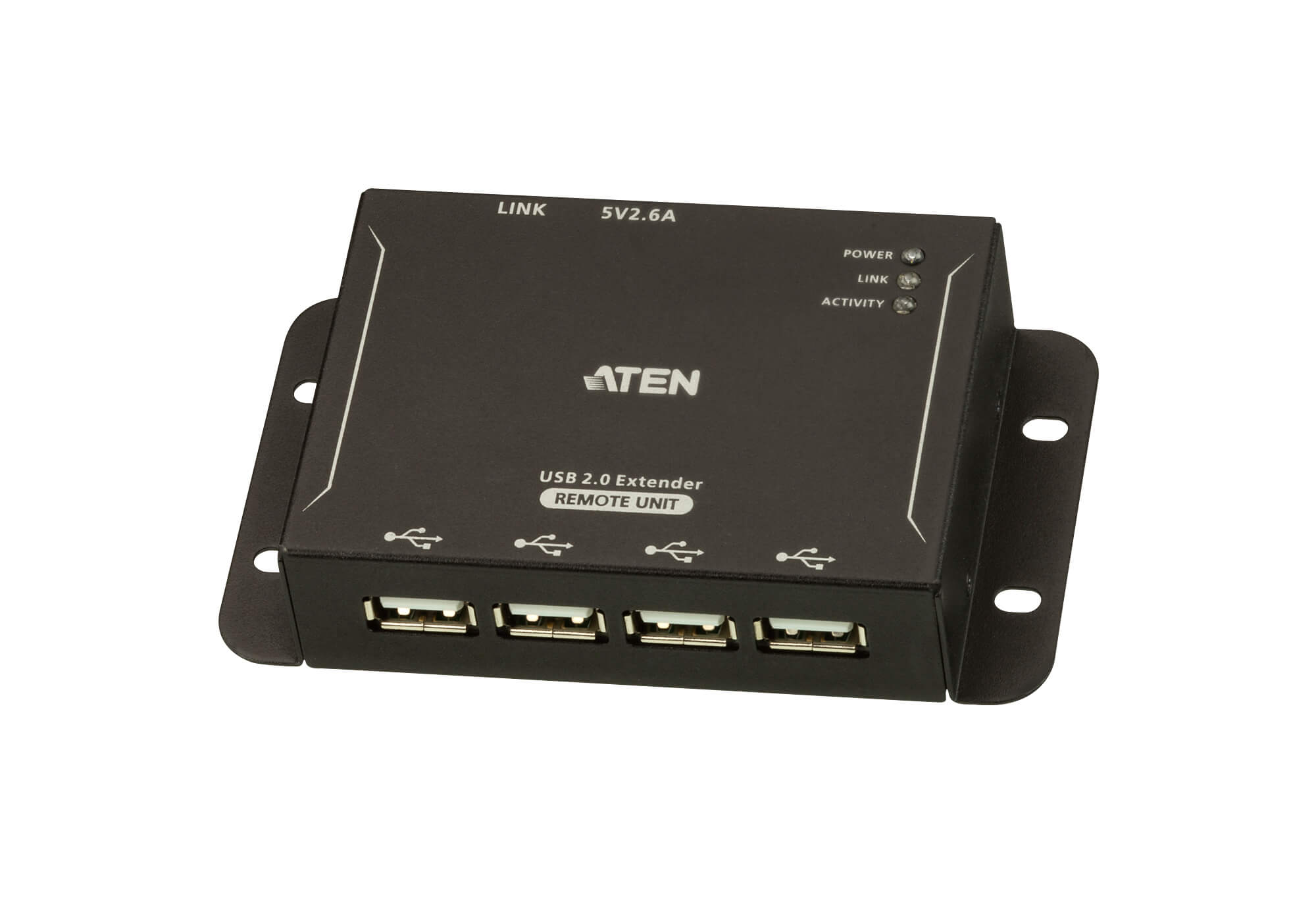

  • 1 × ATEN UCE3250R Remote Unit
  • 1 × USB Type-A to Type-B Cable
  • 1 × Power Adapter

Datasheet

Overview

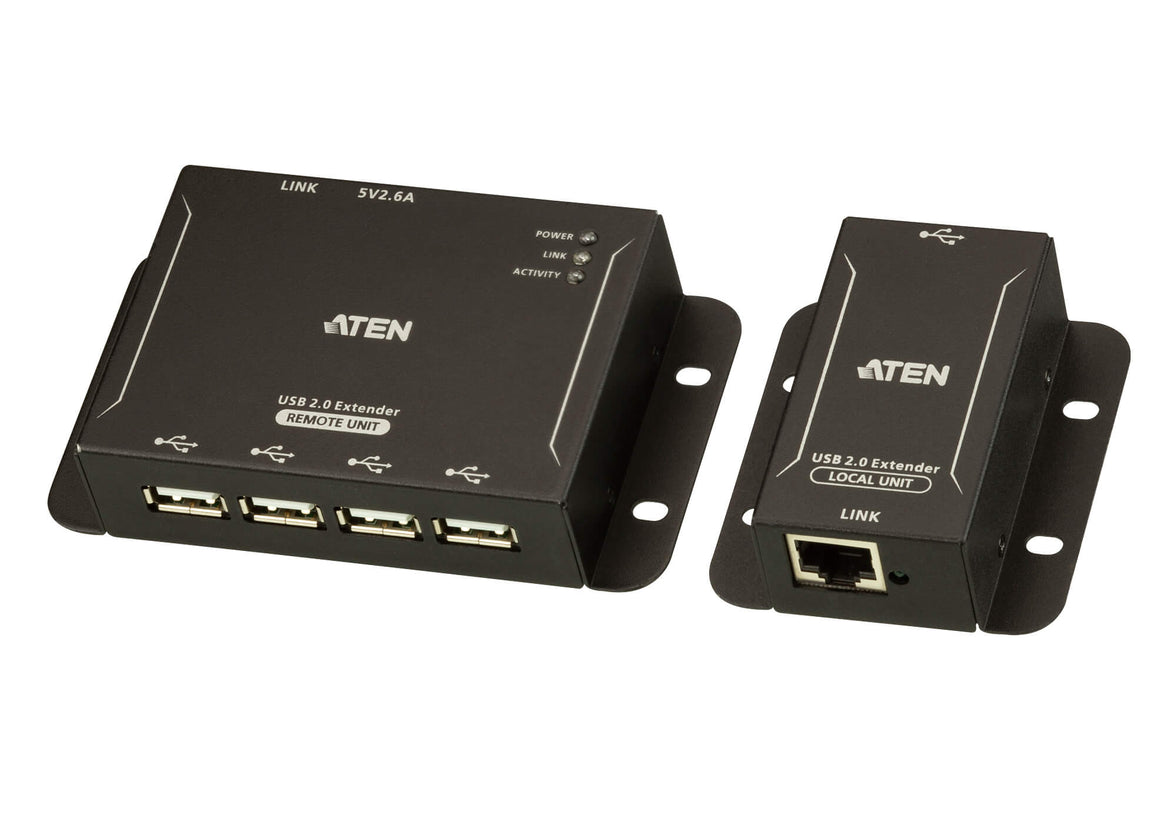

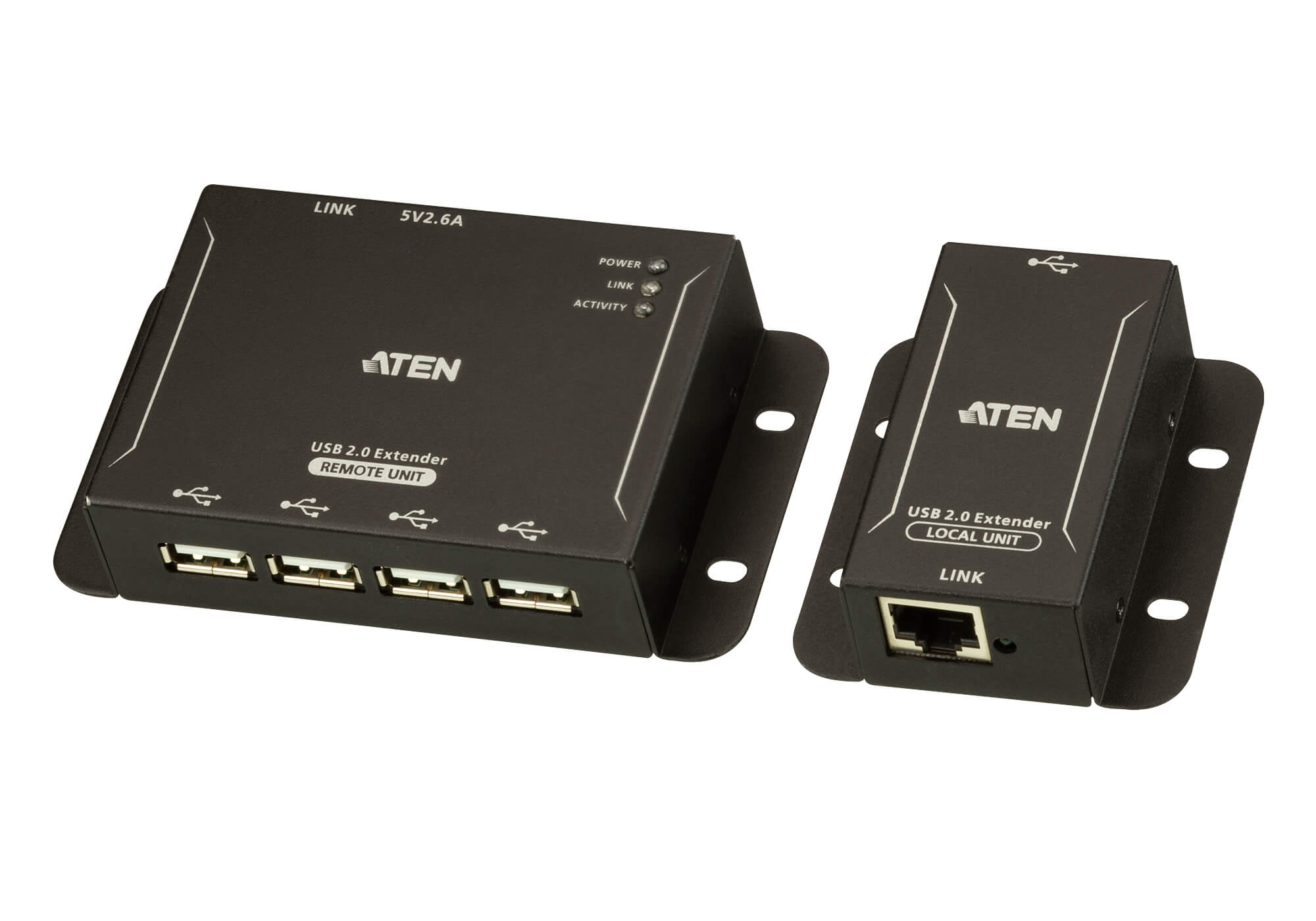

The ATEN UCE3250 4-Port USB 2.0 Cat 5 Extender is a reliable solution for extending USB connectivity beyond the standard cable limit. The system consists of a local transmitter and a remote receiver, connected through a single Cat5/5e/6 cable to deliver USB signals up to 50 meters away. It supports up to four USB devices simultaneously, making it suitable for applications such as industrial control rooms, classrooms, digital signage, and surveillance environments. The extender is compliant with USB 2.0 high-speed standards, delivering data transfer speeds up to 480 Mbps. The remote unit provides additional power to ensure stable performance with connected USB devices like webcams, scanners, or printers. Its durable metal housing and wall-mount design allow easy deployment in professional or industrial environments while maintaining plug-and-play installation.

Technical Features
  • Brand: ATEN
  • Model: UCE3250
  • Product Type: 4-Port USB 2.0 Cat 5 Extender
  • Maximum Extension Distance: Up to 50m via Cat5/5e/6 cable
  • USB Standard: USB 2.0 / 1.1 (High / Full / Low Speed)
  • Maximum Data Transfer Rate: Up to 480 Mbps

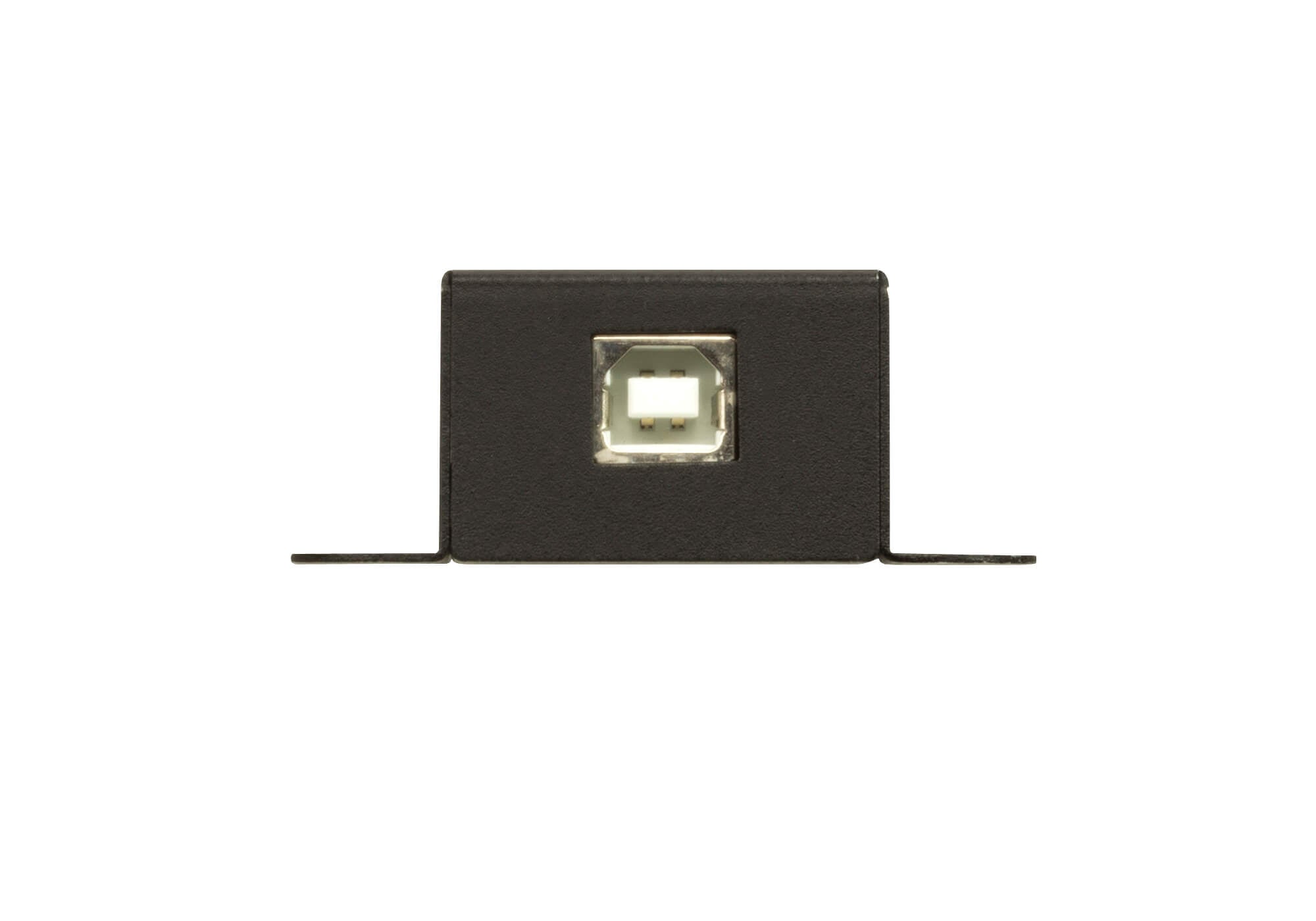

  • Local Unit USB Port: 1 × USB Type-B Female

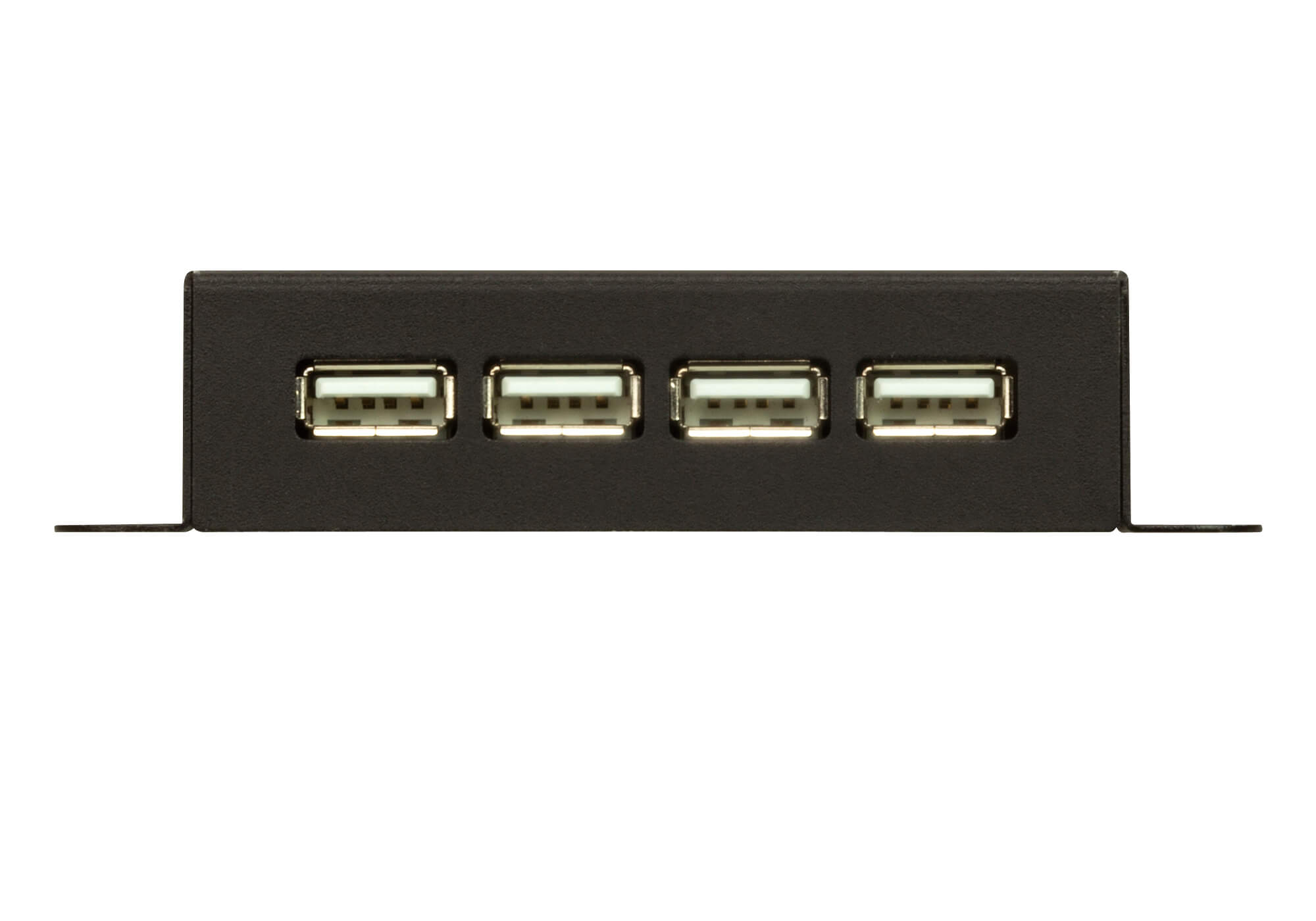

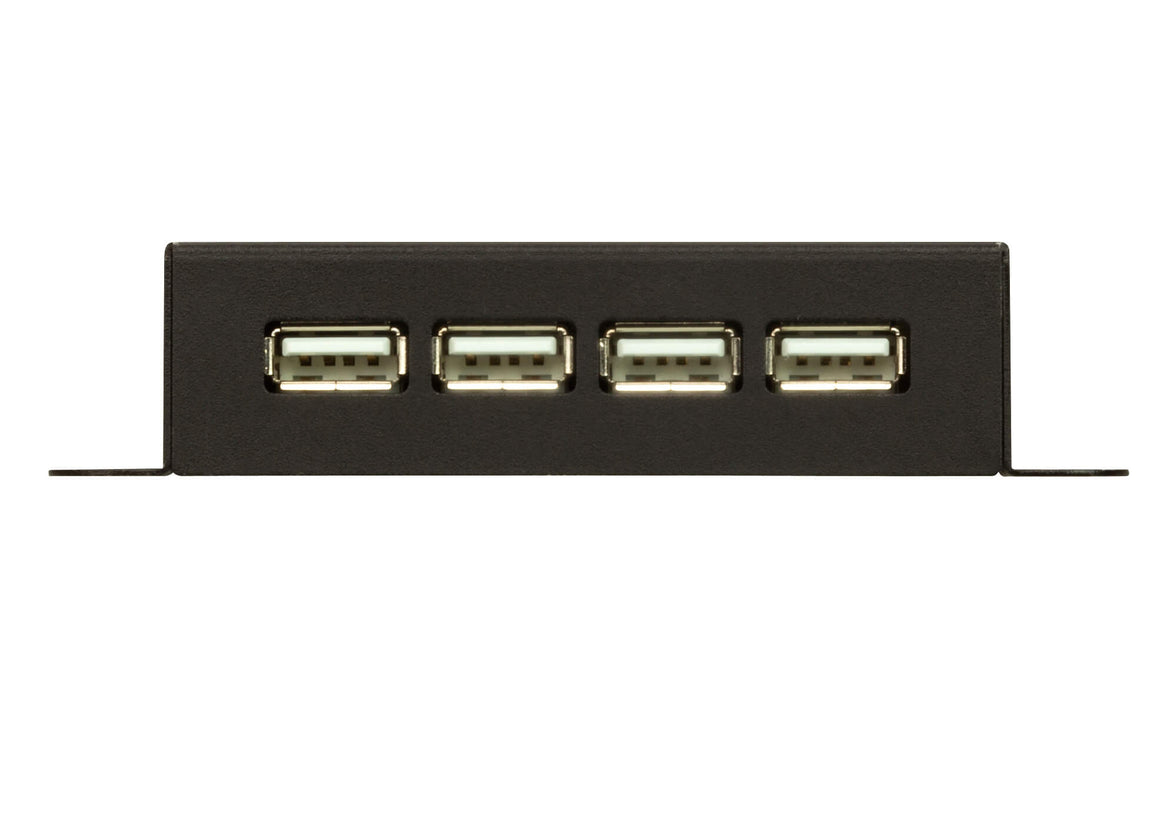

  • Remote Unit USB Ports: 4 × USB Type-A Female

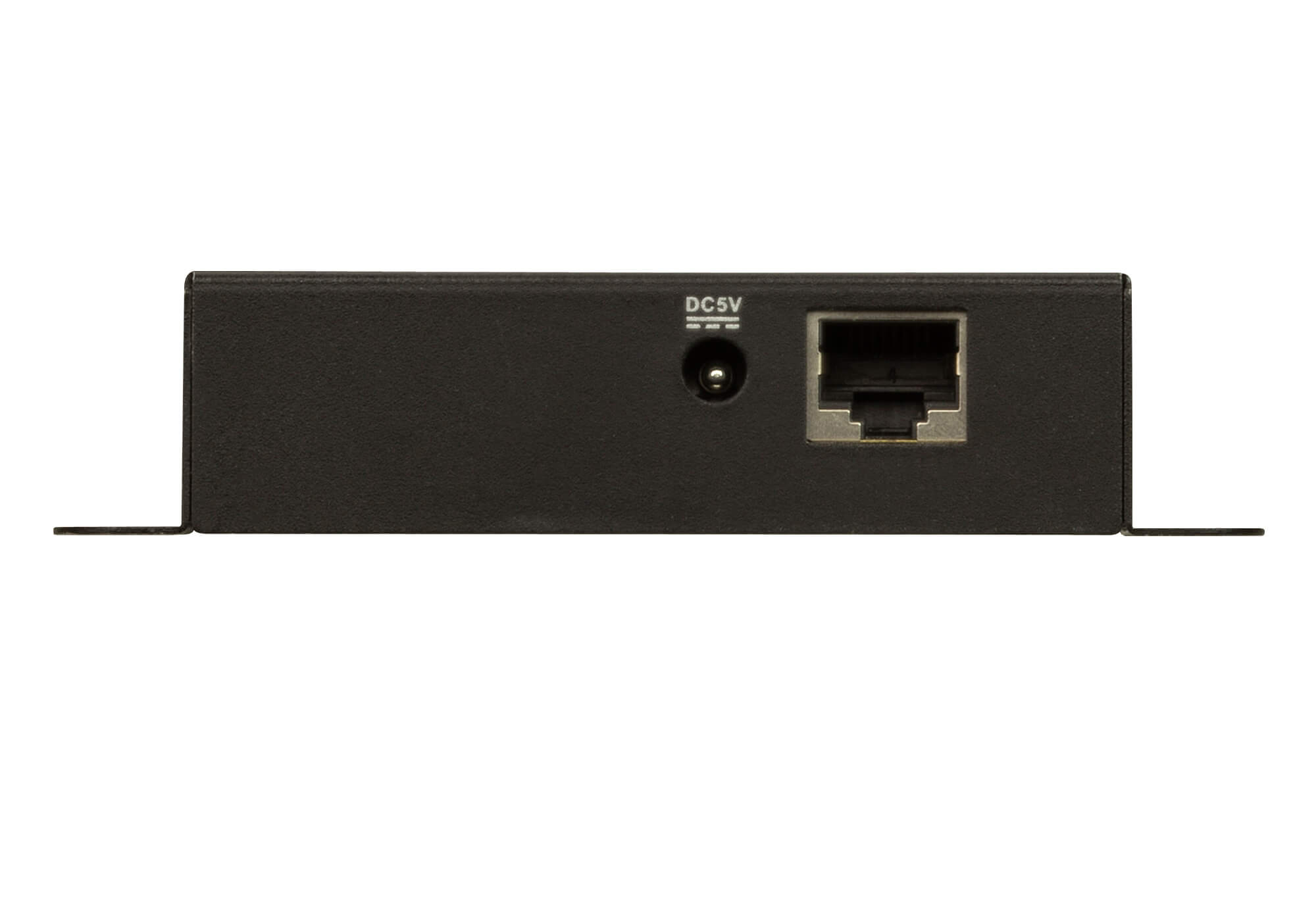

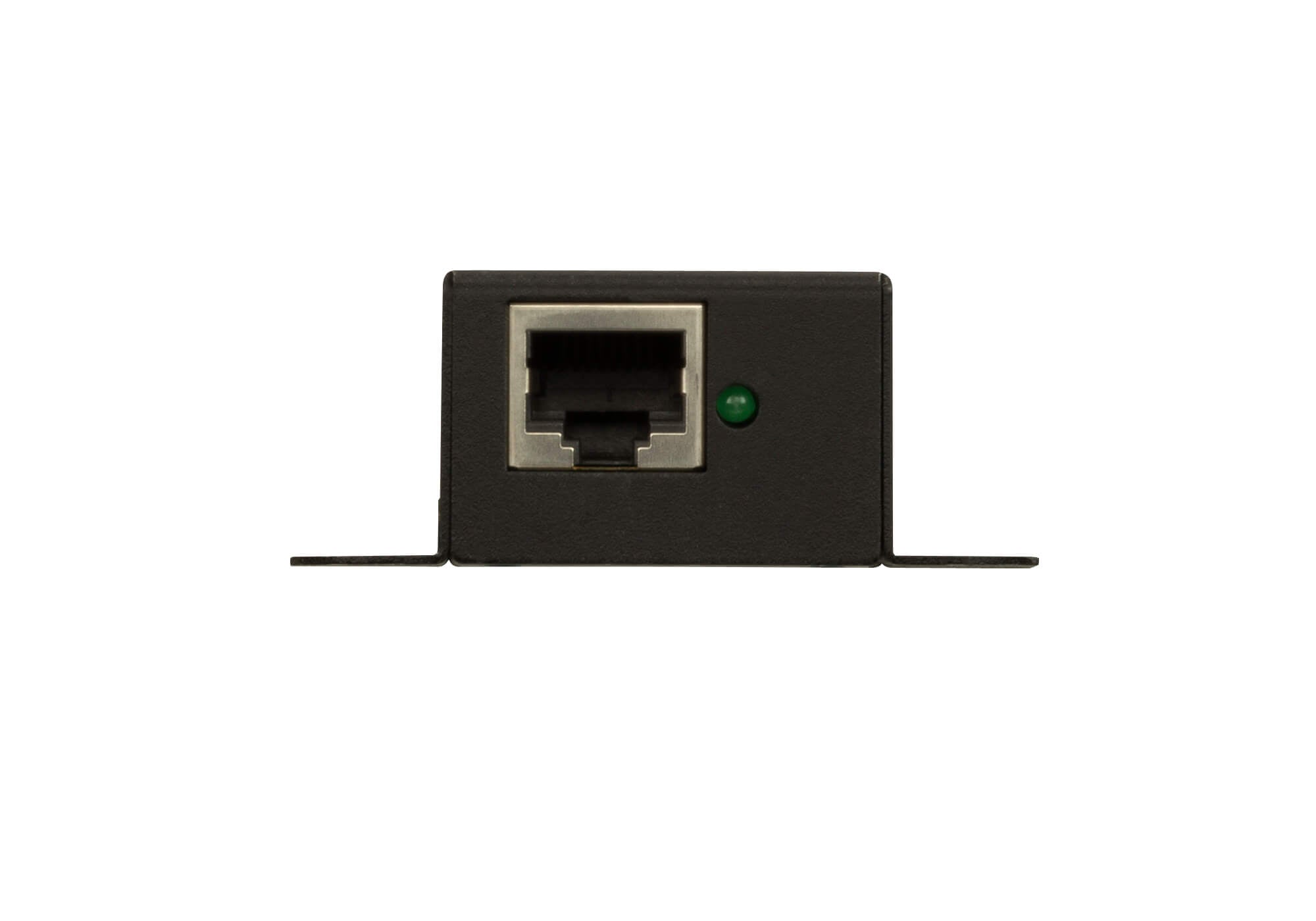

  • Link Port: 1 × RJ-45 (Local) / 1 × RJ-45 (Remote)
  • Power Supply: Remote Unit External Power Adapter
  • Supported USB Devices: Keyboard, Mouse, Printer, Scanner, Flash Drive, Webcam
  • Operating Temperature: 0°C – 50°C
  • Storage Temperature: −20°C – 70°C
  • Humidity: 0 – 80% RH (Non-condensing)
  • Housing: Metal
  • Dimensions (Local Unit): 6.70 × 6.02 × 2.37 cm
  • Dimensions (Remote Unit): 6.33 × 11.04 × 2.41 cm
