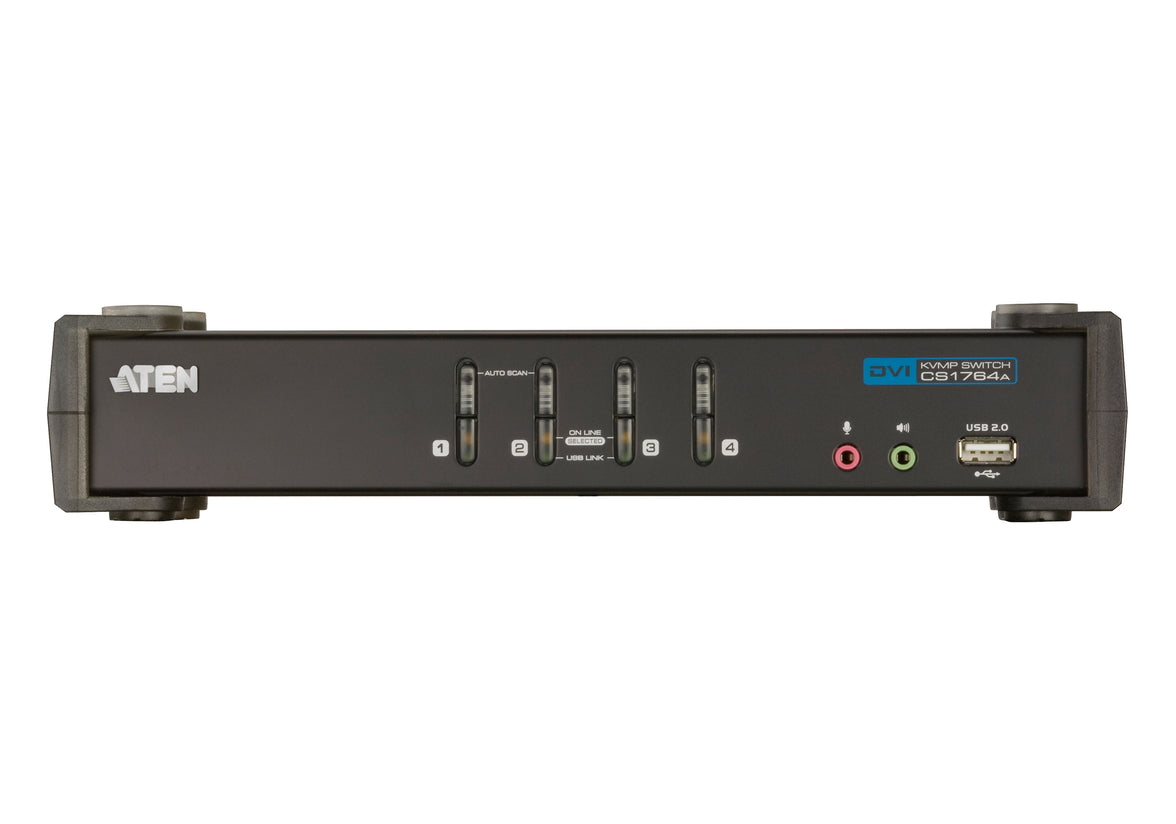

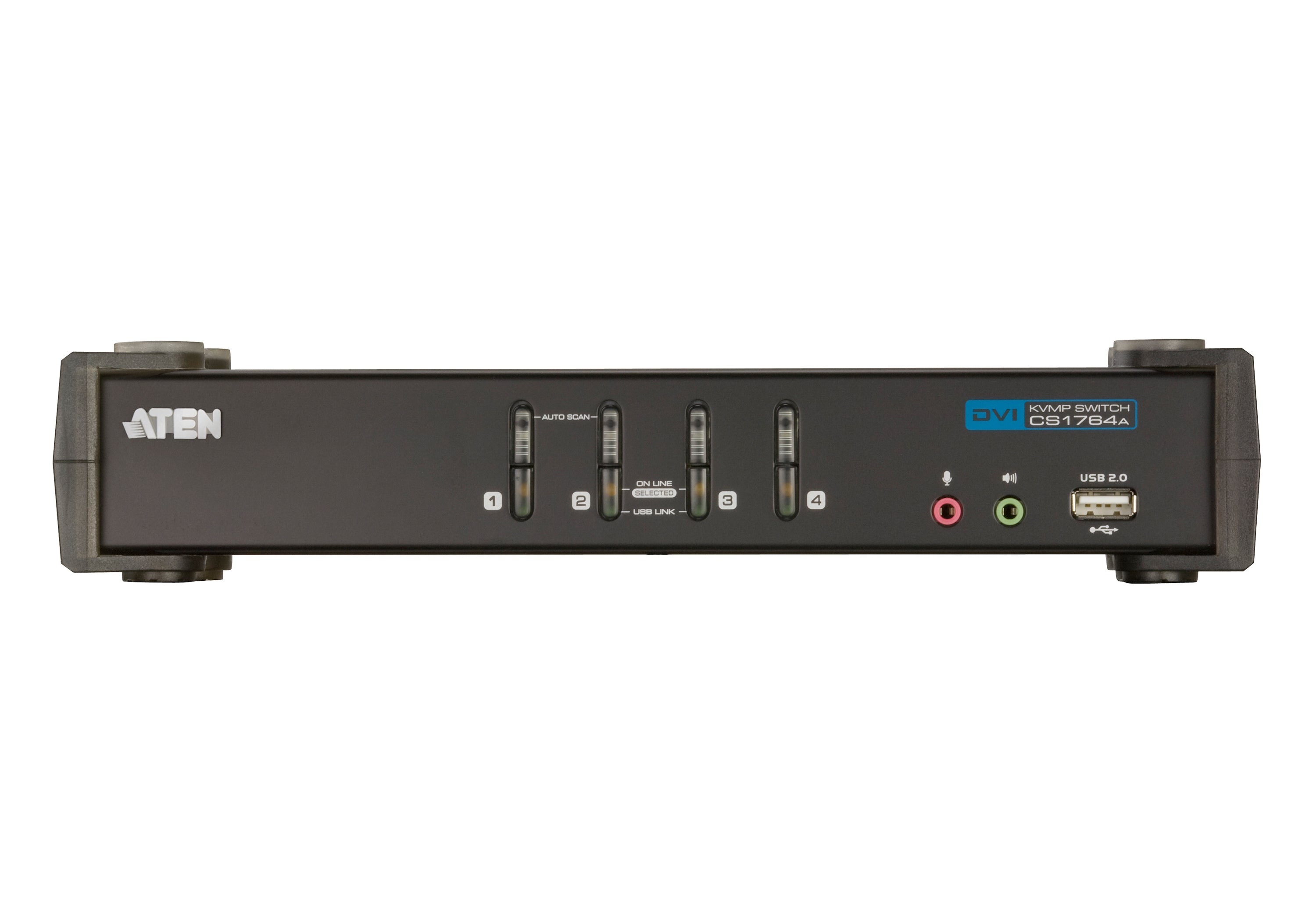

ATEN 4 Port DVI USB KVMP Switch

Name: ATEN 4 Port DVI USB KVMP Switch
Brand: ATEN
SKU: CS1764A
Price: 250.27 GBP
Availability: InStock

£250.27 GBP

£250.27 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

HDCP compliant
Firmware upgradable via USB

In stock, 2 units

EAN: 4710423776449

SKU: CS1764A

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Operating Temperature: 0 - 50°C
Storage Temperature: -20 - 60°C
Humidity: 0-80% RH, Non-condensing
Housing: Metal
Weight: 0.94 kg (2.07 lb)
Dimensions (L × W × H): 27.00 x 8.80 x 5.55 cm

Box Content

1 x CS1764A USB 2.0 DVI KVMP™ Switch
4 x 2L-7D02U USB DVI-D Single Link KVM Cables (1.8m)
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions

Documents

Datasheet

Technical Features

Console Control: One USB console controls four DVI computers and two additional USB 2.0 devices
USB Hub: Built-in 2-port USB 2.0 hub
USB Compliance: Fully compliant with USB 2.0 specification
Computer Selection: Front panel pushbuttons and hotkeys
Audio Support: Audio enabled with full bass response for 2.1 channel surround sound systems
OS Compatibility: Windows, Linux, Mac, and Sun
Video Quality: 1920 x 1200 @ 60Hz; DDC2B
Switching Features: Independent switching of KVM, USB, and audio focus
DVI Support: DVI digital and analog monitor support, fully compliant with DVI specifications
HDCP Support: HDCP compliant
Video Technology: Video DynaSync™ stores EDID to optimize resolution
Power Management: Power-on detection auto-switches to active computers
Mouse Support: Mouse port emulation/bypass for broad compatibility
Keyboard Support: Sun/Mac keyboard support and emulation
Auto Scan: Mode for monitoring all computers
Firmware: Upgradable via USB

ATEN 4 Port DVI USB KVMP Switch

£250.27 GBP

£250.27 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4-port KVM switch with a 2-port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
