4K Multi-Display KVM Control

In stock, 1 unit

EAN: 4719264645839

SKU: CS1924M

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Control up to four computers from a single console
Supports 4K UHD and 4K DCI resolution at 60Hz
Built-in MST hub enables dual-monitor output
Integrated 2-port USB 3.0 hub for high-speed peripheral sharing
DisplayPort Dual-Mode (DP++) compatibility for HDMI/DVI adapters
Independent switching of KVM, USB peripherals, and audio
Multiple switching methods including push button, hotkeys, mouse, and RS-232
Power-On Detection automatically selects active computers
Auto Scan mode for monitoring multiple systems
Hot-pluggable design for easy device connection
Firmware upgradeable for long-term compatibility

Box Content

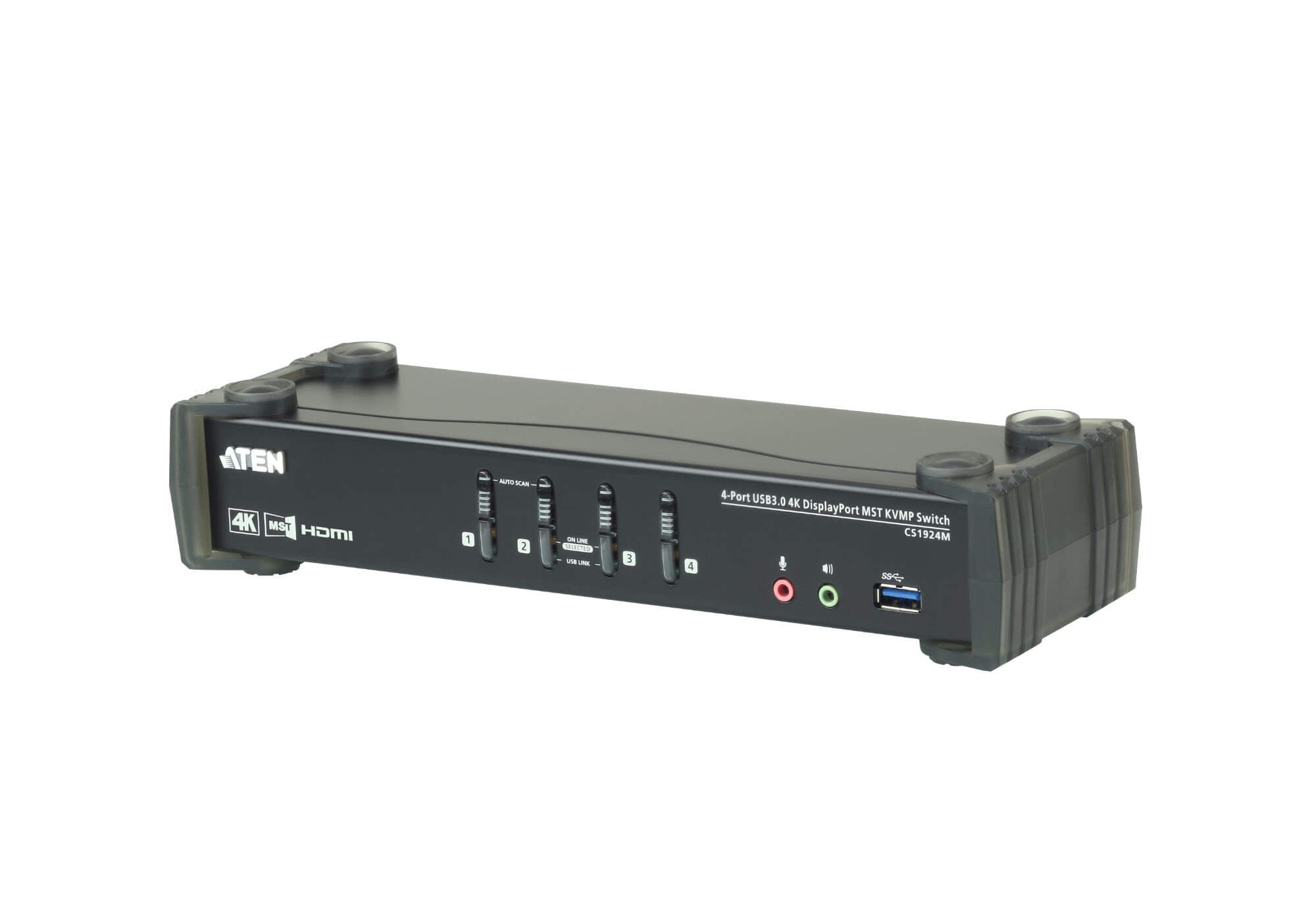

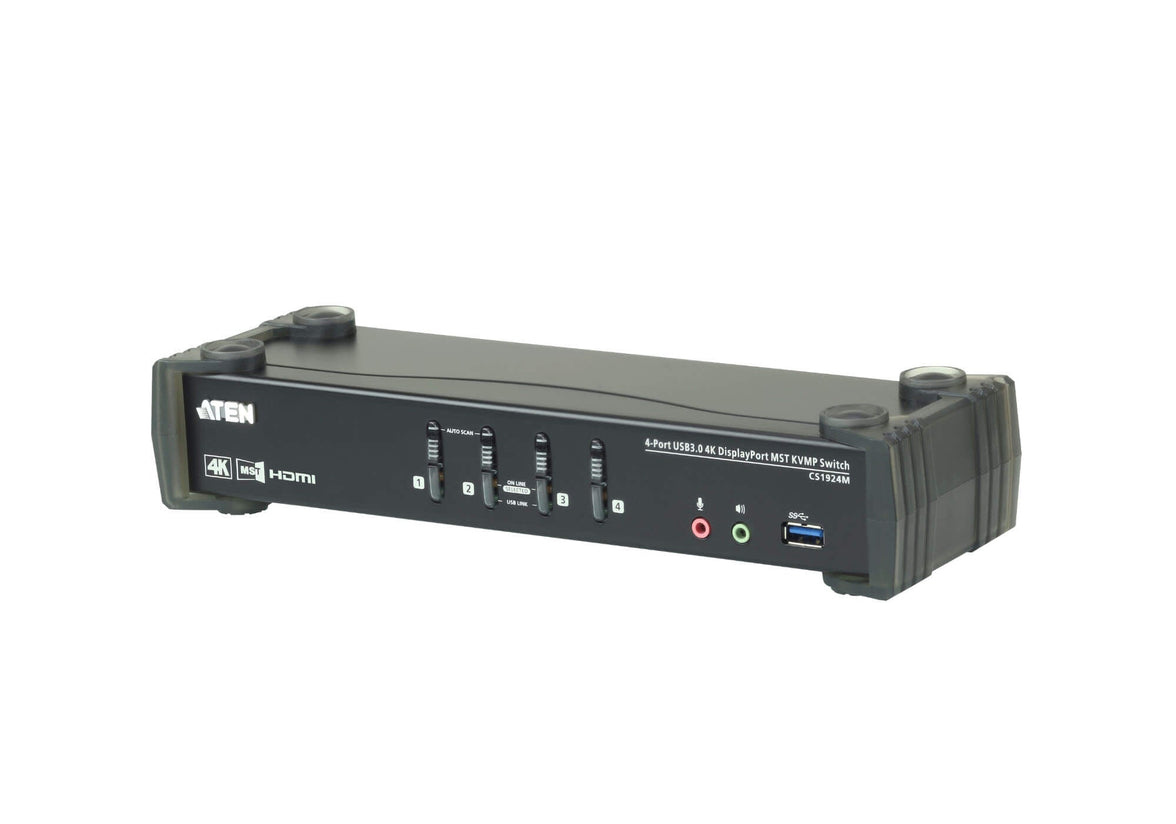

1 × ATEN CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP Switch
4 × DisplayPort 1.2 Cables
4 × USB 3.0 Cables
8 × 3.5mm Audio Cables
1 × Power Adapter

Documents

Datasheet

Technical Features

Brand: ATEN
Model: CS1924M
Product Type: 4-Port USB 3.0 4K DisplayPort MST KVMP Switch
Computer Connections: 4

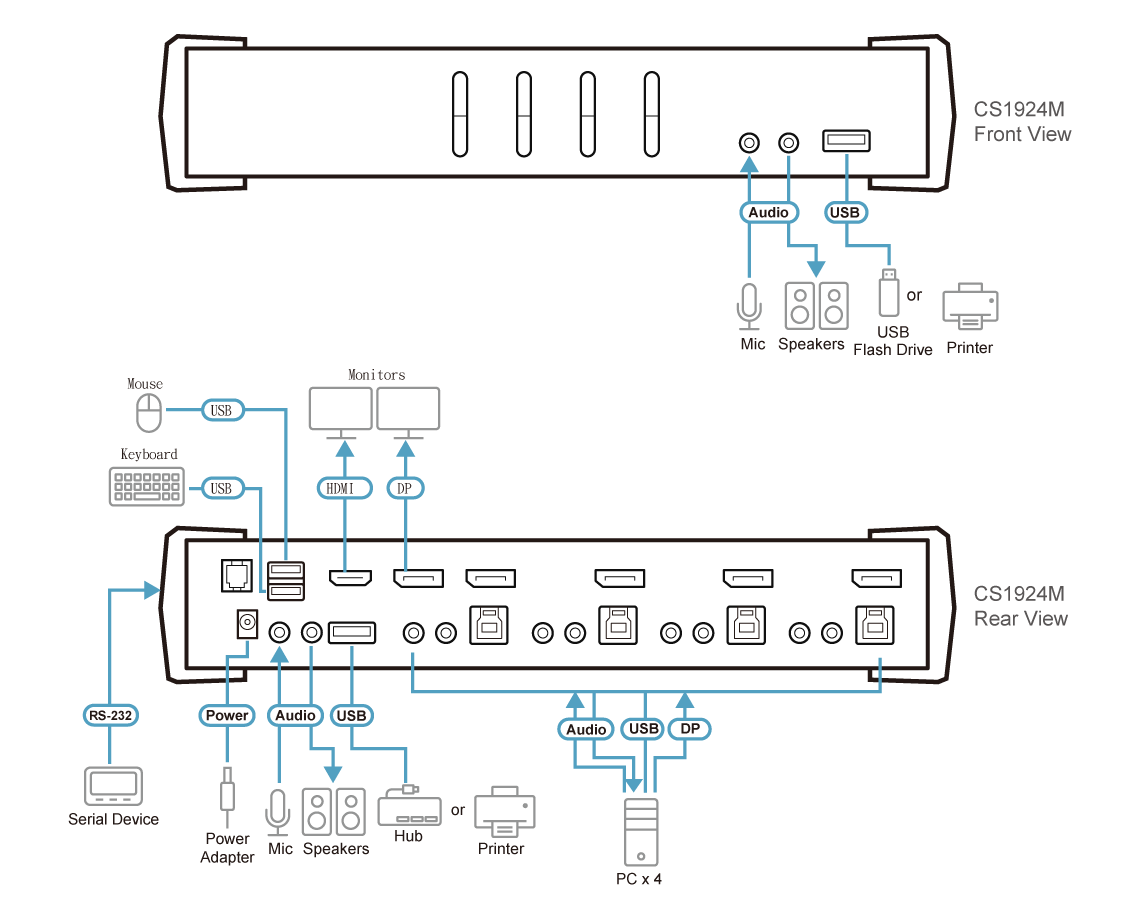

Console Ports: 2 × USB Type-A, 1 × DisplayPort, 1 × HDMI, 2 × 3.5mm Audio (Mic/Speaker)
KVM Ports: 4 × DisplayPort, 4 × USB 3.1 Gen1 Type-B, 4 × 3.5mm Audio
USB Hub: 2 × USB 3.1 Gen1 Type-A (SuperSpeed 5Gbps)
DisplayPort Standard: DisplayPort 1.2
Maximum Resolution: 4096 × 2160 @ 60Hz
MST Support: Yes (Multi-Stream Transport)
Port Selection: Push Button, Hotkey, Mouse, RS-232
Scan Interval: 1–99 seconds
Power Consumption: DC 5V, approx. 4.89W
Operating Temperature: 0°C – 50°C
Storage Temperature: −20°C – 60°C
Humidity: 0–80% RH (Non-condensing)
Housing: Metal / Plastic
Dimensions: 27.0 × 8.8 × 5.55 cm
Weight: Approx. 0.92 kg

ATEN 4 PORT DP 4K60 MST KVMP

£656.52 GBP

£656.52 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The ATEN CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is designed for professional workstations that require centralized control of multiple systems with high-resolution video output. It supports DisplayPort 1.2 and 4K UHD resolution up to 4096 × 2160 at 60Hz, delivering exceptional visual clarity. The built-in Multi-Stream Transport (MST) hub enables dual-monitor output from a single DisplayPort source, making it ideal for multi-display environments such as design studios, trading floors, and control centers. The switch includes a USB 3.1 Gen1 hub with 5Gbps transfer speeds, allowing shared peripherals like printers, storage drives, and webcams. Users can switch between connected computers using push buttons, hotkeys, mouse commands, or RS-232 control. With advanced features like Power-On Detection, Auto Scan mode, and independent switching of KVM, USB, and audio, the CS1924M ensures efficient and flexible multi-system management.
