4 PORT 4K HDMI CAT6 SPLITTER+RX

4 PORT 4K HDMI CAT6 SPLITTER+RX

Regular price £349.87 GBP
Sale price: £349.87 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.

Extend 4K Beyond Limits

In stock, 3 units
EAN: 4710469348938
SKU: VS1824KIT
Vendor: ATEN
Order within xx hours for delivery on
Quantity
  • Distributes one HDMI source to four displays simultaneously
  • Long-distance transmission via single Cat 6 cable
  • Supports crystal-clear 4K video output
  • Power over Cable eliminates receiver power adapters
  • Supports lossless multi-channel digital audio formats
  • Adjustable EDID for optimized compatibility
  • Plug-and-play setup with no software required
  • Ideal for digital signage and professional AV installations
  • ATEN VS1824KIT Splitter Unit (Transmitter)
  • 4 × Receiver Units
  • Power Adapter
  • IR Blaster Cable
  • 4 × IR Receiver Cables
  • Mounting Kit
  • User Manual / Quick Start Guide

Datasheet

  • Model: VS1824KIT
  • Product Type: 4-Port HDMI Cat 6 Splitter Kit
  • HDMI Input: 1 × HDMI
  • HDMI Outputs: 4 × Remote Displays via Receivers
  • Maximum Resolution: 4K (3840 × 2160 @ 30Hz, 4:4:4)
  • Transmission Distance: Up to 40 meters over Cat 6 cable
  • Audio Support: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
  • HDMI Standard: HDMI (3D, Deep Color, 4K)
  • HDCP Compliance: HDCP 1.4
  • Power Feature: Power over Cable (PoC)
  • EDID Control: User-adjustable EDID switch
  • Installation: Plug-and-Play
  • Housing: Metal enclosure

4 PORT 4K HDMI CAT6 SPLITTER+RX

Regular price £349.87 GBP
Sale price: £349.87 GBP Regular price: £0.00 GBP
(VAT Incl.)

Overview

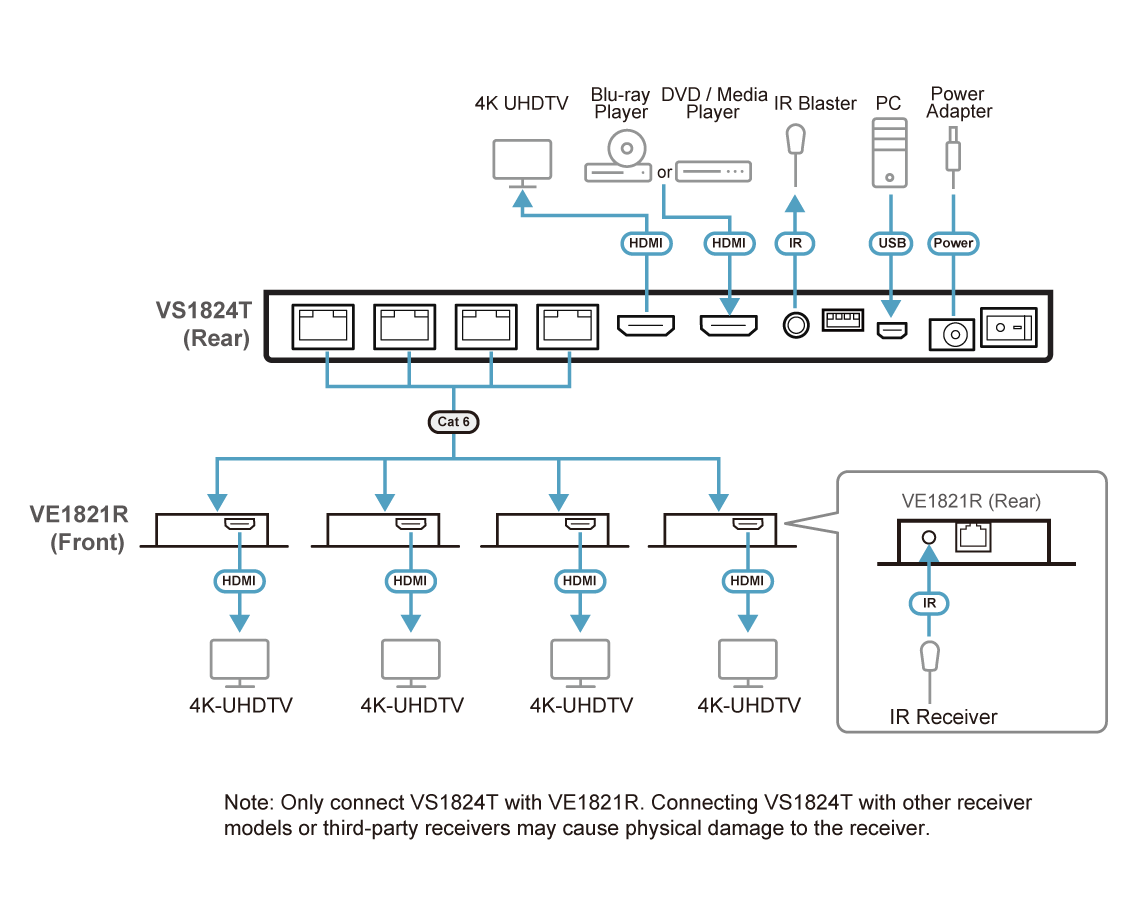

The ATEN VS1824KIT is a complete HDMI distribution solution that includes one splitter transmitter and four receiver units, enabling a single HDMI source to be displayed on four remote screens simultaneously. Using Cat 6 cables, it extends high-quality video signals up to 40 meters while maintaining sharp 4K resolution performance. The system supports lossless digital audio formats and ensures synchronized audio-video delivery across displays. Power over Cable (PoC) technology allows receivers to be powered directly from the splitter, reducing cable clutter and simplifying installation. An adjustable EDID switch helps optimize resolution and audio compatibility between devices. Ideal for digital signage, control rooms, classrooms, and retail displays, the VS1824KIT provides reliable long-distance AV distribution with plug-and-play operation.
