ATEN True 4K HDMI/USB HDBT 3.0

Name: ATEN True 4K HDMI/USB HDBT 3.0
Brand: ATEN
SKU: VE1843
Price: 55.2 GBP
Availability: InStock

£55.20 GBP

£55.20 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Share USB Devices Effortlessly

In stock, 1 unit

EAN: 4710469341267

SKU: VE1843

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

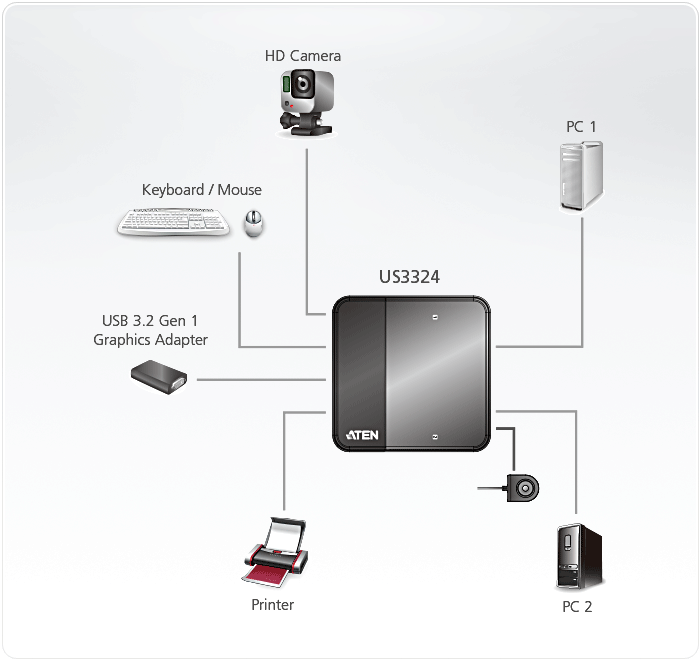

Share four USB devices between two computers
USB 3.2 Gen 1 support up to 5 Gbps
Pushbutton switching with LED indicators
Hot‑plug and plug‑and‑play operation
Works with USB devices: printers, scanners, hubs, webcams, storage
Compact and space‑saving design
No drivers required for Windows/macOS/Linux
Upgrade path for external power support

Box Content

1 x ATEN US3324 2 x 4 USB 3.2 Gen 1 Peripheral Sharing Switch
1 x USB Type‑C to USB Type‑A Cable
1 x USB Type‑C to USB Type‑C Cable
1 x User Manual / Quick Guide

Documents

Datasheet

Technical Features

<ul>
<li>Brand: ATEN</li>
<li>Model: US3324</li>
<li>Product Type: 2 x 4 USB 3.2 Gen?1 Peripheral Sharing Switch</li>
<li>Host Connections: 2 (USB Type?C / USB Type?A selectable)</li>
<li>USB Downstream Ports: 4 x USB 3.2 Gen?1 Type?A</li>
<li>USB Version: USB 3.2 Gen?1 (5?Gbps)</li>
<li>LED Indicators: Active Port and Device Activity</li>
<li>Switching Methods: Pushbuttons</li>
<li>Compatibility: Windows, macOS, Linux</li>
<li>Hot?Plug Support: Yes</li>
<li>Driver Required: No (Plug?and?Play)</li>
<li>Power Supply: Bus powered or External Adapter (optional)</li>
<li>Housing: Compact Plastic Enclosure</li>
<li>Dimensions: Approx. 18 x 9 x 3?cm</li>
</ul>

ATEN True 4K HDMI/USB HDBT 3.0

£55.20 GBP

£55.20 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The ATEN VE1843 True 4K HDMI / USB HDBaseT™ 3.0 Transceiver is an advanced AV extension solution that allows high-quality HDMI video and multiple control signals to be transmitted over long distances using a single Cat6a cable. It supports uncompressed True 4K resolution (4096 × 2160 @ 60Hz 4:4:4) with HDR, ensuring exceptional image clarity even at extended distances.

Designed with HDBaseT™ 3.0 technology, the device can transmit HDMI video, USB 2.0, stereo audio, IR, RS-232, and Gigabit Ethernet simultaneously through a single cable, simplifying complex AV installations. The VE1843 also supports HDMI audio embedding and de-embedding, allowing users to integrate external audio sources or extract audio from HDMI signals for amplification systems.
