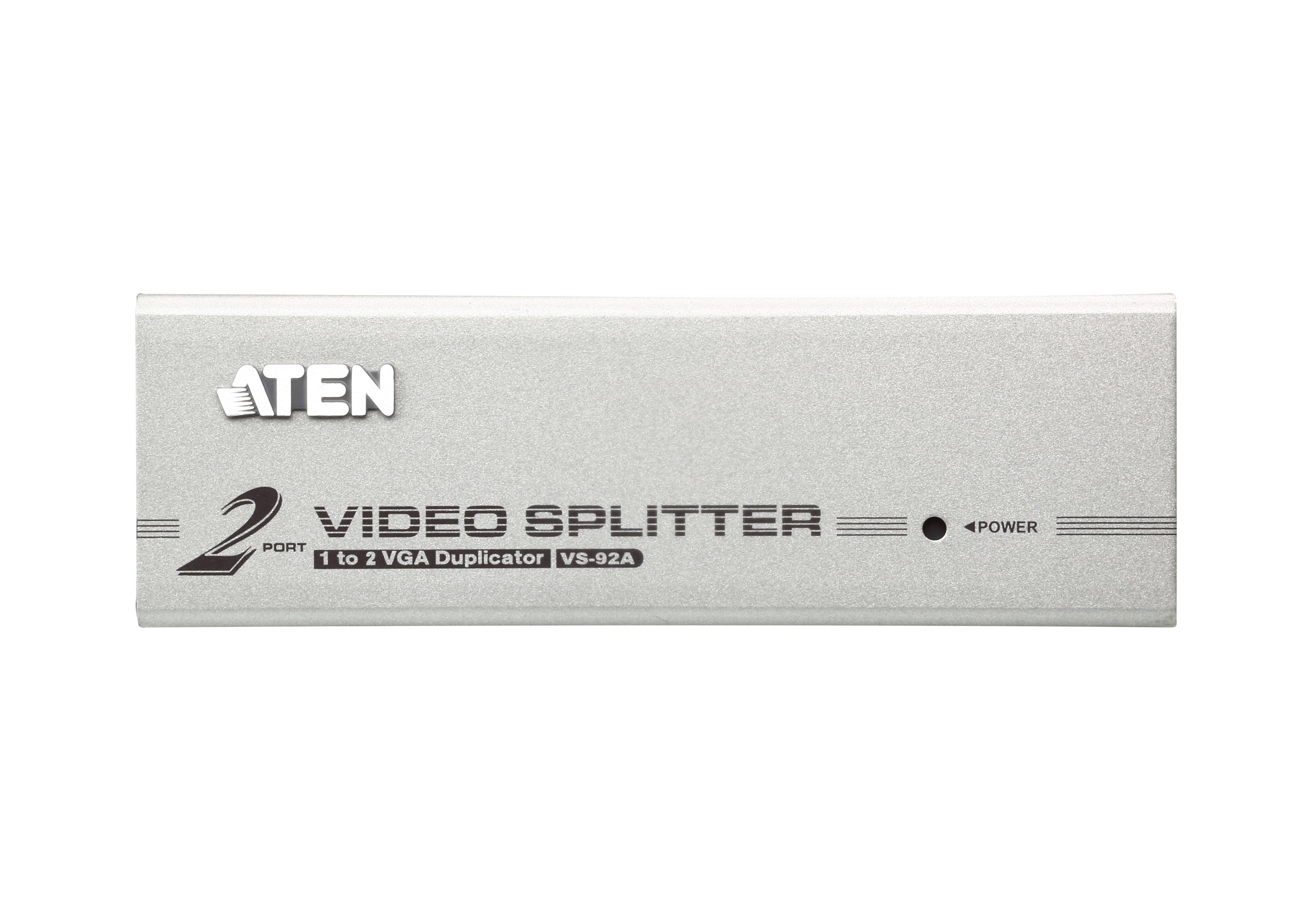

ATEN 2 PORT VGA SPLITTER(350MHZ)

Name: ATEN 2 PORT VGA SPLITTER(350MHZ)
Brand: ATEN
SKU: VS92A
Price: 29.44 GBP
Availability: InStock

£29.44 GBP

£29.44 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

VGA Video Splitter
2 Outputs
30m Range
Cascadable 8 Displays
350MHz Bandwidth
Broadcast/Monitor

In stock, 3 units

EAN: 4710423770928

SKU: VS92A

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Video Input: 1 x HDB-15 Male (Blue), 75 Ω, Max distance 1.8 m
Video Output: 2 x HDB-15 Female (Blue), 75 Ω
Max Bandwidth: 350 MHz
Max Resolution: Up to 1920 x 1440
Max Distance: Up to 30 m
Power: 1 x DC Jack, DC9V: 1.15W (5 BTU/h)
Operating Temperature: 0–50°C; Storage Temperature: -20–60°C
Humidity: 0–80% RH, Non-Condensing
Housing: Metal; Weight: 0.42 kg (0.93 lb)
Dimensions (L x W x H): 13.00 x 7.51 x 4.40 cm (5.12 x 2.96 x 1.73 in.)
Carton Lot: 20 pcs

Box Content

1x 2-Port Video Splitter
1x 0AD6-1909-03EG Power Adapter
1x User Instructions

Documents

Datasheet

Technical Features

One video input to 2 video outputs
Cascadable to 3 levels, supporting up to 8 video signals
Supports 350 MHz bandwidth
Long-distance transmission up to 30 m*
Superior video quality: 1920 x 1440 @ 60Hz
DDC, DDC2, DDC2B compatible (Port 1 only)
Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
All-metal casing for durability

ATEN 2 PORT VGA SPLITTER(350MHZ)

£29.44 GBP

£29.44 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
