1A4B01F

1A4B01F

£772.70 GBP
Sale price: £772.70 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Analog Line Connectivity: Connect Asterisk-based systems to analog phone lines
Out of stock
EAN: 797734602296
SKU: 1A4B01F
Vendor: Digium
Order within xx hours for delivery on
Quantity
  • Analog Line Connectivity: Connect Asterisk-based systems to analog phone lines
  • VoIP Integration: Connect analog PBX systems to VoIP services
  • Channel Bank Replacement: Channel Bank Replacement / Alternative
  • Gateway Termination: Gateway Termination to analog telephones/lines
  • Business Suitability: Suitable for Small Office/Home Office (SOHO) and Small and Medium Business (SMB) applications
  • Asterisk Compatibility: The 1A4B01F is compatible with all versions of Asterisk using the DAHDI driver framework
  • Digium A4B Card
  • Low Profile Bracket
  • Quick Start Guide

Overview

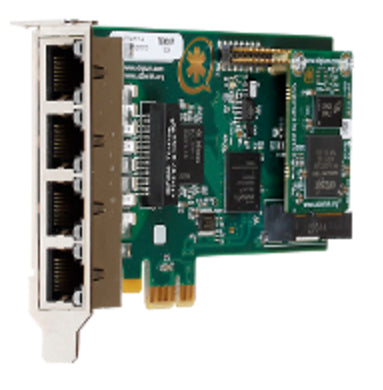

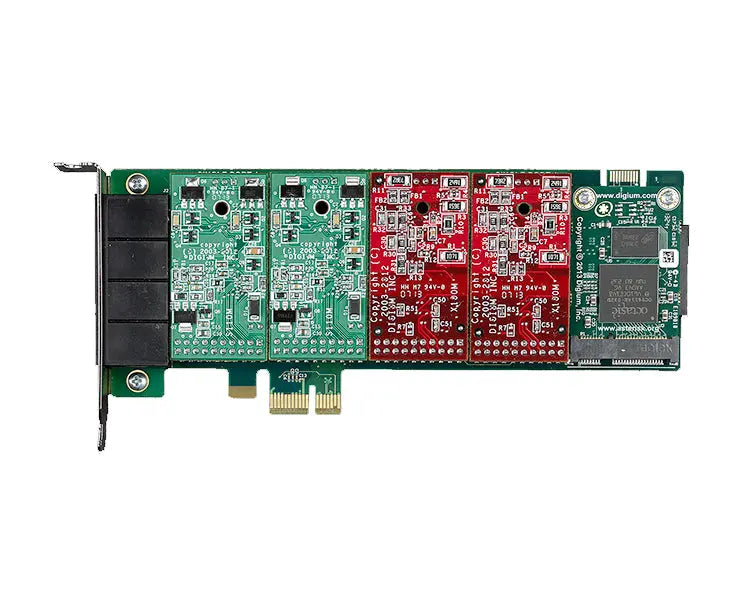

The 1A4B01F is a Digium 4-port modular analog PCI Express card used for telephony systems.

Technical Features
  • Analog Ports: One (1) – four (4) analog ports
  • Bus Architecture: PCI or PCI Express bus architectures
  • Module Support: Combine line (FXO) and station (FXS) modules
  • Expansion Capacity: Accepts up to four (4) single-port modules
  • Echo Cancellation: Optional DSP-based carrier grade echo cancellation module
  • Bus Speed: 32-bit 33MHz
  • Signaling: Loop Start or Kewl Start signaling
  • Operating Temperature: 0° to 50° C
  • Audio Technology: Digium patented VoiceBus™ technology for better audio
  • Guarantee: 30-day 100% satisfaction money back guarantee
  • Warranty: 5-year warranty
  • Asterisk Compatibility: DAHDI 2.7 or later required
  • Switchvox Compatibility: Switchvox 5.8.1 or later required (Coming soon)
