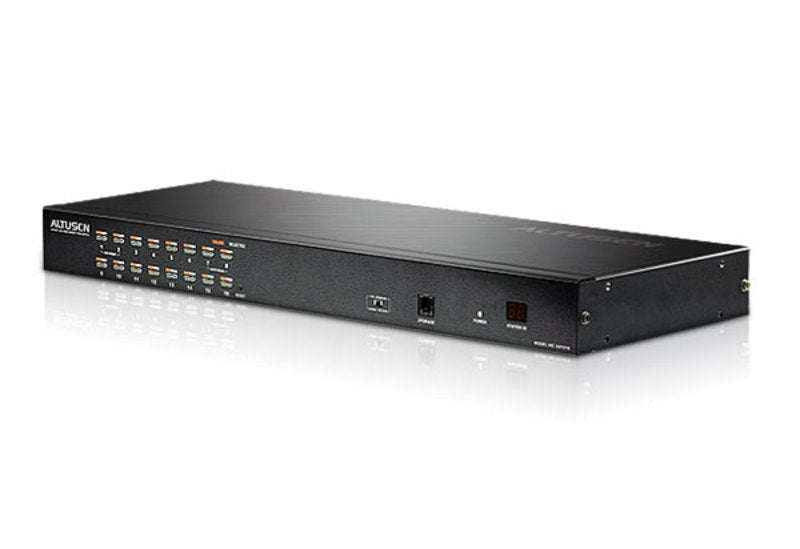

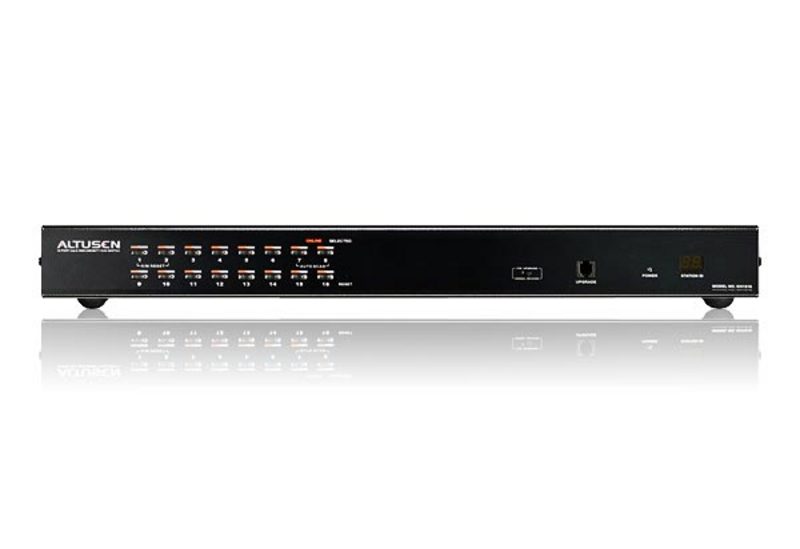

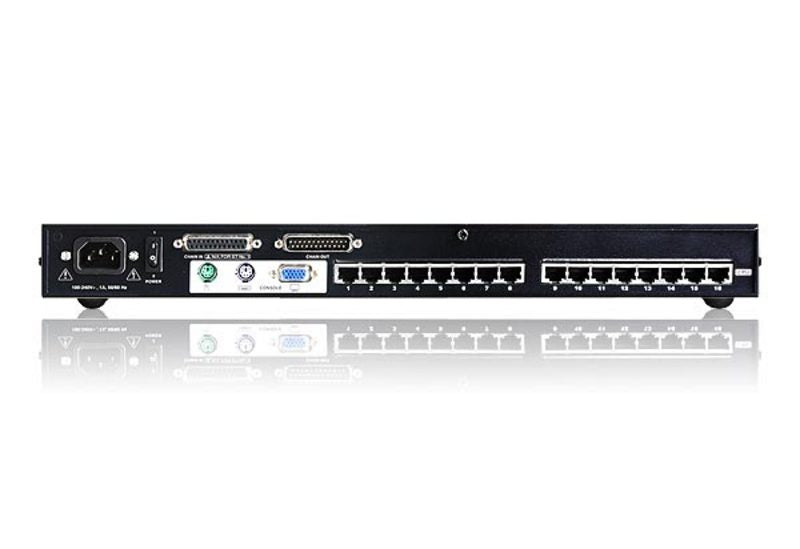

Aten 16 Port CAT-5 High Density KVM Switch Daisy Chain

Aten 16 Port CAT-5 High Density KVM Switch Daisy Chain

£513.92 GBP
Sale price: £513.92 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Space-Saving Design
  • Multi-Platform Support
In stock, 7 units
EAN: 4710423776760
SKU: 10010928
Vendor: Aten
Order within xx hours for delivery on
Quantity
  • Number of Computers Controlled: 16
  • Keyboard Port Type: PS/2
  • Mouse Port Type: USB
  • USB 2.0 Ports: 2
  • PS/2 Ports: 2
  • Maximum Resolution: 1280 x 1024 pixels
  • Rack Mountable: Yes (1U)
  • Display: 19" LED-backlit
  • Input Voltage: 100–240V, 50/60Hz
  • Power Consumption: 28W
  • Material: Metal, Black Finish
  • 16-Port Cat 5 High-Density KVM Switch
  • Firmware Upgrade Cable
  • Power Cord
  • Rack Mount Kit
  • Foot Pad Set(4 pcs.)
  • User Instructions

Datasheet

Overview
The KH1516A KVM Switches are control units that allow access to multiple computers from a single KVM (keyboard, monitor, and mouse) console. The KH1516 features RJ-45 connectors and Cat 5e/6 cable to link to the computers. Combined with Auto Signal Compensation (ASC) signals can travel up to 40 meters and still maintain high video resolution.Utilizing PS/2 and USB KVM Adapter Cables for the final linkup, the KH1516 permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

Technical Features
  • Direct Control: Manage up to 8 computers directly or 512 via daisy-chain (KH1508A/KH1516A).
  • Space-Saving Design: RJ-45 connectors with CAT5e/6 cabling reduce clutter.
  • Console Conversion: Supports PS/2, USB, VGA, DVI, HDMI, and DisplayPort connections.
  • High Video Quality: Up to 1600x1200@60Hz (40m) or 1280x1024@75Hz (50m).
  • User Access Control: Configure port access with two-level password security (1 admin + 10 users).
  • Multi-Platform Support: Compatible with PC, Mac, Sun, and Serial systems.
  • Flexible Control: Access via pushbuttons, hotkeys, or multi-language OSD.
  • Broadcast Mode: Send commands to all computers simultaneously for updates or shutdowns.
  • Firmware Upgradable: Ensures long-term performance and compatibility.
