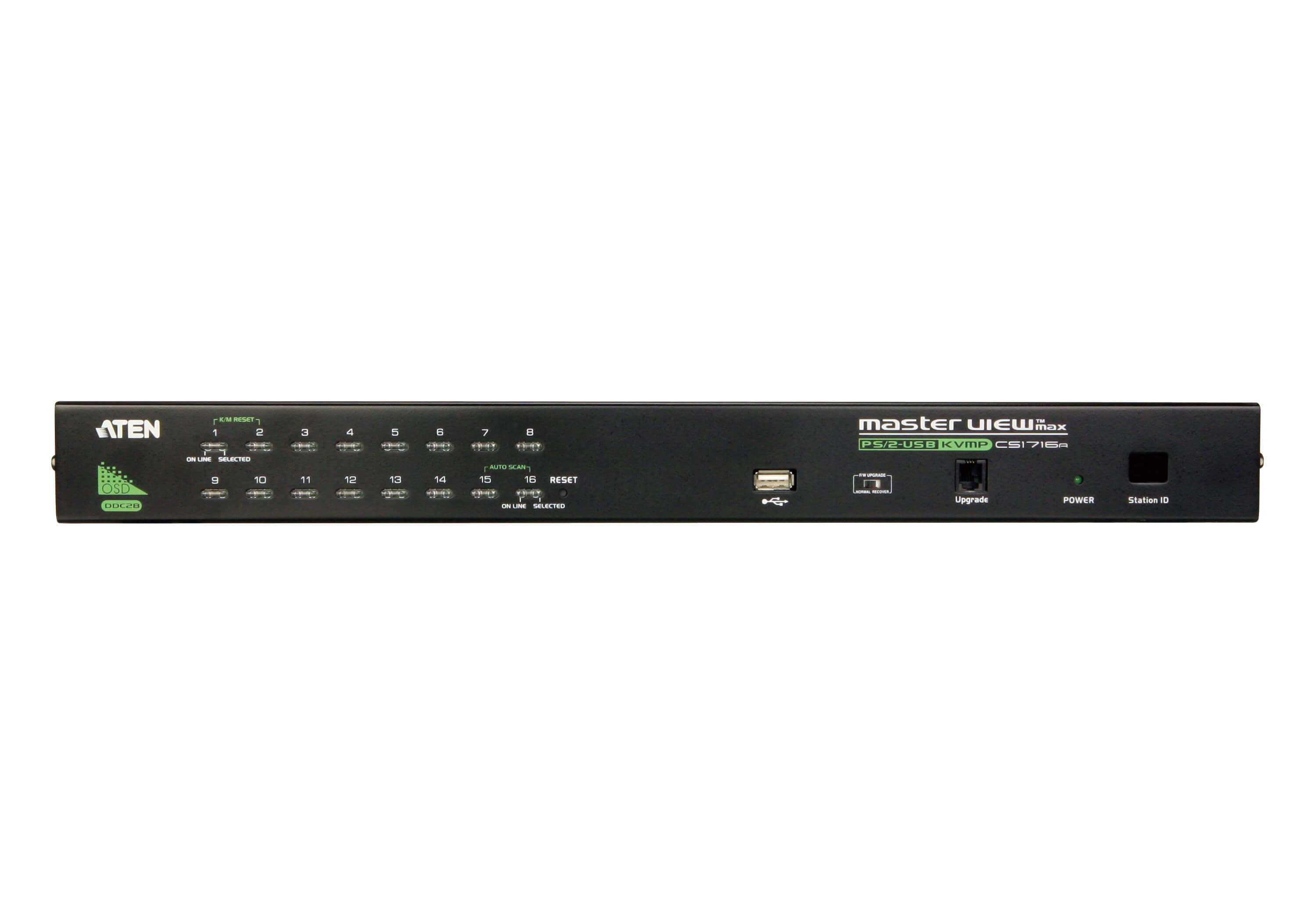

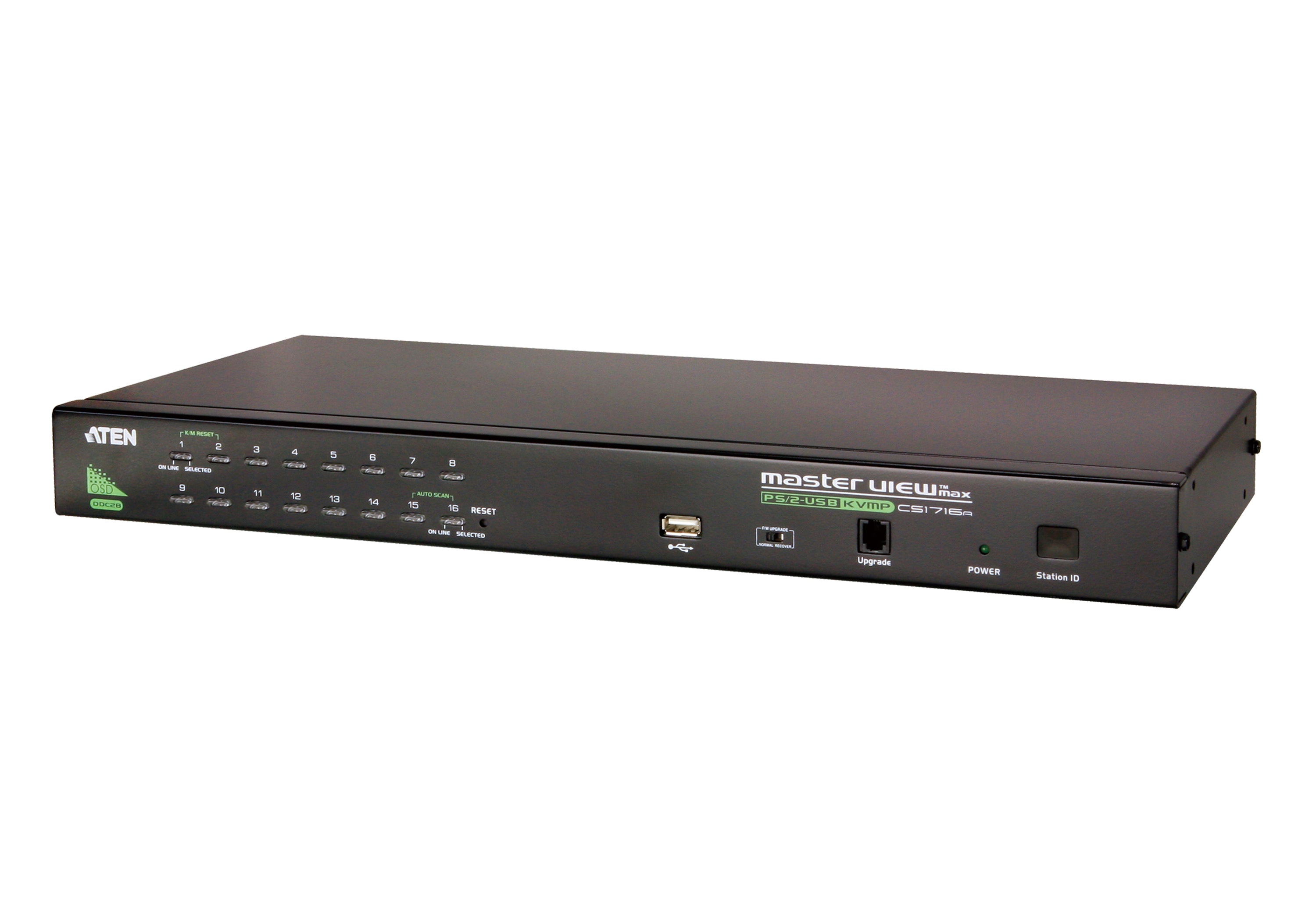

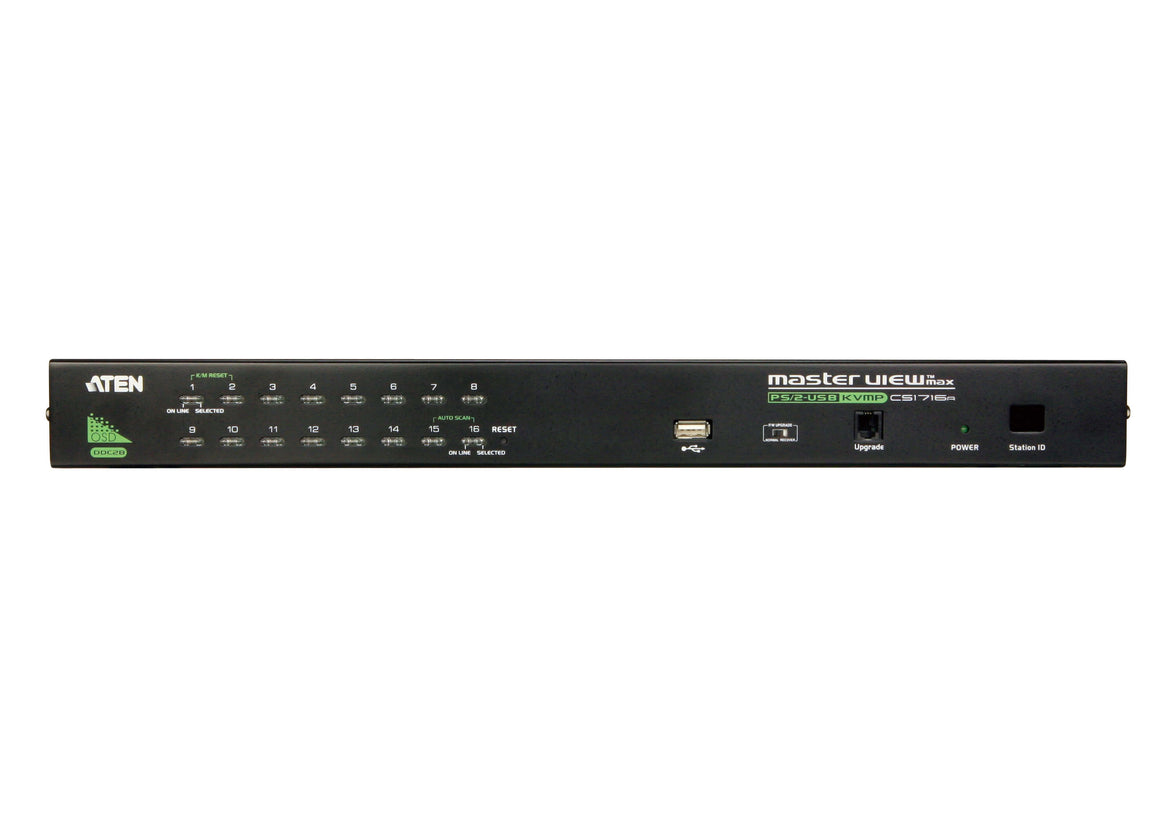

ATEN 16 PORT CABLE TYPE KVM DAISYCHAIN

ATEN 16 PORT CABLE TYPE KVM DAISYCHAIN

£518.33 GBP
Sale price: £518.33 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Control 16 PCs Easily
In stock, 1 unit
EAN: 4710423775329
SKU: CS1716A
Vendor: ATEN
Order within xx hours for delivery on
Quantity
  • Controls up to 16 computers from one console
  • Daisy-chain support expands control to 512 computers
  • Supports both USB and PS/2 keyboard and mouse interfaces
  • High video resolution up to 2048 × 1536
  • Front-panel USB port for peripheral sharing
  • Multiplatform support (Windows, Linux, Mac, Sun)
  • Auto Scan feature for monitoring connected computers
  • OSD interface, hotkeys, and push buttons for switching
  • Hot-pluggable design allows adding/removing computers without shutdown
  • Firmware upgrade support via dedicated upgrade port
  • 1 × ATEN CS1716A KVM Switch
  • 2 × Custom KVM Cable Sets (VGA/USB or PS/2)
  • 1 × Console Cable
  • 1 × Firmware Upgrade Cable
  • 1 × Rack Mounting Kit
  • 1 × Foot Pad Set
  • 1 × Power Adapter

Datasheet

Overview

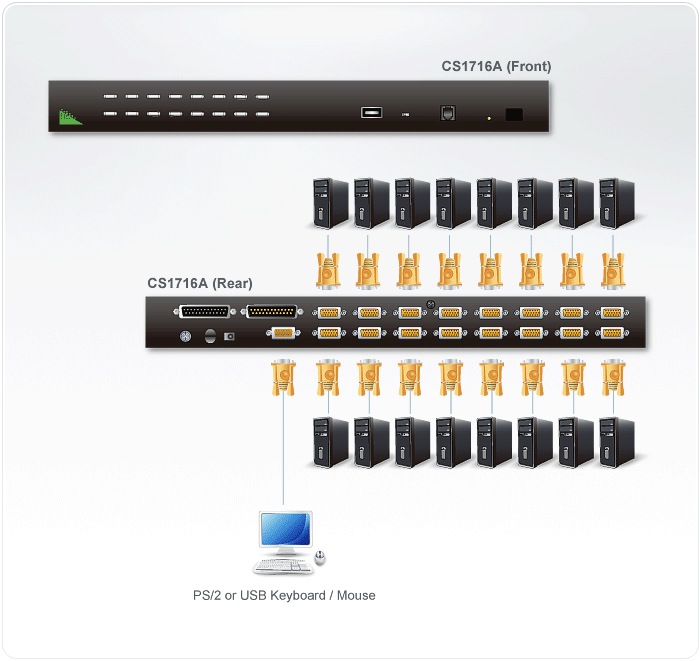

The ATEN CS1716A 16-Port PS/2-USB VGA KVM Switch is designed to simplify management of multiple computers from a single console. Supporting both USB and PS/2 interfaces, it provides flexible compatibility with various systems including Windows, Linux, Mac, and Sun platforms. Each unit can directly manage 16 computers, while daisy-chaining up to 31 additional units allows centralized control of up to 512 computers. The switch features superior video resolution up to 2048 × 1536, ensuring clear display output. Its integrated USB peripheral port enables connected computers to share USB devices conveniently. With features like Auto Scan, hot-plugging, OSD menu control, and firmware upgrades, the CS1716A delivers efficient, scalable, and professional KVM management for data centers and enterprise environments.

Technical Features
  • Brand: ATEN
  • Model: CS1716A
  • Product Type: 16-Port PS/2-USB VGA KVM Switch
  • Computer Connections: 16 Direct
  • Maximum Connections: Up to 512 via Daisy-Chain

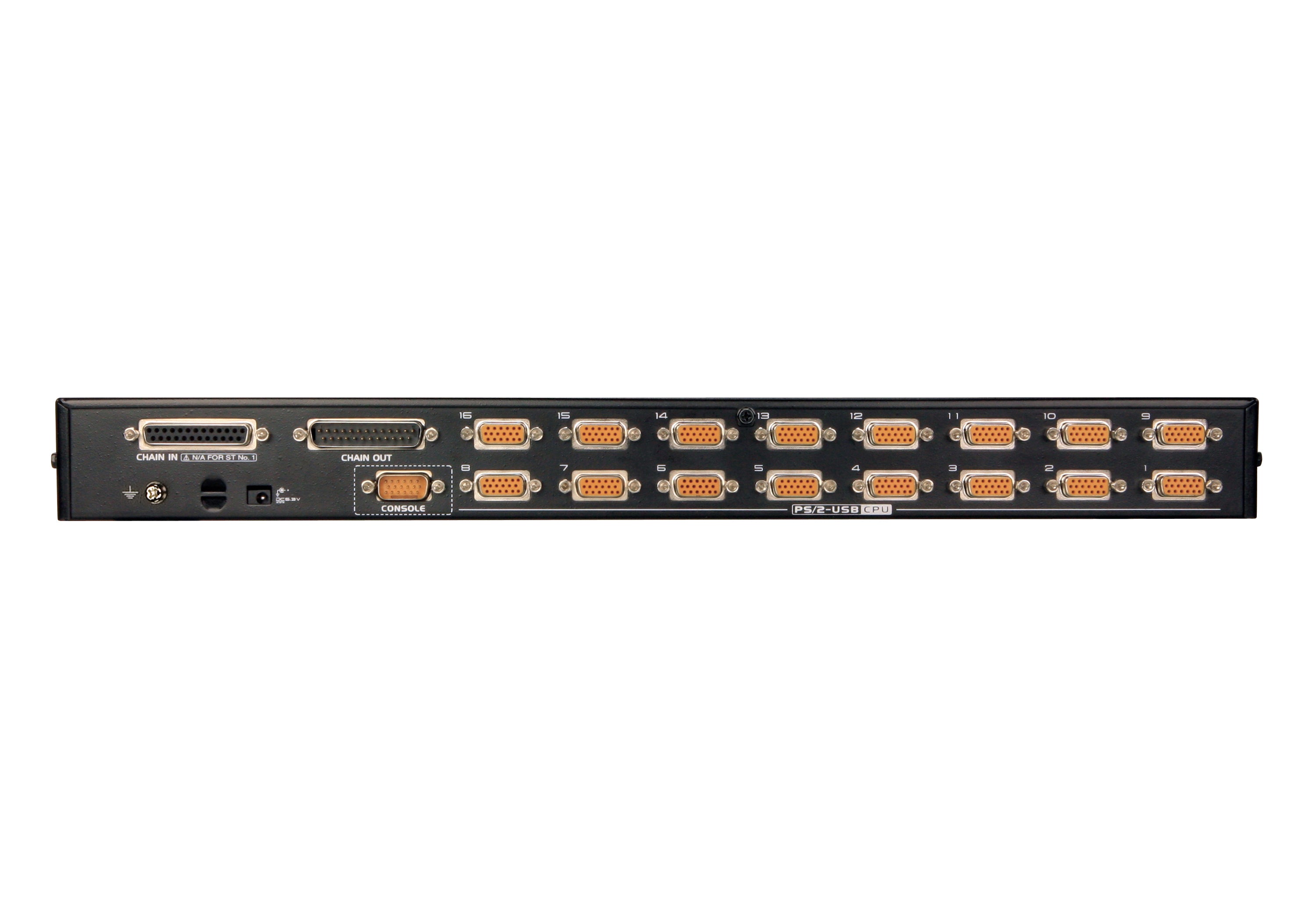

  • Console Ports: 1 × SPHD-18 Male
  • KVM Ports: 16 × SPHD-15/17 Female
  • Daisy Chain Ports: DB-25 Male / DB-25 Female
  • USB Port: 1 × USB Type-A (Peripheral Sharing)
  • Video Resolution: Up to 2048 × 1536; DDC2B
  • Keyboard/Mouse Emulation: PS/2 & USB
  • Port Selection: OSD Menu, Hotkeys, Push Buttons
  • Scan Interval: 1–255 Seconds
  • Power Consumption: DC 5.3V, approx. 6.6W
  • Operating Temperature: 0°C – 50°C
  • Storage Temperature: −20°C – 60°C
  • Humidity: 0–80% RH (Non-condensing)
  • Housing: Metal
