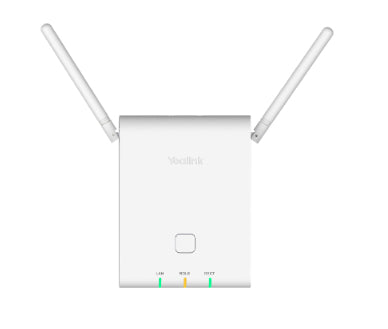

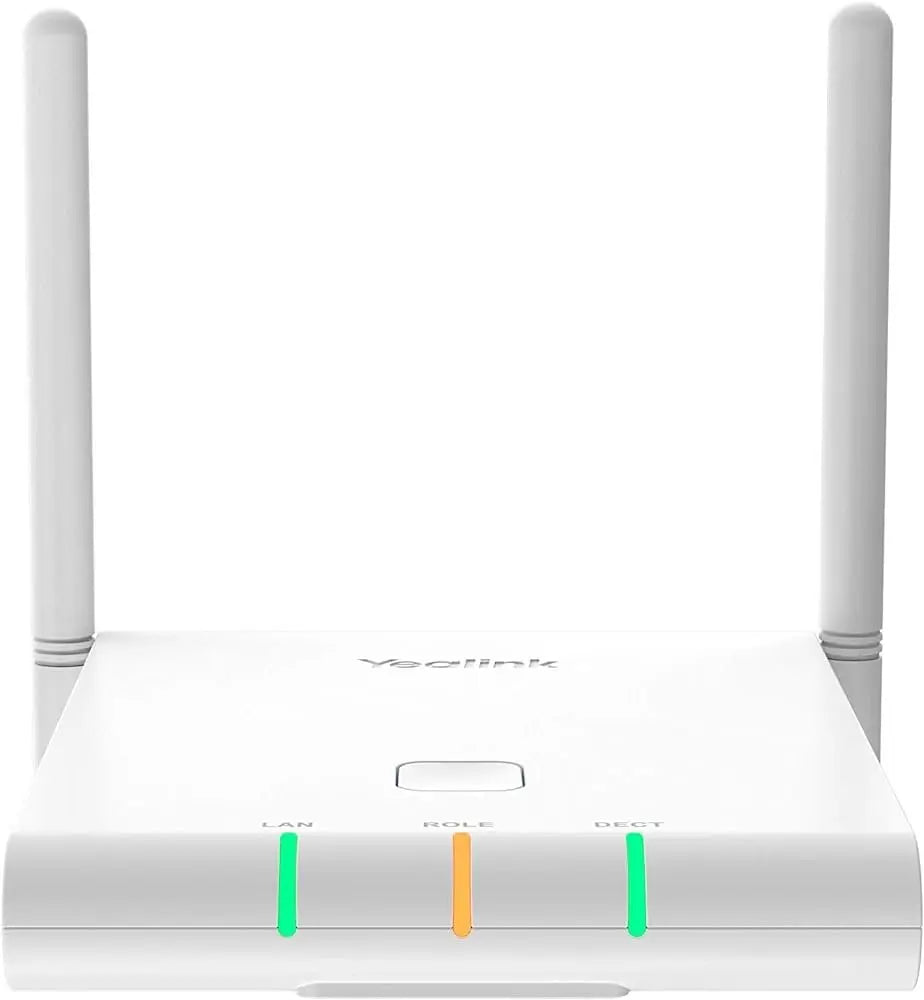

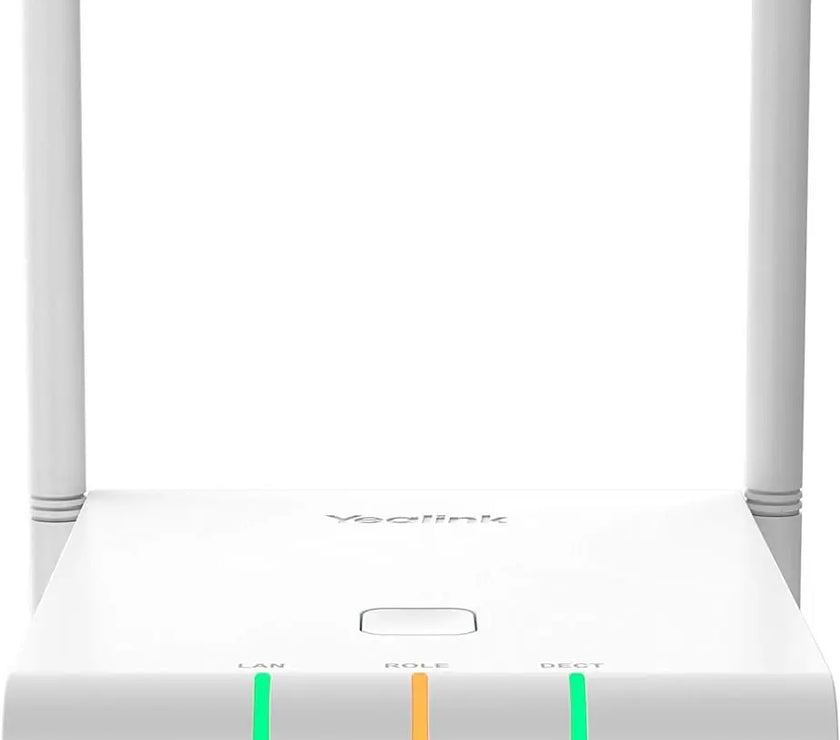

Yealink W90DM DECT base station White

Yealink W90DM DECT base station White

Regular price £212.45 GBP
Sale price: £212.45 GBP Regular price: £0.00 GBP
(VAT Incl.)
  • Up to 250 SIP accounts
  • Up to 60 base stations
  • Up to 250 handsets
In stock, 60 units
EAN: 6938818306202
SKU: W90DM
Vendor: Yealink
Order within xx hours for delivery on
Quantity

Performance

  • Number of handsets supported (max): 250
  • Security algorithms: AES, HTTPS, SHA-384, SHA-512, SRTP, TLS
  • Number of VoIP accounts: 250
  • Supported network protocols: SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS
  • Number of carrier frequencies: 2
  • Management protocols: TFTP/FTP/HTTP/HTTPS/RPS
  • Number of bases supported (max): 60
  • Wireless synchronization: Yes
  • Hearing aid compatibility: Yes
  • Dual-Tone Multi-Frequency (DTMF): Yes
  • XML browser: Yes
  • User access level: Yes
  • Over the Air Updates (OTA): Yes
  • Keypad lock: Yes
  • IPUI registration: Yes
  • Auto-provision: Yes
  • Harmonized System (HS) code: 85177900

Call Management

  • Number of parallel conferences: 3
  • Do not disturb function: Yes
  • Conference call: Yes
  • Call waiting: Yes
  • Call transfer: Yes
  • Call hold: Yes
  • Call forwarding: Yes
  • Anonymous call rejection: Yes
  • Anonymous call: Yes

  • Yealink W90DM DECT base station White
  • Quick start guide

Overview

The Yealink W90DM is a DECT Manager that works in conjunction with the W90B Base Station to provide a complete multi-cell DECT solution for flexible enterprise-scale communications. The W90DM is capable of handling up to 60 base stations, which then in turn are able to manage up to 250 handsets and 250 concurrent calls for total communications coverage throughout any space. The W90DM would be an excellent solution for extremely large spaces with enterprise-level communications requirements like warehouses, schools, supermarket chains and medical centres.



Technical Features

  • Sync over the DECT and LAN (Seamless handover and roaming)
  • Each Multicell System: - Up to 60 base stations - Up to 250 handsets - Up to 250 VoIP accounts - Up to 250 simultaneous calls - Up to 8 WB (4 active handsets) calls per base - Up to 8 NB calls per base
  • Up to 2 simultaneous calls per handset
  • Call hold, call transfer, 3-way conference
  • Switching between calls
  • Call waiting, mute, silence, DND
  • Caller ID with name and number
  • Anonymous call, Anonymous call rejection
  • Call forward (always/busy/no answer)
  • Speed dial, voicemail, redial
  • Message Waiting Indication (MWI)
  • Music on hold (server-based)
  • Local phonebook for up to 100 entries per handset
  • Remote phonebook/LDAP/XML phonebook
  • Phonebook search/import/export
  • Call history (all/missed/placed/received)
  • Reset to factory, reboot
  • Keypad lock, emergency call
  • Broadsoft directory, BroadSoft call log
  • Broadworks feature key synchronisation
  • Shared Call Appearance (SCA)
  • XML browser
  • IPUI registration
  • User access level
