Overview

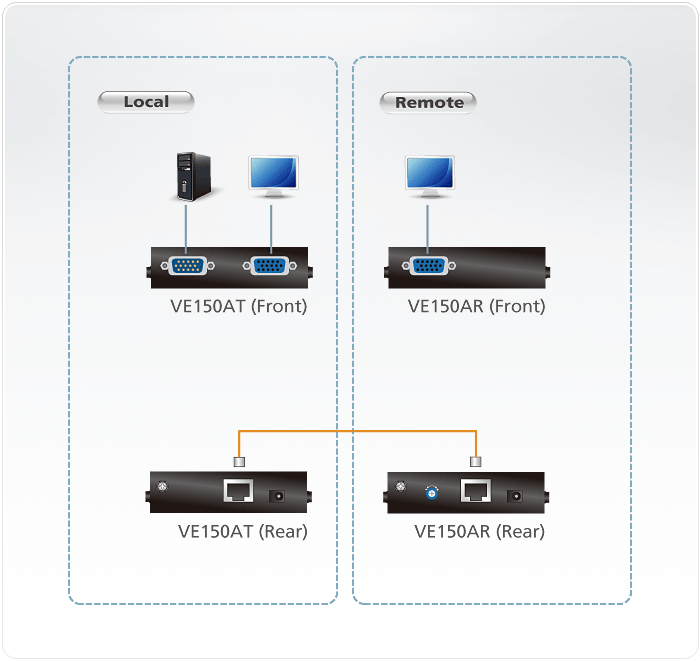

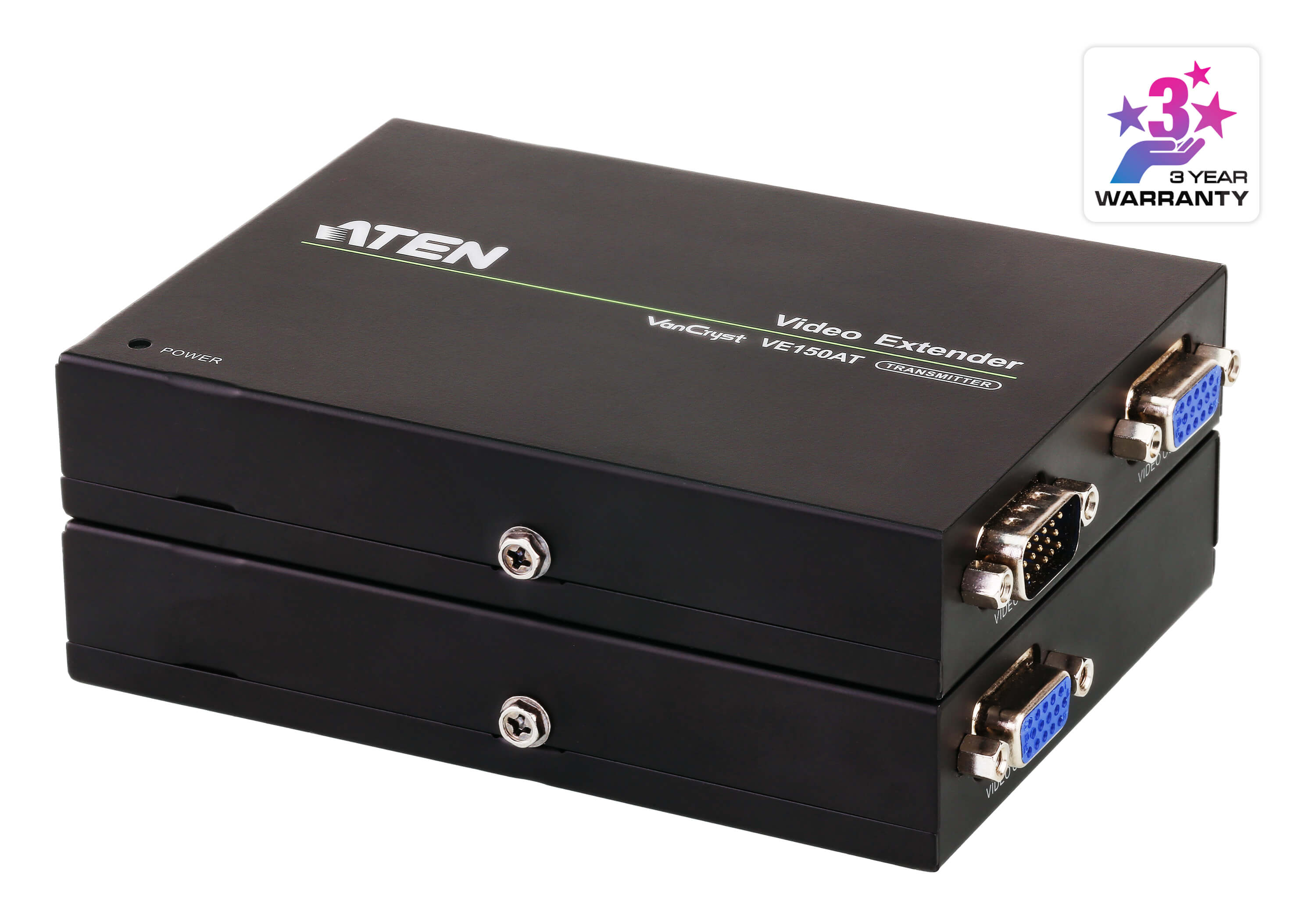

The ATEN VE150A VGA Cat 5 Extender is designed to transmit VGA video signals over long distances without signal loss. It consists of a local transmitter and remote receiver connected via Cat5e cable, allowing displays to be positioned up to 150m away from the source device. This makes it ideal for factories, control rooms, classrooms, digital signage, and security installations where equipment must remain in a protected area. The extender supports multiple VGA resolutions and widescreen formats while offering adjustable gain control to compensate for cable length. Built-in ESD protection enhances reliability, and its plug-and-play design ensures fast installation without software configuration.
Technical Features
- Brand: ATEN
- Model: VE150A
- Product Type: VGA Cat 5 Video Extender
- Maximum Distance: Up to 150m via Cat5e cable
- Video Resolution:
- 1920 × 1200 @ 30m
- 1600 × 1200 @ 100m
- 1280 × 1024 @ 150m

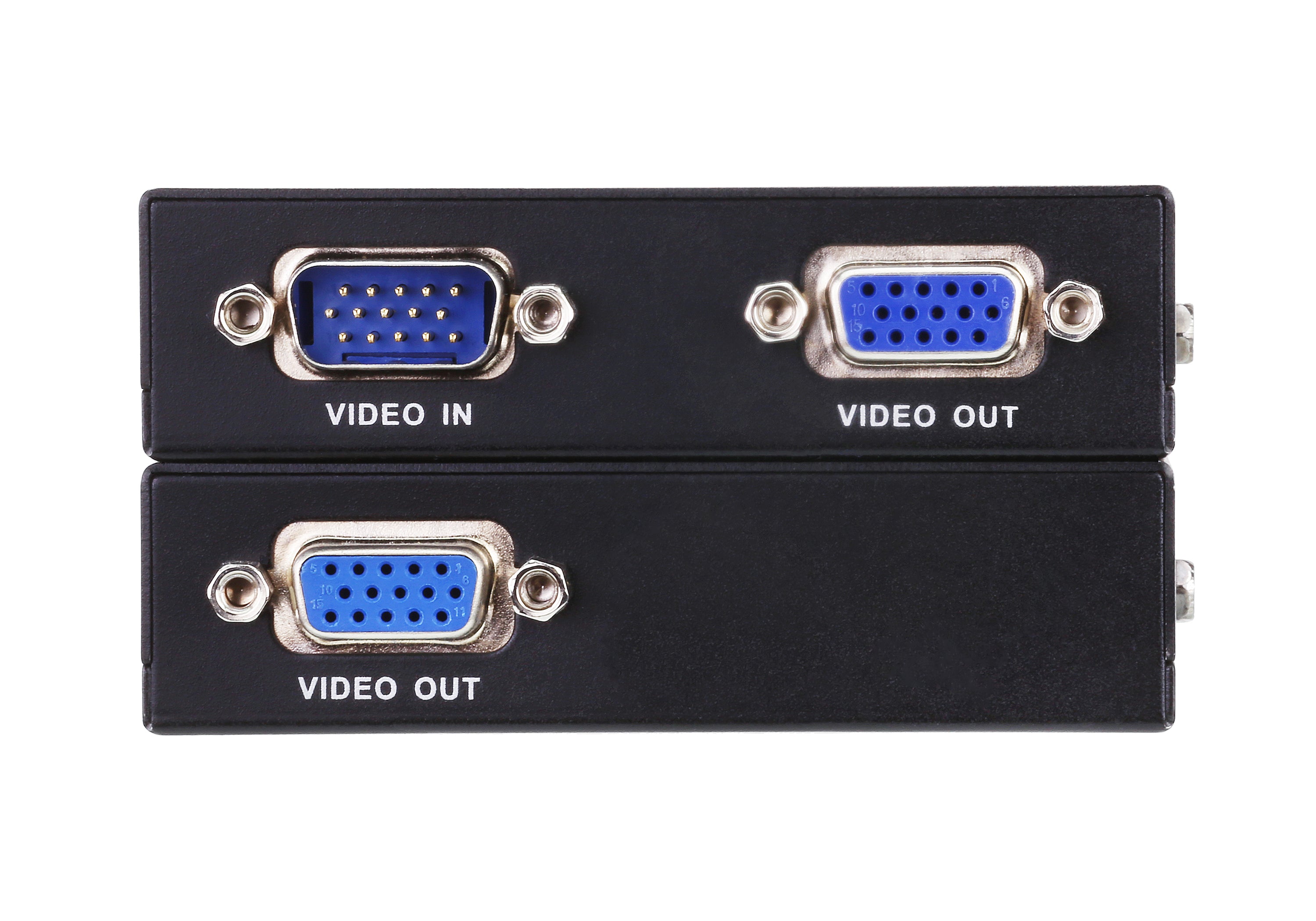

- Video Interface: VGA (HDB-15)
- Bandwidth: 300 MHz

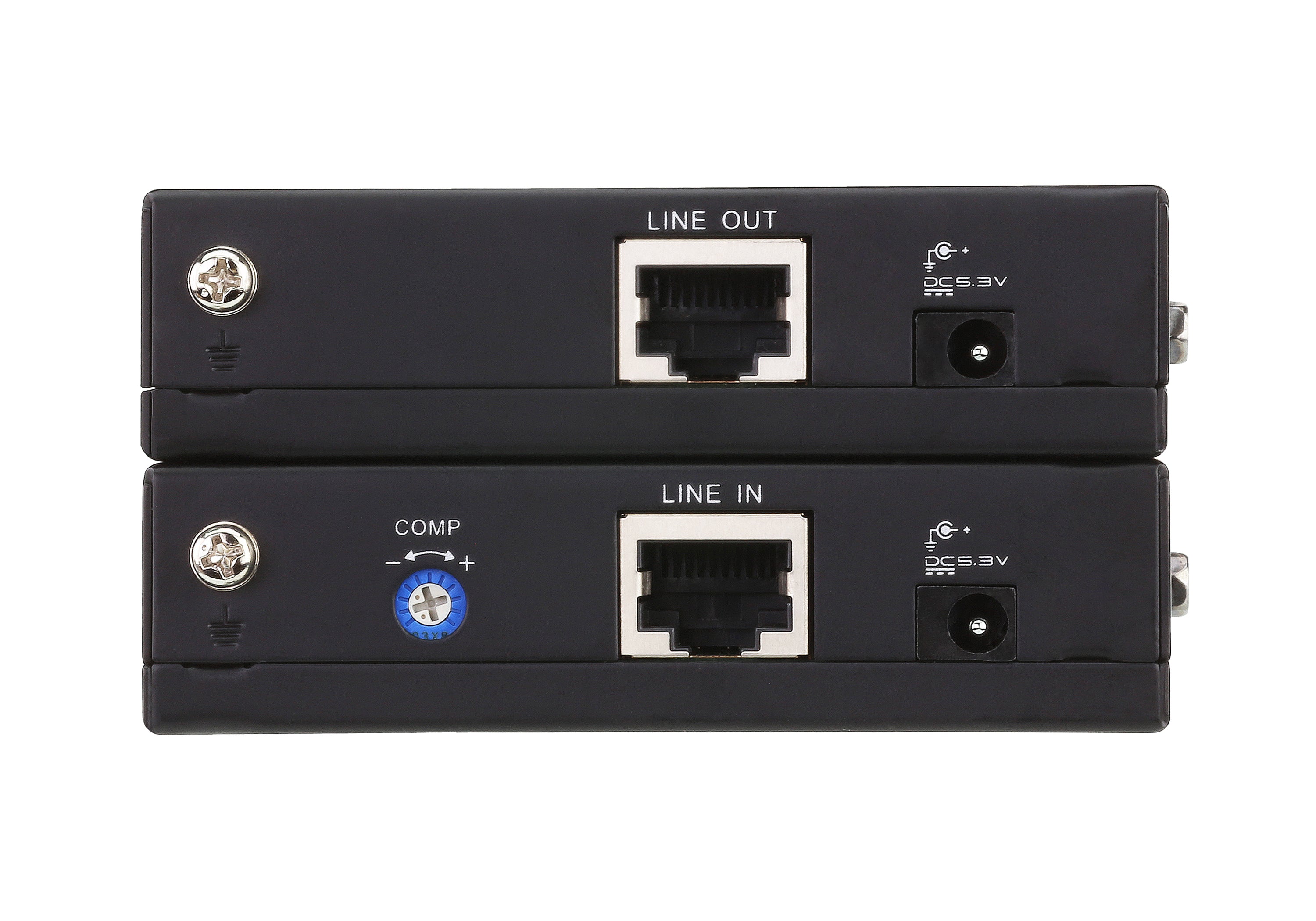

- Connection Type: RJ-45 (Cat5e)
- Signal Adjustment: Manual Gain Control
- ESD Protection: 8KV Contact / 15KV Air
- Power Supply: DC Adapter
- Operating Temperature: 0°C – 50°C
- Storage Temperature: −20°C – 60°C
- Humidity: 0–80% RH (Non-condensing)
- Housing: Metal
- Installation: Plug-and-Play / Rack Mountable
