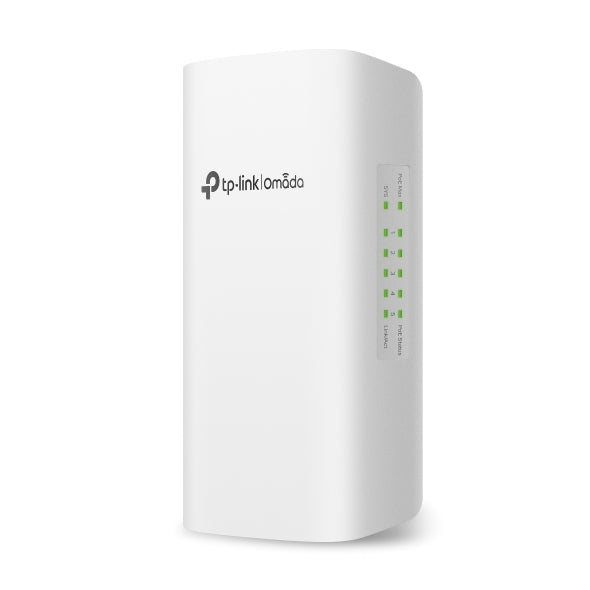

TP-LINK OMADA 5PT GB SMT SWTCH 1PT PoE

Name: TP-LINK OMADA 5PT GB SMT SWTCH 1PT PoE
Brand: TP-Link
SKU: SG2005P-PD
Price: 87.31 GBP
Availability: OutOfStock

£87.31 GBP

£87.31 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

64W PoE budget
Outdoor weatherproof enclosure

Out of stock

EAN: 4897098689332

SKU: SG2005P-PD

Vendor: TP-Link

Order within xx hours for delivery on

Product Specification

Fan Quantity: Fanless
Power Supply: Obtain power from 802.3af/at/bt PoE source
PoE Ports (RJ45): PoE In: Port 5 (802.3af/at/bt), PoE Out: Ports 1–4 (802.3af/at)
PoE Power Budget: 64 W (802.3bt Type 4), 44 W (802.3bt Type 3), 19 W (802.3at), 6 W (802.3af)
Dimensions (W × D × H): 100 × 38.5 × 170 mm (3.9 × 1.5 × 6.7 in)
Max Power Consumption: 71.5 W (802.3bt Type 4)
Max Heat Dissipation: 243.99 BTU/hr (802.3bt Type 4)
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.44 Mpps
MAC Address Table: 8K entries
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB

Box Content

SG2005P-PD
Mounting Kits
Installation Guide

Documents

Datasheet

Technical Features

PoE Distance: Up to 200 m with standard PoE passthrough, maintaining gigabit speeds
Ports: 1× Gigabit PoE++ In, 4× PoE+ Out
PoE Budget Output: Supports 64 W / 44 W / 19 W / 6 W when powered by 802.3bt Type 4, Type 3, 802.3at, and 802.3af
Outdoor Weatherproof: IP55 waterproof, dustproof, UV-resistant, -40°C to 60°C operating temperature, 4KV lightning protection

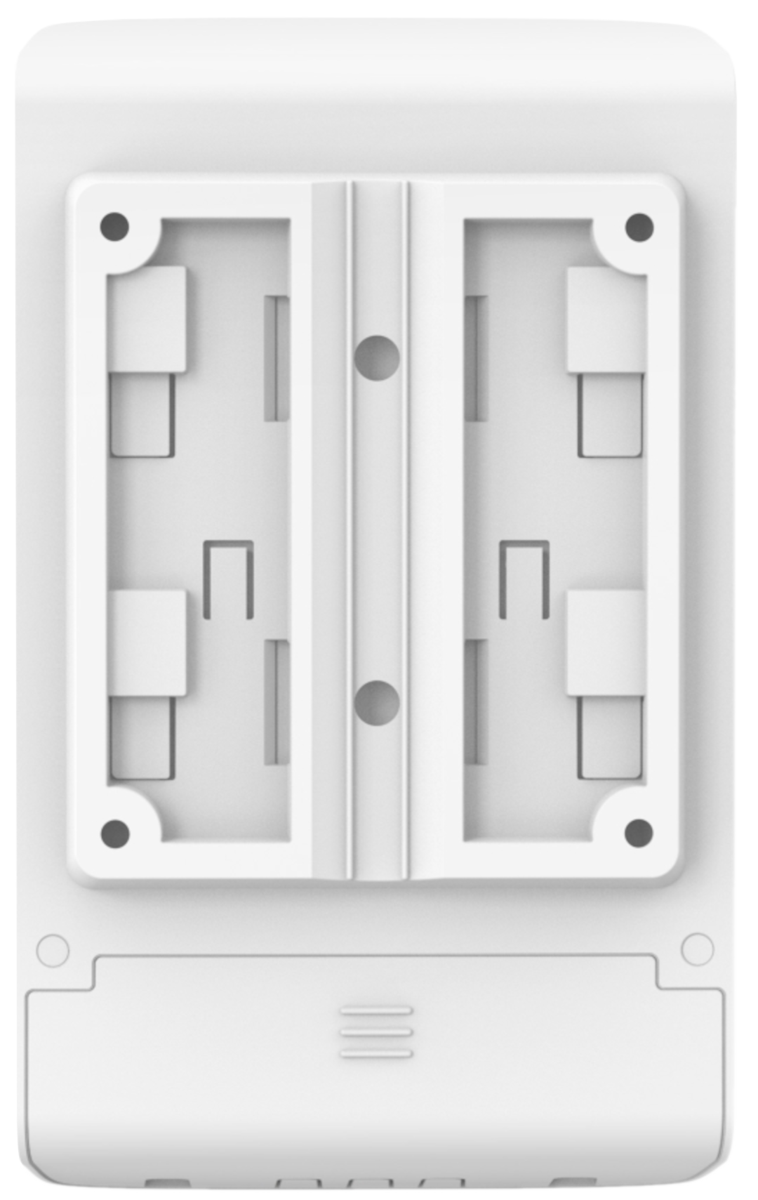

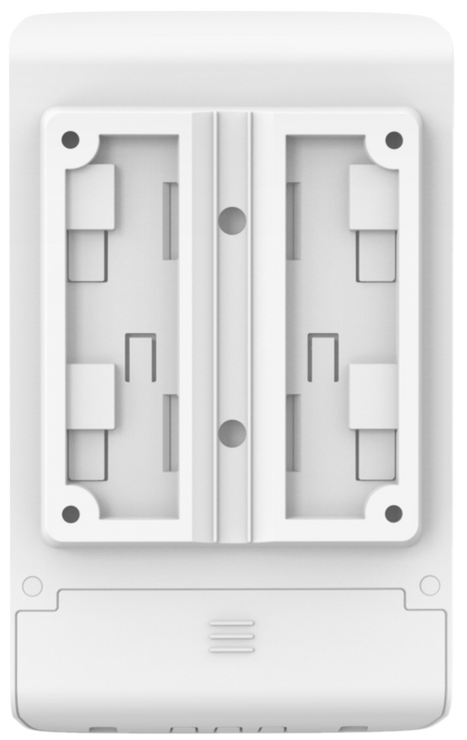

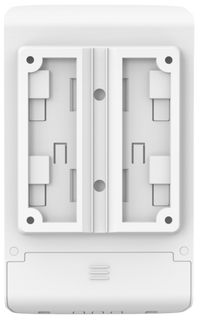

Easy Installation: Wall or pole mounting with included kits
Centralized Cloud Management: Integrates with Omada SDN for cloud access, remote, and multi-site management
Value-Added Features: Static Routing, ACL, QoS, and VLAN support

TP-LINK OMADA 5PT GB SMT SWTCH 1PT PoE

£87.31 GBP

£87.31 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

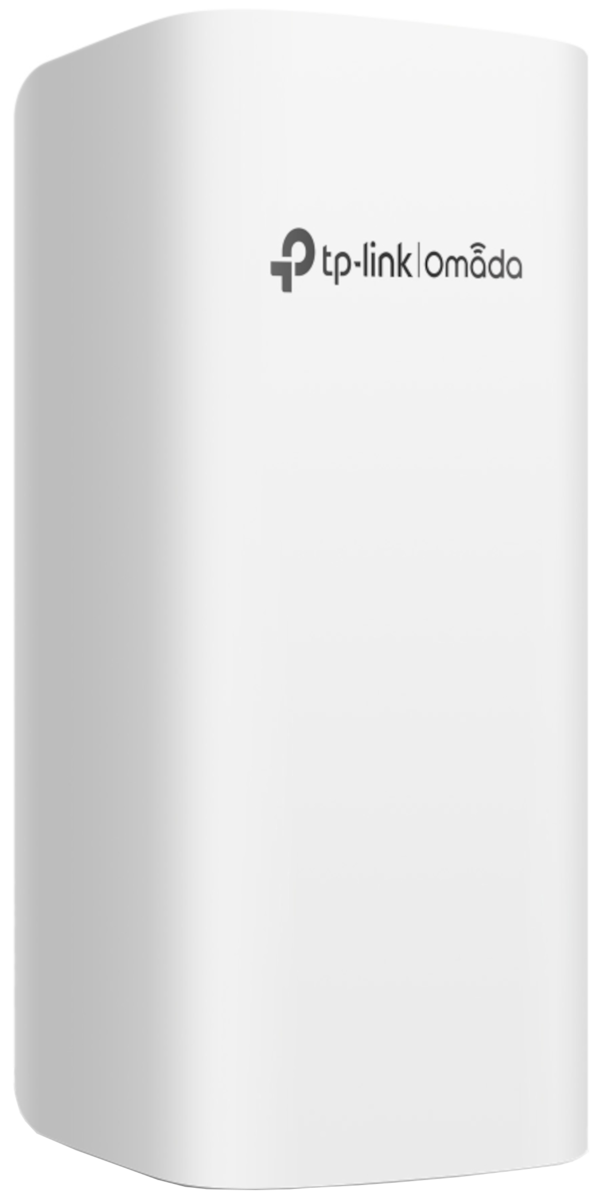

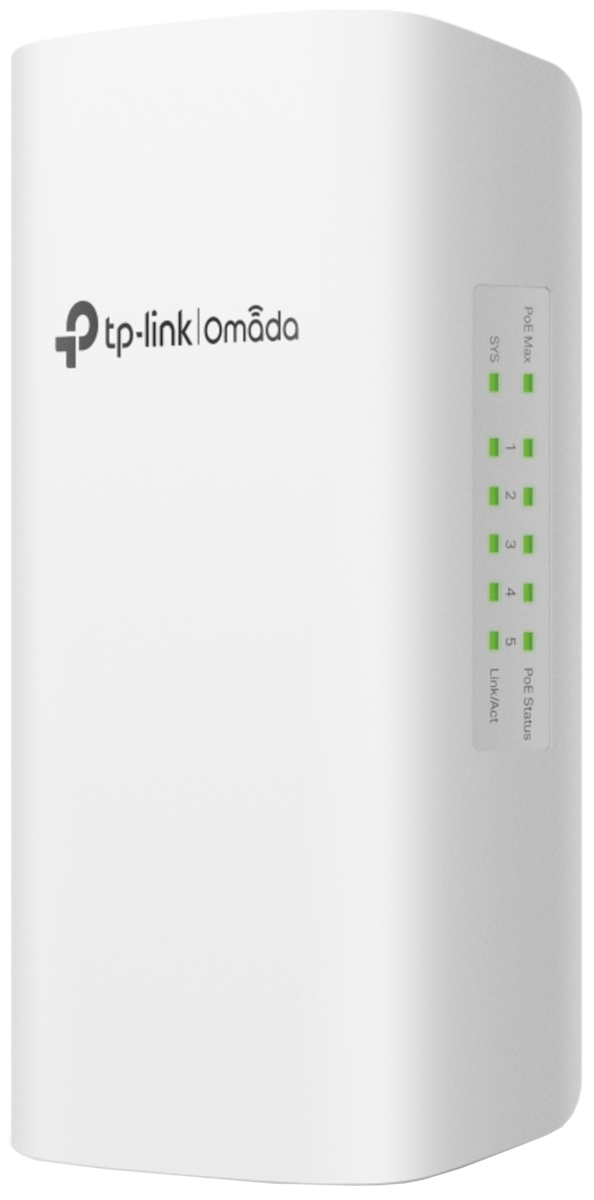

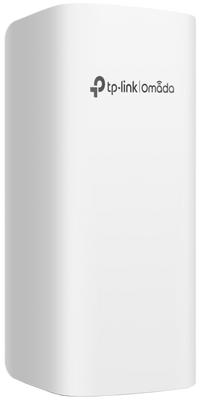

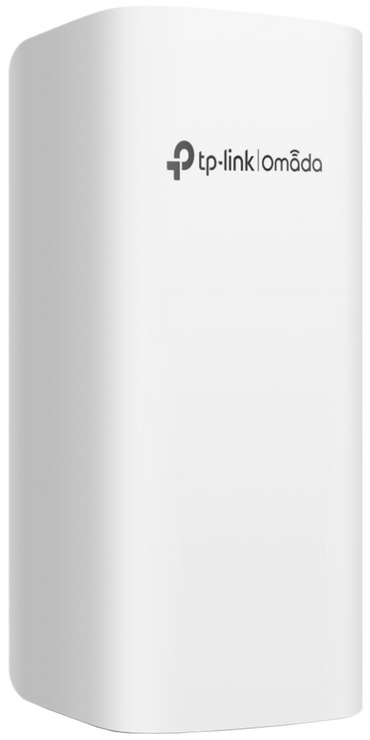

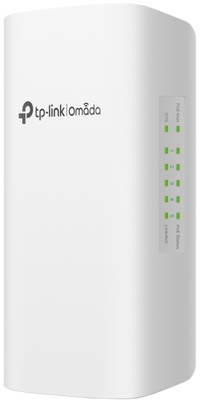

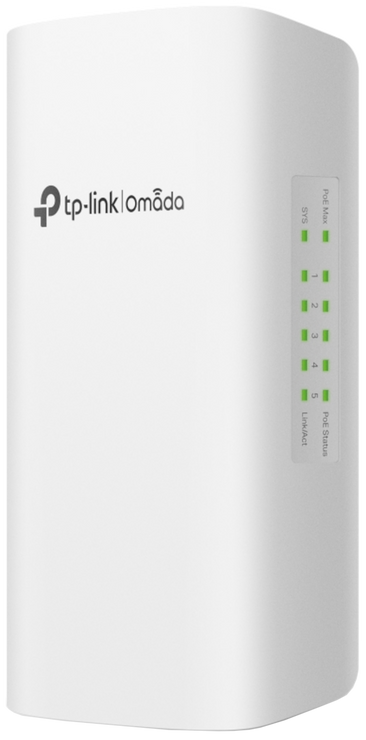

The TP-LINK Omada SG2005P-PD is a 5-port outdoor smart Gigabit switch that is powered by PoE and provides up to 64W of PoE budget for connected devices. It features one PoE++ in port and four PoE+ out ports, with the unique ability to extend PoE distance up to 200 meters without losing gigabit speeds. The switch is designed for harsh outdoor environments, with an IP55 weatherproof, UV-resistant enclosure, a wide operating temperature range, and 4KV lightning protection.
