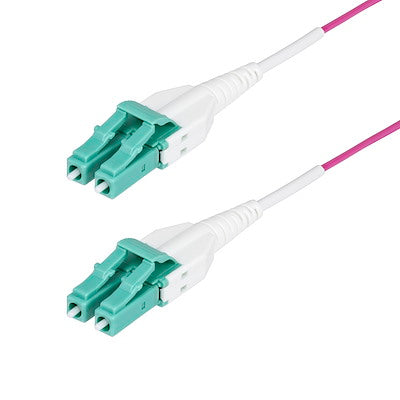

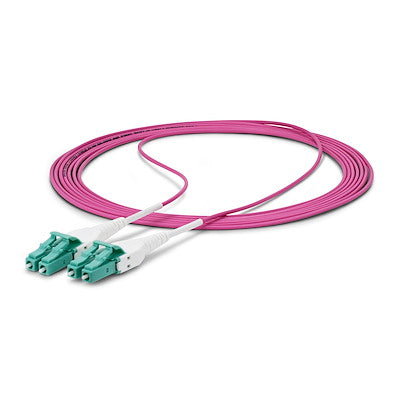

StarTech.com LC/LC Fiber Cable

StarTech.com LC/LC Fiber Cable

£22.19 GBP
Sale price: £22.19 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Optimal Performance
  • OFNR Riser Rated
Out of stock
EAN: 65030920797
SKU: V427631
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Length: 10-meter (33-foot)
  • Color: Erika Violet (OM4)
  • Connector Type: LC/LC UPC
  • Core/Cladding: 50/125µm
  • Wavelength: 850nm/1300nm LED/VCSEL
  • Modal Bandwidth: 2000MHz/km at 850nm
  • Jacket Type: OFNR (Riser)
  • Cable Outer Diameter: 1.6mm
  • Minimum Bend Radius: 7.5mm (0.29in)
  • 1 - 10m OM4 Multimode Fiber Optic Cable LC - Lc

Datasheet

Overview

This OM4 LC to LC Multimode Duplex Fiber Optic Patch cable delivers reliable connectivity across 40 and 100 Gigabit networks. The TIA-standard Erika Violet jacket clearly distinguishes OM4 from Aqua OM3/OM4 cabling, eliminating guesswork in critical network setups. The compact uniboot connector design enables easy insertion and removal in high-density installations.

Technical Features
  • Erika Violet OM4: OM4 multimode fiber cable immune to EMI; supports up to 100Gbps; Erika Violet jacket TIA-standardized for OM4 to avoid confusion with Aqua OM3/OM4 cables; compact uniboot design for better airflow and access in dense installations
  • Quality Construction: LC/LC connectors with UPC polished ends improve return loss; robust molded strain reliefs reduce wear; protective Aramid yarn increases tensile strength
  • Safety and Reliability: Individually tested for OM4 performance with included test report; OFNR riser-rated cable jacket minimizes flame spread; attenuation value of 3dB/km meets TIA standards
  • Wide Compatibility: Supports 1/10/40/100 Gbps full duplex; backward compatible with OM3; ideal for SANs, data servers, fiber switches, and LC-based SFP/SFP+ transceivers
