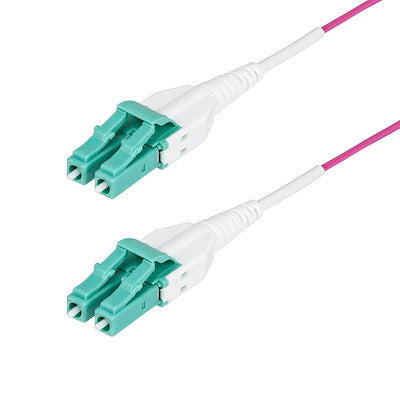

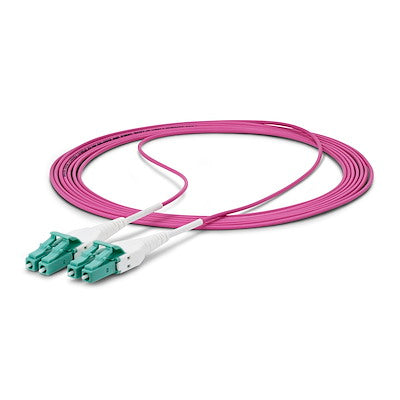

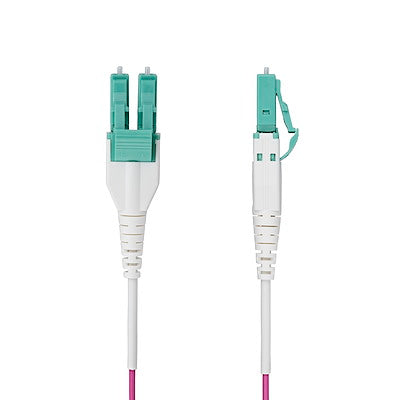

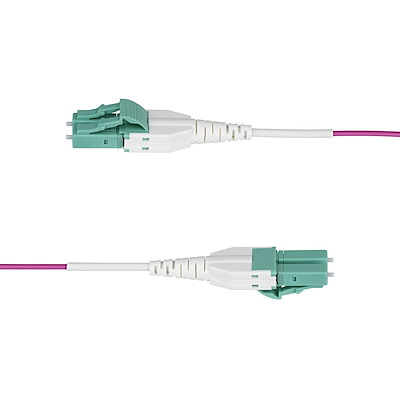

StarTech LC/LC Fiber Cable

StarTech LC/LC Fiber Cable

£12.30 GBP
Sale price: £12.30 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • OM4 LC fiber cable
  • 100Gbps ready
Out of stock
EAN: 65030920759
SKU: V427627
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Brand: StarTech
  • Length: 2 m (6.6 ft)
  • Color: Erika Violet (OM4)
  • Connector Type: LC/LC UPC
  • Fiber Size: 50/125 µm
  • Wavelength: 850 nm / 1300 nm (LED/VCSEL)
  • Modal Bandwidth: 2000 MHz/km @ 850 nm
  • Jacket Rating: OFNR (Riser)
  • Cable OD: 1.6 mm
  • Minimum Bend Radius: 7.5 mm (0.29 in)
  • 1x 2m OM4 Multimode Fiber Optic Cable LC - LC

Datasheet

Overview

This OM4 LC to LC Multimode Duplex Fiber Optic Patch cable delivers reliable connectivity across 40 and 100 Gigabit networks. The TIA-standard Erika Violet jacket clearly distinguishes OM4 from Aqua OM3/OM4 cabling, eliminating guesswork in critical network setups. The compact uniboot connector design enables easy insertion and removal in high-density installations. Built with laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules maintain accurate fiber alignment to prevent connectivity issues and minimize insertion loss.

Technical Features
  • Erika Violet OM4: OM4 multimode fiber supports up to 100Gbps, immune to EMI; Erika Violet jacket prevents OM3/OM4 confusion; compact uniboot design improves airflow
  • Quality Construction: LC/LC UPC polished connectors for improved return loss; molded strain reliefs and Aramid yarn for durability
  • Safety and Reliability: Individually tested with test report; OFNR riser-rated jacket; 3dB/km attenuation meets TIA standards
  • Wide Compatibility: Supports 1/10/40/100Gbps; backward compatible with OM3; ideal for SANs, servers, switches, and SFP/SFP+ transceivers
