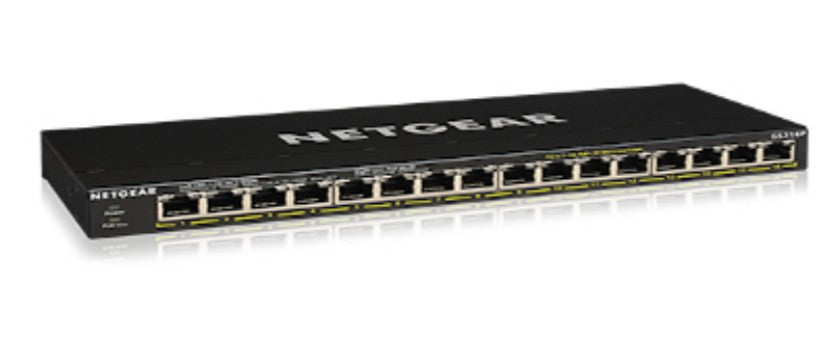

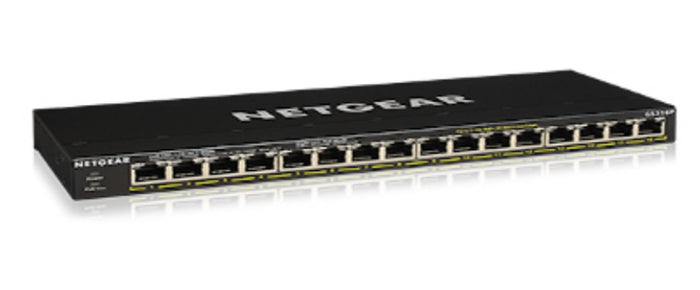

Netgear 16 Port Gigabit Unmanaged PoE+ Switch 115W

Name: Netgear 16 Port Gigabit Unmanaged PoE+ Switch 115W
Brand: Netgear
SKU: GS316P-100EUS
Price: 191.38 GBP
Availability: InStock

£191.38 GBP

£191.38 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Brand: NETGEAR

In stock, 1 unit

EAN: 606449146882

SKU: GS316P-100EUS

Vendor: Netgear

Order within xx hours for delivery on

Product Specification

Brand: NETGEAR
Product name: GS316P
Product code: GS316P-100EUS
EAN/UPC code: 0606449146882
Choice of connectivity: Fast Ethernet and Gigabit Ethernet
Energy-efficient technology: Power savings
Auto-MDI/MDIX: Eliminates the need for crossover cables
Switching architecture: Non-blocking for maximum throughput at wire speed
Auto-negotiation: Automatic connection at the highest common speed between switch and an end device
PoE option: Powers IP security cameras, VoIP phones, wireless access points, and other PD-powered devices
Design: Fanless for silent operation
Mounting: Desktop, wall-mountable or rack-mountable (GS324, GS348)

Box Content

NETGEAR 16-Port Gigabit Ethernet Unmanaged PoE+ Switch
Power Adapter
Power Cord
Wall Installation Kit
Rubber Feet
Mounting Ties
Quick Install Guide

Documents

datasheet

Technical Features

Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support
- Full duplex
- Flow control support
- Auto MDI/MDI-X
Data transmission
- Switching capacity: 32 Gbit/s
- MAC address table: 4000 entries
- Latency (1 Gbps): 3.7 µs
- Jumbo frames support
- Jumbo frames: 9216
- Packet forwarding rate (1 Gbps): 1,448,000 pps
- Packet buffer memory: 1 MB
Design
- Rack mounting
- Product colour: Black
- Housing material: Metal
- LED indicators
- Wall mountable
Performance
- Mean time between failures (MTBF): 2,362,192 h
Power
- DC input voltage: 54 V
- Input current: 2.4 A
- Power consumption (max): 127.9 W
- Power over Ethernet (PoE)
- Power over Ethernet plus (PoE+) ports quantity: 16
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Operating altitude: 0 - 3000 m
Heat dissipation
- 437.42 BTU/h
Weight & dimensions
- Width: 286 mm
- Depth: 102 mm
- Height: 27 mm
- Weight: 880 g
Logistics data
- Harmonized System (HS) code: 85176990

Netgear 16 Port Gigabit Unmanaged PoE+ Switch 115W

£191.38 GBP

£191.38 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
